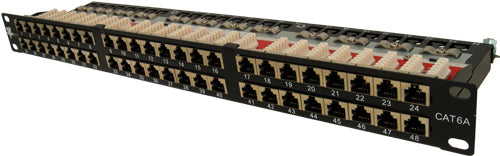

Vertical Cable 042-C6A/48 CAT6A Shielded Patch Panel - 48 Port
SKU#: 042-C6A/48
UPC#:845643029045
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 19" Rack Mountable

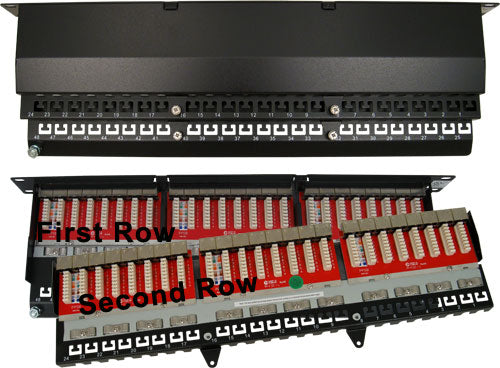

- Krone Type Termination
- Shielded to Protect Against EMI, RFI
- Easily Identifiable Number Labels
- 568A and 568B Wiring Color Codes
- FireFold Signature Lifetime Warranty
- Specs+
- Housing Material: SECC
- Housing Thickness: 1.2mm
- Housing Dimensions: EIA-310D (1U)
- Housing Dust Cover: Polycarbonate 94V-2

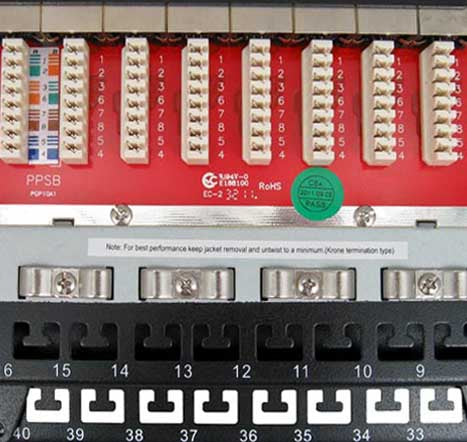

- IDC Type: Krone Type
- IDC Operating Life: Minimum 250 Reterminations
- IDC Housing: PC + 5~10% Glass Fiber, UL 94V-2
- IDC Terminal: Phosphor Bronze, Tin Plated
- IDC Contact Thickness: 0.5mm
- IDC Contact Plating: Tin Plating
- Compatibility: 22-26AWG Solid Wire
- RJ45 Contact Material: Nickel Plated Phosphor Bronze
- Contact Life: Minimum 750 Insertions
- Contact Finish: 50µ Gold Plated
- Jack Housing: PBT-Glass Fiber, UL 94V-0
- Contact Shielding: Nickel Plated Bronze
- Printed Circuit Board Material: FR4, UL 94V-0
- Circuit Board Operating Temperature: -10º to 60º C<
- Circuit Board Thickness: 1.6mm
- Certifications: UL, ETL Listed, ISO/IEC 11801, ANSI/TIA/EIA 568C.2

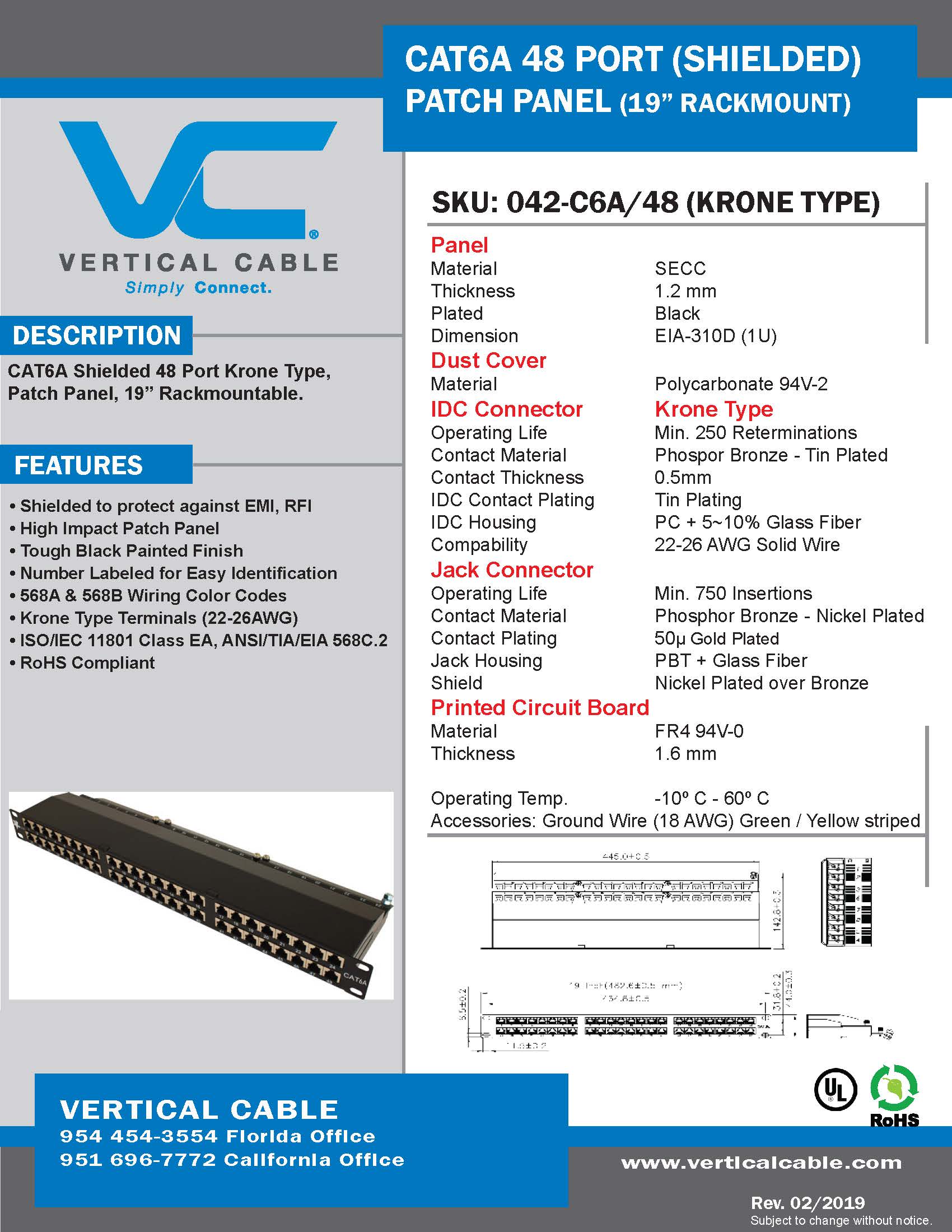

- SPEC SHEET
- Reviews+
- 19" Rack Mountable
- Krone Type Termination
- Shielded to Protect Against EMI, RFI
- Easily Identifiable Number Labels
- 568A and 568B Wiring Color Codes
- FireFold Signature Lifetime Warranty
- Housing Material: SECC
- Housing Thickness: 1.2mm
- Housing Dimensions: EIA-310D (1U)
- Housing Dust Cover: Polycarbonate 94V-2
- IDC Type: Krone Type
- IDC Operating Life: Minimum 250 Reterminations
- IDC Housing: PC + 5~10% Glass Fiber, UL 94V-2
- IDC Terminal: Phosphor Bronze, Tin Plated
- IDC Contact Thickness: 0.5mm
- IDC Contact Plating: Tin Plating
- Compatibility: 22-26AWG Solid Wire
- RJ45 Contact Material: Nickel Plated Phosphor Bronze
- Contact Life: Minimum 750 Insertions
- Contact Finish: 50µ Gold Plated
- Jack Housing: PBT-Glass Fiber, UL 94V-0
- Contact Shielding: Nickel Plated Bronze
- Printed Circuit Board Material: FR4, UL 94V-0
- Circuit Board Operating Temperature: -10º to 60º C<
- Circuit Board Thickness: 1.6mm
- Certifications: UL, ETL Listed, ISO/IEC 11801, ANSI/TIA/EIA 568C.2
- SPEC SHEET

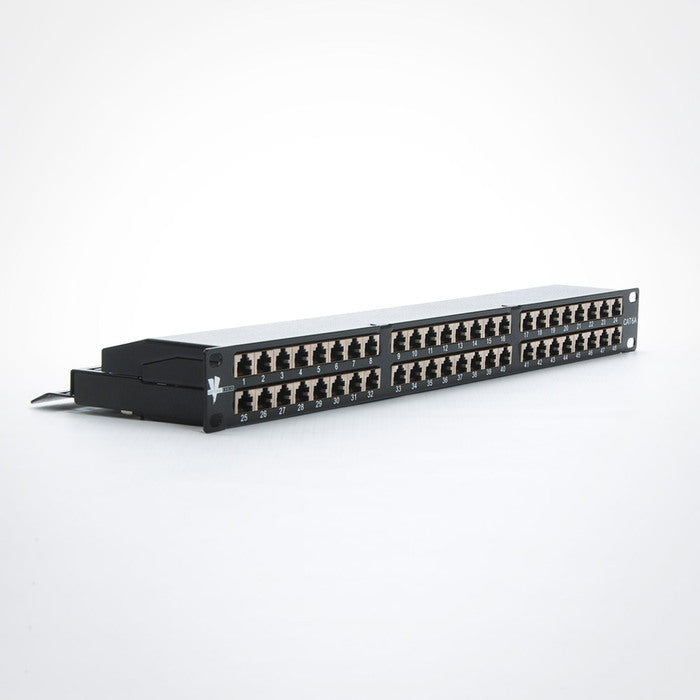

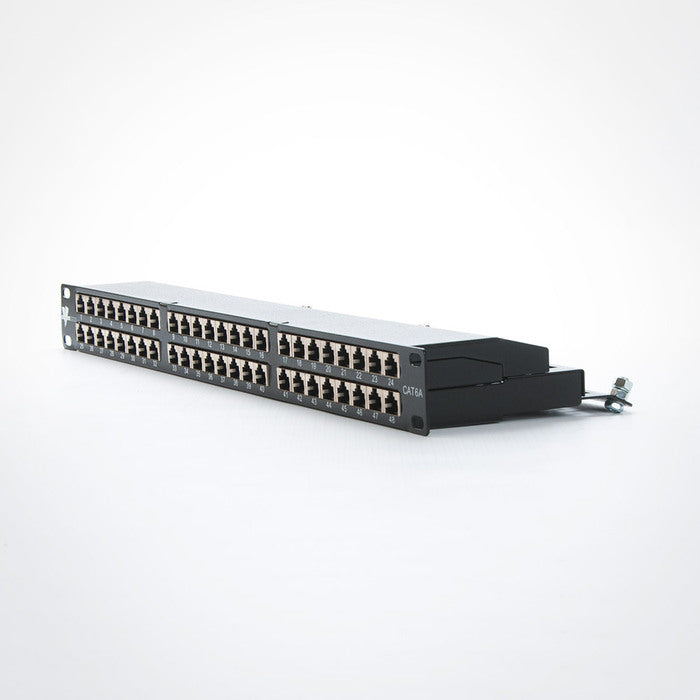

CAT6A Shielded 48 Port Krone Type Patch Panel, 19” Rackmountable
Vertical Cable’s 042-C6A/48 is a Cat6A 48 Port Patch Panel for use in networking installations. This rack mountable patch panel is fully shielded against electromagnetic and radio frequency interference and comes complete with an associated ground wire. The high-impact Krone type terminations support 568A or 568B wiring codes, and the clearly labeled ports make identification quick and easy. Specially designed for use with a variety of Cat6A cables, this patch panel can accommodate 22-26AWG solid copper wires. The heavy-duty professional construction is rated and tested for a minimum of 250 re-terminations and at least 750 jack insertions, guaranteeing lasting quality and a lifetime of use.
CAT6A Shielded 48 Port Krone Type Patch Panel, 19” Rackmountable
Vertical Cable’s 042-C6A/48 is a Cat6A 48 Port Patch Panel for use in networking installations. This rack mountable patch panel is fully shielded against electromagnetic and radio frequency interference and comes complete with an associated ground wire. The high-impact Krone type terminations support 568A or 568B wiring codes, and the clearly labeled ports make identification quick and easy. Specially designed for use with a variety of Cat6A cables, this patch panel can accommodate 22-26AWG solid copper wires. The heavy-duty professional construction is rated and tested for a minimum of 250 re-terminations and at least 750 jack insertions, guaranteeing lasting quality and a lifetime of use.
