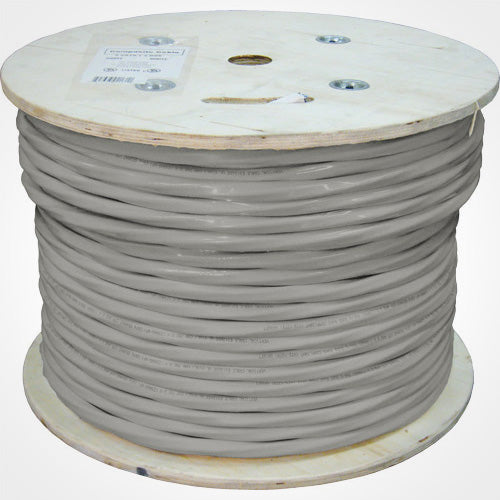

Vertical Cable 1000ft Bulk Solid CAT3 Cable - 24AWG, CMR - 25 Pair
SKU#: CAT3-25P-GRY
UPC#:
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Great for Communication, Telephony, & Security System Applications
- Color Striped Pairs for Easy Identification
- Solid Bare Copper Conductors for Maximum Conductivity
- Excellent Attenuation & Crosstalk
- Ripcord for Easy Stripping
- Sequential Foot Markers on Jacket
- Specs+
- 25 Pair
- 50 Conductor
- 24AWG Solid Bare Copper Conductors
- Diameter (±0.005mm): 0.475
- Rated Temperature: 70ºC
- Rated Voltage: 30V
- CM Product Standard Certification
- Insulation: PVC
- Average Thickness: 0.188mm
- Minimum Point Thickness: 0.170mm
- Diameter (±0.20mm): 0.85mm
- Twisted Pair Diameter (±0.01mm): 1.70mm
- Nylon Tape
- Assembly Diameter: 7.80mm
- PVC Jacket
- Average Thickness: 0.50mm
- Minimum Point Thickness: 0.45mm
- Outer Diameter (±0.20mm): 9.50mm
- Rip Cord
- Impedance: 100±15 Ohms
- D-C Resistance of Each Core (Ohms/km): 98 Max
- Average of Imbalance of D-C Resistance Upon Cores: ≤2.0%
- Exceeds EIA/TIA 568 B.2 Standards
- ETL Listed
- RoHS Compliant
- 1000ft Pull Box
- Gray
- Reviews+
- Great for Communication, Telephony, & Security System Applications
- Color Striped Pairs for Easy Identification
- Solid Bare Copper Conductors for Maximum Conductivity
- Excellent Attenuation & Crosstalk
- Ripcord for Easy Stripping
- Sequential Foot Markers on Jacket
- 25 Pair
- 50 Conductor
- 24AWG Solid Bare Copper Conductors
- Diameter (±0.005mm): 0.475
- Rated Temperature: 70ºC
- Rated Voltage: 30V
- CM Product Standard Certification
- Insulation: PVC
- Average Thickness: 0.188mm
- Minimum Point Thickness: 0.170mm
- Diameter (±0.20mm): 0.85mm
- Twisted Pair Diameter (±0.01mm): 1.70mm
- Nylon Tape
- Assembly Diameter: 7.80mm
- PVC Jacket
- Average Thickness: 0.50mm
- Minimum Point Thickness: 0.45mm
- Outer Diameter (±0.20mm): 9.50mm
- Rip Cord
- Impedance: 100±15 Ohms
- D-C Resistance of Each Core (Ohms/km): 98 Max
- Average of Imbalance of D-C Resistance Upon Cores: ≤2.0%
- Exceeds EIA/TIA 568 B.2 Standards
- ETL Listed
- RoHS Compliant
- 1000ft Pull Box
- Gray

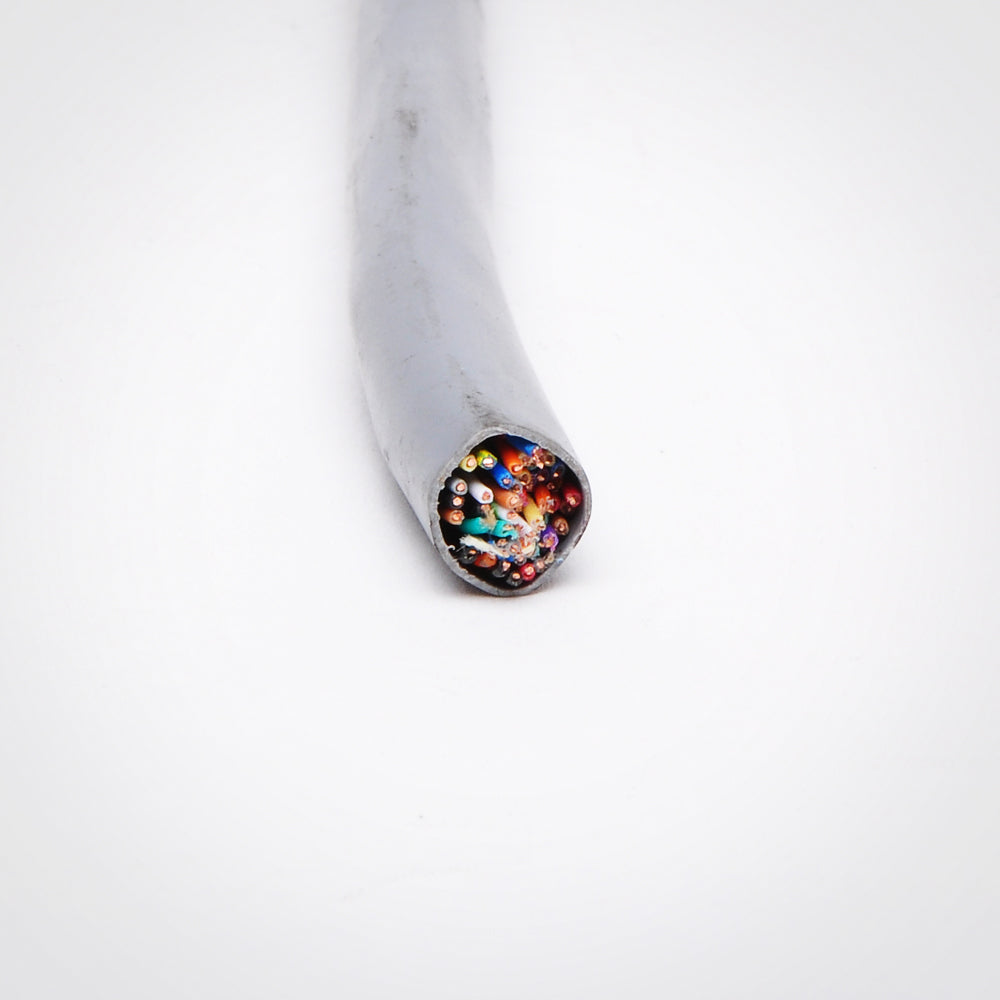

Vertical Cable 1000ft Bulk Solid CAT3 Cable
Whether you're using it for voice, data, or security this Cat3 1000ft bulk cable provides the quality and convenience you need. It features color striped pairs for easy identification, solid bare copper conductors for maximum conductivity, a ripcord for easy stripping and sequential foot markers on the jacket to make measuring a breeze. It is constructed of 24AWG 100% solid bare copper conductors with polyethylene (PE) insulation and a PVC jacket. This Cat3 cable also is assured by our FireFold Signature Lifetime Warranty and a money back guarantee.
Vertical Cable 1000ft Bulk Solid CAT3 Cable
Whether you're using it for voice, data, or security this Cat3 1000ft bulk cable provides the quality and convenience you need. It features color striped pairs for easy identification, solid bare copper conductors for maximum conductivity, a ripcord for easy stripping and sequential foot markers on the jacket to make measuring a breeze. It is constructed of 24AWG 100% solid bare copper conductors with polyethylene (PE) insulation and a PVC jacket. This Cat3 cable also is assured by our FireFold Signature Lifetime Warranty and a money back guarantee.
