Cat5E Cable by the Foot - 24AWG Solid 350MHz CMR Bare Copper Ethernet
SKU#: CAT5E-FOOT-BLU
UPC#:
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Purchase Only the Length You Need - No Leftovers!
- 24AWG Solid Copper Conductors
- 350MHz Rated
- FireFold Signature Lifetime Warranty
- Specs+
- Rated Temperature: 75ºC
- Rated Voltage: 30v
- Product Standard Certification: CMR
- Conductor: 24 AWG Solid Bare Copper
- Insulation Material: PE
- Insulation Average Thickness: 0.203mm
- Insulation Minimum Point Thickness: 0.172mm
- Insulation Diameter: 0.88mm (±0.005mm)
- Twisted Pair Diameter: 1.76mm (±0.01)
- Assembly Diameter: 3.60mm
- Jacket Material: PVC
- Jacket Average Thickness: 0.60mm
- Jacket Minimum Point Thickness: 0.54mm
- Jacket Outer Diameter: 5.00mm (±0.10mm)
- Rip Cord: Yes
- Test Object: Jacket
- Test Material: PVC
- Before Tensile Strength (Mpa): >=13.8
- Aging Elongation (%): >=100
- Aging Condition (ºCxhrs): 100x168
- After Tensile Strength (Mpa): >=85% of unaged
- Aging Elongation (%): >=50% of unaged
- Cold Bend (-20±2º Cx4hrs): No Crack
- Certifications: ETL Listed, RoHS Compliant
- Reviews+
- Purchase Only the Length You Need - No Leftovers!
- 24AWG Solid Copper Conductors
- 350MHz Rated
- FireFold Signature Lifetime Warranty
- Rated Temperature: 75ºC
- Rated Voltage: 30v
- Product Standard Certification: CMR
- Conductor: 24 AWG Solid Bare Copper
- Insulation Material: PE
- Insulation Average Thickness: 0.203mm
- Insulation Minimum Point Thickness: 0.172mm
- Insulation Diameter: 0.88mm (±0.005mm)
- Twisted Pair Diameter: 1.76mm (±0.01)
- Assembly Diameter: 3.60mm
- Jacket Material: PVC
- Jacket Average Thickness: 0.60mm
- Jacket Minimum Point Thickness: 0.54mm
- Jacket Outer Diameter: 5.00mm (±0.10mm)
- Rip Cord: Yes
- Test Object: Jacket
- Test Material: PVC
- Before Tensile Strength (Mpa): >=13.8
- Aging Elongation (%): >=100
- Aging Condition (ºCxhrs): 100x168
- After Tensile Strength (Mpa): >=85% of unaged
- Aging Elongation (%): >=50% of unaged
- Cold Bend (-20±2º Cx4hrs): No Crack
- Certifications: ETL Listed, RoHS Compliant
Cat5E Bulk Cable - Ethernet Cable By The Foot With 24AWG

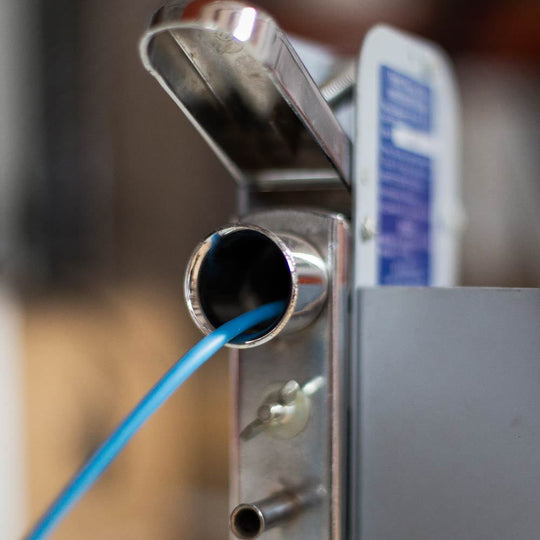

Have the need for bulk cable, but don't need the whole box? FireFold has the answer for you! Bulk cable sold by the foot. This cable will be rolled out to your exact requested length.
Bulk is In
FireFold's 1000 foot Cat5E bulk cable is a must-have for extensive networking. This unterminated and UTP (unshielded twisted pair) cable is perfect for almost any networking application.
The enhanced version of Category 5 is the type of cable that could be considered "mainstream". By this we mean that it is in every department store and is probably the most commonly used in networks. Our Cat 5e cables offer 350 MHz of bandwidth, for a nice bit rate, and is an unshielded twisted pair, which reduces interference.
PVC jackets are very common in networking cables and ours is no exception. This material is strong, protective, and flexible which are the characteristics desired in cables.
Cat5E Bulk Cable - Ethernet Cable By The Foot With 24AWG
Have the need for bulk cable, but don't need the whole box? FireFold has the answer for you! Bulk cable sold by the foot. This cable will be rolled out to your exact requested length.
Bulk is In
FireFold's 1000 foot Cat5E bulk cable is a must-have for extensive networking. This unterminated and UTP (unshielded twisted pair) cable is perfect for almost any networking application.
The enhanced version of Category 5 is the type of cable that could be considered "mainstream". By this we mean that it is in every department store and is probably the most commonly used in networks. Our Cat 5e cables offer 350 MHz of bandwidth, for a nice bit rate, and is an unshielded twisted pair, which reduces interference.
PVC jackets are very common in networking cables and ours is no exception. This material is strong, protective, and flexible which are the characteristics desired in cables.
