PureLink AV HDMI over IP Distribution System with PoE
SKU#: VIP-100-II-D
UPC#:817705020123
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Surpasses HDMI Limitations, Transmits up to 364 feet
- Supports Matrix Switching for Complex Setups
- Convenient Front Panel Channel +/- Buttons
- Supports Full HD Resolutions up to 1080p
- PoE Support for Streamlined Installations
- Easy to Read LED Channel Display
- 5 Year Manufacturer Warranty
- Specs+
- Software Compatible with Windows, Android, Mac, iPad
- Transmitter Only - Transmitter Sold Separately
- PoE from 802.3af PoE Network Switches
- HDMI Loop Out on Transmitter
- RS-232, IR and Matrix Support
- 64 Transmission Channels
- HDCP 1.3 Compliant
- USER MANUAL
- Reviews+
- Surpasses HDMI Limitations, Transmits up to 364 feet
- Supports Matrix Switching for Complex Setups
- Convenient Front Panel Channel +/- Buttons
- Supports Full HD Resolutions up to 1080p
- PoE Support for Streamlined Installations
- Easy to Read LED Channel Display
- 5 Year Manufacturer Warranty
- Software Compatible with Windows, Android, Mac, iPad
- Transmitter Only - Transmitter Sold Separately
- PoE from 802.3af PoE Network Switches
- HDMI Loop Out on Transmitter
- RS-232, IR and Matrix Support
- 64 Transmission Channels
- HDCP 1.3 Compliant
- USER MANUAL

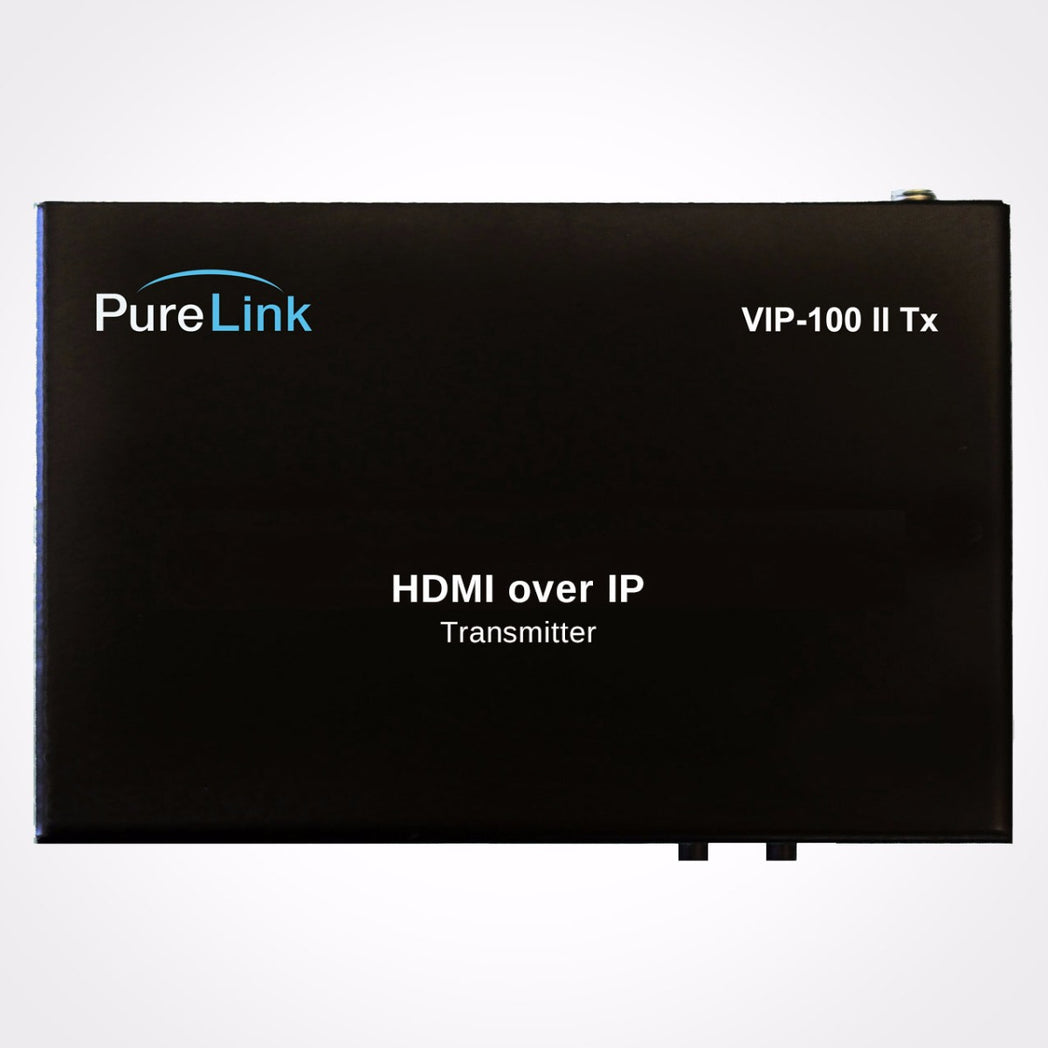

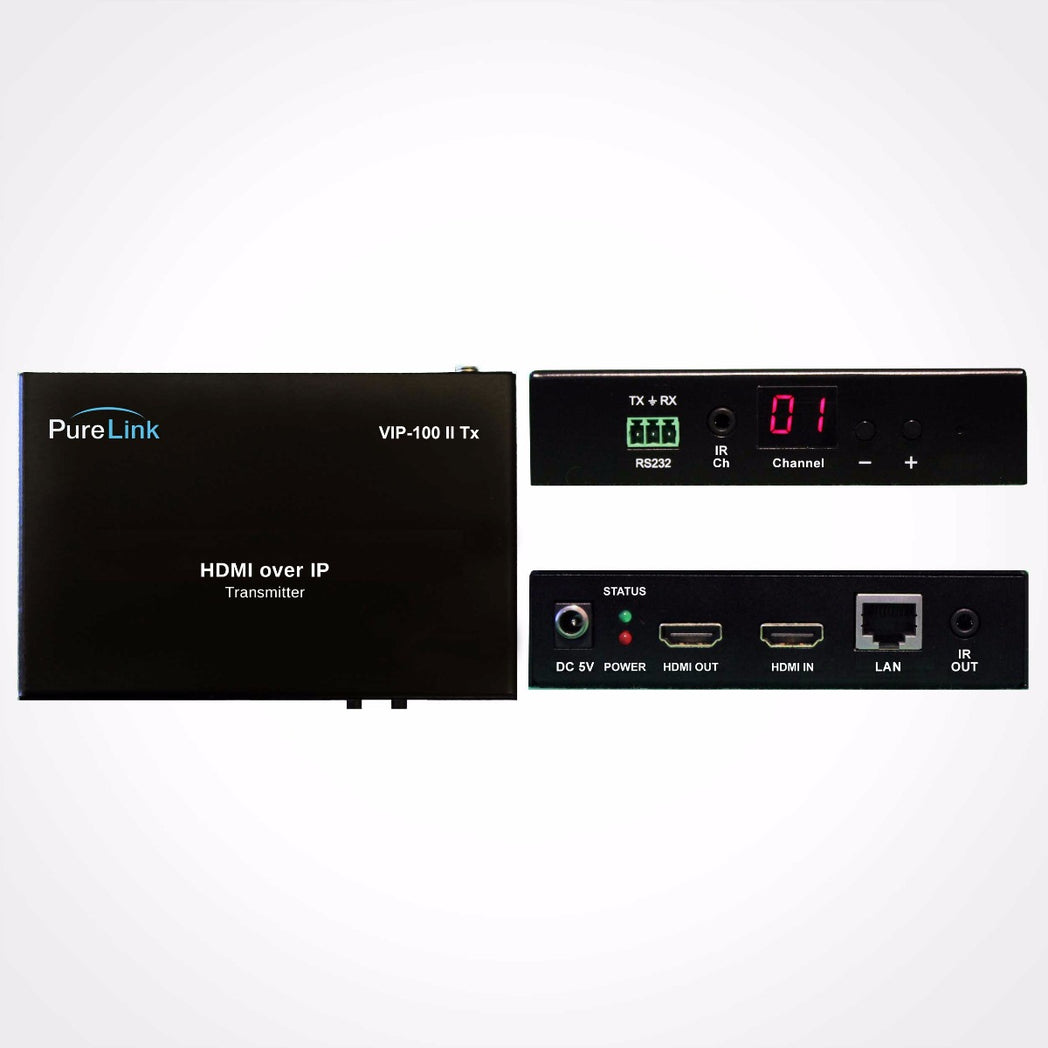

Tired of being restricted by HDMI distance limitations in complex setups? Say goodbye to that frustration with the VIP-100 II HDMI over IP distribution system from PureLink AV. This transmitter can be combined with a compatible receiver to transmit over distances up to 364 feet, or 120 meters.
Get audio/video, RS-232 and IR extension coupled with matrix switching capability up to a 64x190 system to meet the needs of even the most complex and demanding setup. Point-to-many and many-to-point are also supported.
| Transmitter Package Includes | Receiver Package Includes | Transmitter and Receiver Package Includes |
|---|---|---|
| (1) VIP100H II Tx Transmitter | (1) VIP100H II Rx Receiver | (1) VIP100H II Tx Transmitter and (1) Rx Receiver |
| (1) Infrared Receiver | (1) Infrared Emitter | (1) Infrared Receiver and (1) Infrared Emitter |
| (1) Power Adapter | (1) Power Adapter | (2) Power Adapters |
| Mounting Brackets | Mounting Brackets | Mounting Brackets |
| (1) Remote Control | (1) Remote Control |
| Hardware | |
|---|---|
| Audio | HDMI w/Embedded Audio |
| Cable | Category 5 UTP or Better |
| Input Signal Types | (Tx) HDMI v1.3, RS232; (Rx) RJ-45, H.264 UDP Multicast, RS232, IR |
| Output Signal Types | (Tx) RJ-45, H.264 UDP Multicast, RS232; (Rx) HDMI v1.3, RS232, IR |
| Performance | |
| Supported Distance | 394ft (120m) |
| Data Transfer Rate | 15Mbps (Typical) |
| Supported Resolutions | Up to 1080p (1920x1080) |
| HDCP Compliance | 1.3 |
| RS-232 | 2400-115K Baud, User-Settable |
| IR Extension | Rx to Tx (38-56KHz) |
| Connectors | |

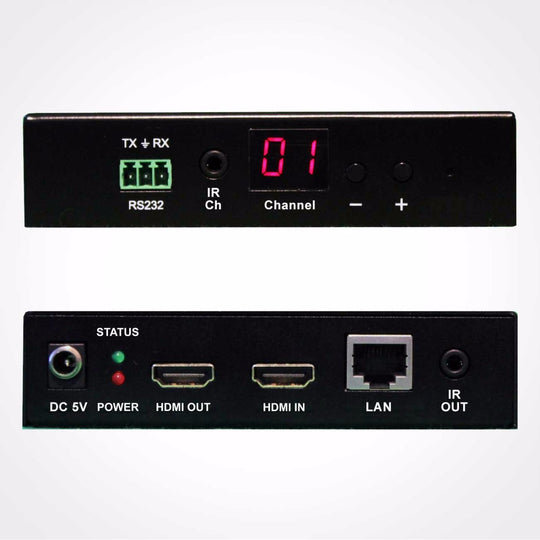

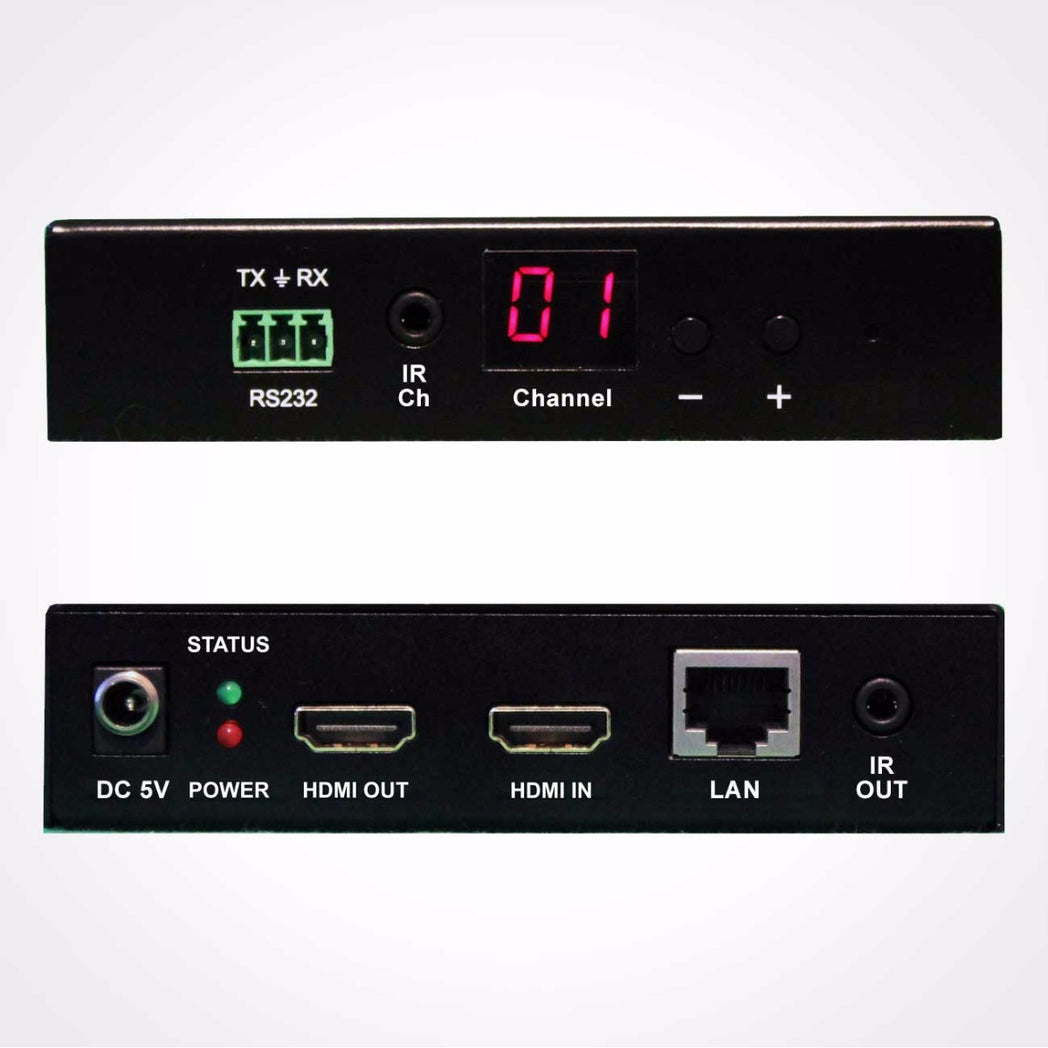

| TX | 2x HDMI 19 Pin Female, 1x RJ-45 Female (LAN), 1x Phoenix 3 Pin (RS232), 1x 1/8" Female (IR) |

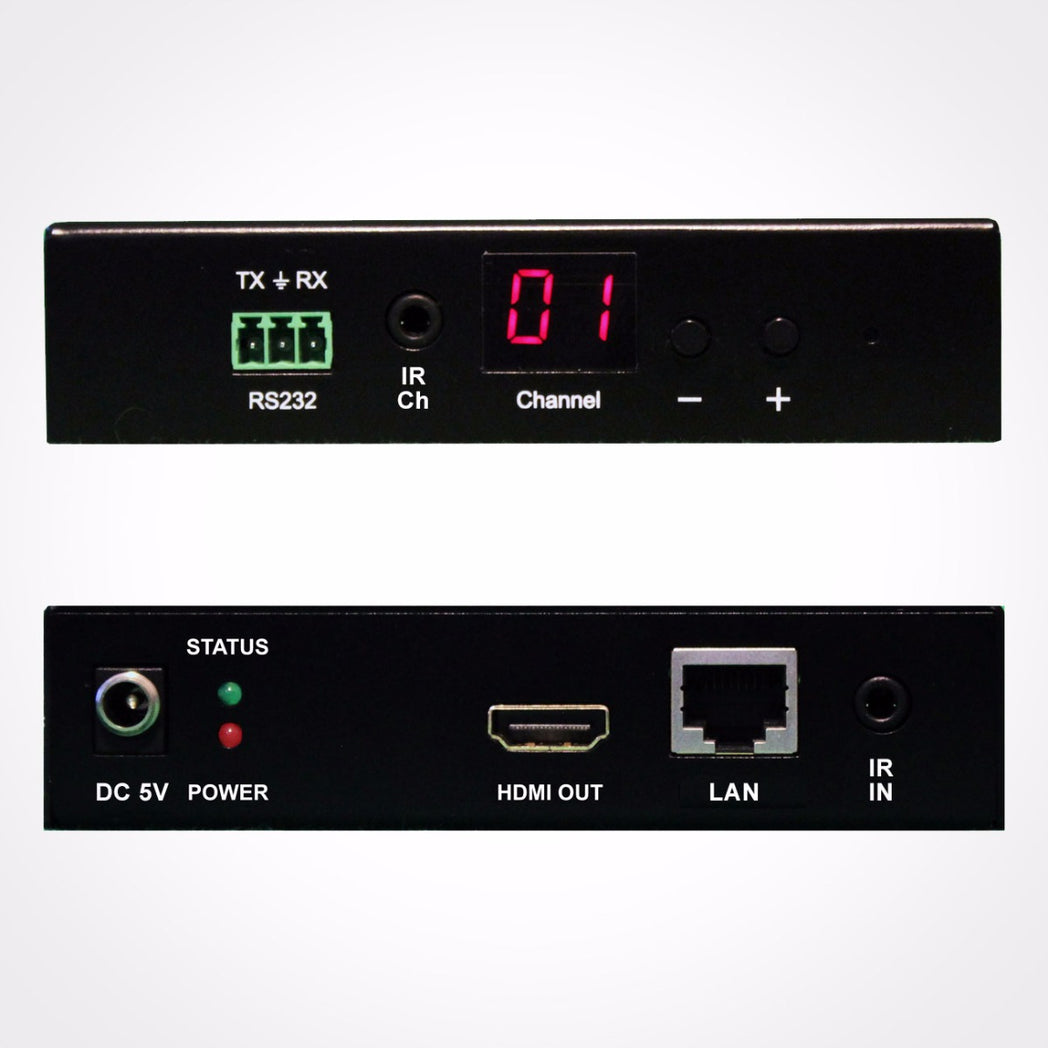

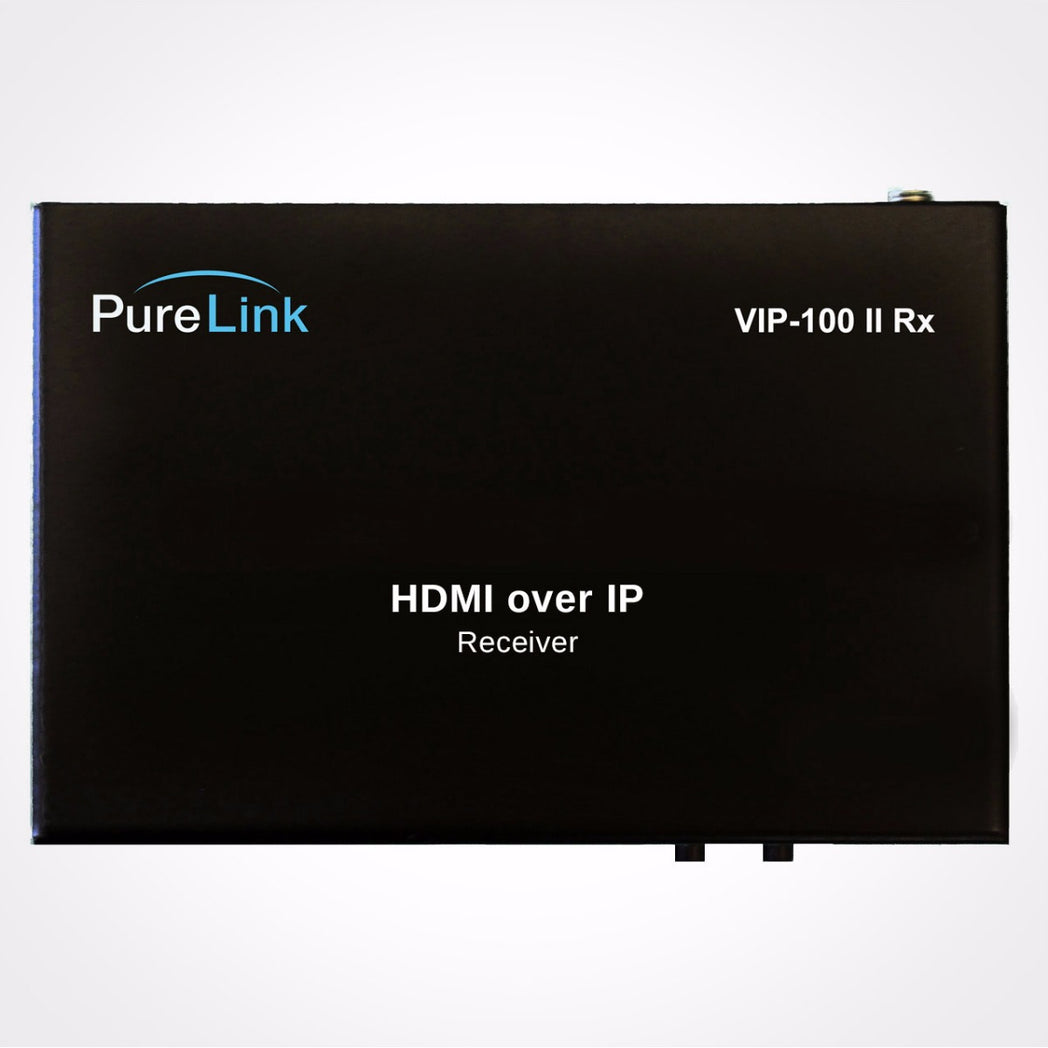

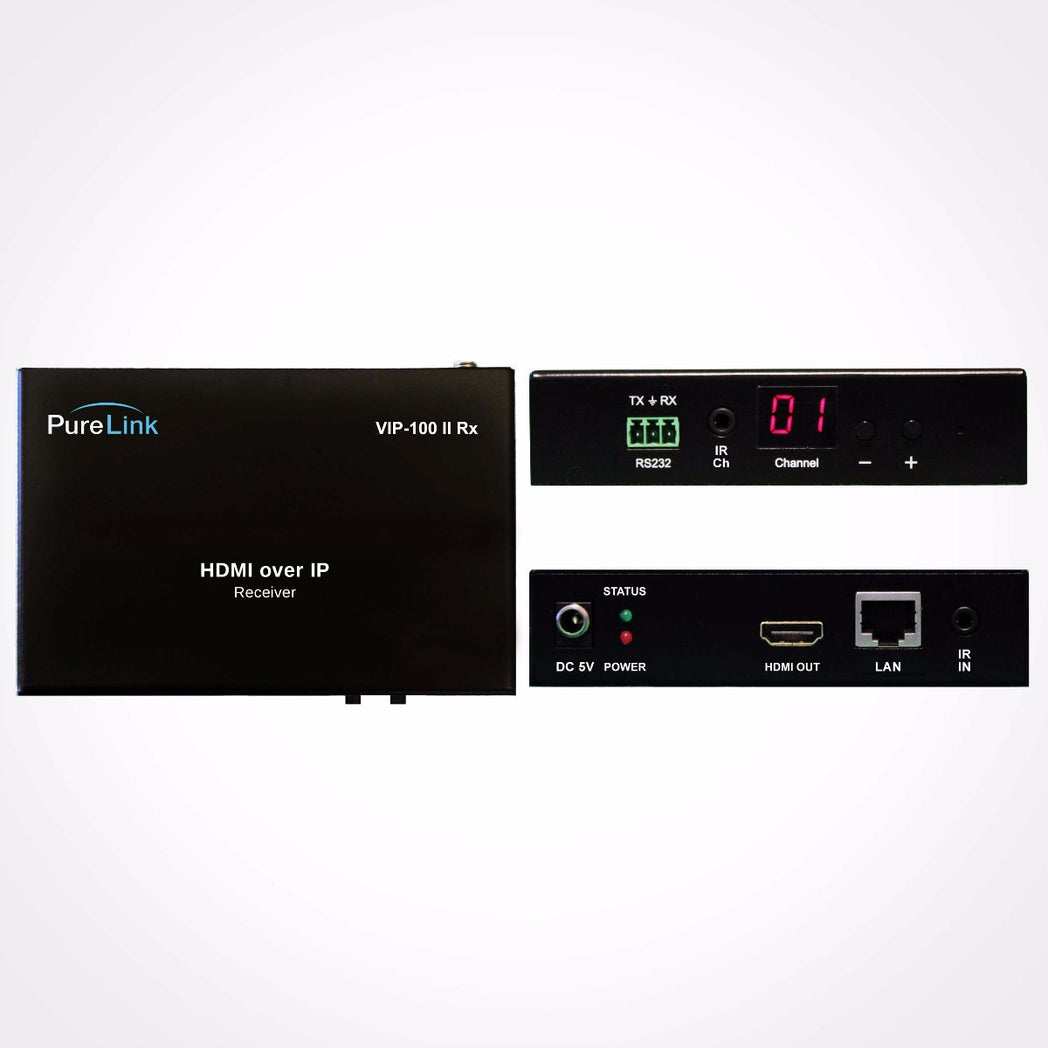

| RX | 1x HDMI 19 Pin Female, 1x RJ-45 Female (LAN), 1x Phoenix 3 Pin (RS232), 1x 1/8" Female (IR) |
| Power | |
| Input Power Requirements | 5 VDC, 600mA Typical |
| Power Adapter | 120-240 VAC to 5 VDC, 1A |
| PoE (Power Over Ethernet) | 802.3af |
| Dimensions and Weight | |
| Enclosure Type | All Metal, Black Powder Coat Finish |
| Dimensions | 1.1 x 4.7 x 3.1" (29 x 120 x 79mm) |
| Weight | 0.61lbs (280g) |
