Intellinet Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit, 561952
SKU#: 561952
UPC#:766623561952
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Extremely high PoE range and weatherproof housing ideal for IP camera installations
- IP67-rated, dustproof and waterproof
- Delivers data up to 1000 m (3280 ft.) without packet loss
- Kit includes two modules for maximum distance capabilities
- Compatible with IEEE 802.3bt/at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
- Supports 10/100 Mbps data rates
- Short-circuit, overload and high-voltage protection
- Requires no additional power supply; draws power directly from the PoE input
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
- Plug-and-play installation; no configuration required
- Fully NDAA-compliant
- Three-year warranty
- Specs+
- Package Contents+
- Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit

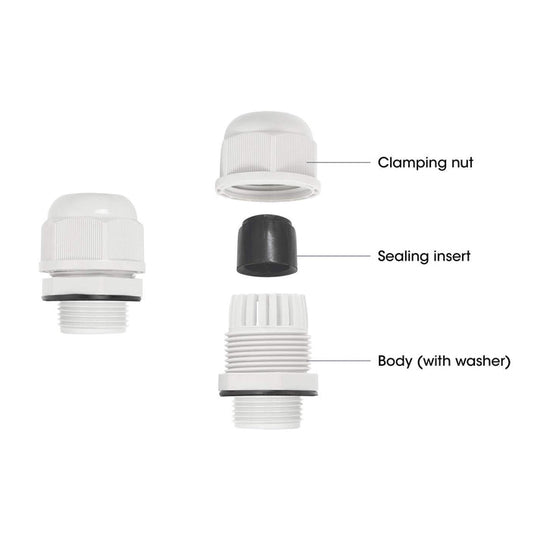

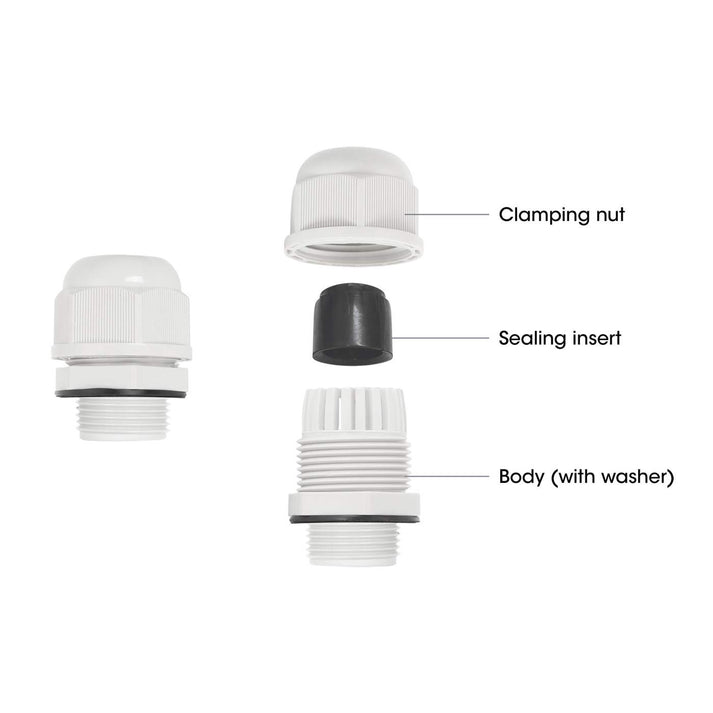

- Four IP67-rated cable glands
- Instructions
- Reviews+
- Extremely high PoE range and weatherproof housing ideal for IP camera installations
- IP67-rated, dustproof and waterproof
- Delivers data up to 1000 m (3280 ft.) without packet loss
- Kit includes two modules for maximum distance capabilities
- Compatible with IEEE 802.3bt/at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
- Supports 10/100 Mbps data rates
- Short-circuit, overload and high-voltage protection
- Requires no additional power supply; draws power directly from the PoE input
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
- Plug-and-play installation; no configuration required
- Fully NDAA-compliant
- Three-year warranty
- Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit
- Four IP67-rated cable glands
- Instructions
Intellinet Ultra Long Range Fast Ethernet PoE+ Extender Kit
Extends PoE up to 1000 m (3280 ft.), One PD Port up to 95 W, IEEE 802.3bt (4PPoE) Compatible, IP67 Waterproof and Dustproof, Set of Two Modules, Plastic, Gray
Ultra Long Distance Power over Ethernet Extension / Repeater / Amplifier for a PoE range up to 1,000 m (3,280 ft.) - even in harsh outdoor conditions
The Intellinet Network Solutions Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit adds up to 1,000 m (3,280 ft.) to the connection distance from a PoE source to an output device via Cat5e or Cat6 cable. It has an output power rating up to 30 watts, which is enough for many power-hungry PoE devices. Its high range and weatherproof housing is especially useful for outdoor IP surveillance camera deployments. This PoE repeater delivers up to 30 W at 100 Mbps over 300 m (984 ft.) or up to 15.4 W at 10 Mbps over 800 m (2625 ft.).
Designed for Outdoor Use
This PoE+ extender offers the right power and data connector for longer-distance applications and suits a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating and a wide operating temperature range of -10 - 55°C (14 - 131°F) make it able to withstand harsh outdoor conditions.
Power over Ethernet 802.3bt-compliant Input, 802.3at/af-compliant Output
Supporting the IEEE 802.3bt protocol with input power up to 95 W, this PoE+ Extender Kit provides up to 30 watts to a connected 802.3at-compliant device or 15 W to an 802.3af-compliant device, along with data up to Fast Ethernet speeds.
Reduced Wiring Costs
This PoE+ Extender helps avoid the expense of running AC power lines to a wireless access point, network camera or IP phone. Simply connect the extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Safe Protection for your Expensive Network Equipment
The auto-sensing technology of this high-power PoE extender ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages.
Simple Installation with Cascading Power
This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its PoE In port to your PoE injector or PoE switch and to connect the PoE Out port to the PoE device you want to connect (e.g., a VoIP phone or a PoE network camera). The kit includes two modules that always need to be used together for maximum distance capabilities.
Standards
- IEEE 802.3af (Power over Ethernet) compatible
- IEEE 802.3at (High-Power PoE+ Power over Ethernet) compatible
- IEEE 802.3bt (PoE++/4PPoE/Ultra Power over Ethernet) compatible
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (Full duplex and flow control)
General
- Media support:
- 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45
- 100Base-TX Cat5/5e/6/6a UTP/STP RJ45
- Certifications: FCC, CE, RoHS, UKCA, NDAA
Electrical
- Input: Supports IEEE 802.3at/af/bt up to 95.0 W
- PoE Pinout Input:
- IEEE Alternative A (pairs 1/2 and 3/6)
- IEEE Alternative B (pairs 4/5 and 7/8)
- PoE Pinout Output:
- IEEE Alternative A (pairs 1/2 and 3/6)
- Output: Supports IEEE 802.3at/af/bt standards with limited output due to distance, refer to documentation
- Power consumption 0.4 W (no load) / 0.7 W (full load) max.
Physical
- IP67-rated plastic housing (weather-proof)
- Dimensions (L x W x H): 157 x 29 x 29 mm (6.18 x 1.14 x 1.14 in.)
- Net weight: 155 g (0.34 lbs.)
- Gross weight: 194 g (0.43 lbs.)
- Operating temperature: -10 - 55°C (14 - 131°F)
- Storage temperature: -40 - 70°C (-40 - 158°F)
- Operating humidity: 10 - 90% RH, non-condensing
- Storage humidity: 5 - 90% RH, non-condensing
NOTE: For full technical information on PoE standards, voltage, wattage and distance, please refer to the chart in the Downloads section.
