BZBGEAR USB 3.0 over HDBaseT Extender (PoC, RS-232, GPIO & up to 100M/328Ft over CAT6a Cable)
SKU#: BG-USB3-LR100
UPC#:850050134541
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
-

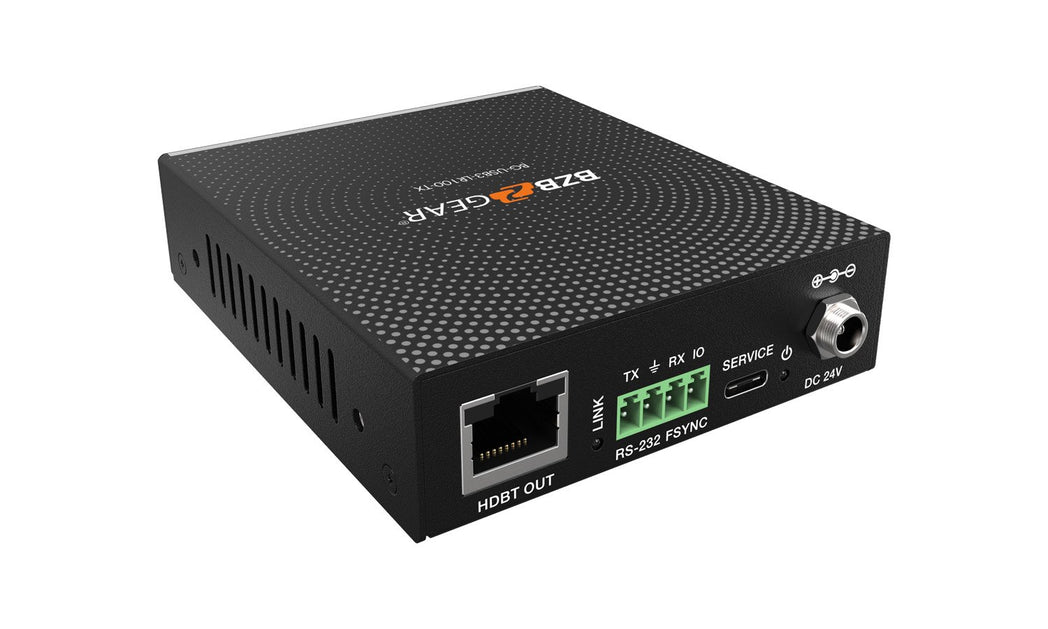

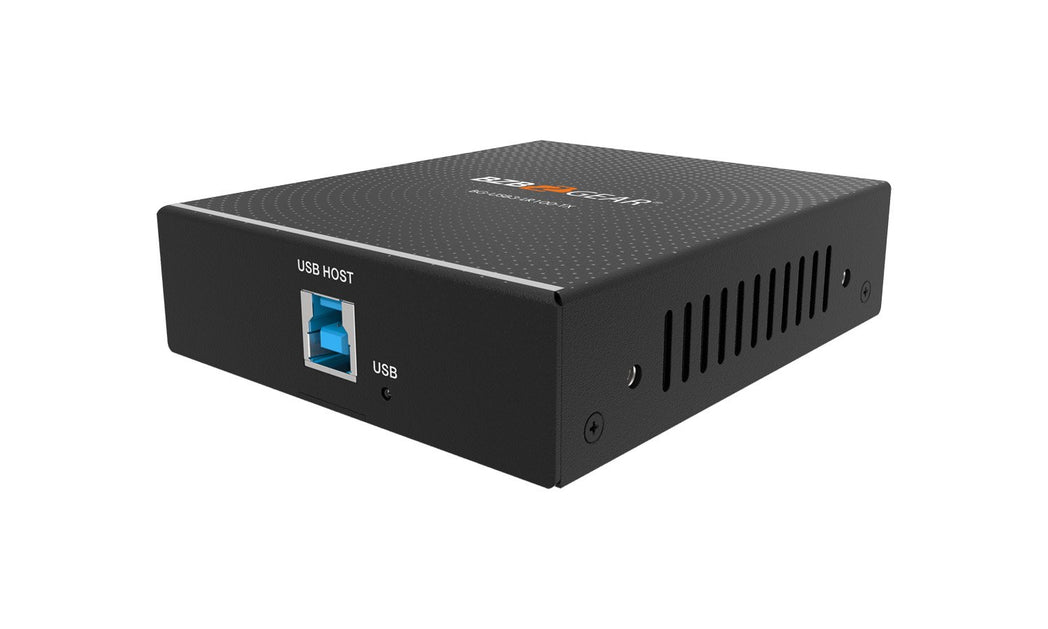

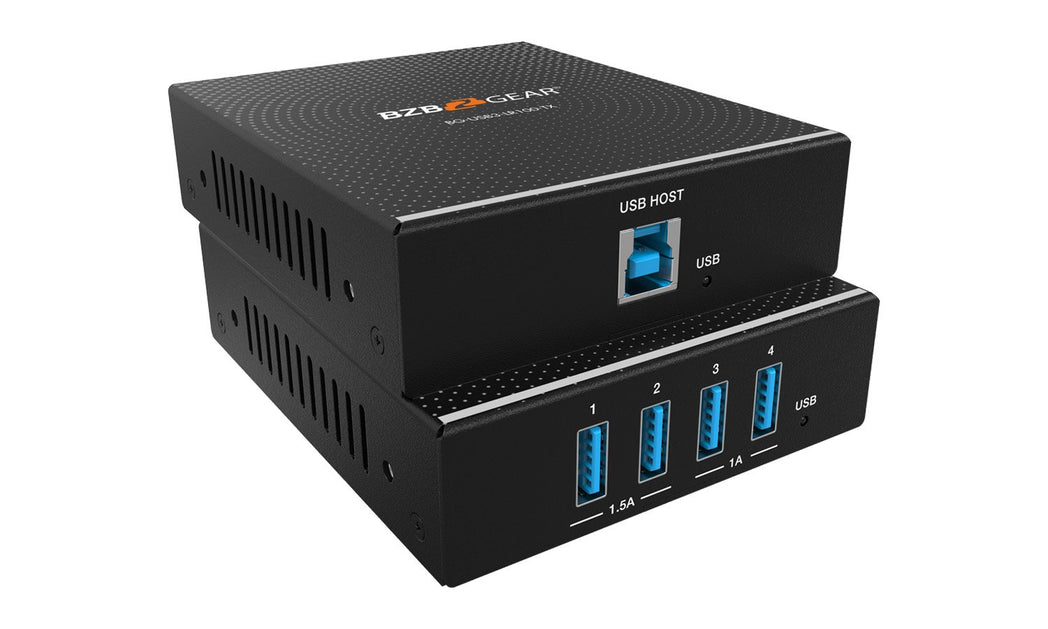

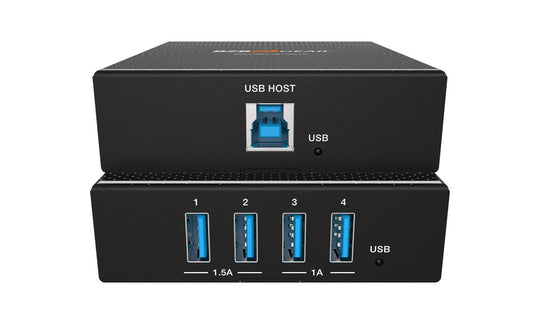

- USB HOST: Host port, supporting USB 3.0. Connects to a PC or host.
-
USB LED: USB signal indicator.
● On: USB signal is detected.

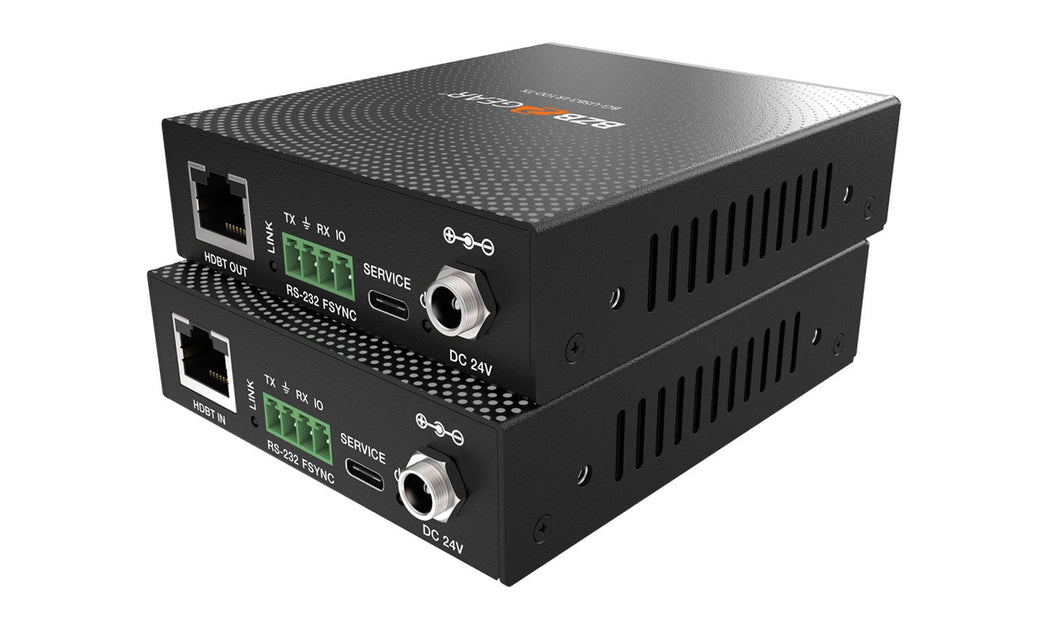

● Off: USB signal is not detected. - HDBT OUT: Connects to the HDBT IN port on the Receiver with CAT cable.
-
LINK LED: Connection signal indicator.
● On: Transmitter and Receiver are connected and linked.
● Flashing: The Transmitter and Receiver link are off due to USB low power mode.

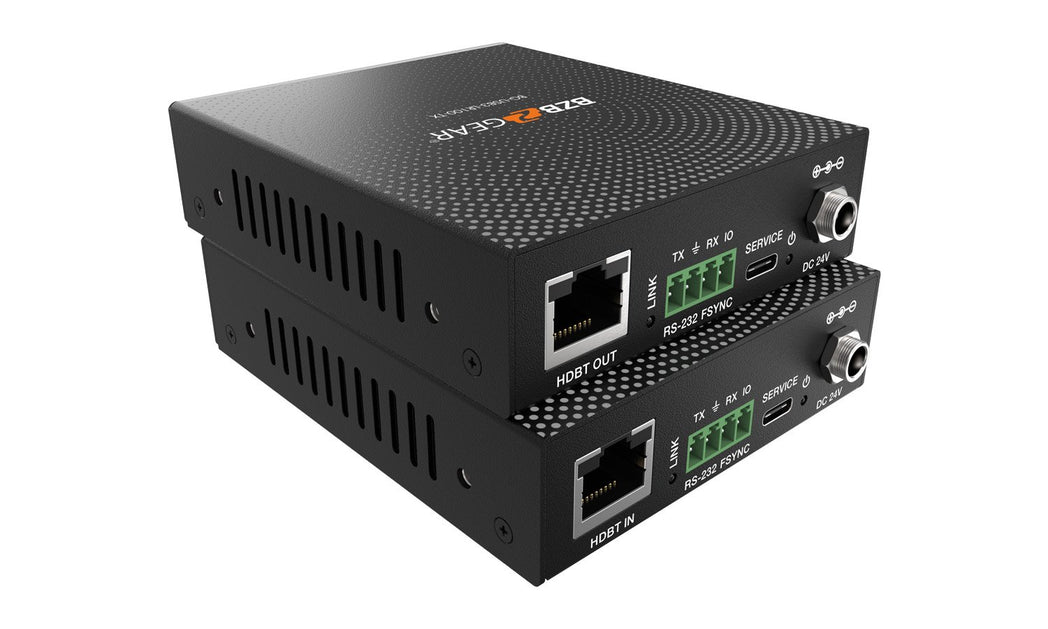

● Off: Transmitter and Receiver are not connected. - RS-232: 3pin Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
- FSYNC: FSYNC port, used for level pass-through to the Receiver and synchronizing the external devices. The default level is 3.3V.
- SERVICE: Firmware update port.
- POWER LED: The LED will be on when the Transmitter is powered on.
-
DC 24V: DC 24V/2A power input port.
Receiver

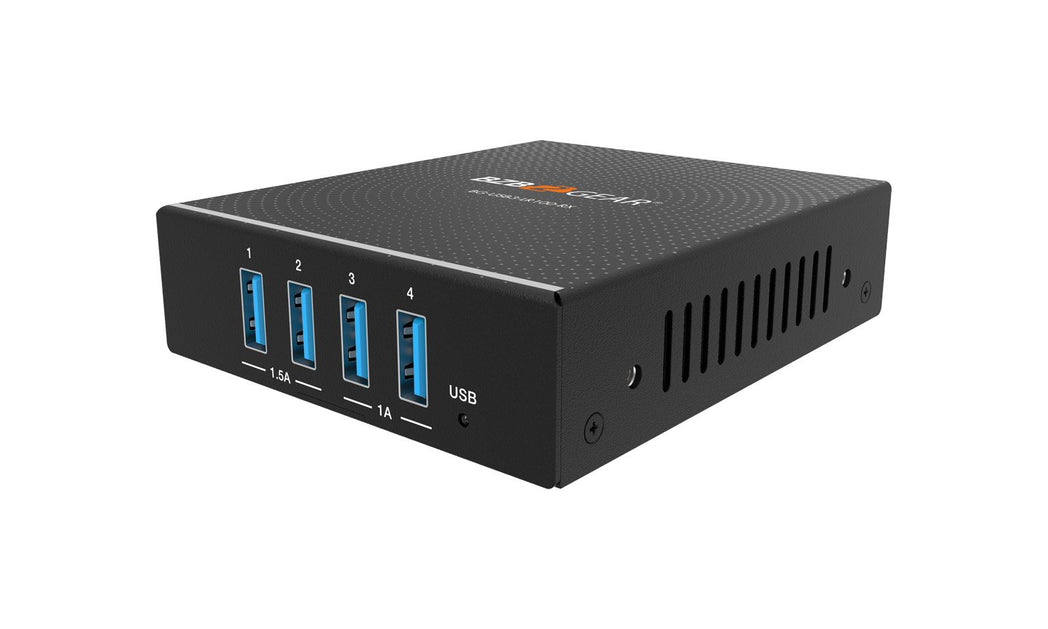

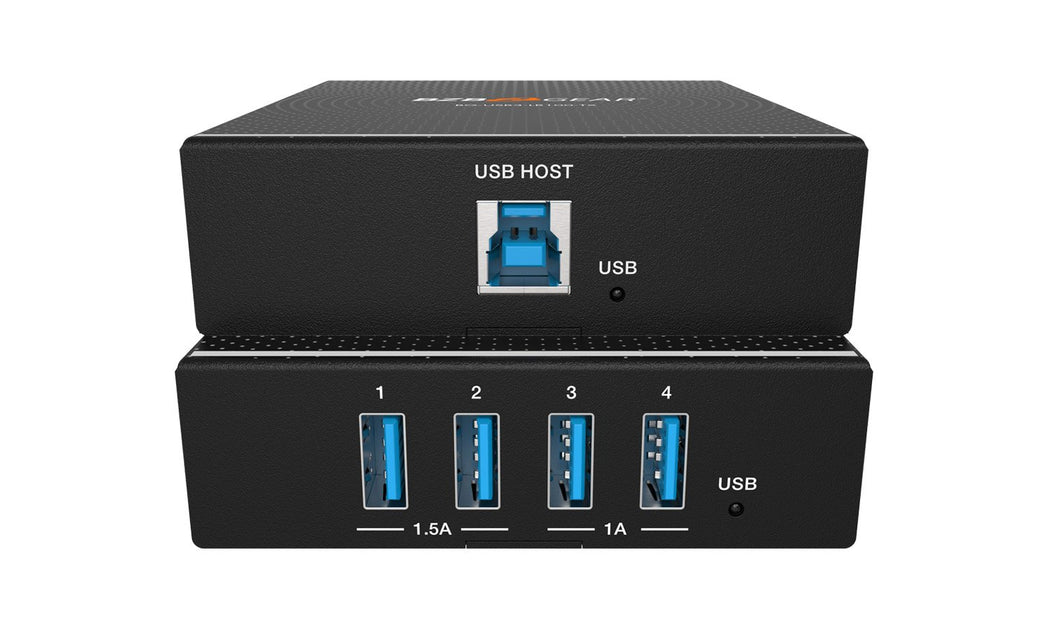

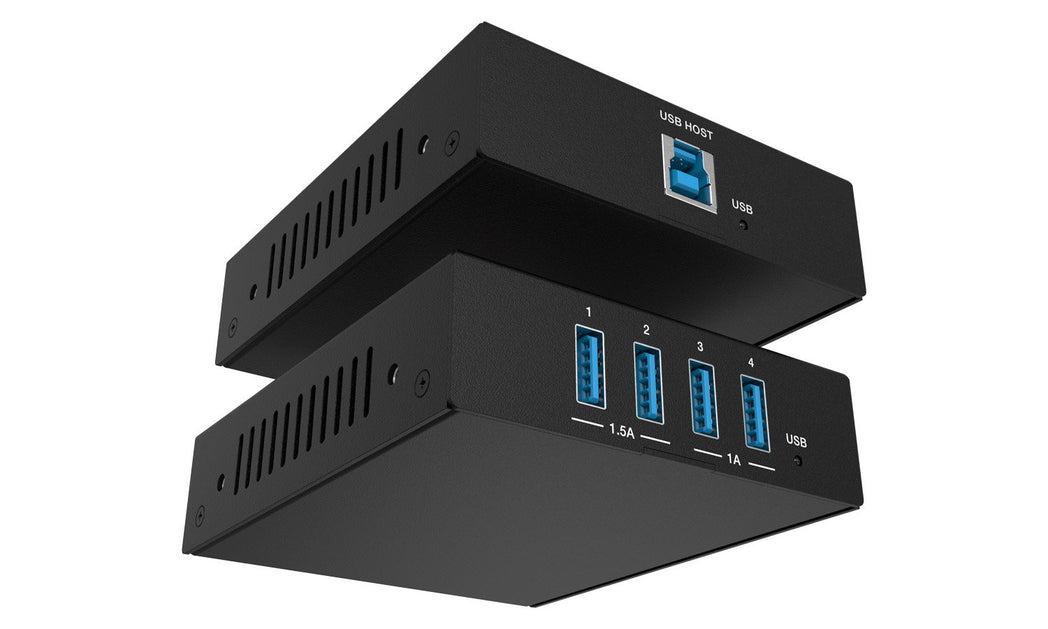

- USB 1/2: Connect to USB devices, and max output power is up to 5V/1.5A.
- USB 3/4: Connect to USB devices, and max output power is up to 5V/1A.
-
USB LED: USB signal indicator.
● On: USB signal is detected.

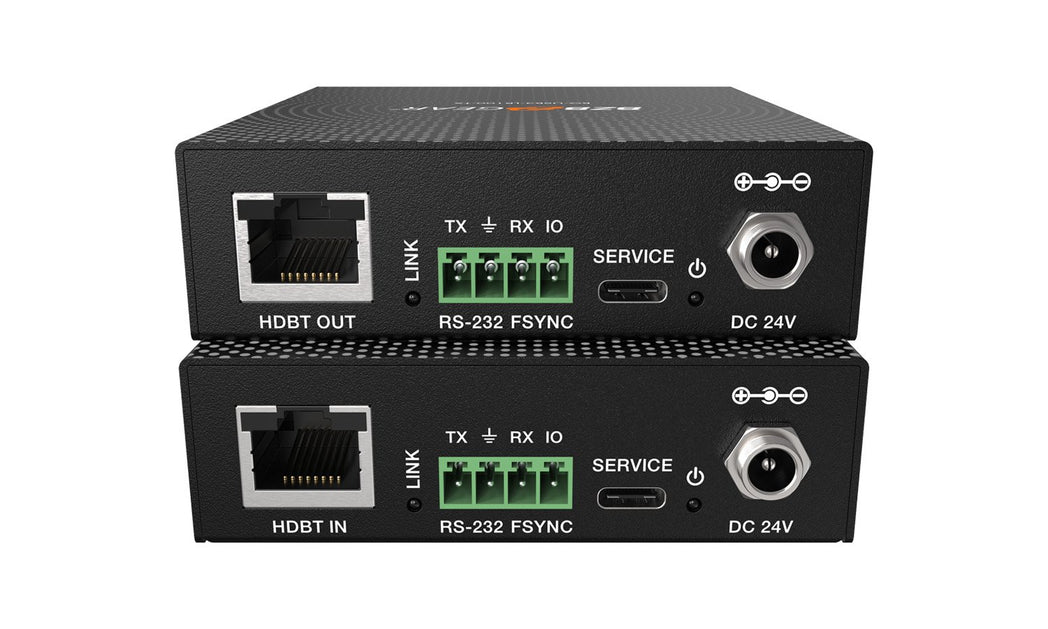

● Off: USB signal is not detected. - HDBT IN: Connects to the HDBT OUT port on the Transmitter with CAT cable.
-
LINK LED: Connection signal indicator.
● On: Transmitter and Receiver are connected and linked.
● Flashing: The Transmitter and Receiver link is off due to USB low power mode.
● Off: Transmitter and Receiver are not connected. - RS-232: 3pin Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
- FSYNC: FSYNC port, receiving level pass-through from the Transmitter and synchronizing the external devices. The default level is 3.3V.
- SERVICE: Firmware update port.
- POWER LED: The LED will be on when the Receiver is powered on.
- DC 24V: DC 24V/2A power input port.
- Features+
- Long Distance: Extends USB 3.0 connections up to 100 meters (328 feet) over CAT6a cable
- Fast Transfer Rates: Provides USB 3.0 connectivity with data transfer rates up to 5Gbps
- Backward Compatible: Compatible with USB 2.0 and USB 1.1 devices
- Bi-directional PoC: Supports bi-directional 24V Power over Cable (PoC)
- Plug-and-play: Easy plug-and-play setup with no driver or settings installation required
- Camera Applications: Includes RS-232 and FSYNC GPIO pass-through for camera applications
- Hardware acceleration for isochronous and bulk transfer
- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
- Specs+
- Package Contents+
- 1x USB 3.0 Extender (Transmitter)
- 1x USB 3.0 Extender (Receiver)
- 1x 24V/2A Locking Power Supply
- 2x 4pin-3.5mm Phoenix Connector (Male)
- 4x Mounting Ear
- 8x Machine Screw (KM3*4)
- 1x User Manual
- Reviews+
-
- USB HOST: Host port, supporting USB 3.0. Connects to a PC or host.
-
USB LED: USB signal indicator.
● On: USB signal is detected.
● Off: USB signal is not detected. - HDBT OUT: Connects to the HDBT IN port on the Receiver with CAT cable.
-
LINK LED: Connection signal indicator.
● On: Transmitter and Receiver are connected and linked.
● Flashing: The Transmitter and Receiver link are off due to USB low power mode.
● Off: Transmitter and Receiver are not connected. - RS-232: 3pin Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
- FSYNC: FSYNC port, used for level pass-through to the Receiver and synchronizing the external devices. The default level is 3.3V.
- SERVICE: Firmware update port.
- POWER LED: The LED will be on when the Transmitter is powered on.
-
DC 24V: DC 24V/2A power input port.
Receiver
- USB 1/2: Connect to USB devices, and max output power is up to 5V/1.5A.
- USB 3/4: Connect to USB devices, and max output power is up to 5V/1A.
-
USB LED: USB signal indicator.
● On: USB signal is detected.
● Off: USB signal is not detected. - HDBT IN: Connects to the HDBT OUT port on the Transmitter with CAT cable.
-
LINK LED: Connection signal indicator.
● On: Transmitter and Receiver are connected and linked.
● Flashing: The Transmitter and Receiver link is off due to USB low power mode.
● Off: Transmitter and Receiver are not connected. - RS-232: 3pin Phoenix connector, connected to a PC or control system for RS-232 command pass-through.
- FSYNC: FSYNC port, receiving level pass-through from the Transmitter and synchronizing the external devices. The default level is 3.3V.
- SERVICE: Firmware update port.
- POWER LED: The LED will be on when the Receiver is powered on.
- DC 24V: DC 24V/2A power input port.
- Long Distance: Extends USB 3.0 connections up to 100 meters (328 feet) over CAT6a cable
- Fast Transfer Rates: Provides USB 3.0 connectivity with data transfer rates up to 5Gbps
- Backward Compatible: Compatible with USB 2.0 and USB 1.1 devices
- Bi-directional PoC: Supports bi-directional 24V Power over Cable (PoC)
- Plug-and-play: Easy plug-and-play setup with no driver or settings installation required
- Camera Applications: Includes RS-232 and FSYNC GPIO pass-through for camera applications
- Hardware acceleration for isochronous and bulk transfer
- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
- 1x USB 3.0 Extender (Transmitter)
- 1x USB 3.0 Extender (Receiver)
- 1x 24V/2A Locking Power Supply
- 2x 4pin-3.5mm Phoenix Connector (Male)
- 4x Mounting Ear
- 8x Machine Screw (KM3*4)
- 1x User Manual
USB 3.0 over HDBaseT Extender (PoC, RS-232, GPIO & up to 100M/328Ft over CAT6a Cable)
The BG-USB3-LR100 USB 3.0 Extender is an essential tool for extending USB connections over long distances, capable of transmitting signals up to 100 meters (328 feet) using a single CAT6a cable. Designed for reliability and performance, this extender ensures high-speed data transfer with rates up to 5Gbps, making it ideal for various applications, including industrial settings and large-scale installations.
The transmitter features a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through, while the receiver offers four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. This setup supports bi-directional 24V Power over Cable (PoC), simplifying power management and installation.
INTERFRACES
Transmitter
USB 3.0 over HDBaseT Extender (PoC, RS-232, GPIO & up to 100M/328Ft over CAT6a Cable)
The BG-USB3-LR100 USB 3.0 Extender is an essential tool for extending USB connections over long distances, capable of transmitting signals up to 100 meters (328 feet) using a single CAT6a cable. Designed for reliability and performance, this extender ensures high-speed data transfer with rates up to 5Gbps, making it ideal for various applications, including industrial settings and large-scale installations.
The transmitter features a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through, while the receiver offers four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. This setup supports bi-directional 24V Power over Cable (PoC), simplifying power management and installation.
INTERFRACES
Transmitter
