ADDER Link X50 - VGA, USB, Audio to 50m
SKU#: X50-US
UPC#:Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Specs+
- Up to 50m / 150 ft. using CATx cable (x=5,5e,6)
- Devices Supported: Supports all computers with USB style keyboards and mice, HDD15 video
- connectors and audio through 3.5 mm audio jack. Supports all USB devices.

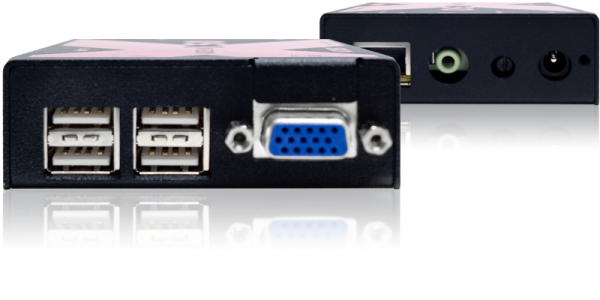

- Video input/output: HDD15, Keyboard/Mouse/ USB devices USB type B
- Audio input/output: 3.5mm jack
- CATx: RJ45 connector
- Power: 2.5mm DC jack
- Package Contents+
- X50 local and remote modules
- USB (A to B) lead
- Video lead (15 way, male to male)
- Power adapter and power lead
- Audio lead (3.5mm jacks)
- Reviews+
- Up to 50m / 150 ft. using CATx cable (x=5,5e,6)
- Devices Supported: Supports all computers with USB style keyboards and mice, HDD15 video
- connectors and audio through 3.5 mm audio jack. Supports all USB devices.
- Video input/output: HDD15, Keyboard/Mouse/ USB devices USB type B
- Audio input/output: 3.5mm jack
- CATx: RJ45 connector
- Power: 2.5mm DC jack
- X50 local and remote modules
- USB (A to B) lead
- Video lead (15 way, male to male)
- Power adapter and power lead
- Audio lead (3.5mm jacks)
ADDER Link VGA, USB, Audio KVM Extender to 50m
Fully featured, fully transparent low/full speed USB, high quality video and 44.1kHz digital stereo audio extender over a single CATx cable.

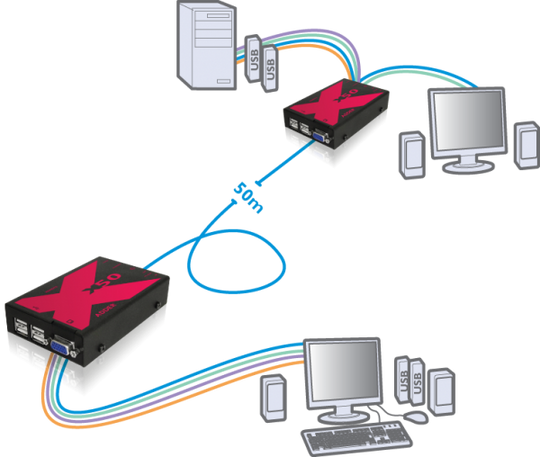

ADDER Link X50s have been designed for use in applications where computers can have their USB peripherals including keyboards and mice, high quality video and audio control extended up to 50m (150 ft.) across CAT5 or higher UTP cable. The ADDER Link X50 provides sharp, bright and ultra high-resolution video over a VGA interface and ensures total USB compatibility regardless of the computer being controlled or the peripheral being extended.
Note: This product is only compatible with other Adder branded products
Video performance
Crisp, clear and industry leading video quality at very high resolutions of 1920 x 1200 to 50m (150 ft.)
Video compensation
The ADDER Link X50 allows for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference.
True DDC Emulation
Unless an extender actively supports DDC some high performance video cards cannot be used at high resolutions. The ADDER Link X50 fully supports 2-page DDC ensuring all possible resolutions are supported.
Fully platform independent
As the ADDER Link X50 supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Digital audio
ADDER's unique digital transmission of audio signals means the ADDER Link X50 delivers clickless, 44.1kHz CD quality, stereo audio without the need for an additional CATx cable.
Dual Access
For local control of extended computers the ADDER Link X50 provides both a local video and audio output at the transmitter unit. (USB devices can be plugged directly into the computer).
Extended common mode input range
To ensure full operation in all environments and avoid problems such as screen blanking in industrial environments caused for example by large electrical equipment switching, the ADDER Link X50 implements a special termination system that allows the common mode range to be extended.
ADDER Link X50 MultiScreen
The ADDER Link X50 MultiScreen adds a second video and transparent, high speed RS232 up to baud rates of 115,200. This extra functionality adds to the diverse range of solutions for which the ADDER Link X50 can be utilized including the extension of computers with dual monitors and allow it to be used in touch screen and interactive kiosk applications.
High density rack mount option
Being part of ADDER's X series range of KVM extenders, the ADDER Link X50 units can be mounted into a chassis that will allow 16 (X50) or 8 (X50-MS) units to be housed in 2U of rack space.
Video Resolution
1920 x 1200 x 60Hz at distances up to 50m / 150 ft.
Extension Distance
O/S Compatibility
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Connectors (local / computer)
Physical (local / computer)
All metal case, 120mm / 4.7'' (w) x 75mm / 3'' (d) x 26mm / 1'' (h) 430g / 1 lb.
Physical (remote / console)
All metal case, 120mm / 4.7'' (w) x 75mm / 3'' (d) x 26mm / 1'' (h) 430g / 1 lb.
Power (remote only)
100 - 240VAC, 10W , 50-60Hz
Operating temperature
0 to 40 deg C (32 to 104 deg F)
Approvals
CE, FCC
ADDER Link VGA, USB, Audio KVM Extender to 50m
Fully featured, fully transparent low/full speed USB, high quality video and 44.1kHz digital stereo audio extender over a single CATx cable.
ADDER Link X50s have been designed for use in applications where computers can have their USB peripherals including keyboards and mice, high quality video and audio control extended up to 50m (150 ft.) across CAT5 or higher UTP cable. The ADDER Link X50 provides sharp, bright and ultra high-resolution video over a VGA interface and ensures total USB compatibility regardless of the computer being controlled or the peripheral being extended.
Note: This product is only compatible with other Adder branded products
Video performance
Crisp, clear and industry leading video quality at very high resolutions of 1920 x 1200 to 50m (150 ft.)
Video compensation
The ADDER Link X50 allows for a great range of very smooth and fine adjustments enabling the user to adjust the video picture to their exact preference.
True DDC Emulation
Unless an extender actively supports DDC some high performance video cards cannot be used at high resolutions. The ADDER Link X50 fully supports 2-page DDC ensuring all possible resolutions are supported.
Fully platform independent
As the ADDER Link X50 supports fully transparent USB connections it is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.
Digital audio
ADDER's unique digital transmission of audio signals means the ADDER Link X50 delivers clickless, 44.1kHz CD quality, stereo audio without the need for an additional CATx cable.
Dual Access
For local control of extended computers the ADDER Link X50 provides both a local video and audio output at the transmitter unit. (USB devices can be plugged directly into the computer).
Extended common mode input range
To ensure full operation in all environments and avoid problems such as screen blanking in industrial environments caused for example by large electrical equipment switching, the ADDER Link X50 implements a special termination system that allows the common mode range to be extended.
ADDER Link X50 MultiScreen
The ADDER Link X50 MultiScreen adds a second video and transparent, high speed RS232 up to baud rates of 115,200. This extra functionality adds to the diverse range of solutions for which the ADDER Link X50 can be utilized including the extension of computers with dual monitors and allow it to be used in touch screen and interactive kiosk applications.
High density rack mount option
Being part of ADDER's X series range of KVM extenders, the ADDER Link X50 units can be mounted into a chassis that will allow 16 (X50) or 8 (X50-MS) units to be housed in 2U of rack space.
Video Resolution
1920 x 1200 x 60Hz at distances up to 50m / 150 ft.
Extension Distance
O/S Compatibility
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Connectors (local / computer)
Physical (local / computer)
All metal case, 120mm / 4.7'' (w) x 75mm / 3'' (d) x 26mm / 1'' (h) 430g / 1 lb.
Physical (remote / console)
All metal case, 120mm / 4.7'' (w) x 75mm / 3'' (d) x 26mm / 1'' (h) 430g / 1 lb.
Power (remote only)
100 - 240VAC, 10W , 50-60Hz
Operating temperature
0 to 40 deg C (32 to 104 deg F)
Approvals
CE, FCC
