ADDER Link X-DVIPRO Dual Link, 50m DVI & 4 Port USB
SKU#: X-DVIPRO-DL-US
UPC#:Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Dual Link resolutions: deliver uncompressed digital video with audio
- USB 2.0 Low and Full speed connection: to interface with a range of devices
- Exact content seen on the local monitor is distributed: up to 50m over a single CATx cable
- Energy efficient design: external power supplies are not needed
- X-DVI PRO-DL: enables single screen at 2560 x 1600@60Hz
- Features+
- Dual link DVI and transparent USB over a single CATx cable.
- Dual Link resolutions, Real Time Control
- The X-DVI PRO DL allows you to remote your monitor with resolutions up to 2560x1600 @60Hz up to 50 meters away from your computer. Using a visually lossless technique, no visible artifacts or latency are introduced allowing you to be certain of quality and control.
- Specs+
- Recommended cables are CAT7 shielded foiled twisted pairs:
- Daetwyler 7702 Flexible patch cable
- Daetwyler 7120 Bulk cable
- Category 5e (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
- 2560 x 1600 @ 60Hz CAT7 0 50 meters
- 2560 x 1600 @ 60Hz CAT6a (shielded) 0 50 meters
- 2560 x 1600 @ 60Hz CAT5e (shielded) 0 50meters
- 2560 x 1600 @ 60Hz CAT7 2 40 meters
- Package Contents+
- DVIPRO-DL local and remote modules
- 2 x 12.5W power supplies
- Dual link video cable DVI-D to DVI-D
- USB cable 2m (a to B)
- 3.5mm stereo audio cable
- Reviews+
- Dual Link resolutions: deliver uncompressed digital video with audio
- USB 2.0 Low and Full speed connection: to interface with a range of devices
- Exact content seen on the local monitor is distributed: up to 50m over a single CATx cable
- Energy efficient design: external power supplies are not needed
- X-DVI PRO-DL: enables single screen at 2560 x 1600@60Hz
- Dual link DVI and transparent USB over a single CATx cable.
- Dual Link resolutions, Real Time Control
- The X-DVI PRO DL allows you to remote your monitor with resolutions up to 2560x1600 @60Hz up to 50 meters away from your computer. Using a visually lossless technique, no visible artifacts or latency are introduced allowing you to be certain of quality and control.
- Recommended cables are CAT7 shielded foiled twisted pairs:
- Daetwyler 7702 Flexible patch cable
- Daetwyler 7120 Bulk cable
- Category 5e (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
- 2560 x 1600 @ 60Hz CAT7 0 50 meters
- 2560 x 1600 @ 60Hz CAT6a (shielded) 0 50 meters
- 2560 x 1600 @ 60Hz CAT5e (shielded) 0 50meters
- 2560 x 1600 @ 60Hz CAT7 2 40 meters
- DVIPRO-DL local and remote modules
- 2 x 12.5W power supplies
- Dual link video cable DVI-D to DVI-D
- USB cable 2m (a to B)
- 3.5mm stereo audio cable
ADDER Link X-DVI PRO Dual Link - Adder Technology

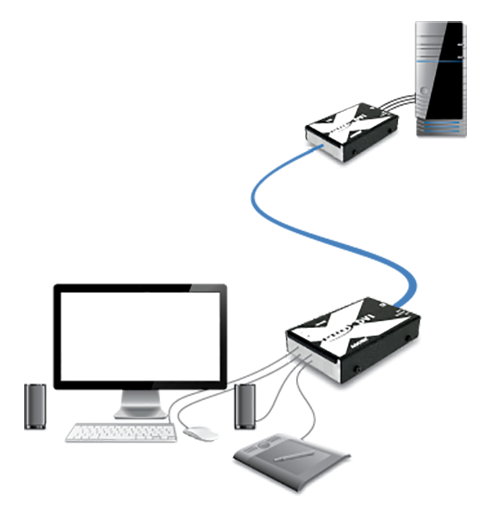

Part of the ADDERLink® X-DVI PRO range, the X-DVI PRO-DL high-performance, digital KVM (Keyboard, Video and Mouse) and USB extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed digital video and audio is distributed in real-time and with zero latency via a Dual Link DVI video stream, allowing the user to maintain an at-the-PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices.
Note: This product is only compatible with other Adder branded products
50 meters over a single CATx cable
Video, USB 2.0 (low and full speed) and audio pass along a single cable, providing up to 50 meters of extension. Distance is dependent upon video resolution, CATx cable type and the number of connection breaks for patch panels and wall plates. See datasheet for details.
USB 2.0
Enables connection of any human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12 Mbps) isochronous devices are also supported.
Power efficiency
The X-DVI PRO DL extender is designed to be highly power efficient and consumes <6 watts per point.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
The ADDER Link X-DVI PRO DL extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.
Analog Audio
Stereo CD quality (stereo channel 16 bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well. The ADDER Link X-DVI PRO DL is no exception and features tough, yet lightweight metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their high performance characteristics.
Hardware compatibility
All computers with DVI-D, USB and Audio - requirement dependent.
DVI-D Interface - digital only
The system supports resolutions to a maximum of 2560x1600 @60Hz.
USB 2.0 Low and full Speed
Transparent USB 2.0 (full and low speed) that supports HID, isochronous and mass storage devices to a maximum of 50 meters. Reduce maximum cable length by 5 meters if a USB hub in connected to the receiver unit.
Audio
The system delivers analog stereo audio (Line Out).
Software compatibility
All known operating systems.
Computer connections Transmitter (TX)
DVI-D, Audio 3.5mm in, USB type B.
Computer connections Receiver (RX)
DVI-D, Audio 3.5mm out, USB type A x 4.
Physical design
Compact case, robust metal construction 120mm/4.7” (w) x 75mm/3” (d) x 26mm/1” (h) 320g/0.7lb.
Power
2.5mm DC jack (power adaptor included), 100-240VAC 50/60Hz, 0.4A, input to power adaptor, 5VDC 12.5W output from power adaptor.
Operating temperature
0 to 40ºC / 32 to 104ºF.
Approvals
CE, FCC.
Important extension distance details
Resolution Cable Type Patch Connections
Total Distance
ADDER Link X-DVI PRO Dual Link - Adder Technology
Part of the ADDERLink® X-DVI PRO range, the X-DVI PRO-DL high-performance, digital KVM (Keyboard, Video and Mouse) and USB extender enables you to locate your critical computing hardware in a secure and temperature controlled environment. Uncompressed digital video and audio is distributed in real-time and with zero latency via a Dual Link DVI video stream, allowing the user to maintain an at-the-PC experience. The USB 2.0 interface ensures compatibility with a wide range of USB devices.
Note: This product is only compatible with other Adder branded products
50 meters over a single CATx cable
Video, USB 2.0 (low and full speed) and audio pass along a single cable, providing up to 50 meters of extension. Distance is dependent upon video resolution, CATx cable type and the number of connection breaks for patch panels and wall plates. See datasheet for details.
USB 2.0
Enables connection of any human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12 Mbps) isochronous devices are also supported.
Power efficiency
The X-DVI PRO DL extender is designed to be highly power efficient and consumes <6 watts per point.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
The ADDER Link X-DVI PRO DL extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.
Analog Audio
Stereo CD quality (stereo channel 16 bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well. The ADDER Link X-DVI PRO DL is no exception and features tough, yet lightweight metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their high performance characteristics.
Hardware compatibility
All computers with DVI-D, USB and Audio - requirement dependent.
DVI-D Interface - digital only
The system supports resolutions to a maximum of 2560x1600 @60Hz.
USB 2.0 Low and full Speed
Transparent USB 2.0 (full and low speed) that supports HID, isochronous and mass storage devices to a maximum of 50 meters. Reduce maximum cable length by 5 meters if a USB hub in connected to the receiver unit.
Audio
The system delivers analog stereo audio (Line Out).
Software compatibility
All known operating systems.
Computer connections Transmitter (TX)
DVI-D, Audio 3.5mm in, USB type B.
Computer connections Receiver (RX)
DVI-D, Audio 3.5mm out, USB type A x 4.
Physical design
Compact case, robust metal construction 120mm/4.7” (w) x 75mm/3” (d) x 26mm/1” (h) 320g/0.7lb.
Power
2.5mm DC jack (power adaptor included), 100-240VAC 50/60Hz, 0.4A, input to power adaptor, 5VDC 12.5W output from power adaptor.
Operating temperature
0 to 40ºC / 32 to 104ºF.
Approvals
CE, FCC.
Important extension distance details
Resolution Cable Type Patch Connections
Total Distance
