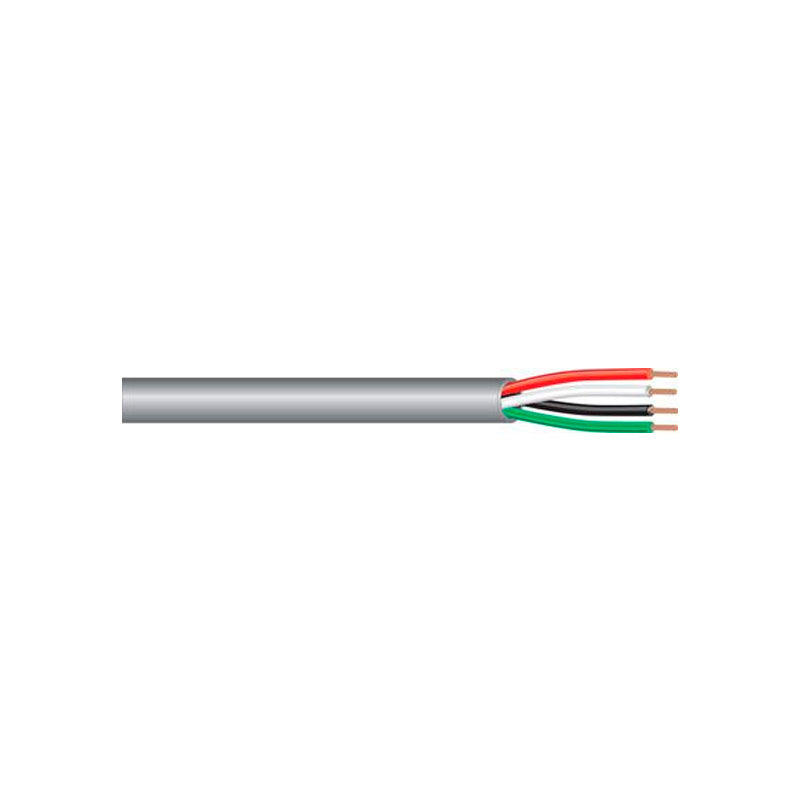

West Penn 4C 20G STRD UNSHLD PLENII Bulk Control Cable, Reel-In-Box

SKU#: 25242BGY0500

UPC#: 612825046431

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: 25242BGY0500

UPC#:612825046431
$147.80

SKU#: 25242BGY0500

UPC#:612825046431
Color:
Gray
Length:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • 4C 20G STRD UNSHLD PLENII Bulk Control Cable, Reel-In-Box

  • Specs+
  • CONSTRUCTION & DIMENSIONS



    CONDUCTOR PARAMETER



       • Number of Conductors

    4

       • AWG Size

    20

       • Conductor Stranding

    7x28

       • Conductor Type

    Bare copper

       • Nominal DCR

    10.5 Ohm/1000ft

    INSULATION PARAMETER



       • Insulation Type

    Plenum PVC

       • Insulation Thickness

    0.007 in

       • Insulation Color Code

    1.Black,2.Red,3.White,4.Green

    SHIELDING PARAMETER



       • Shield Type

    None

    OVERALL CONSTRUCTION PARAMETERS



    Jacket Type

    Flexible Plenum

    Jacket Thickness

    0.015 in

    Nominal Cable O.D.

    0.156 in

    Plenum

    Yes

    NEC UL Rating

    CMP

    RoHS Compliant

    Yes

    Pull Tension

    39 lbs

    Bend Radius

    1.404 in

    Cable Weight

    22 lbs

    OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS



    UL Flammability

    NFPA 262 Plenum

    Operating Range

    -0 to 60 Deg C

    UL Voltage Rating

    300

  • Reviews+
  • 4C 20G STRD UNSHLD PLENII Bulk Control Cable, Reel-In-Box

    CONSTRUCTION & DIMENSIONS



    CONDUCTOR PARAMETER



       • Number of Conductors

    4

       • AWG Size

    20

       • Conductor Stranding

    7x28

       • Conductor Type

    Bare copper

       • Nominal DCR

    10.5 Ohm/1000ft

    INSULATION PARAMETER



       • Insulation Type

    Plenum PVC

       • Insulation Thickness

    0.007 in

       • Insulation Color Code

    1.Black,2.Red,3.White,4.Green

    SHIELDING PARAMETER



       • Shield Type

    None

    OVERALL CONSTRUCTION PARAMETERS



    Jacket Type

    Flexible Plenum

    Jacket Thickness

    0.015 in

    Nominal Cable O.D.

    0.156 in

    Plenum

    Yes

    NEC UL Rating

    CMP

    RoHS Compliant

    Yes

    Pull Tension

    39 lbs

    Bend Radius

    1.404 in

    Cable Weight

    22 lbs

    OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS



    UL Flammability

    NFPA 262 Plenum

    Operating Range

    -0 to 60 Deg C

    UL Voltage Rating

    300
