Crimson-AV Ultra-Flat Tilting Mount for 32 to 55 Inch Flat Panel Screens
SKU#: TU55
UPC#:815885014260
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Post-installation leveling
- Ultra-flat design holds screen only 0.97" from wall for sleek look
- Quick and secure "hook and click" installation
- VESA compatible
- Features+
- Universal design
- VESA compatible
- Ultra-flat design holds screen only 0.97” from wall for a clean look
- Quick and secure “hook and click”installation
- Lateral shift for perfect placement
- Built-in kickstand feature allows easy access for wiring
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
- Specs+
- TV size range: 32”–55”
- Weight capacity: 100lb (45kg)
- Max mounting pattern: 602x402mm
- VESA mounting pattern: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm

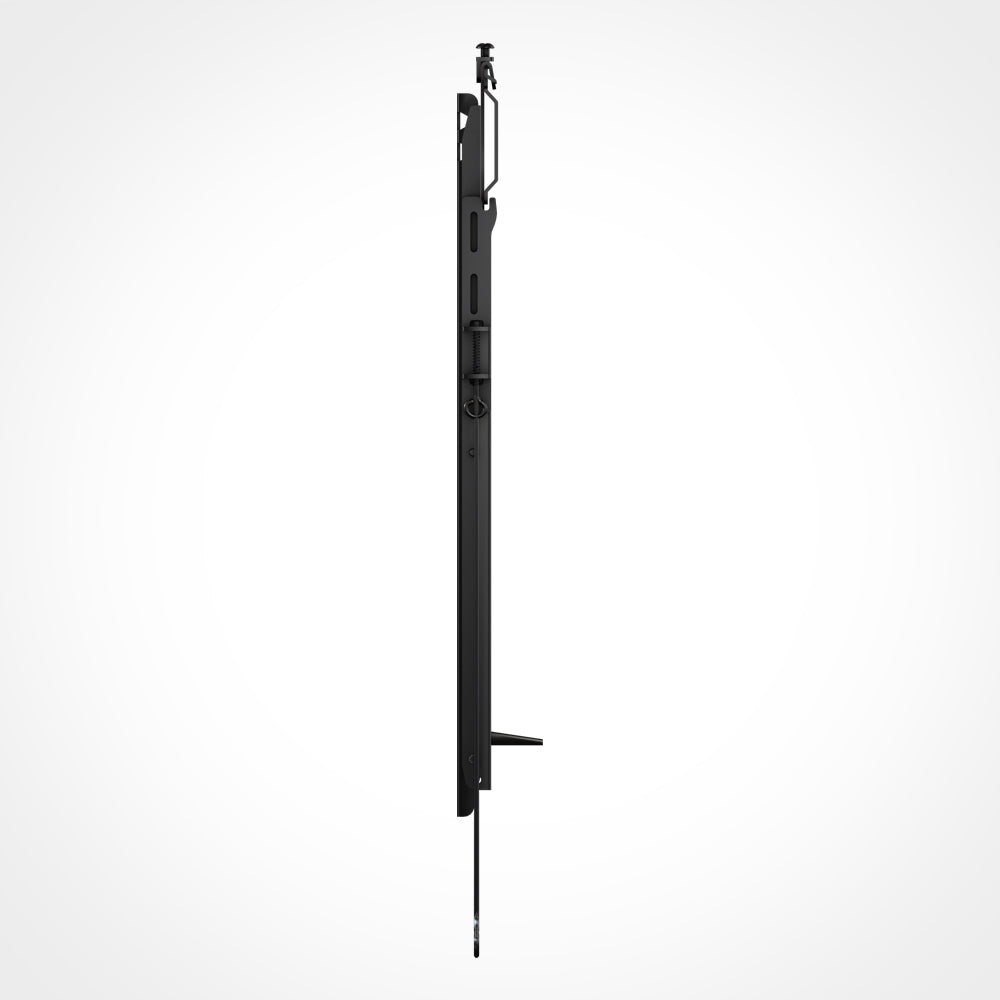

- Depth from Wall: 0.97”(24.6mm)
- Lateral adjustment: Varies with Screen
- Tilt: +15°/-0°
- Mounting surface: wood stud, concrete, cinder block or metal stud (accessory required HT4)
- Stud Spacing: Dual Stud 16" on Center
- Construction: High Grade Cold Rolled Steel
- Product Finish: Scratch Resistant Epoxy Powder
- Product Weight: 6lb (2.7kg)
- Reviews+
- Q&A+
- Post-installation leveling
- Ultra-flat design holds screen only 0.97" from wall for sleek look
- Quick and secure "hook and click" installation
- VESA compatible
- Universal design
- VESA compatible
- Ultra-flat design holds screen only 0.97” from wall for a clean look
- Quick and secure “hook and click”installation
- Lateral shift for perfect placement
- Built-in kickstand feature allows easy access for wiring
- Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
- TV size range: 32”–55”
- Weight capacity: 100lb (45kg)
- Max mounting pattern: 602x402mm
- VESA mounting pattern: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
- Depth from Wall: 0.97”(24.6mm)
- Lateral adjustment: Varies with Screen
- Tilt: +15°/-0°
- Mounting surface: wood stud, concrete, cinder block or metal stud (accessory required HT4)
- Stud Spacing: Dual Stud 16" on Center
- Construction: High Grade Cold Rolled Steel
- Product Finish: Scratch Resistant Epoxy Powder
- Product Weight: 6lb (2.7kg)
Ultra flat and Tilt
Super slim universal design holds flat panel screens only .97 (24.6mm) from a wall. A perfect match for today’s slim TVs. Post-installation leveling feature allows for perfect screen positioning even when a ceiling is not perfectly level. Quick and secure “hook and click” installation with built-in kickstand feature that allows easy access for wiring.
**Caution: This mount is designed exclusively for ultra-flat TV's and places the screen extremely close to the wall. Please refer to your TV's owner's manual for ventilation requirements for your particular television. Use of spacers may be required for proper ventilation.
Will this fit my TV?
This will fit most 32-60" TVs. Please make sure your TV's mounting pattern is 600x400 or smaller and your TV weighs 100 lbs or less.
Will I need anything else?
You may need additional hardware if your TV uses a different screw size or if you are mounting to anything other than studs. You will also want an electric screwdriver with a drill bit and a stud finder. A drop cloth to cover your carpet or furniture may help, and a separate level can be a good idea as well.
What is a VESA pattern?
VESA pattern is the mounting pattern. There are several different sizes used by manufacturers. It is the measurement between mounting holes side to size and then up and down. This measurement will always be in millimeters.
What are the dimensions on the mount?
The base of this mount is 25.7 inches wide and the arms are 16.8 inches long.
Does this tilt or swivel?
This mount can be used flat or tilted down.
Can you mount this on brick, plaster, or stone?
This mounting kit includes hardware to mount on drywall over studs and concrete. With special tools and hardware, you may be able to mount on other surfaces. Please consult an installation professional if you are unsure about how to mount in your home.
Will this work with a curved TV?
Unfortunately, we do not recommend this mount with a curved TV.
How far away from the wall does this sit?
When flat, this mount sits 1 inch from the wall.
Does this have any special features?
Yes, this mount sits very close to the wall. It also has a kickstand and post-installation leveling.
