ICC ICMPP024U6 Telephone Patch Panel, 24 Port RJ-11 1U USOC Voice
SKU#: ICMPP024U6
UPC#:633758006927Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+

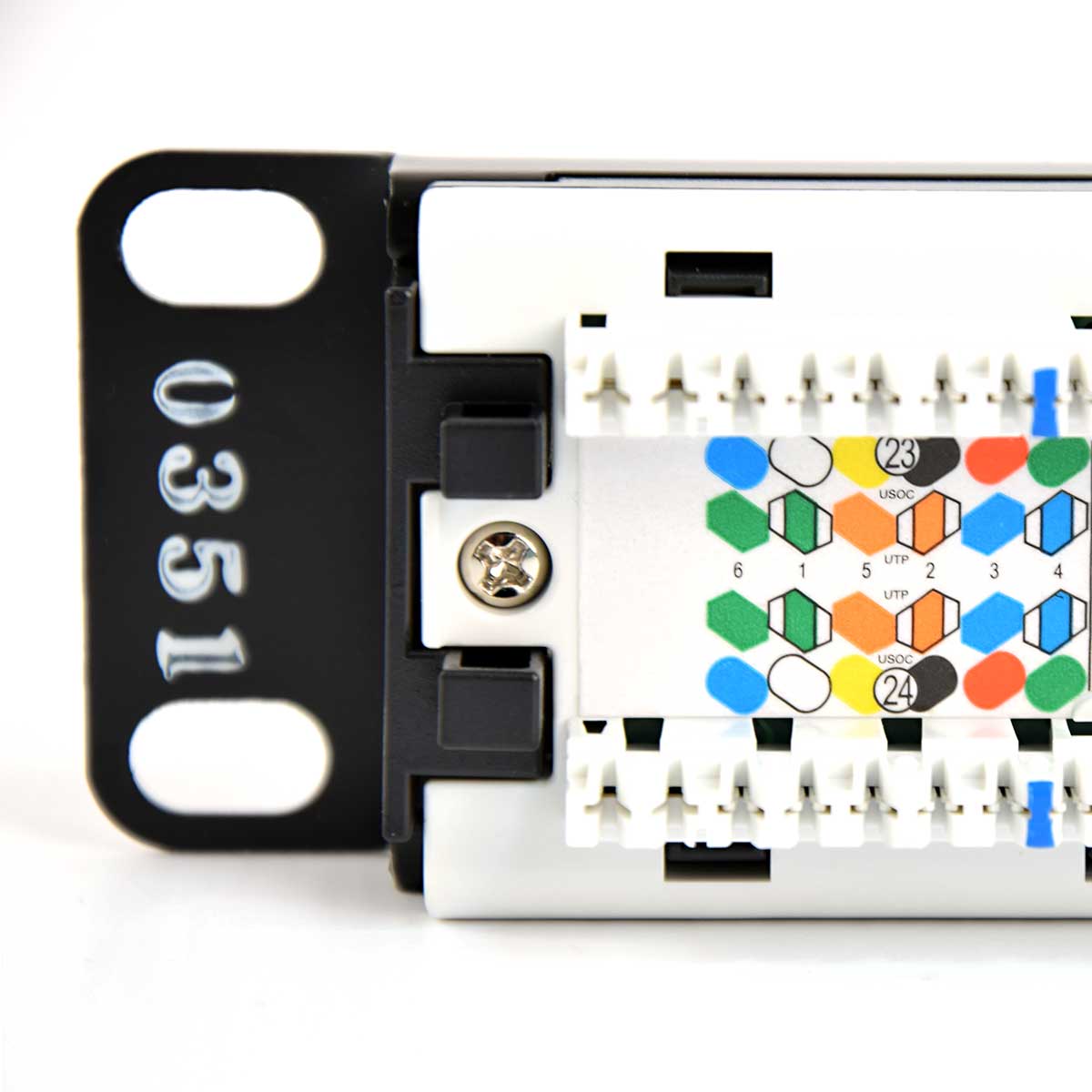

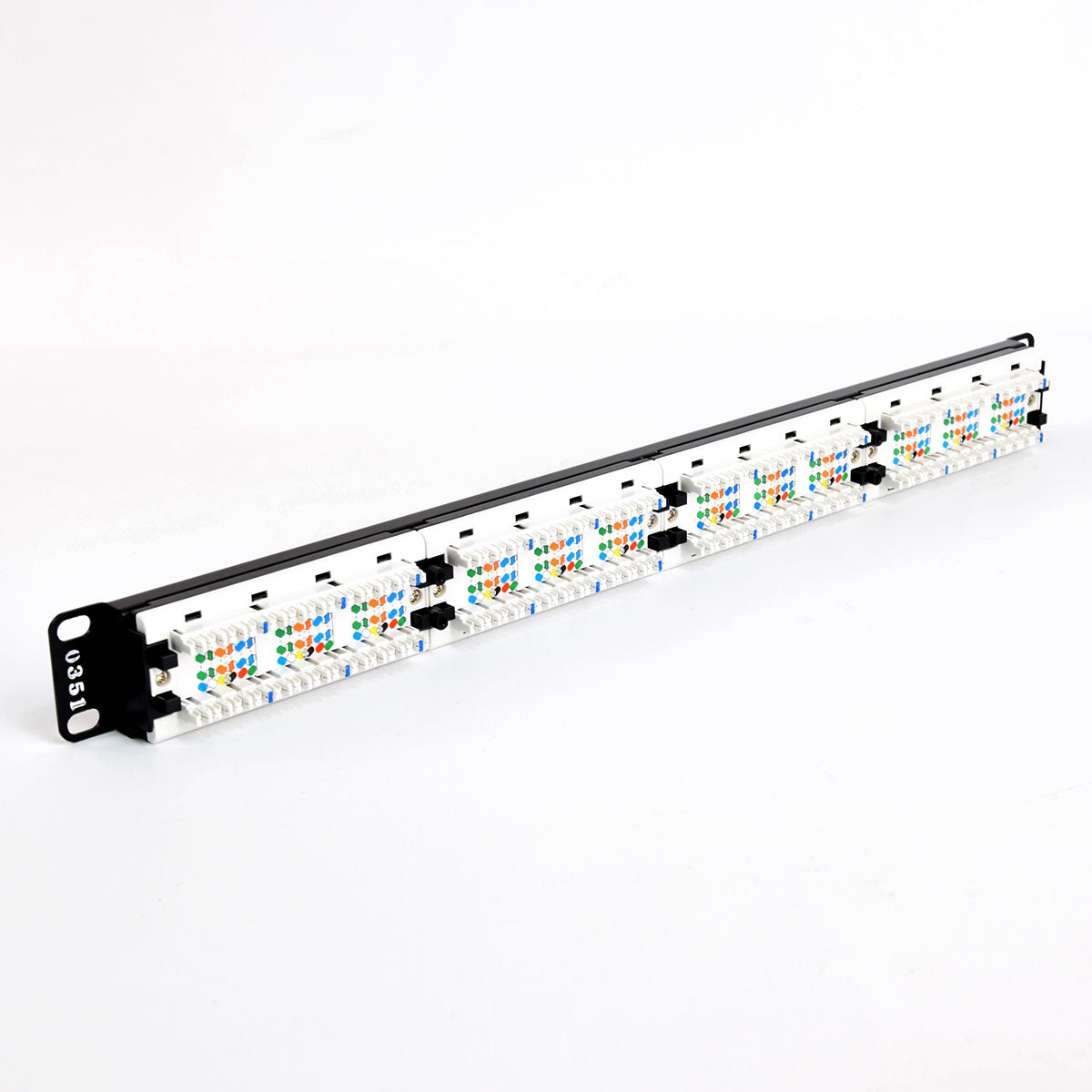

- Rear 110-Type IDC Termination Reducing Installation Time
- Supports Voice Connectivity Applications
- 3 Year Manufacturer Warranty
- Specs+
- Jack Housing: High Impact, Flame Retardant Plastic, UL 94V-0
- 110 Connector: Phosphor Bronze Alloy with 100 Micron Alloy
- Gold Rating: 50 Micron Gold over 100 Micron Nickel

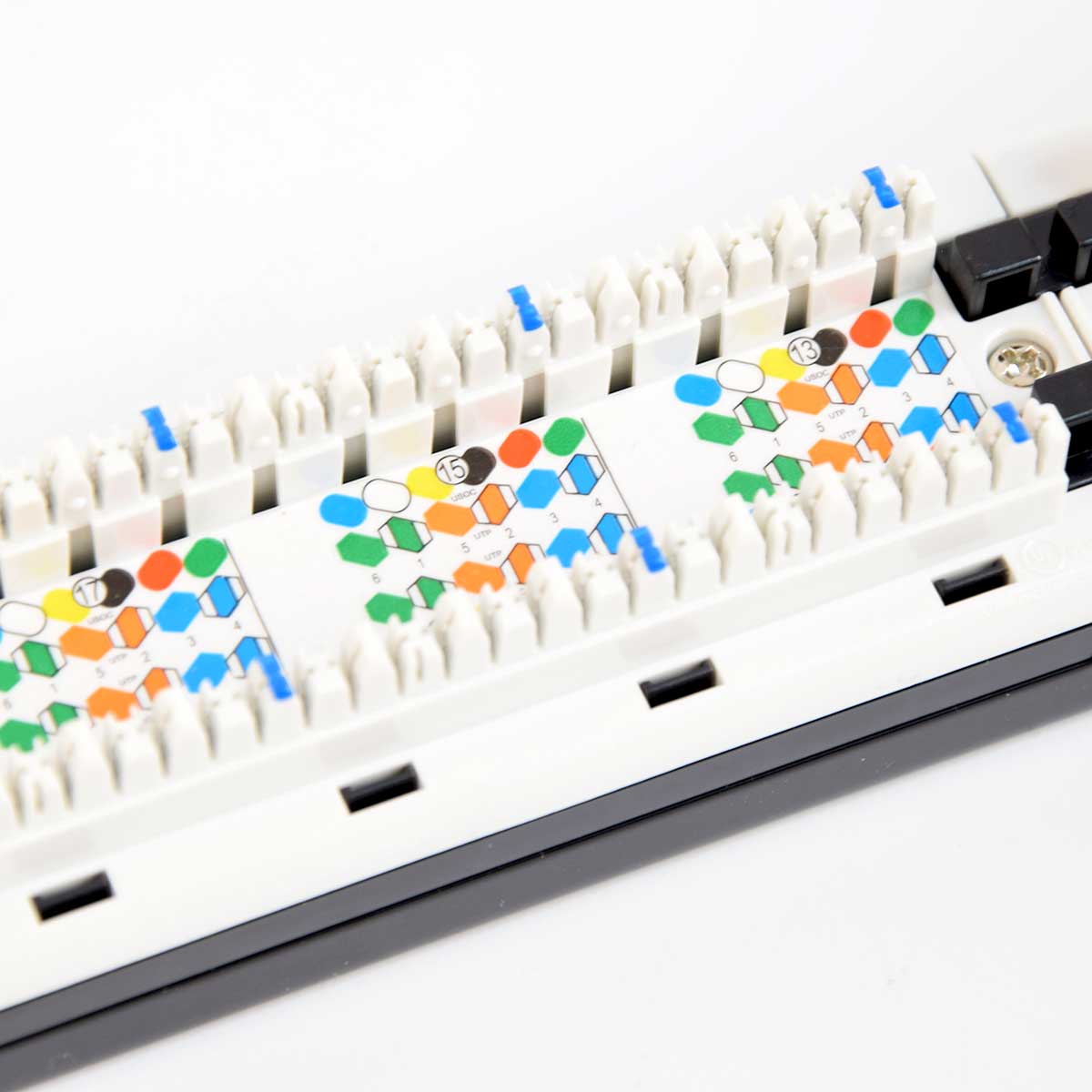

- Color Coded 110-Type Connecting Blocks
- Fits Standard 19” EIA Rack Mount Width
- Works with 6P6C Telephone Line Cords
- Contact Resistance: 2.5 MILOHMS MAX
- Mating Force: 100 Grams MIN/Contact
- Plug Retention in Jack: 50N (11 lbs sq)
- Electrical Current Rating: 1.5 AMP DC
- Surface Finish: Black Powder Coat
- Temperature Range: -40°~70°C
- 16 GA CRS 24 Port Patch Panel
- Spring Wire: Phosphor Bronze
- 6-position 6-conductor RJ-11
- IDC Wire Gauge: 22-24AWG
- 1 Rack Mount Space (RMS)
- UL Listed (1863 Compliant)
- ANSI/TIA-568-C Compliant
- SPEC SHEET
- INSTALLATION INSTRUCTIONS

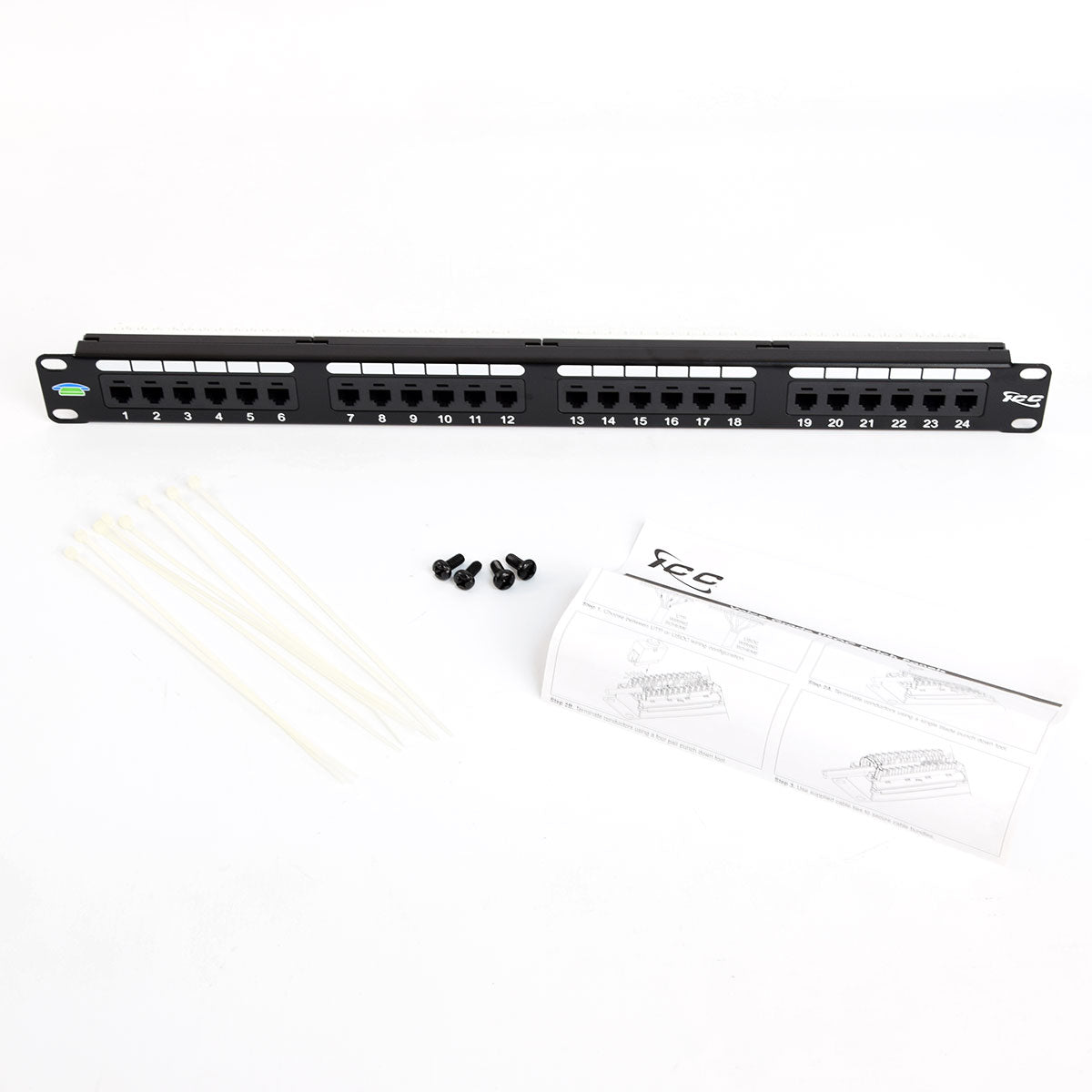

- Package Contents+

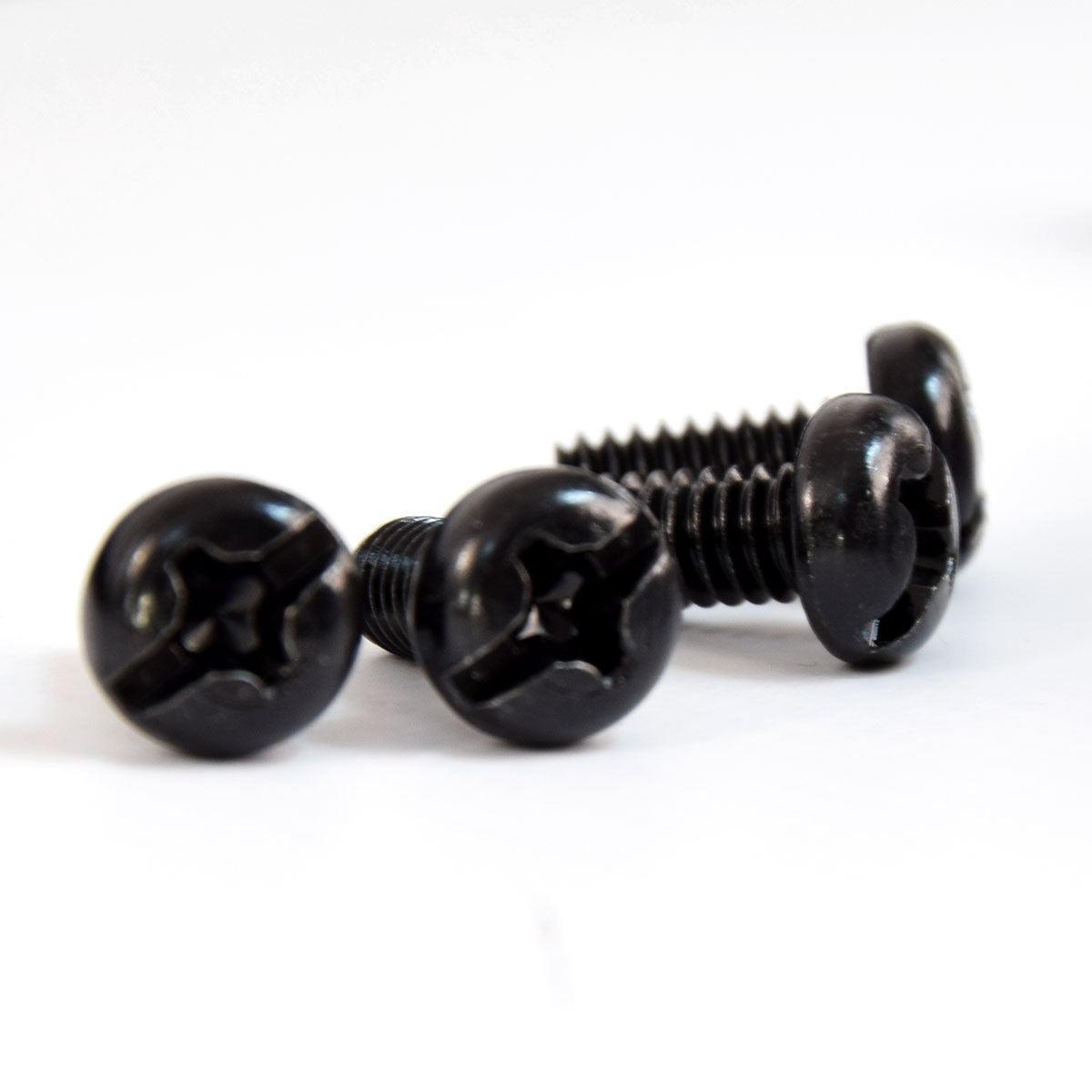

- (4) #12-24 x 5/8” Pan Head, Pilot Point Machine Screws
- (1) 24 Port RJ-11 Phone Patch Panel
- (1) Installation Instruction Sheet
- (8) Clear Nylon Cable Ties
- Reviews+
- Q&A+
- Rear 110-Type IDC Termination Reducing Installation Time
- Supports Voice Connectivity Applications
- 3 Year Manufacturer Warranty
- Jack Housing: High Impact, Flame Retardant Plastic, UL 94V-0
- 110 Connector: Phosphor Bronze Alloy with 100 Micron Alloy
- Gold Rating: 50 Micron Gold over 100 Micron Nickel
- Color Coded 110-Type Connecting Blocks
- Fits Standard 19” EIA Rack Mount Width
- Works with 6P6C Telephone Line Cords
- Contact Resistance: 2.5 MILOHMS MAX
- Mating Force: 100 Grams MIN/Contact
- Plug Retention in Jack: 50N (11 lbs sq)
- Electrical Current Rating: 1.5 AMP DC
- Surface Finish: Black Powder Coat
- Temperature Range: -40°~70°C
- 16 GA CRS 24 Port Patch Panel
- Spring Wire: Phosphor Bronze
- 6-position 6-conductor RJ-11
- IDC Wire Gauge: 22-24AWG
- 1 Rack Mount Space (RMS)
- UL Listed (1863 Compliant)
- ANSI/TIA-568-C Compliant
- SPEC SHEET
- INSTALLATION INSTRUCTIONS
- (4) #12-24 x 5/8” Pan Head, Pilot Point Machine Screws
- (1) 24 Port RJ-11 Phone Patch Panel
- (1) Installation Instruction Sheet
- (8) Clear Nylon Cable Ties
ICC Telephone Patch Panel USOC Voice Grade
Note: this product has been discontinued.

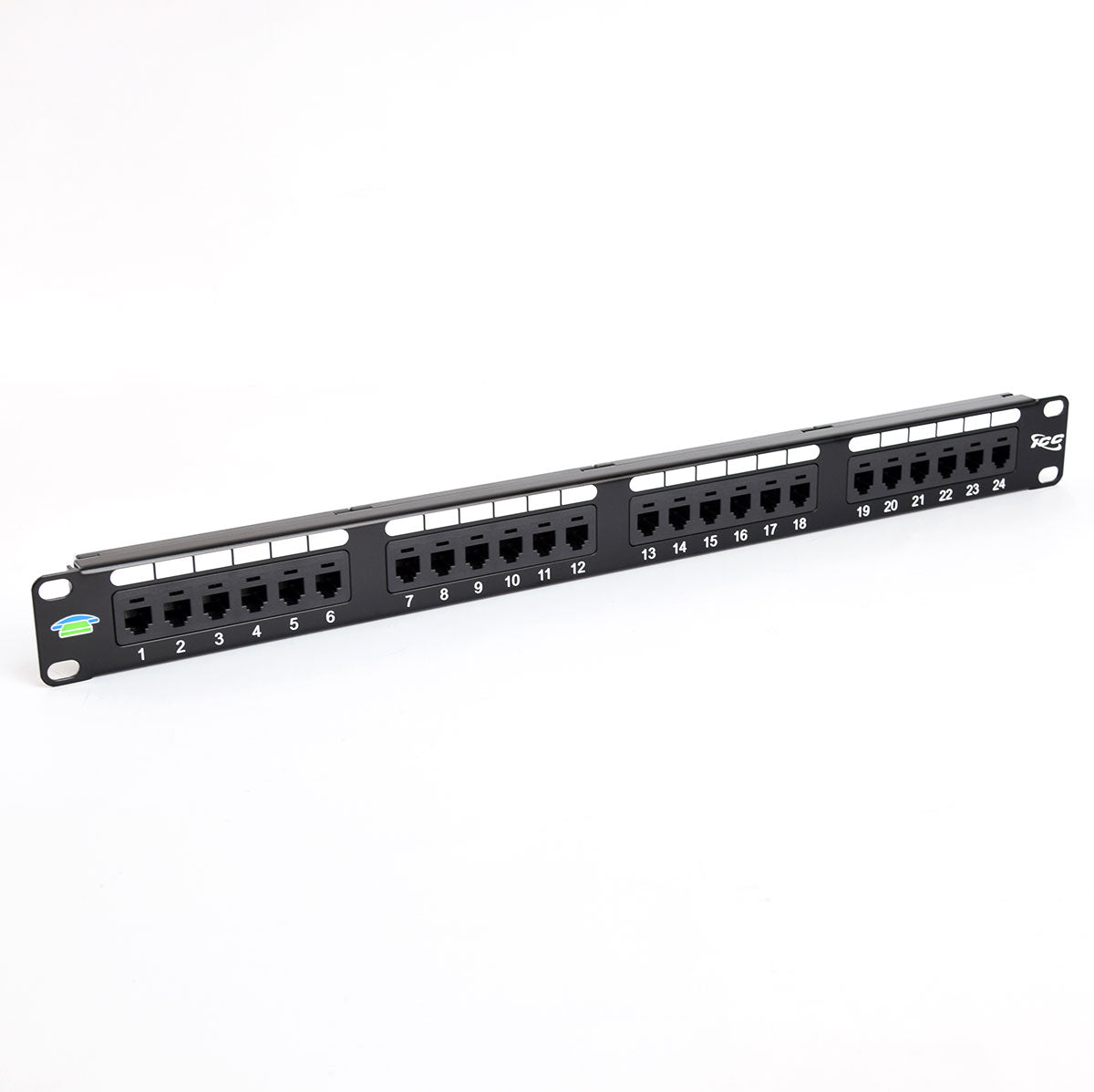

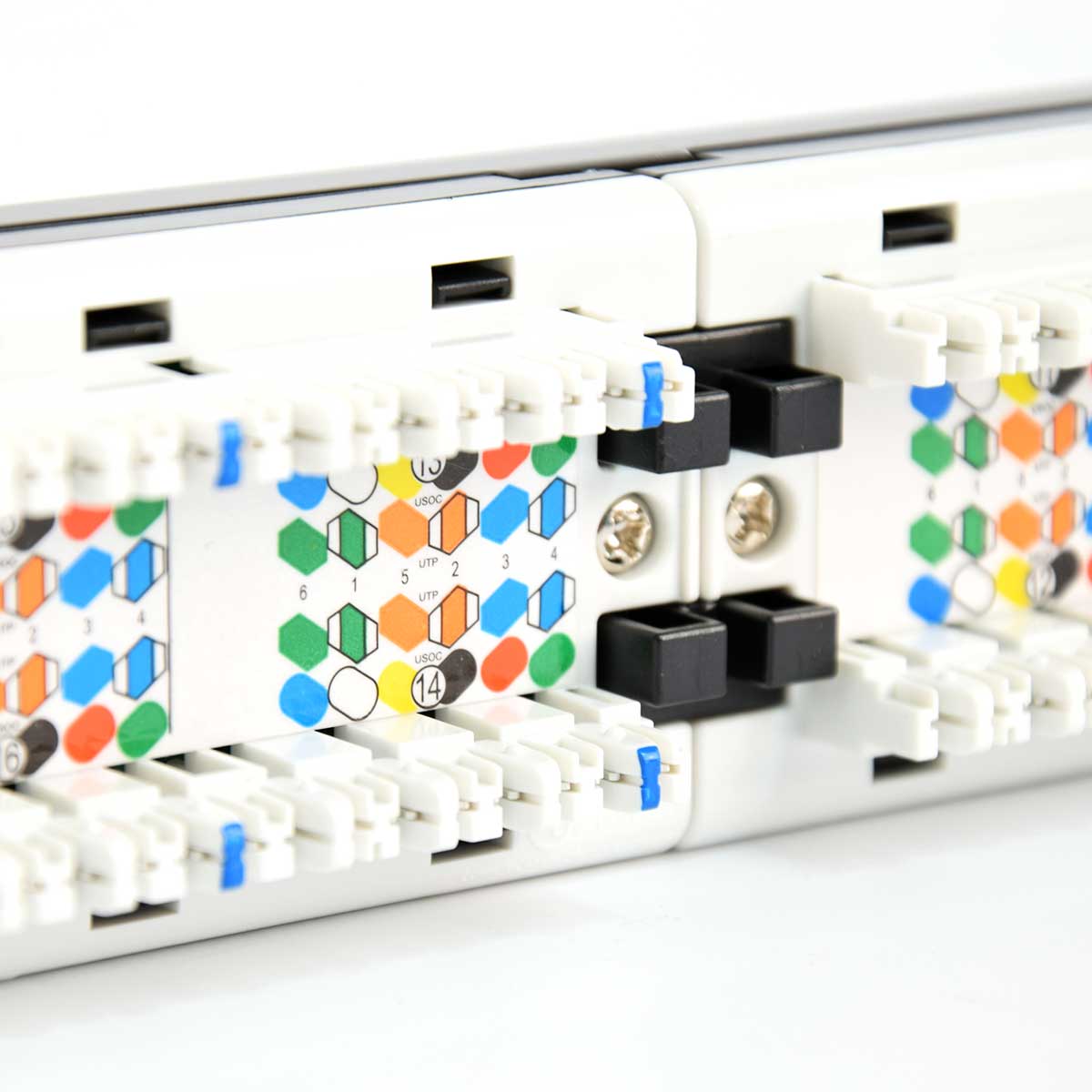

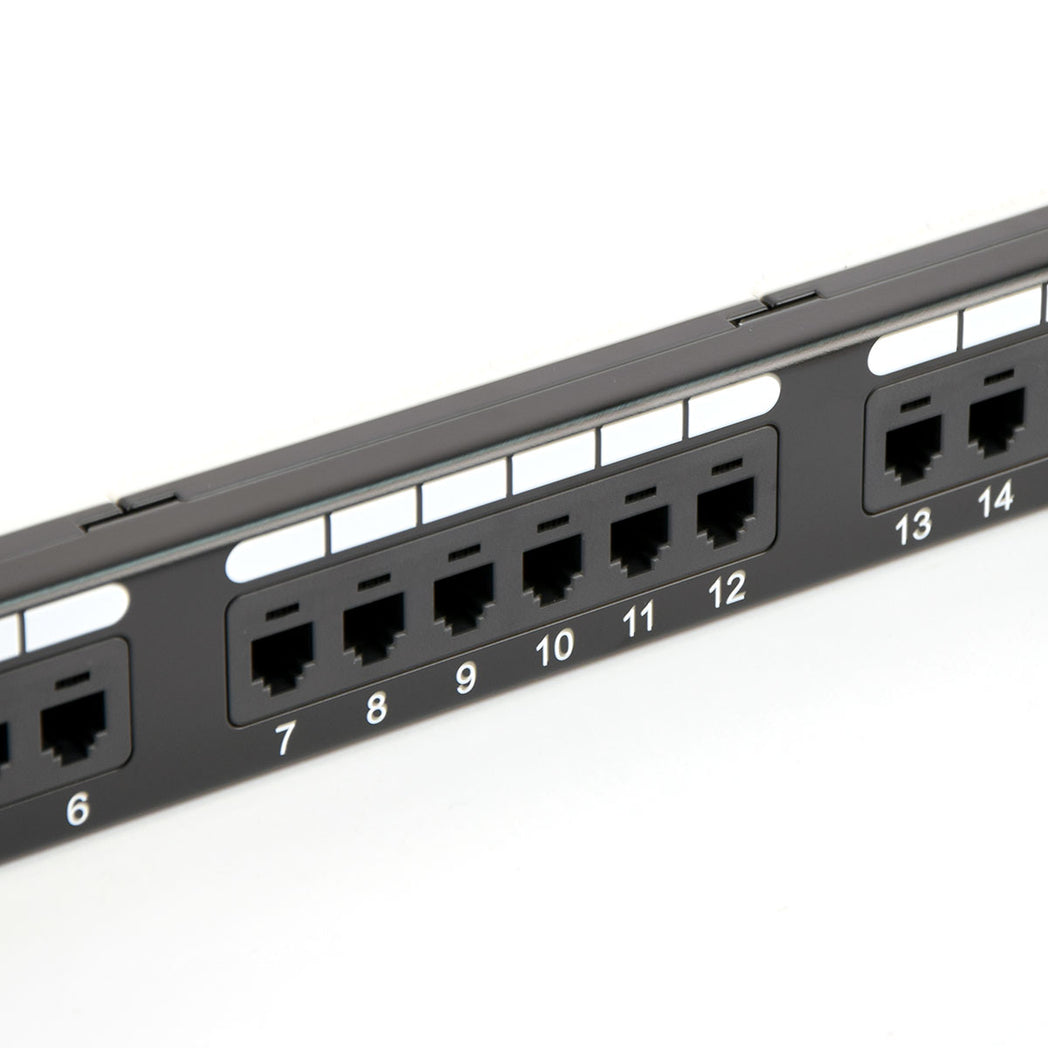

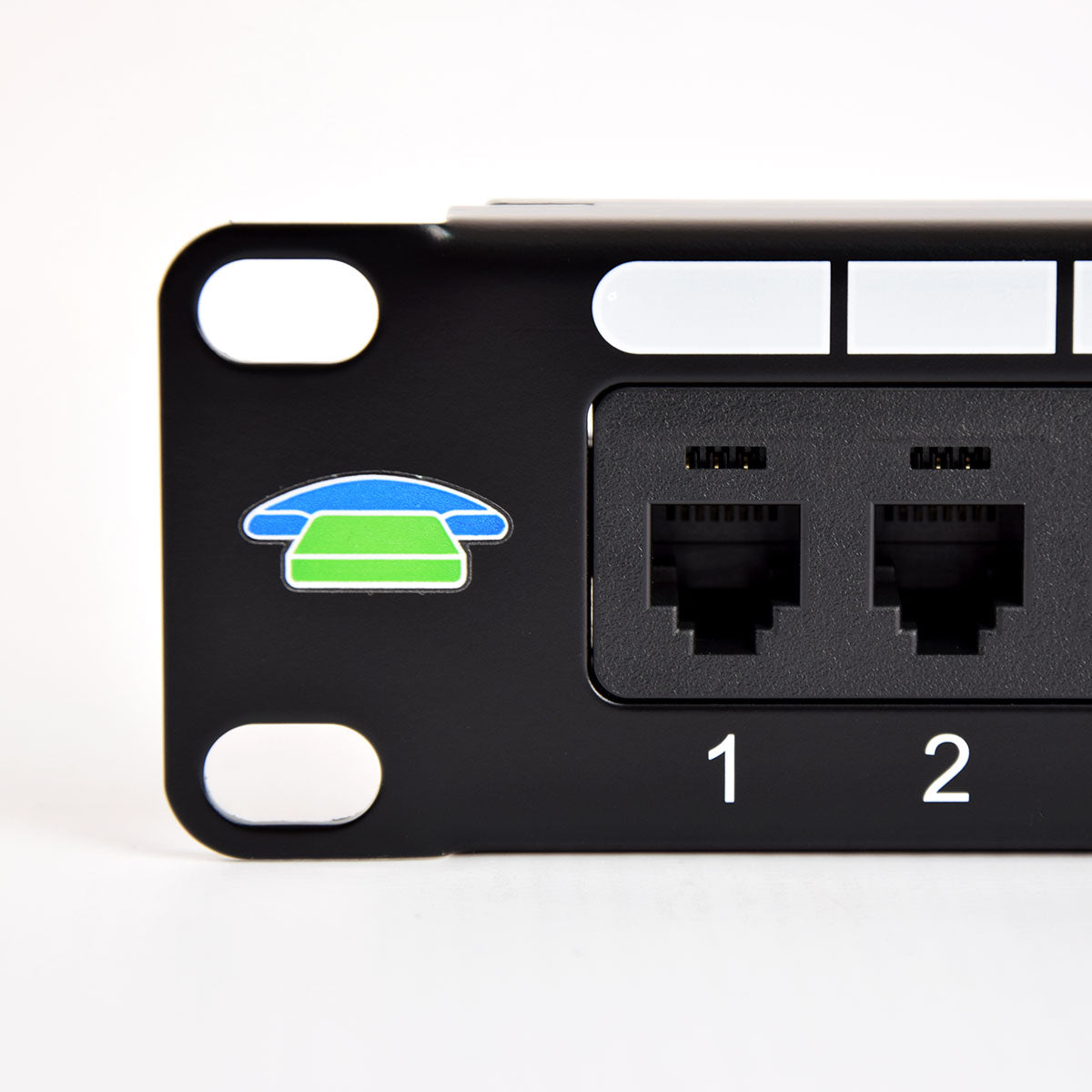

This 24-port Cat3 patch panel from ICC supports high-density voice applications to optimize rack space. It occupies one rack space unit and features voice-grade USOC 6-position 6-conductor RJ-11 jacks. The color-coded rear IDC termination blocks offer easy identification to reduce installation time.
What is USOC?
USOC is an acronym for Universal Systems Ordering Code. It is a set of standards established by Bell Systems for connecting residential telecommunications equipment to public network lines.
ICC Telephone Patch Panel USOC Voice Grade
Note: this product has been discontinued.
This 24-port Cat3 patch panel from ICC supports high-density voice applications to optimize rack space. It occupies one rack space unit and features voice-grade USOC 6-position 6-conductor RJ-11 jacks. The color-coded rear IDC termination blocks offer easy identification to reduce installation time.
What is USOC?
USOC is an acronym for Universal Systems Ordering Code. It is a set of standards established by Bell Systems for connecting residential telecommunications equipment to public network lines.
