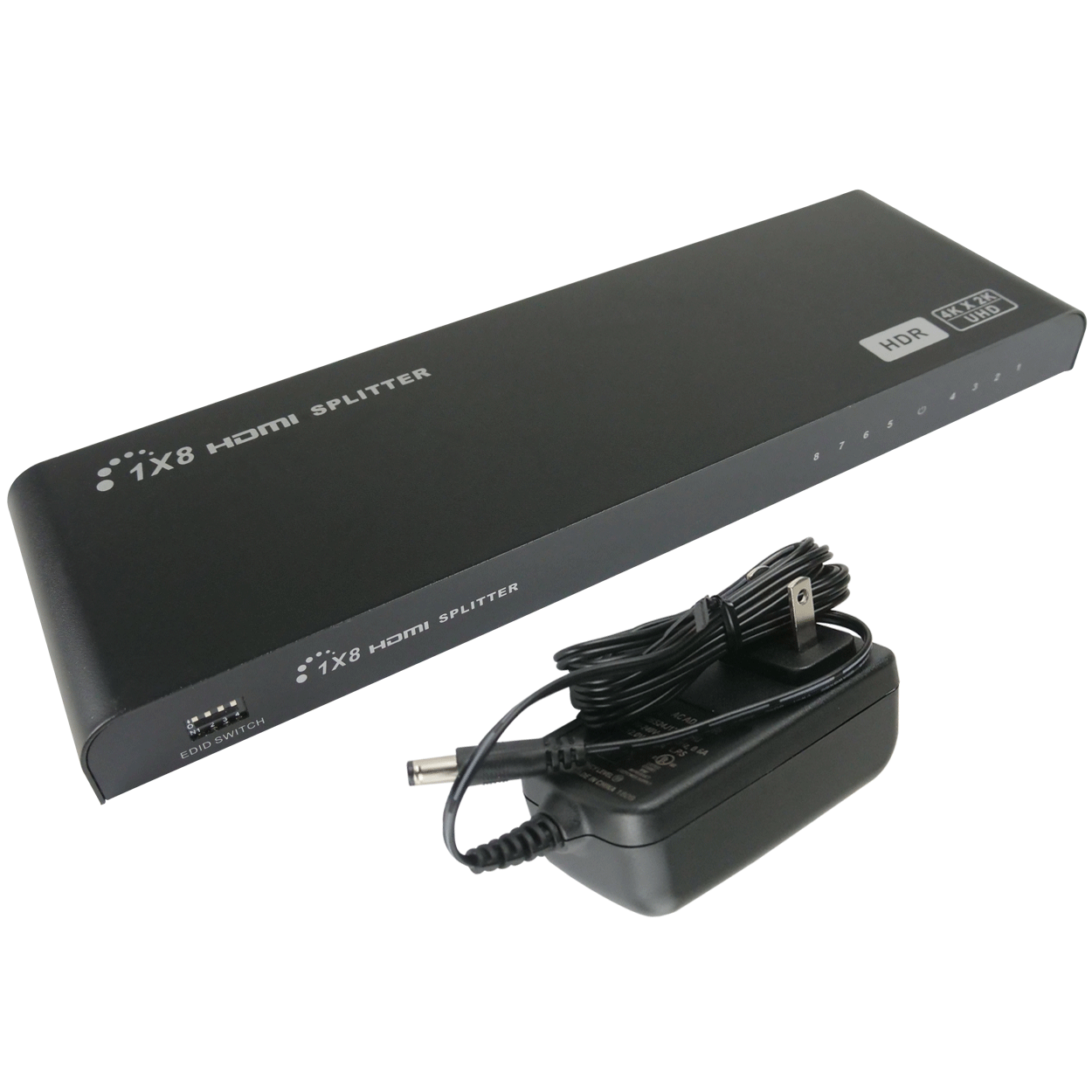

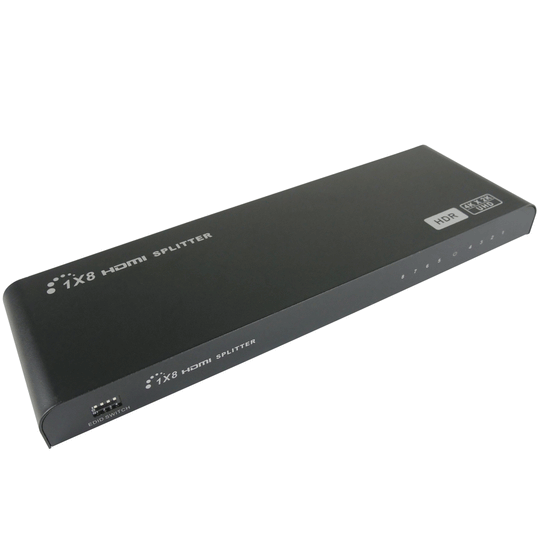

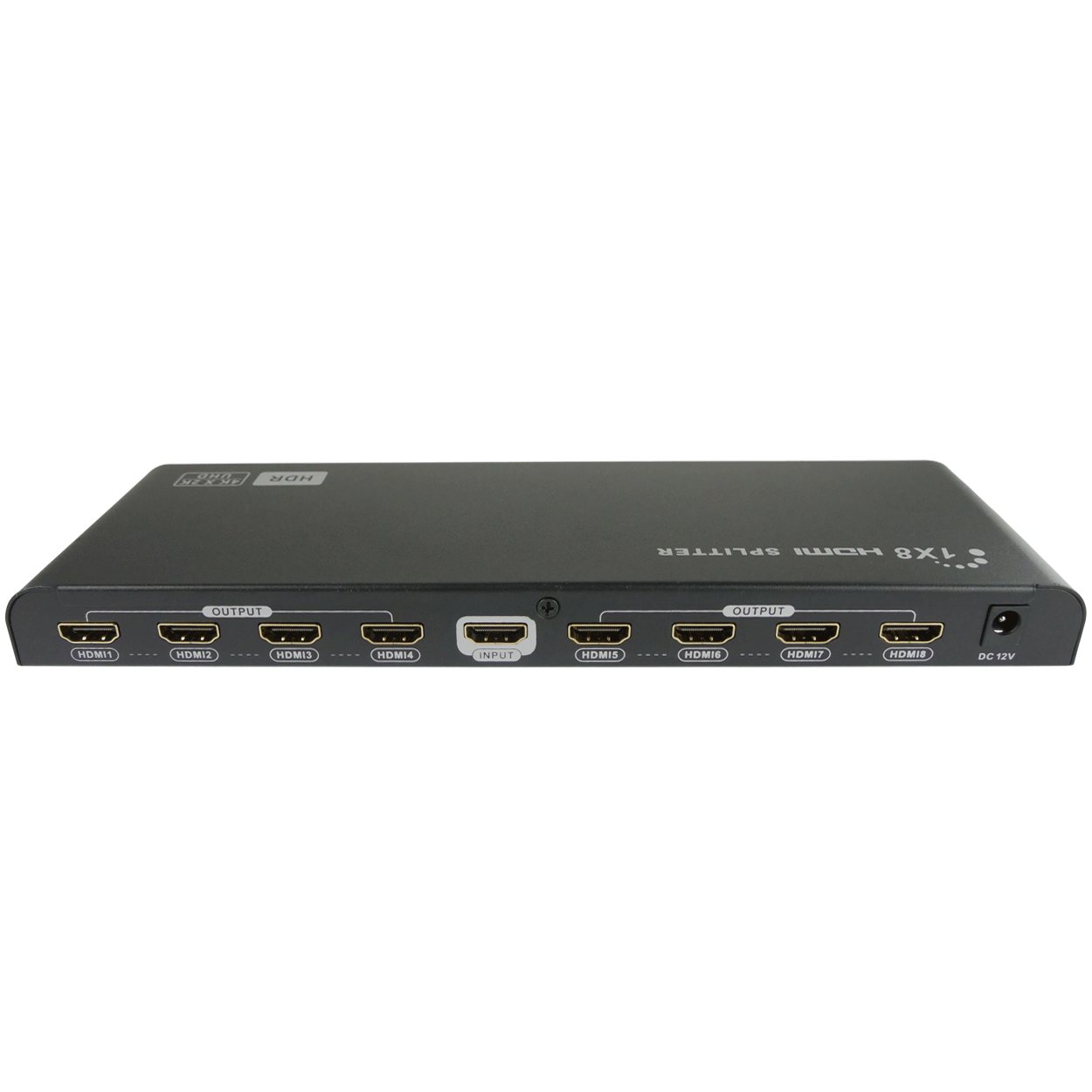

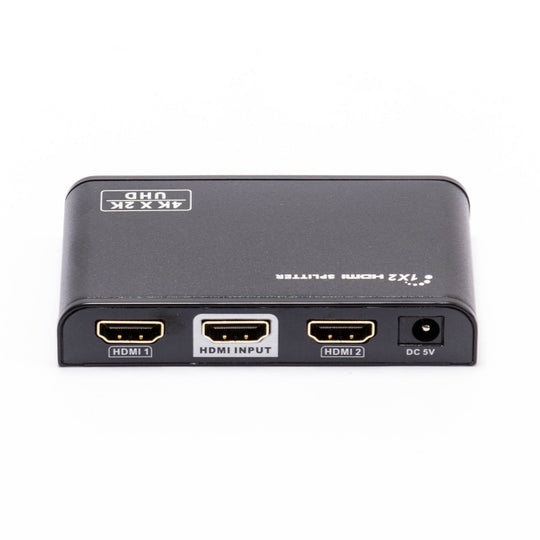

4K HDMI Splitter with 3D, UHD-HDR Support, 60Hz - 1x2, 1x4, 1x8
SKU#: HDMI2-2SPLITTER
UPC#:704438120063Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- 1x2 Splitter: DC5V/1A, <5W Consumption
- 1x4 Splitter: DC5V/2A, <8W Consumption
- 1x8 Splitter: DC12V/2A, <15W Consumption
- 1x2 Splitter: 3.78(L) x 2.32(W) x 0.66(H)" (96x59x16.8mm)
- 1x4 Splitter: 6.22(L) x 3.14(W) x 0.67(H)" (158x80x17mm)
- 1x8 Splitter: 10.24(L) x 3.54(W) x 0.83(H)" (260x90x21mm)
- 1x2 Splitter: 3.46oz (98g)
- 1x4 Splitter: 6.91oz (196g)
- 1x8 Splitter: 15.98oz (453g)
- Features+
- Distributes one HDMI source to 2 displays
- Support for resolutions up to 4K / 60Hz UHD
- Compatible with HDMI 2.0 / HDCP 2.2
- Supports HDR (High Dynamic Range)
- Supports standard audio and DSD (Direct Stream Digital) and HD (HBR) audio
- Automatic scaling to highest resolution according to the capabilities of each connector display. This allows simultaneous 4K and 1080p display outputs on separate monitors
- EDID management for configuring EDID information if necessary
- Metal housing for durability
- Specs+
- Input Ports: 1 x HDMI
- Output Ports: 2 x HDMI
- Power Indicator LED: 1 x LED
- Signal Indicator LED: 2 x LED
- HDMI Version: Support HDMI 1.4 & HDMI 2.0
- HDCP Version: Support for HDCP 1.4 and HDCP 2.2
- Frequency Range: 25MHz - 594MHz
- Input and Output TMDS Signal: 0.7 - 1.2Vp-p (TMDS)
- Input and Output DDC Signal: 5Vp-p (TTL)
- HDMI Resolutions: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K x 2K @24 / 25 / 30 / 60Hz
- Audio: Supports standard audio and DSD (Direct Stream Digital) and HD (HBR) audio
- HDR: Support
- EDID management: Support Smart EDID Management - able to display different resolution monitors at the same time
- Working Temperature: 0°C - 60°C
- Power Supply: 5V DC 1A
- Power Consumption: <2.5W
- Dimensions: 96mm (W) x 59mm (D) x 16.8mm (H)
- Weight: 0.22 lbs (100g)
- Color: Black

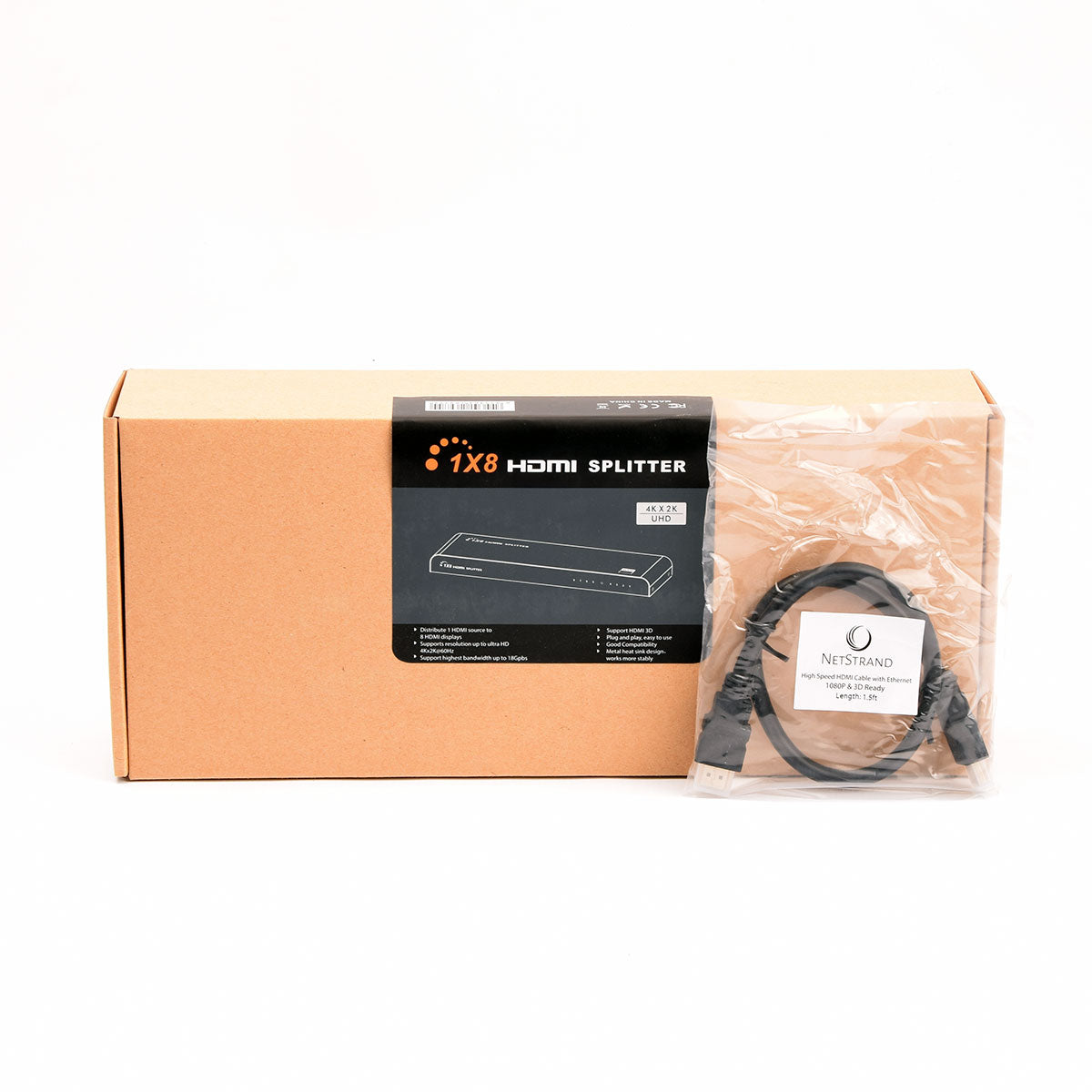

- Package Contents+
- (1) HDMI Splitter
- (1) Power Adapter
- (1) Instruction Manual
- Reviews+
- 1x2 Splitter: DC5V/1A, <5W Consumption
- 1x4 Splitter: DC5V/2A, <8W Consumption
- 1x8 Splitter: DC12V/2A, <15W Consumption
- 1x2 Splitter: 3.78(L) x 2.32(W) x 0.66(H)" (96x59x16.8mm)
- 1x4 Splitter: 6.22(L) x 3.14(W) x 0.67(H)" (158x80x17mm)
- 1x8 Splitter: 10.24(L) x 3.54(W) x 0.83(H)" (260x90x21mm)
- 1x2 Splitter: 3.46oz (98g)
- 1x4 Splitter: 6.91oz (196g)
- 1x8 Splitter: 15.98oz (453g)
- Distributes one HDMI source to 2 displays
- Support for resolutions up to 4K / 60Hz UHD
- Compatible with HDMI 2.0 / HDCP 2.2
- Supports HDR (High Dynamic Range)
- Supports standard audio and DSD (Direct Stream Digital) and HD (HBR) audio
- Automatic scaling to highest resolution according to the capabilities of each connector display. This allows simultaneous 4K and 1080p display outputs on separate monitors
- EDID management for configuring EDID information if necessary
- Metal housing for durability
- Input Ports: 1 x HDMI
- Output Ports: 2 x HDMI
- Power Indicator LED: 1 x LED
- Signal Indicator LED: 2 x LED
- HDMI Version: Support HDMI 1.4 & HDMI 2.0
- HDCP Version: Support for HDCP 1.4 and HDCP 2.2
- Frequency Range: 25MHz - 594MHz
- Input and Output TMDS Signal: 0.7 - 1.2Vp-p (TMDS)
- Input and Output DDC Signal: 5Vp-p (TTL)
- HDMI Resolutions: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4K x 2K @24 / 25 / 30 / 60Hz
- Audio: Supports standard audio and DSD (Direct Stream Digital) and HD (HBR) audio
- HDR: Support
- EDID management: Support Smart EDID Management - able to display different resolution monitors at the same time
- Working Temperature: 0°C - 60°C
- Power Supply: 5V DC 1A
- Power Consumption: <2.5W
- Dimensions: 96mm (W) x 59mm (D) x 16.8mm (H)
- Weight: 0.22 lbs (100g)
- Color: Black
- (1) HDMI Splitter
- (1) Power Adapter
- (1) Instruction Manual
4K HDMI Splitter
Note: this product has been discontinued and replaced by HDMI2-XSPLITTER2.
Tired of upgrading all your equipment every time a new shiny object comes out? Future-proof your setup when you go with the most current HDMI specifications and take a breather. This HDMI splitter supports Ultra High Definition 4K@60Hz resolutions, UHD-HDR, and 3D. It's HDCP 2.2 compliant and backwards compatible, so it will work just fine with your existing equipment while keeping you primed for future upgrades.
Watch on Multiple Screens
Get extended distribution when you connect this HDMI splitter to a single source and duplicate the signal on multiple separate displays. This splitter is ideal for sports bars, classrooms, medical facilities, and situations where multiple screens are in demand. The power supply is included in the package, so there is no need to supply additional power. The incredibly compact unit can be discreetly concealed and blends seamlessly with any decor.
Choose Your Ports
Whether you need an HDMI 1 to 2 splitter, 1 to 4 splitter, or 1 to 8 splitter, we have them all in 2.0. Select the number of ports you need from the drop down menu based on how many screens you want to split the signal to.
Scales Automatically to the Highest Resolution
The HDMI splitter scales automatically to the highest resolution of each connected display. This allows different resolution displays to be connected while simultaneously outputting the maximum resolution.
HDR Support
HDR support built into the splitter provides deeper blacks and more vivid colors where content allows. This potentially enhances viewing experience.
>EDID Management
Ensures the video source displays correctly by setting a fixed EDID configuration through the integrated DIP switch.
Plug and Play Operation
Setting up the HDMI splitter is as easy as plugging in the HDMI source to the HDMI input on the splitter, and then plugging a HDMI cable from each HDMI output onto the separate displays. The splitter will automatically detect the resolution for each connected display and output the maximum resolution supported.
Satisfaction Guaranteed
This HDMI splitter for TV comes with the FireFold 60 Day Guarantee, which means you can return it in its original condition for any reason for up to 60 days after purchase. It also has a one year warranty, so if it fails due to manufacturer defects during the first year after purchase, we will replace it to keep you going.
Power
Dimensions
Weight
4K HDMI Splitter
Note: this product has been discontinued and replaced by HDMI2-XSPLITTER2.
Tired of upgrading all your equipment every time a new shiny object comes out? Future-proof your setup when you go with the most current HDMI specifications and take a breather. This HDMI splitter supports Ultra High Definition 4K@60Hz resolutions, UHD-HDR, and 3D. It's HDCP 2.2 compliant and backwards compatible, so it will work just fine with your existing equipment while keeping you primed for future upgrades.
Watch on Multiple Screens
Get extended distribution when you connect this HDMI splitter to a single source and duplicate the signal on multiple separate displays. This splitter is ideal for sports bars, classrooms, medical facilities, and situations where multiple screens are in demand. The power supply is included in the package, so there is no need to supply additional power. The incredibly compact unit can be discreetly concealed and blends seamlessly with any decor.
Choose Your Ports
Whether you need an HDMI 1 to 2 splitter, 1 to 4 splitter, or 1 to 8 splitter, we have them all in 2.0. Select the number of ports you need from the drop down menu based on how many screens you want to split the signal to.
Scales Automatically to the Highest Resolution
The HDMI splitter scales automatically to the highest resolution of each connected display. This allows different resolution displays to be connected while simultaneously outputting the maximum resolution.
HDR Support
HDR support built into the splitter provides deeper blacks and more vivid colors where content allows. This potentially enhances viewing experience.
>EDID Management
Ensures the video source displays correctly by setting a fixed EDID configuration through the integrated DIP switch.
Plug and Play Operation
Setting up the HDMI splitter is as easy as plugging in the HDMI source to the HDMI input on the splitter, and then plugging a HDMI cable from each HDMI output onto the separate displays. The splitter will automatically detect the resolution for each connected display and output the maximum resolution supported.
Satisfaction Guaranteed
This HDMI splitter for TV comes with the FireFold 60 Day Guarantee, which means you can return it in its original condition for any reason for up to 60 days after purchase. It also has a one year warranty, so if it fails due to manufacturer defects during the first year after purchase, we will replace it to keep you going.
