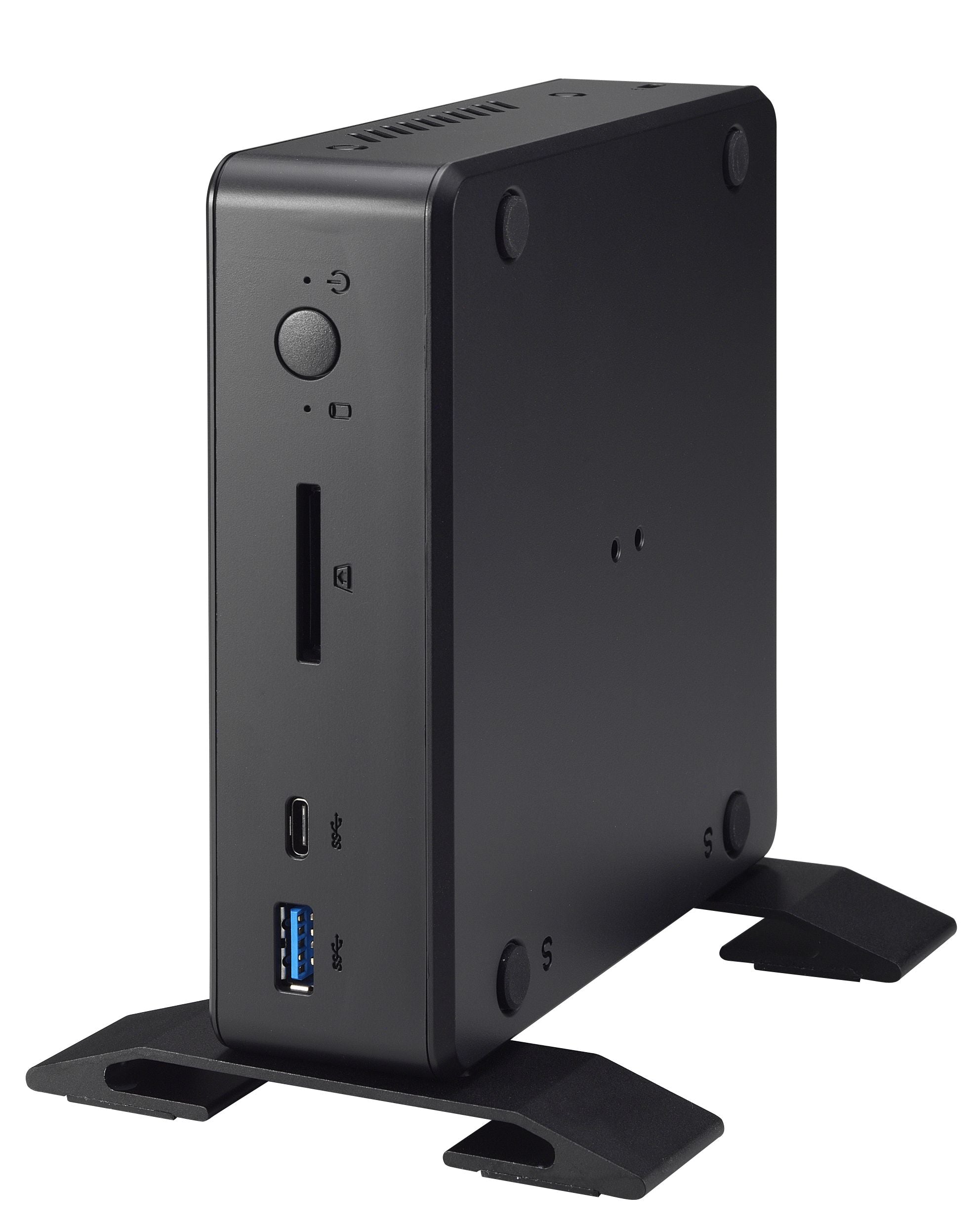

Shuttle Palm-sized 4K Capable PC With New Whiskey Lake
The NC10U series is a palm-sized, 4K capable and low-power PC with the new Intel Whiskey Lake-U processor. A selection of Intel 8th generation ULV processors not only provides higher performance but also affords minimal power consumption. Room for up to 64 GB of DDR4 RAM allows you to increase system performance easily. Built-in HDMI 2.0a and DisplayPort outputs added the ability to drive dual 4K UHD displays. Despite its tiny body of 0.8 liters, the NC10U series still packs excellent connectivity – USB 3.2 Gen1, USB 2.0, RS232, M.2, SATA 6Gbps, Giga LAN and WiFi module. Besides, one 2.5" drive as well as one M.2 SSD card can be installed. Perfect for a variety of uses in Home/Work PC, HTPC, and Digital Signage.
Operating System Support
Intel® 8th Generation Processors
The NC10U series is powered by the 8th Generation Intel® Celeron® ULV processor (Whiskey Lake-U) and with built-in memory controller as well as integrated UHD graphics to provide better system efficiency and graphics performance.
*Core i3/ i5 / i7 processor options available
Space for 2.5” HDD/SSD
Despite its tiny body, the NC10U series allows easy installation of up to 1x 15mm (7/9.5/12.5/15mm) 2.5” HDD/SSD to provide a more flexible storage capacity without volume restriction.
Easy installation
The NC10U series is designed for easy configuration. Users can simply open both upper and lower covers to easily install memory module, HDD, and other components.
Dual Display Productivity
The NC10U series includes HDMI and DisplayPort to support dual-screen displays to increase productivity and efficiency.
4K UHD Experience
The NC10U series features HDMI 2.0a to support 4K (4096 x 2160) resolution at 60FPS as well as the transmission of HDR video, allowing for vivid streaming and more accurate color.
High-speed Storage Interfaces
With native M.2 2280/2260/2242 Type M slot, the NC10U series offers considerably faster storage performance and expansion capacity for M.2 SSD or other compatible devices.
*M.2 supports both SATA and PCIe storage interfaces
Rich I/O for Connectivity
In addition to HDMI and DisplayPort, the NC10U series provides multiple I/O options including RS232, USB 2.0, USB 3.2, and SD Card Reader. One built-in USB 3.2 Type-C offers users with more convenience with no up or down orientation required for plugs.
Wired and Wireless Networks
The NC10U series has excellent network connectivity powered by Intel® i211 Gigabit LAN and supports fast speed WiFi IEEE 802.11 b/g/n with wireless module built-in.
Exclusive Cooling Technology
Shuttle’s heat-pipe cooling system with smart fan design allows for constant air circulation between the inside and outside of the machine, which guarantees high stability and low noise during long term operation.
Operable in 0-50⁰C
The NC10U series uses industrial capacitors to meet the environmental operation demands of commercial applications.
*With the use of SSD and Wide Range Temp. SODIMM
VESA Mount Ready
The NC10U series is VESA mount compatible and capable of mounting to the rear of a monitor or a TV, which fits seamlessly into any office, home or commercial environment.
Support Power on by RTC
Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic ‘Power On’ and ‘Power Off’ times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.
The Watchdog
Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.
FORM FACTOR | Shuttle 0.85L Form Factor |
---|---|
PROCESSOR | Intel WhiskeyLake-U Celeron 4205U 15W CPU i3-8145U, i5-8265U, i7-8565U (optional) |
MEMORY | 2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4 2133/2400 Mhz |
VIDEO OUTPUT | Intel® UHD Graphics |
AUDIO | Realtek ALC662 HD Audio |
ETHERNET | Built in Intel I211 support 10/100/1000Mbs Built in Realtek RTL8188EE 802.11 b/g/n Wireless LAN |
STORAGE INTERFACE | Support SATA 6.0Gb/s bandwidth |

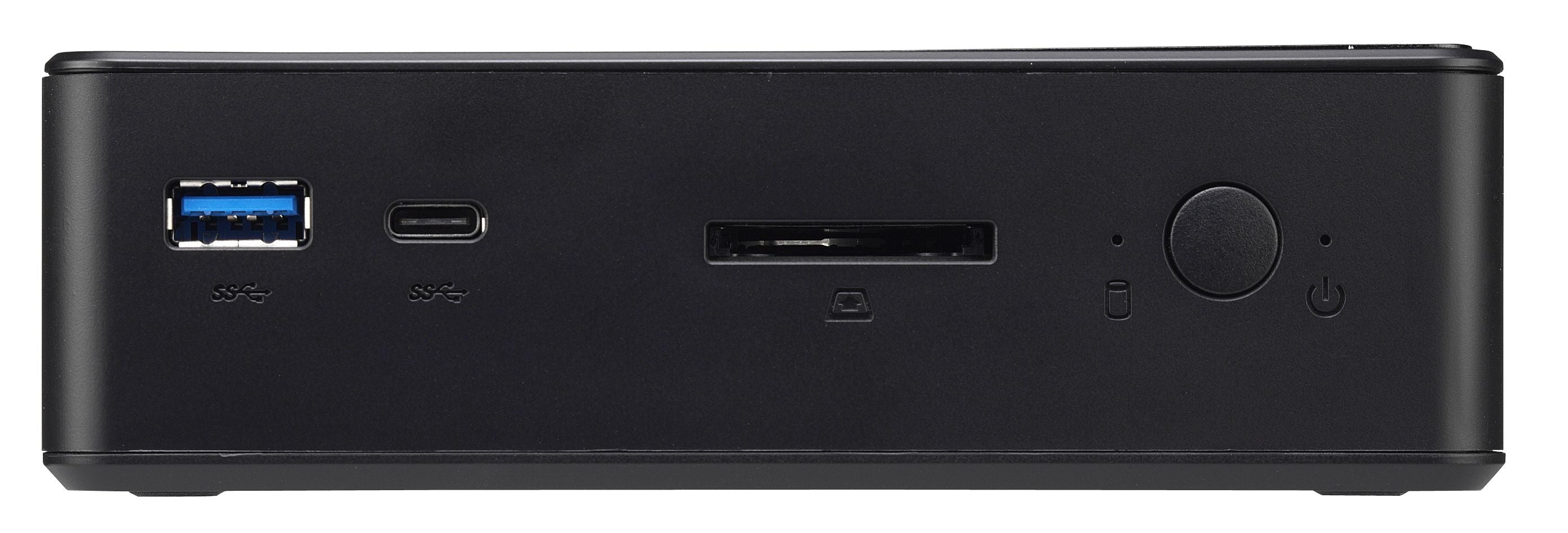

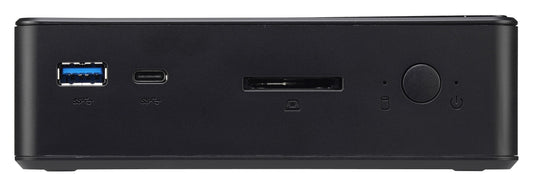

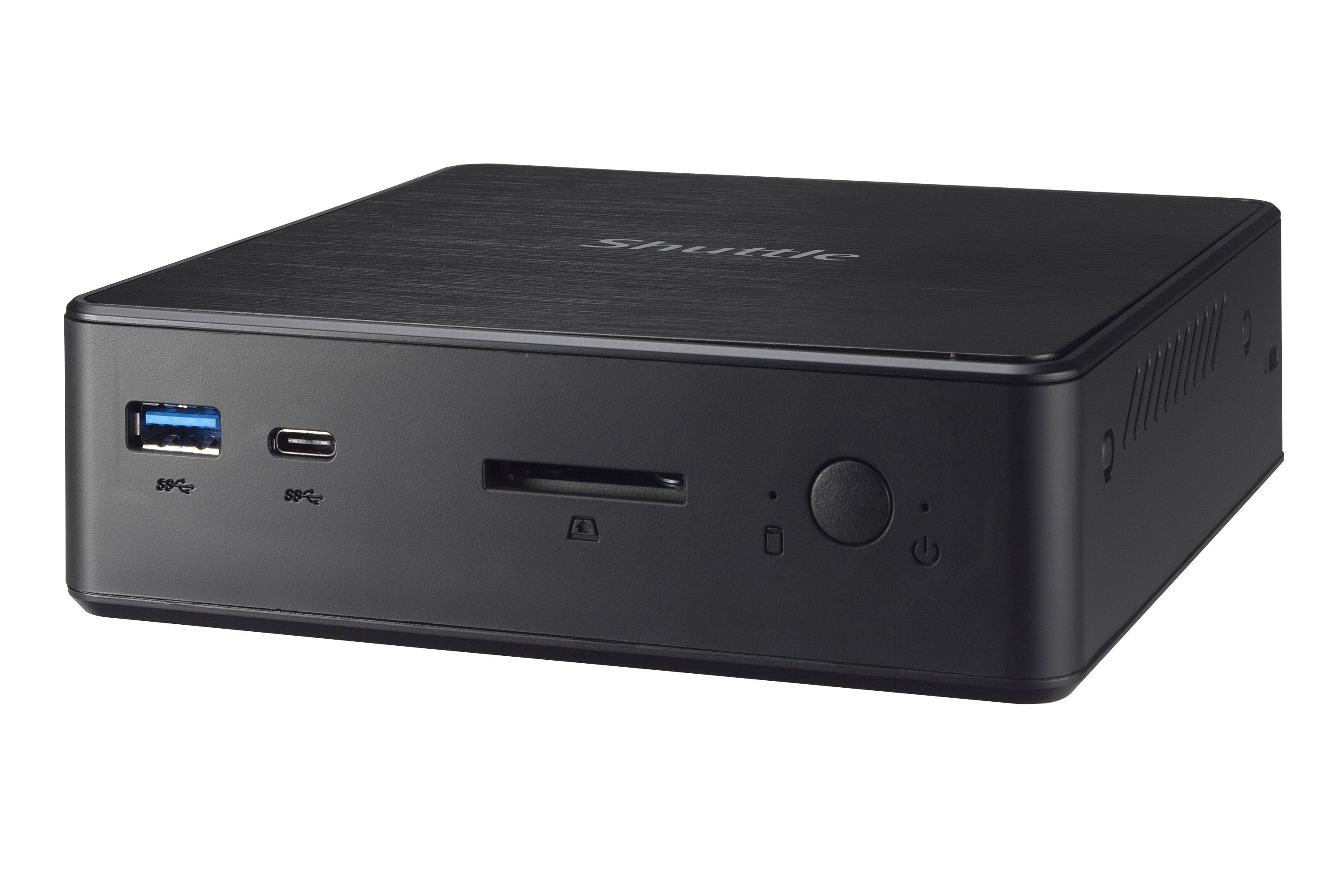

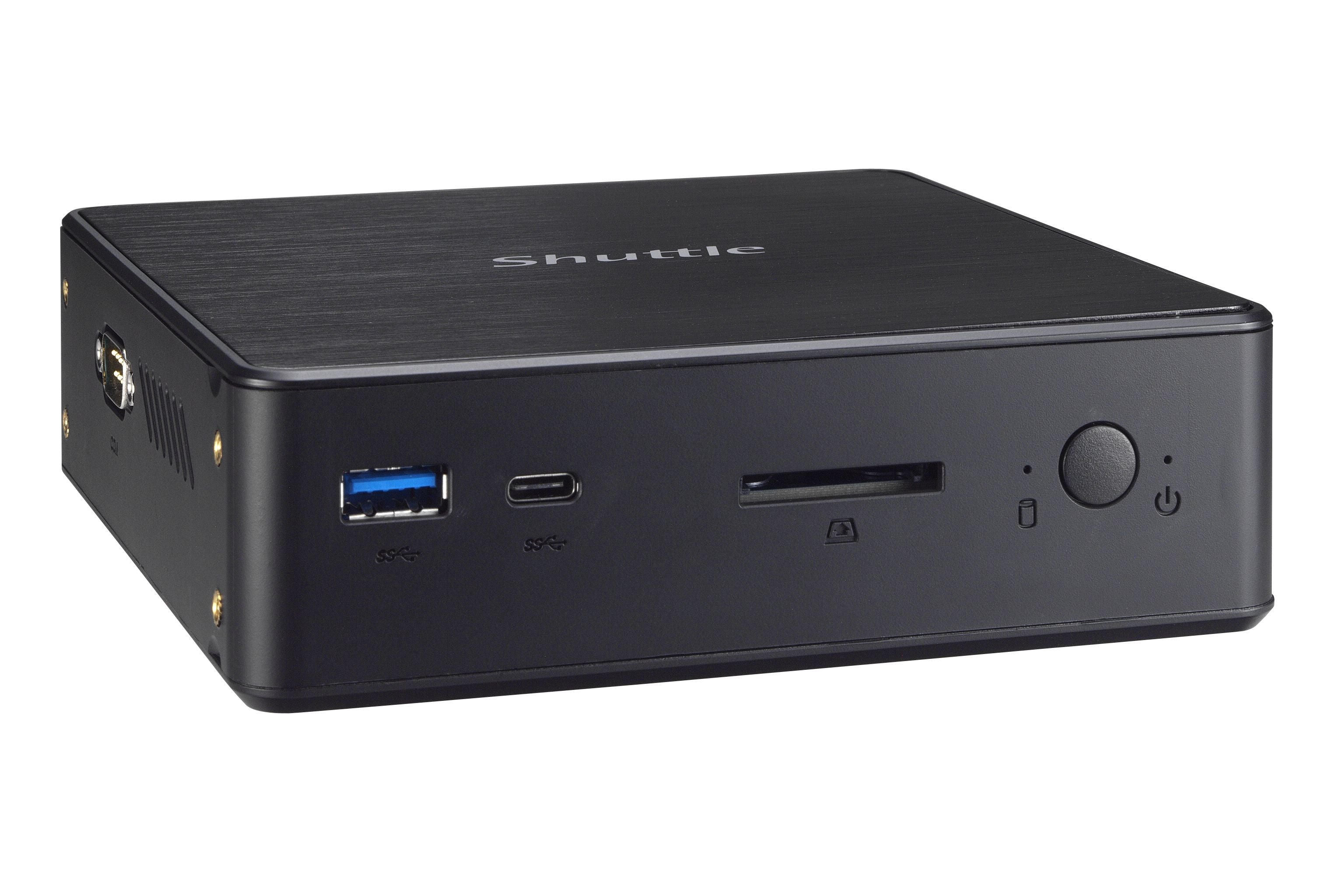

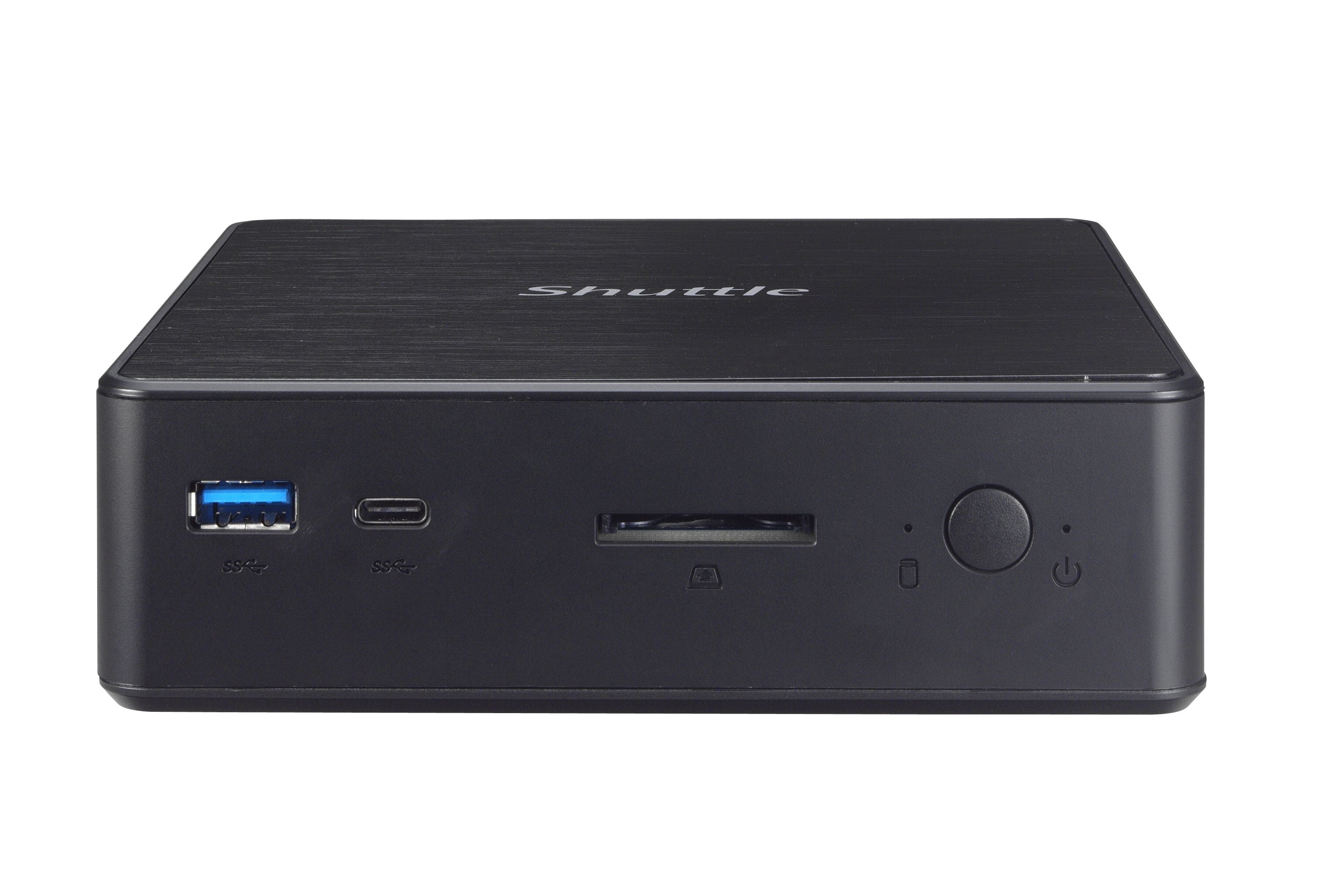

FRONT PANEL | (1)Power button (1)Power LED (1)HDD LED (1)USB 3.1 Gen 1 Type A (1)USB 3.1 Gen 1 Type C (1)SD cardreader |

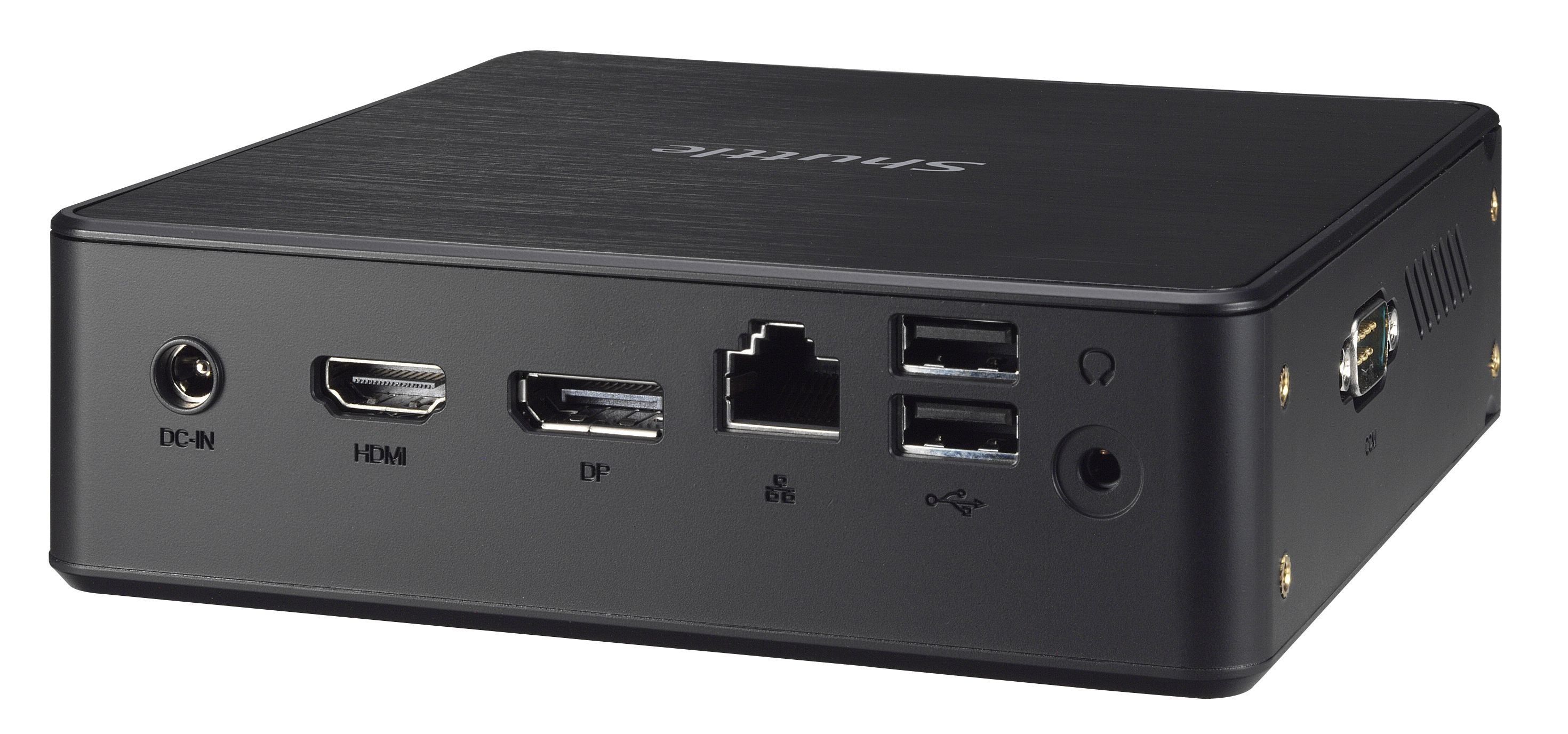

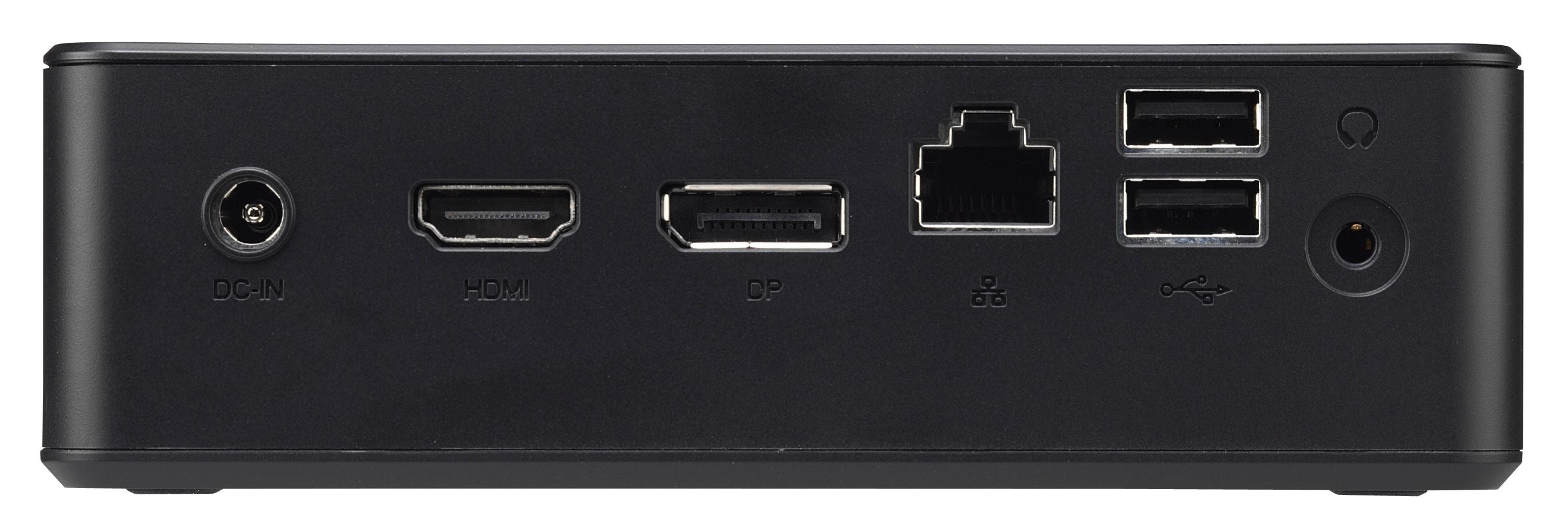

BACK PANEL | (1)HDMI (1)DisplayPort (2)USB 2.0 (1)RJ45 (1)DC-in Jack (1)Headphone+Mic in combo jack (1)RS232 (1)Kensington Lock |
DRIVE BAYS | (1)2.5" 15mm SATA HDD / SSD |
DIMENSIONS | 142(L) x 142(W) x 42(H) mm |
POWER | Automatics Voltage adjustment between 100 and 240VAC 50/60Hz 65 Watts (19V/3.42A), 2 pin |
ACCESSORIES | Quickguide DVD driver VESA mount Stand Power adapter and cord screw pack |
EXPANSION SLOT | M.2 2230 E key M.2 2280 M key 2.5" 15mm SATA |
OS SUPPORT | Windows 10 Linux |
