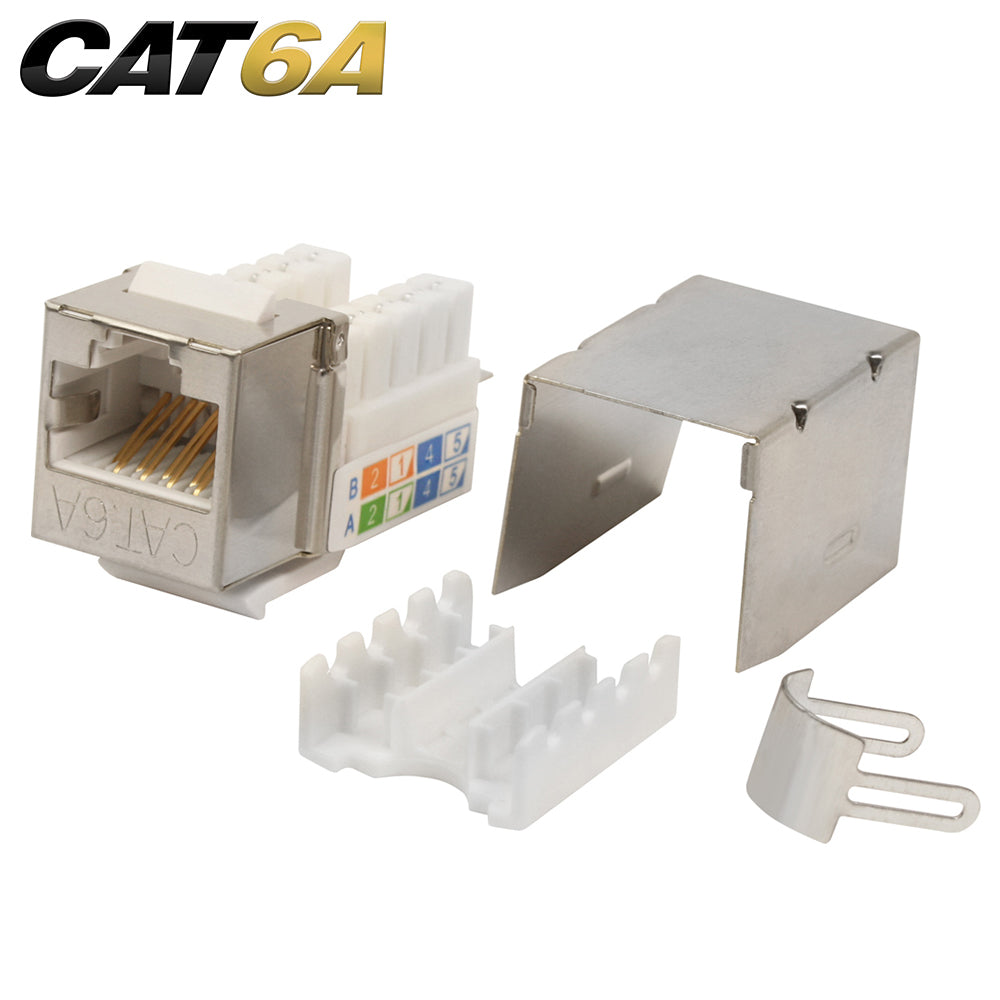

Quest Cat6A Shielded 90 Degree Keystone Jack
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Cat6A Shielded high-speed 10Gbps data transfers
- Use in keystone wall plates and patch panels
- 110 IDC termination with RJ45 jack
- Slim style design for high density patch panels
- Specs+
- Reviews+
- Cat6A Shielded high-speed 10Gbps data transfers
- Use in keystone wall plates and patch panels
- 110 IDC termination with RJ45 jack
- Slim style design for high density patch panels
Quest offers a Cat6A shielded keystone jack solution for secure high-speed 10Gbps data transfers.
Performance Standard | Cat6A ANSI/TIA 568C.2 |
Termination | 110 IDC, RJ45 |
Body | Fireproof ABS UL-94V0 |
Metallic Case | Metal (SPCC) |
Jack | 8p8c, 50u” Gold plated over 100u” Nickel undercoat |
IDC Caps | Fireproof ABS UL-94V0 |
IDC Pin | Phosphor Bronze & Tinned |
Data Transfer Speed | Over 10 Gbps |
Insulation Resistance | 500M ohms (min.) |
Contact Resistance | 20m ohms (max.) |
Current Rating | 1.5 Amps . |
DC Resistance | 0.1 ohms (max.) |
Withstanding Voltage | 1000 VAC RMS @ 60Hz / 1 min. |
Durability | 250+ termination cycles |
Contact compatibility | 22 to 26 AWG solid / 24 AWG stranded |
Compliance | UL, RoHS |
