Jonard Tools Multi-Function OTDR, OTDR-1000
SKU#: OTDR-1000
UPC#:810053350669
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Includes 8 different functions for testing and evaluating fiber optic and network cables
- Bright 3.5” color LCD screen makes it quick and easy to evaluate data
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability

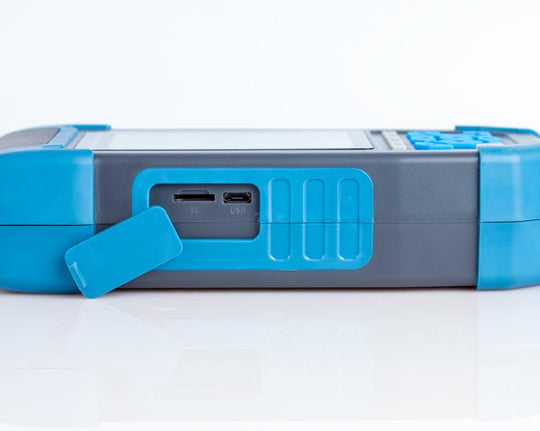

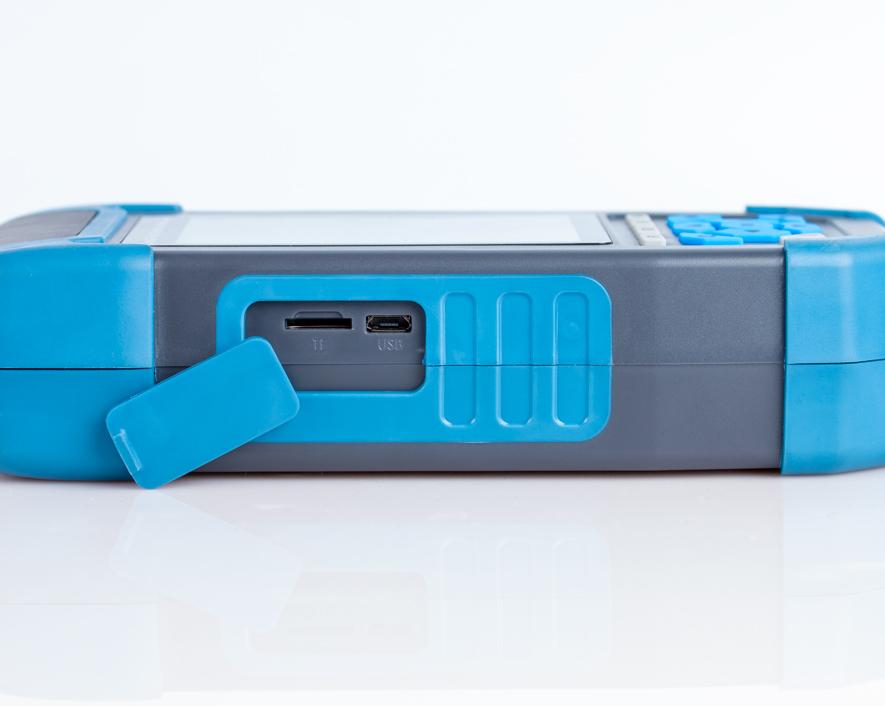

- 600 MB Internal storage with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium ion battery provides power on-the-go
- Can be charged or connected to a computer for data transfer via included micro-USB cable

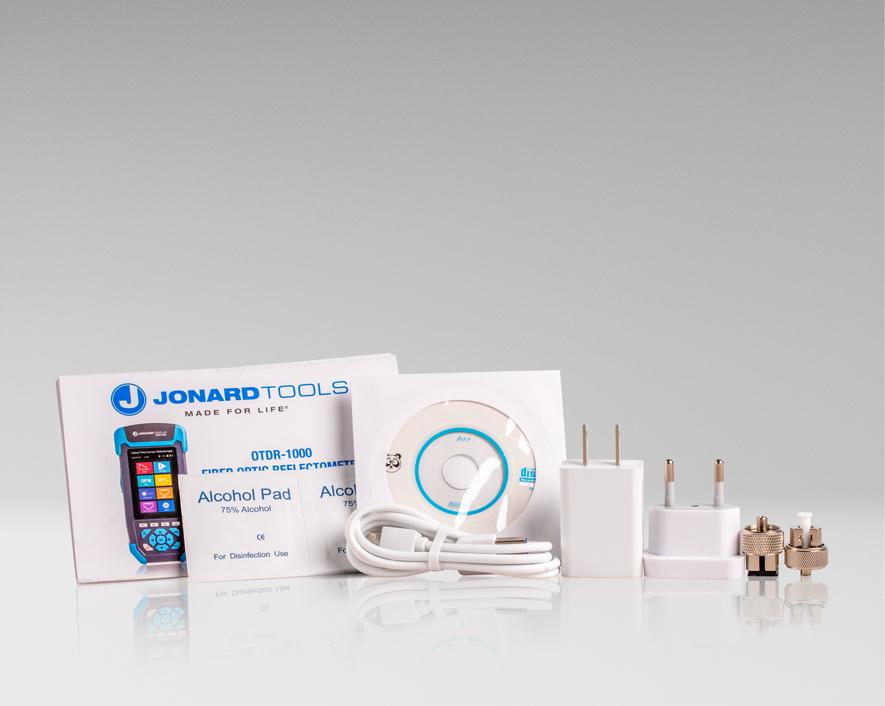

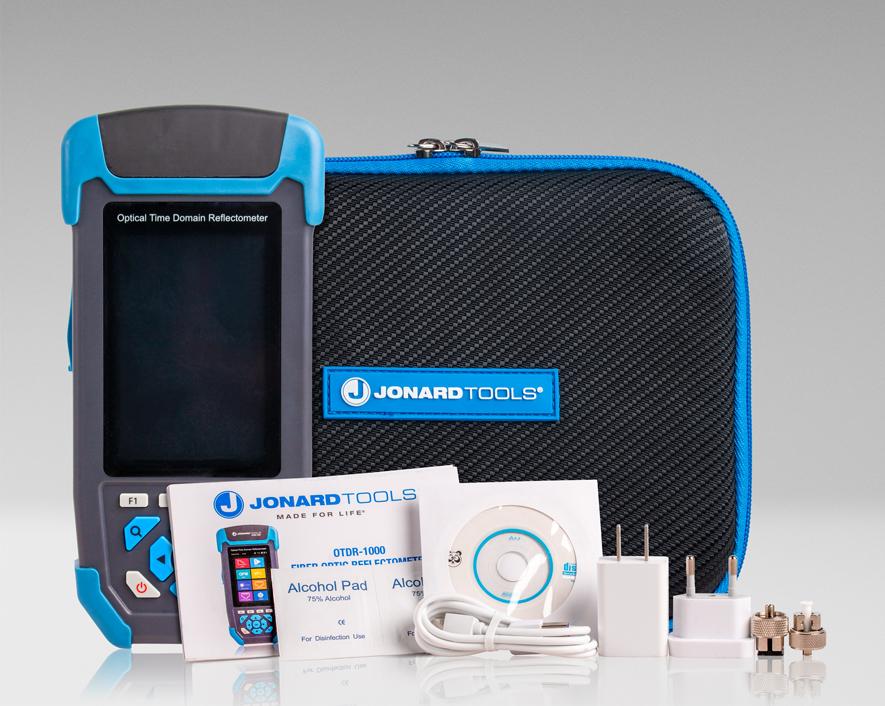

- Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual
- Specs+
- Wavelengths: 1310nm/1550nm±20nm
- Fiber Type: G.652 SingleMode Fiber
- Dynamic Range: 24dB/22dB
- Event Blind Zone: 3m
- ATT Blind Zone: 8m
- Test Range: 500m~60km
- Pulse Width: 3ns~10us
- Range Accuracy: ±?1m+Sampling Interval +0.005?×Test Distance?
- Loss Accuracy: ±0.2dB/dB
- # of Sampling Points: 16k~128k
- Sampling Resolution: 0.05m~8m
- Reflection Accuracy: ±3dB
- Data Storage: Internal?≥600?External?TF Card
- Laser Safety Level: Class ? level
- File Format: SOR Standard File Format

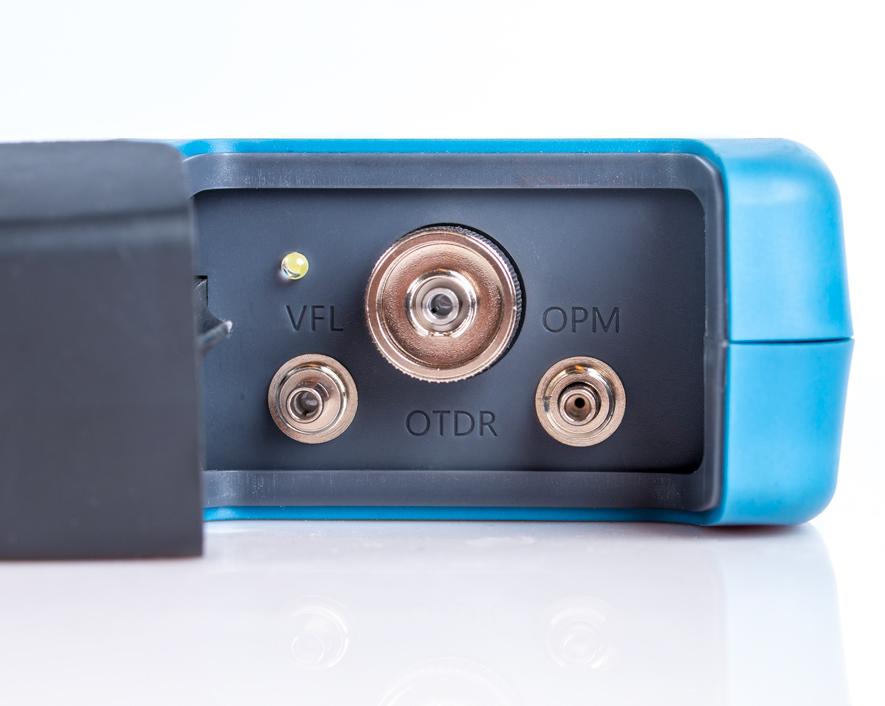

- Included Connectors for OTDR: FC, SC, LC (PC/UPC)
- Dimensions: 10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)
- Weight 2.06 lb (935.24 g): UPC # 810053350669
- SPEC SHEET
- Reviews+
- Includes 8 different functions for testing and evaluating fiber optic and network cables
- Bright 3.5” color LCD screen makes it quick and easy to evaluate data
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 600 MB Internal storage with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium ion battery provides power on-the-go
- Can be charged or connected to a computer for data transfer via included micro-USB cable
- Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual
- Wavelengths: 1310nm/1550nm±20nm
- Fiber Type: G.652 SingleMode Fiber
- Dynamic Range: 24dB/22dB
- Event Blind Zone: 3m
- ATT Blind Zone: 8m
- Test Range: 500m~60km
- Pulse Width: 3ns~10us
- Range Accuracy: ±?1m+Sampling Interval +0.005?×Test Distance?
- Loss Accuracy: ±0.2dB/dB
- # of Sampling Points: 16k~128k
- Sampling Resolution: 0.05m~8m
- Reflection Accuracy: ±3dB
- Data Storage: Internal?≥600?External?TF Card
- Laser Safety Level: Class ? level
- File Format: SOR Standard File Format
- Included Connectors for OTDR: FC, SC, LC (PC/UPC)
- Dimensions: 10.5" x 7.5" x 2.5" (26.67 cm x 19.05 cm x 6.35 cm)
- Weight 2.06 lb (935.24 g): UPC # 810053350669
- SPEC SHEET

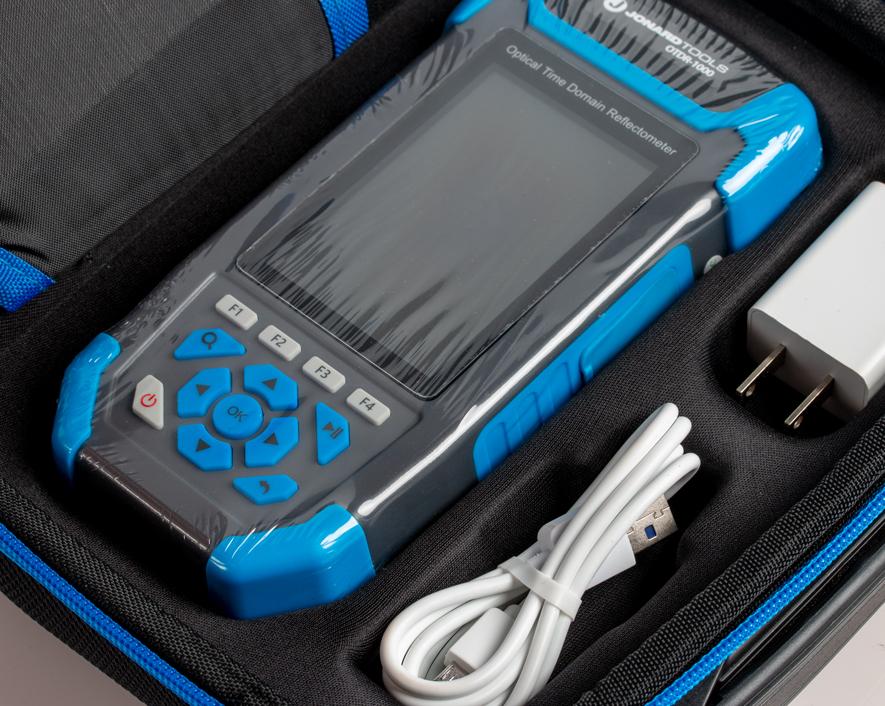

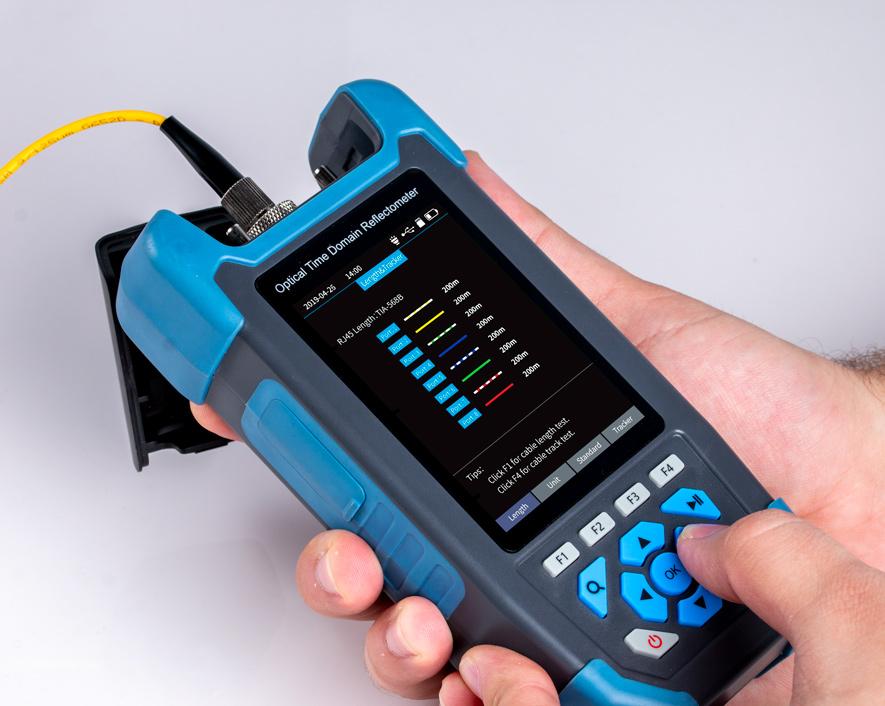

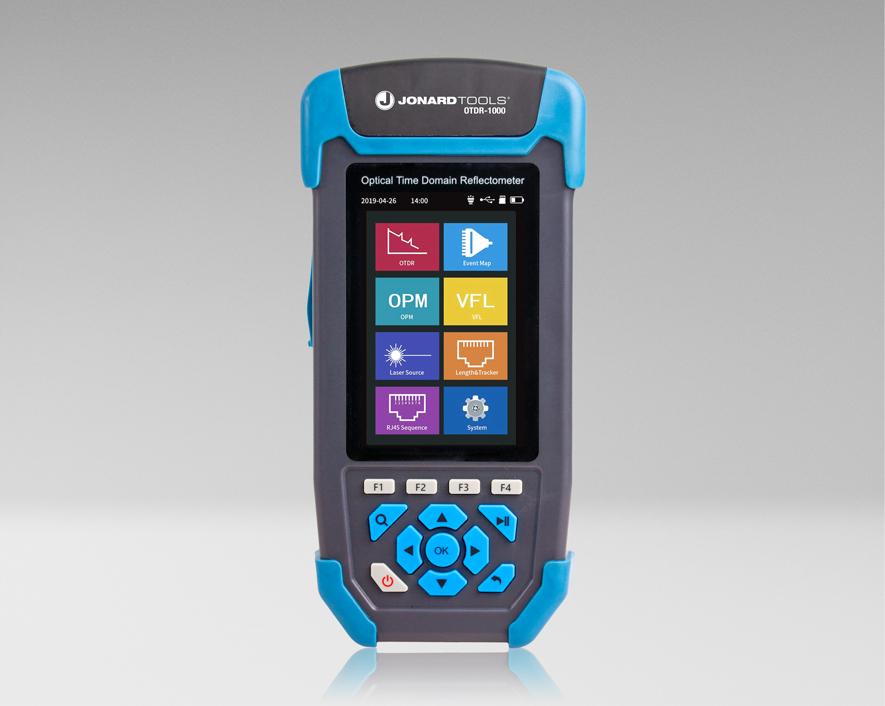

Jonard Tools Multi-Function OTDR
Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
Jonard Tools Multi-Function OTDR
Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
