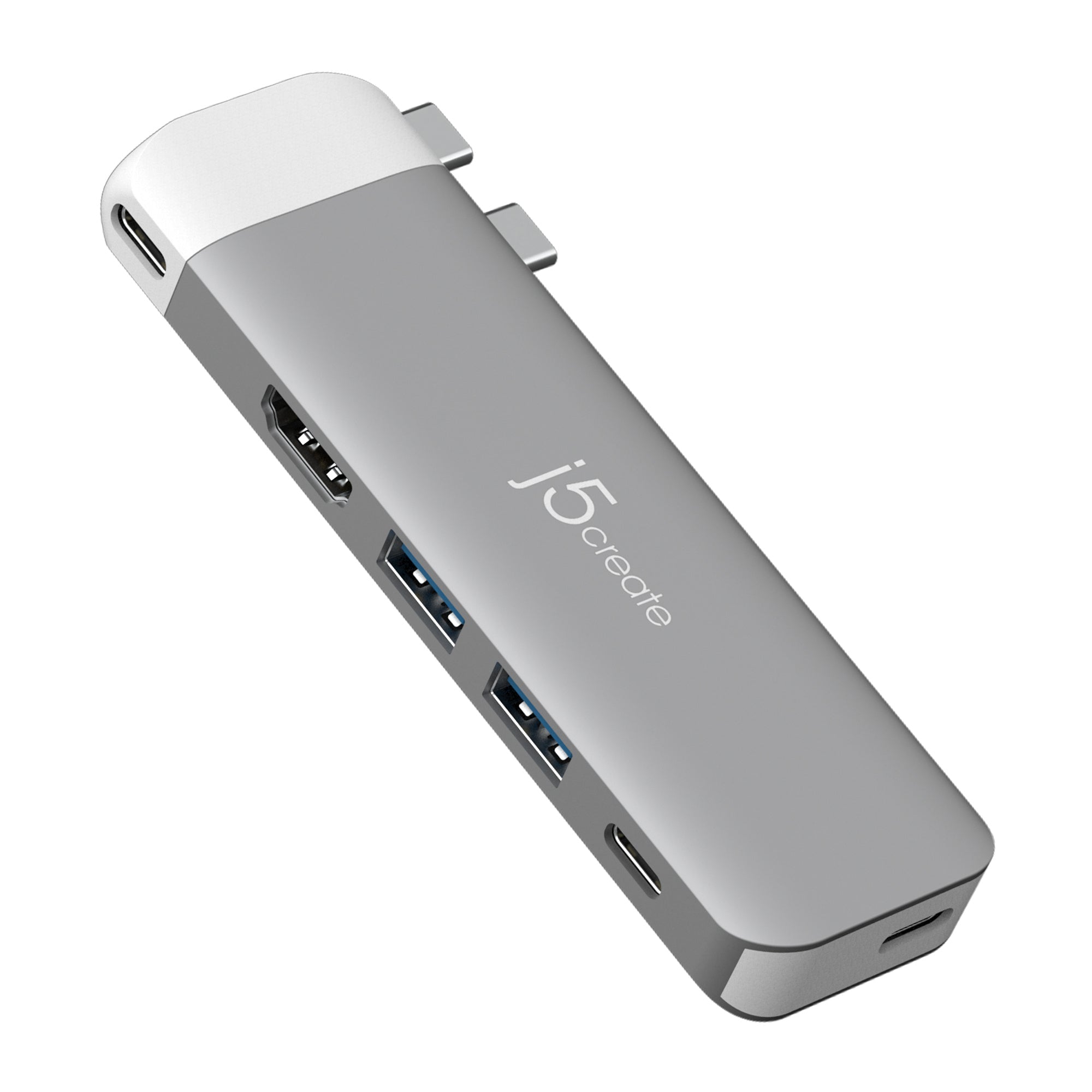

j5create USB-C® 6K Premium Hub
SKU#: JCD394
UPC#:847626006586
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- MacBook Pro® with USB-C® ports
- Perfect for MacBook Air® M2
- Features+
- Ultra slim and light weight with a stylish design

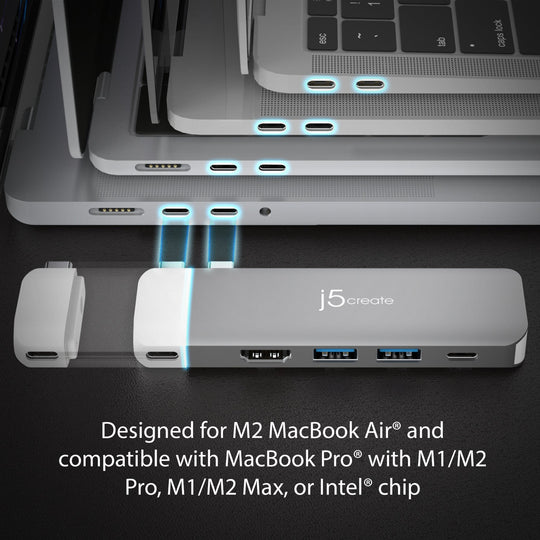

- Designed for M2 MacBook Air® and compatible with MacBook Pro® with Intel® CPU

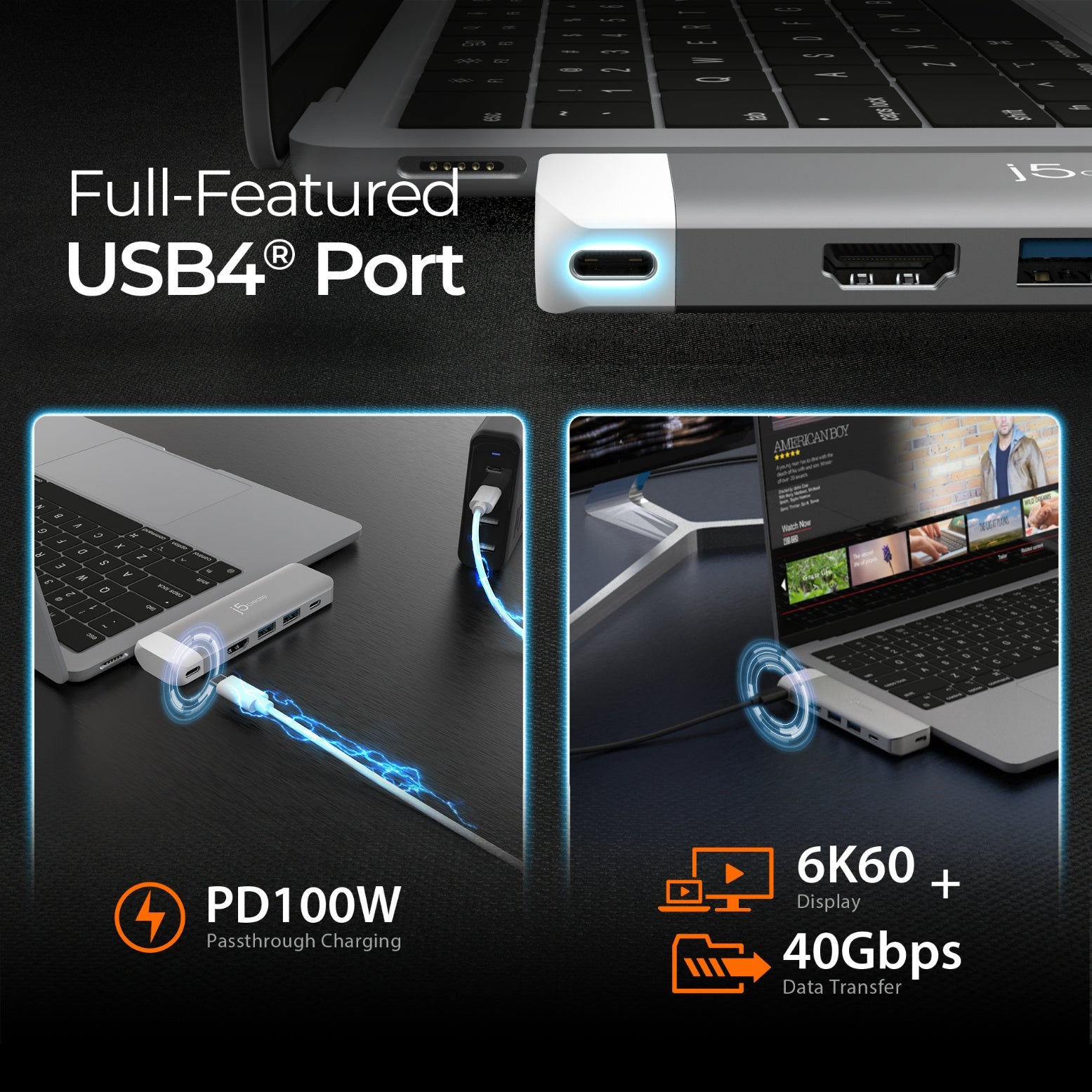

- USB4® modular kit port capable of the following:
- 6K60 resolution display
- 40Gbps data transmission
- PD charging through up to 100W
- Supports HDMI™ resolutions up to 4K
- 2 x USB™ Type-A 3.2 Gen 1 ports provide up to 5Gbps transfer speed
- 1 x USB-C® 3.2 Gen 1 ports provide up to 5Gbps transfer speed
- 1 x PD 100W pass through
- Plug-and-play, no driver installation required
- Specs+
- Audio Supported: N/A
- Host Connector: 2 - USB-C® Male
- Network Interface: N/A

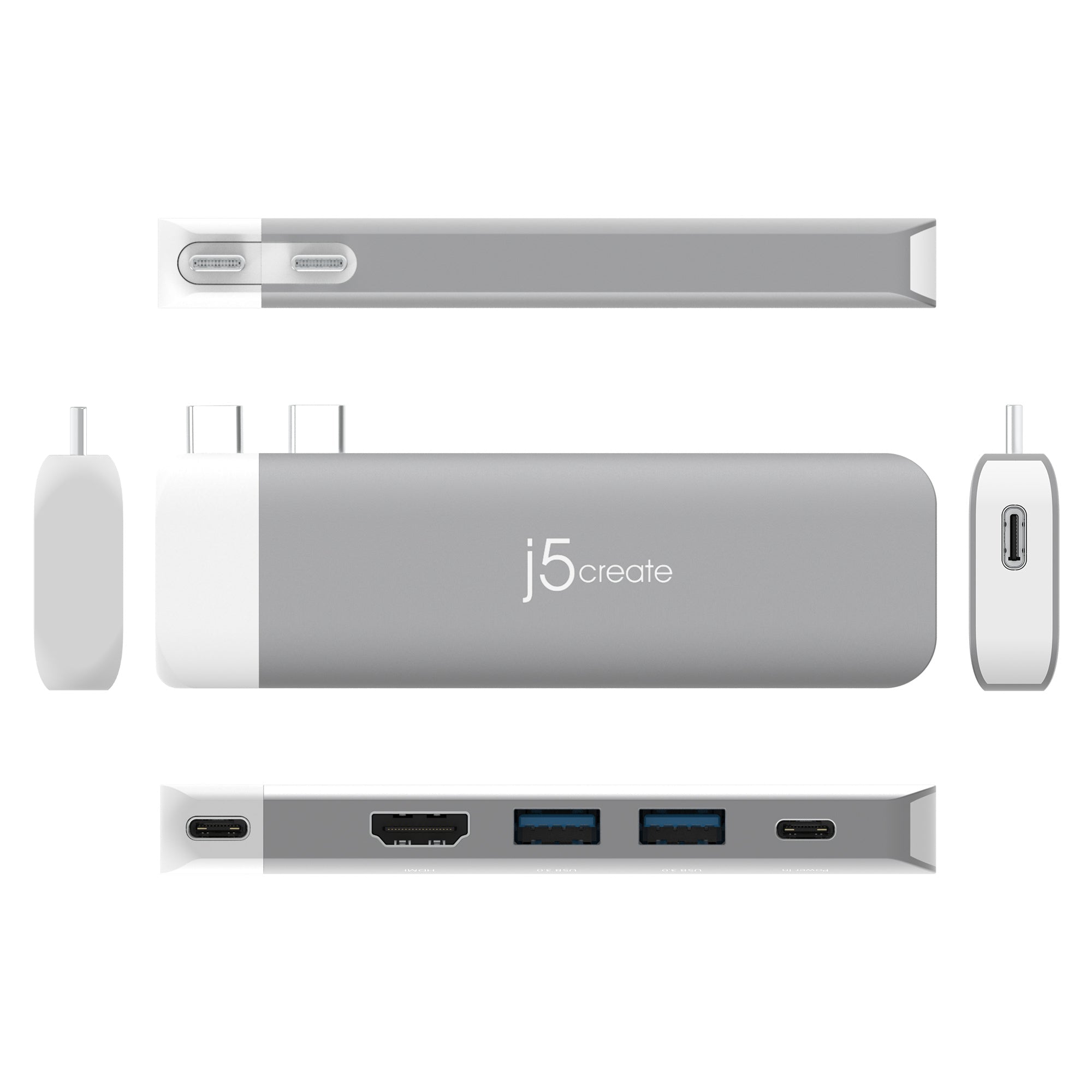

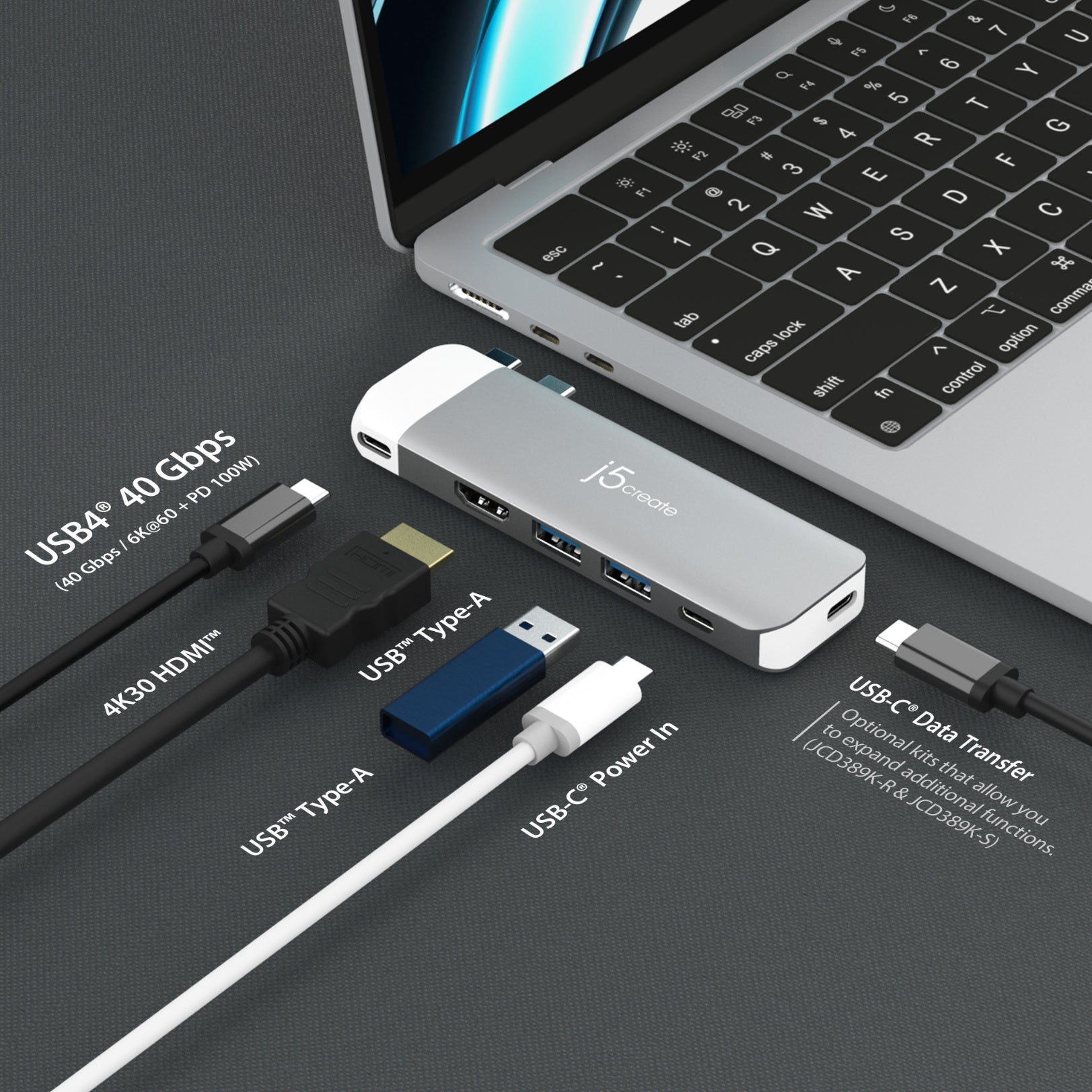

- Ports:
- 2 - USB™ Type-A 3.2 Gen 1 5Gbps
- 1 - USB-C® 3.2 Gen 1 5Gbps
- 1 - 4K30 HDMI™
- 1 - PD 100W pass through
- 1- USB4® modular kit
- Power Source: Bus-powered or self-powered
- Video Output:
- 1 - HDMI™ Female
- 1 - USB-C® Female
- Warranty: 2 Year Limited
- Displays Supported:
- 2 (HDMI™ & USB4®)
- * Supports up to 2 displays (HDMI™ &USB4®)
- * Macs with M1 or M2 CPU only support 1 display
- Max Data Transfer Rate: 40Gbps via USB4®
- Max Display Refresh Rate: 60 Hz

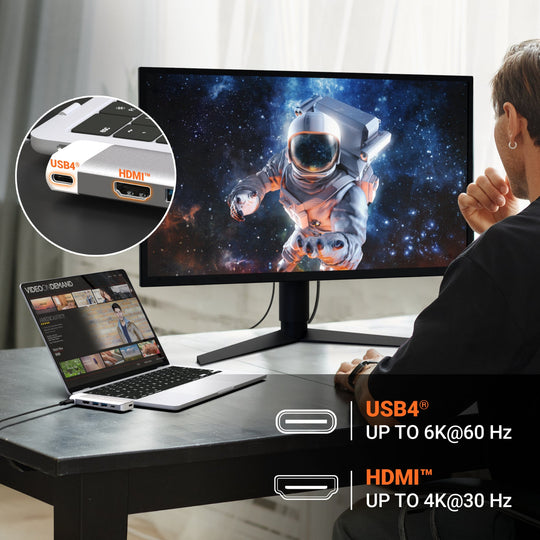

- Max Display Resolution:
- USB4®: 6016 x 3384 @ 60 Hz
- HDMI™: 3840 x 2160 @ 30 Hz
- Input Current: Up to 5A
- Input Voltage: Up to 20V
- Output Current: Up to 4.25A
- Output Voltage: Up to 20V
- Power Consumption: ≤ 400 mA
- Power Delivery: Up to 100W via USB-C®
- Cable Length: N/A
- Color: Space Grey / White
- Enclosure Type: Aluminum / ABS
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 30 to 116°F (-1 to 41°C)
- Product Depth: Main Body: 3.86 in. (98mm) Magnetic Kits: 0.68 in. (17.30mm)
- Product Height: Main Body: 0.51 in. (13mm) Magnetic Kits: 0.51 in. (13mm)
- Product Weight: Main Body: 1.69 oz (48 g) Magnetic Kits: 0.26oz (7.5g)
- Product Width: Main Body: 1.34 in. (34mm) Magnetic Kits: 1.34 in.( 34mm)
- Storage Humidity: < 85% non-condensing
- Storage Temperature: 0 to 155°F (-17 to 68°C)
- Package Contents+
- 1 - USB-C® 6K Premium Hub (JCD394)
- 1 - Quick Installation Guide (QIG)
- Reviews+
- MacBook Pro® with USB-C® ports
- Perfect for MacBook Air® M2
- Ultra slim and light weight with a stylish design
- Designed for M2 MacBook Air® and compatible with MacBook Pro® with Intel® CPU
- USB4® modular kit port capable of the following:
- 6K60 resolution display
- 40Gbps data transmission
- PD charging through up to 100W
- Supports HDMI™ resolutions up to 4K
- 2 x USB™ Type-A 3.2 Gen 1 ports provide up to 5Gbps transfer speed
- 1 x USB-C® 3.2 Gen 1 ports provide up to 5Gbps transfer speed
- 1 x PD 100W pass through
- Plug-and-play, no driver installation required
- Audio Supported: N/A
- Host Connector: 2 - USB-C® Male
- Network Interface: N/A
- Ports:
- 2 - USB™ Type-A 3.2 Gen 1 5Gbps
- 1 - USB-C® 3.2 Gen 1 5Gbps
- 1 - 4K30 HDMI™
- 1 - PD 100W pass through
- 1- USB4® modular kit
- Power Source: Bus-powered or self-powered
- Video Output:
- 1 - HDMI™ Female
- 1 - USB-C® Female
- Warranty: 2 Year Limited
- Displays Supported:
- 2 (HDMI™ & USB4®)
- * Supports up to 2 displays (HDMI™ &USB4®)
- * Macs with M1 or M2 CPU only support 1 display
- Max Data Transfer Rate: 40Gbps via USB4®
- Max Display Refresh Rate: 60 Hz
- Max Display Resolution:
- USB4®: 6016 x 3384 @ 60 Hz
- HDMI™: 3840 x 2160 @ 30 Hz
- Input Current: Up to 5A
- Input Voltage: Up to 20V
- Output Current: Up to 4.25A
- Output Voltage: Up to 20V
- Power Consumption: ≤ 400 mA
- Power Delivery: Up to 100W via USB-C®
- Cable Length: N/A
- Color: Space Grey / White
- Enclosure Type: Aluminum / ABS
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 30 to 116°F (-1 to 41°C)
- Product Depth: Main Body: 3.86 in. (98mm) Magnetic Kits: 0.68 in. (17.30mm)
- Product Height: Main Body: 0.51 in. (13mm) Magnetic Kits: 0.51 in. (13mm)
- Product Weight: Main Body: 1.69 oz (48 g) Magnetic Kits: 0.26oz (7.5g)
- Product Width: Main Body: 1.34 in. (34mm) Magnetic Kits: 1.34 in.( 34mm)
- Storage Humidity: < 85% non-condensing
- Storage Temperature: 0 to 155°F (-17 to 68°C)
- 1 - USB-C® 6K Premium Hub (JCD394)
- 1 - Quick Installation Guide (QIG)
USB-C® 6K Premium Hub

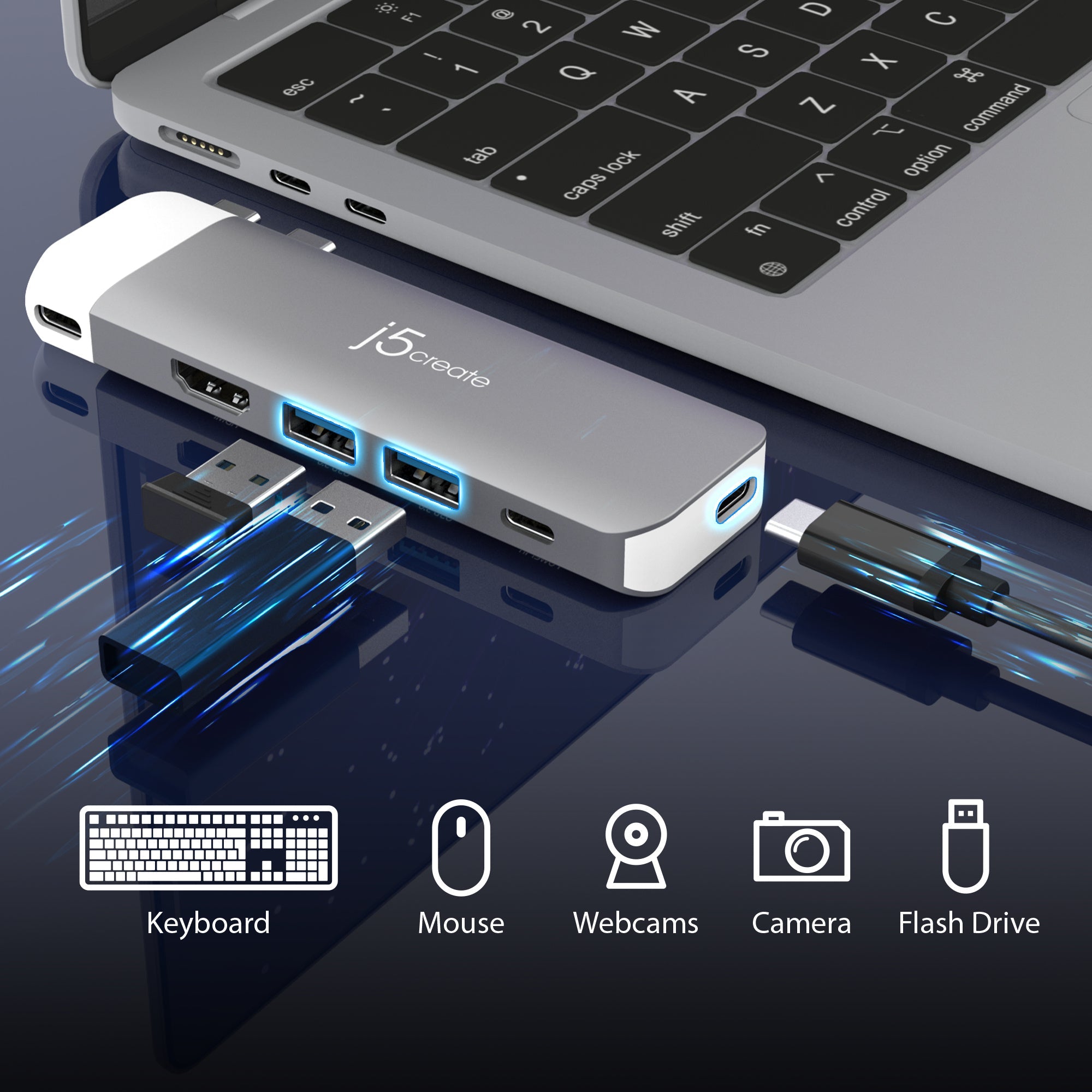

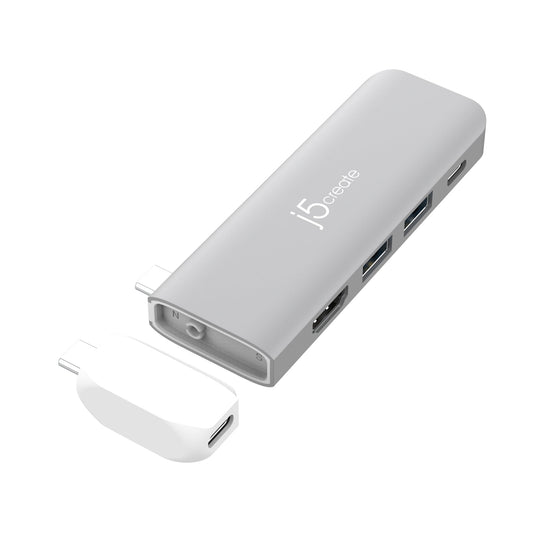

The USB-C® 6K Premium Hub adds more ports to your MacBook® system. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen1 ports and one USB-C® port. Transfer files from one media to another with the USB™ 3.2 connections. You can use the HDMI™ port to connect to a 4K UHD TV, monitor, or projector. Equipped with a detachable USB4® modular kit, it provides 6K60 resolution, high-speed 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected.
System Requirements:
Special Notes:
The USB4® modular kit is compatible with the Intel® MacBook Pro® and MacBook Air® M2.
