j5create JVA02 Live Capture Adapter
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Uncompressed mode gives excellent video quality and reduces CPU loading
- Power Delivery 3.0 allows you to live stream without interruption
- Professional listening and microphone mixer function
- Low power consumption with high performance
- Includes camera screws to attach to cold shoe adapter
- Full HD video and audio high-performance record/playback through USB-C™ 3.1
- Capture resolution up to 1080p @ 60 fps
- Microphone input & Audio output
- 3 audio modes: Mic/ HDMI™/ Mix
- Aluminum design
- Specs+
- 640 x 480 @ 60/72/75 fps
- 720 x 480 @ 60 fps
- 720 x 576 @ 50 fps
- 800 x 600 @ 60/72/75 fps
- 848 x 480 @ 60 fps
- 1024 x 768 @ 60/70/75 fps
- 1152 x 864 @ 75 fps
- 1280 x 720 @ 50/60 fps
- 1280 x 768 @ 60/75 fps
- 1280 x 800 @ 60/75 fps
- 1280 x 960 @ 60 fps
- 1280 x 1024 @ 60/75 fps
- 1360 x 768 @ 60 fps
- 1366 x 768 @ 60 fps
- 1440 x 480 @ 60 fps
- 1440 x 900 @ 60/75 fps
- 1440 x 900 @ 60/75 fps
- 1600 x 900 @ 60 fps
- 1600 x 1200 @ 60 fps
- 1680 x 1050 @ 60 fps
- 1920 x 1080 @ 24/25/30/50/60 fps
- Package Contents+
- JVA02 Live Capture UVC HDMI™ to USB™ Video Capture
- Cold shoe x 2
- USB-C™ 2.0 to USB-C™ cable
- USB-C™ 3.0 to USB™ Type-A cable
- User Manual
- Quick Installation Guide
- Reviews+
- Uncompressed mode gives excellent video quality and reduces CPU loading
- Power Delivery 3.0 allows you to live stream without interruption
- Professional listening and microphone mixer function
- Low power consumption with high performance
- Includes camera screws to attach to cold shoe adapter
- Full HD video and audio high-performance record/playback through USB-C™ 3.1
- Capture resolution up to 1080p @ 60 fps
- Microphone input & Audio output
- 3 audio modes: Mic/ HDMI™/ Mix
- Aluminum design
- 640 x 480 @ 60/72/75 fps
- 720 x 480 @ 60 fps
- 720 x 576 @ 50 fps
- 800 x 600 @ 60/72/75 fps
- 848 x 480 @ 60 fps
- 1024 x 768 @ 60/70/75 fps
- 1152 x 864 @ 75 fps
- 1280 x 720 @ 50/60 fps
- 1280 x 768 @ 60/75 fps
- 1280 x 800 @ 60/75 fps
- 1280 x 960 @ 60 fps
- 1280 x 1024 @ 60/75 fps
- 1360 x 768 @ 60 fps
- 1366 x 768 @ 60 fps
- 1440 x 480 @ 60 fps
- 1440 x 900 @ 60/75 fps
- 1440 x 900 @ 60/75 fps
- 1600 x 900 @ 60 fps
- 1600 x 1200 @ 60 fps
- 1680 x 1050 @ 60 fps
- 1920 x 1080 @ 24/25/30/50/60 fps
- JVA02 Live Capture UVC HDMI™ to USB™ Video Capture
- Cold shoe x 2
- USB-C™ 2.0 to USB-C™ cable
- USB-C™ 3.0 to USB™ Type-A cable
- User Manual
- Quick Installation Guide
j5create JVA02 Live Capture Adapter

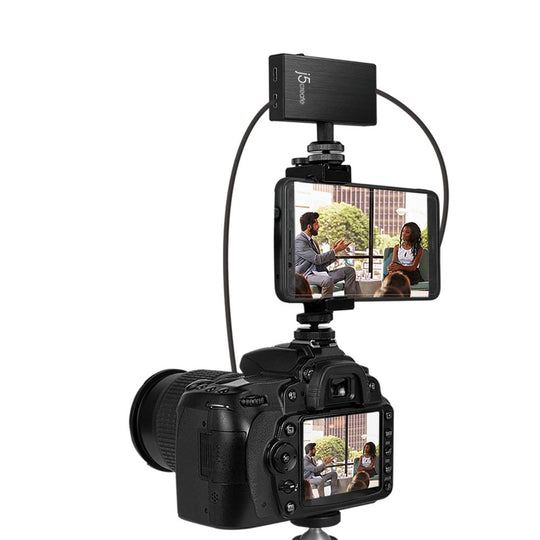

Perfect for live streaming — The JVA02 is a lightweight, stylish and powerful HDMI™ capture card. It consumes very low power, yet can capture 1080p with 60 frames of uncompressed video under USB™ 3.0. It can be broadcast continuously with three mixing modes and Power Delivery 3.0. Connect the JVA02 to your cold shoe adapter on your camera for the perfect combination of ease-of-use and functionality.
Specifications |
|
OS |
Driver Free: |
Resolution |
|
Audio Frequency |
48 kHz |
Power Delivery |
PD3.0, 60W |
USB™ |
Interface: USB Type-C™ 3.1 Gen1 Device: UAC, UVC Mode: Isochronous |
MIC |
Stereo microphone supported 24-bit sigma-delta ADC |
Headset |
40 mW output power into 16Ω at 3.3V THD -75 dB at 20 mW SNR 90 dB with 16Ω load |
Compression |
USB™ 2.0: MJPG USB™ 3.0: MJPG / YUV 4:2:2 |
Power Consumption |
USB™ 2.0: 220 mA (5V) USB™ 3.0: 280 mA (5V) |
Physical Specifications |
|
Case Material |
Aluminum |
j5create JVA02 Live Capture Adapter
Perfect for live streaming — The JVA02 is a lightweight, stylish and powerful HDMI™ capture card. It consumes very low power, yet can capture 1080p with 60 frames of uncompressed video under USB™ 3.0. It can be broadcast continuously with three mixing modes and Power Delivery 3.0. Connect the JVA02 to your cold shoe adapter on your camera for the perfect combination of ease-of-use and functionality.
Specifications |
|
OS |
Driver Free: |
Resolution |
|
Audio Frequency |
48 kHz |
Power Delivery |
PD3.0, 60W |
USB™ |
Interface: USB Type-C™ 3.1 Gen1 Device: UAC, UVC Mode: Isochronous |
MIC |
Stereo microphone supported 24-bit sigma-delta ADC |
Headset |
40 mW output power into 16Ω at 3.3V THD -75 dB at 20 mW SNR 90 dB with 16Ω load |
Compression |
USB™ 2.0: MJPG USB™ 3.0: MJPG / YUV 4:2:2 |
Power Consumption |
USB™ 2.0: 220 mA (5V) USB™ 3.0: 280 mA (5V) |
Physical Specifications |
|
Case Material |
Aluminum |
