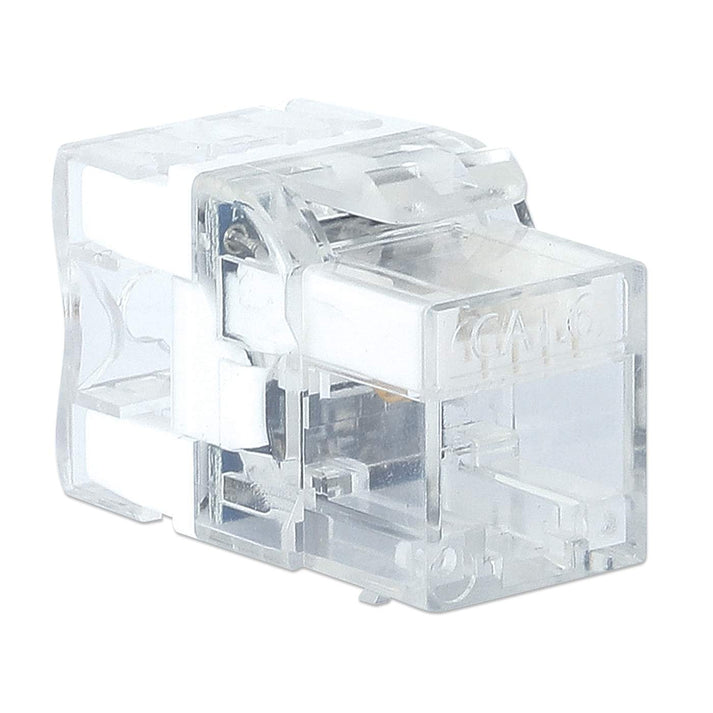

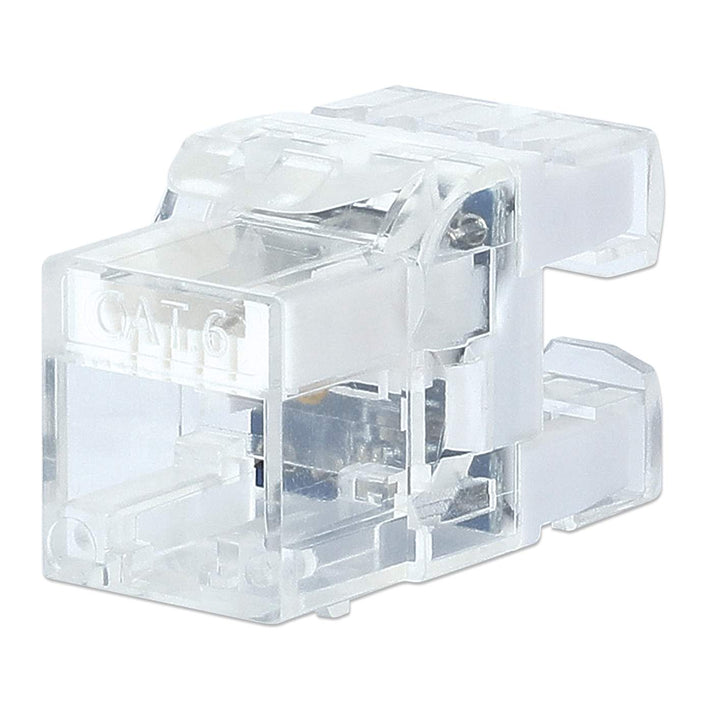

Cat6 Punch-Down Keystone Jack with LED, Transparent, 25-Pack

LED Link Indicator, UTP, for Solid Wire, Gold-plated Contacts

See Your Trace Status at a Glance

The Cat6 Punch-Down Keystone Jack with LED from Intellinet Network Solutions is designed for deployment in blank patch panels, wall plates or surface connection boxes. Its built-in LED provides real-time feedback on the trace status, streamlining troubleshooting and minimizing downtime (Intellinet LED Port Detector Tool #780179 required). This keystone jack is suitable for solid conductor cables in high-performance network applications up to 1000BASE-T and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. It is equipped with gold-plated contacts for high signal integrity.

• For deployment in blank patch panels, wall plates or surface connection boxes
• Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801

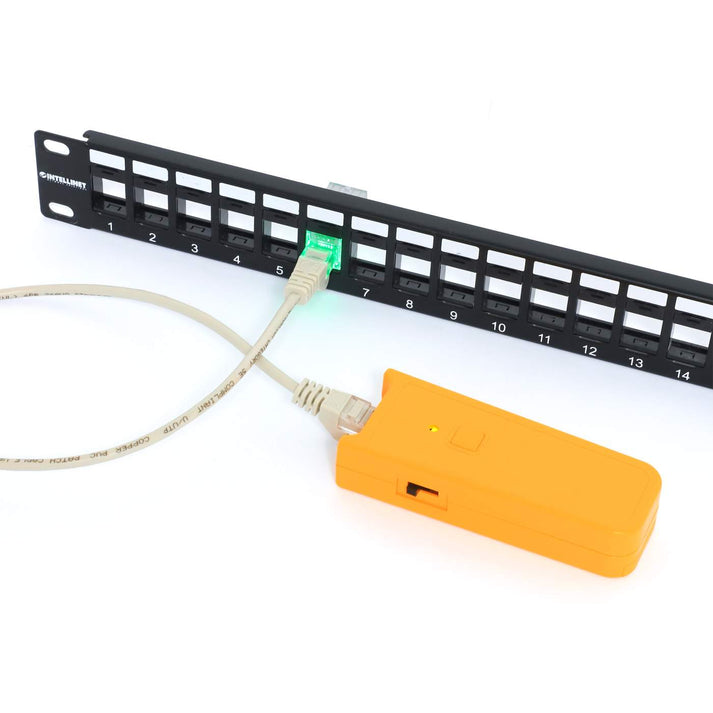

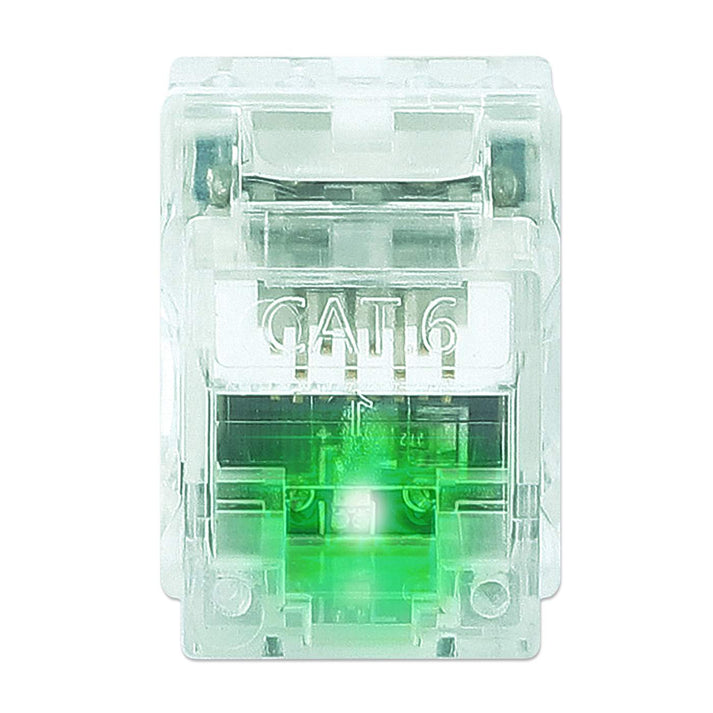

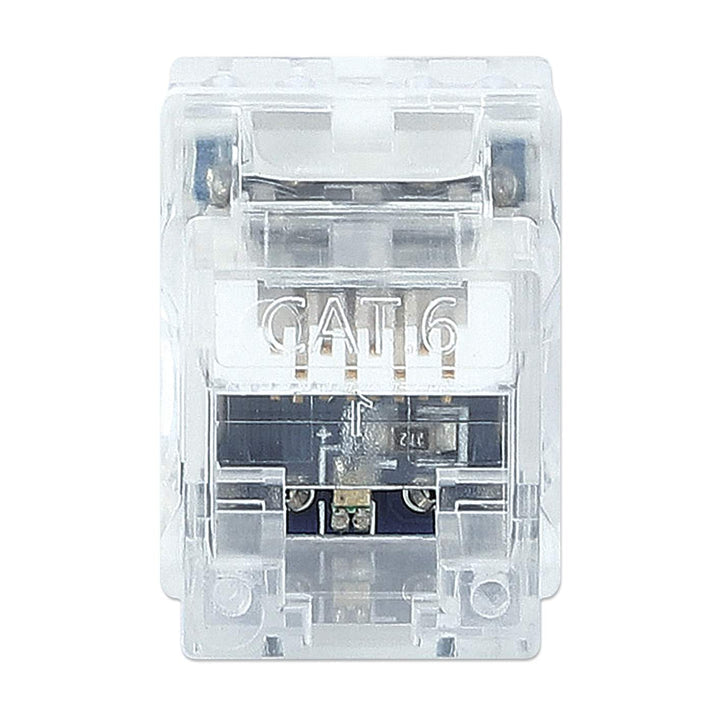

• LED indicator for the port's trace status: red meaning active, green meaning cabled correctly, off meaning failure in cable termination (LED only functions when used with Intellinet LED Port Detector Tool #780179)

Note: This product requires the LED Port Detector Tool from Intellinet Network Solutions (#780179)

• For deployment in blank patch panels, wall plates or surface connection boxes
• Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
• LED indicator for the port's trace status: red meaning active, green meaning cabled correctly, off meaning failure in cable termination (LED only functions when used with Intellinet LED Port Detector Tool #780179)
• 50 micro-inch gold-plated contacts
• Supports 23 to 26 AWG solid wire
• LSA punch-down type, compatible with 110, Krone, and other punch-down tools
• Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• For use with unshielded twisted pair (UTP) Cat6 network cable
• Standard 8P8C design, compatible with all network RJ45 connections

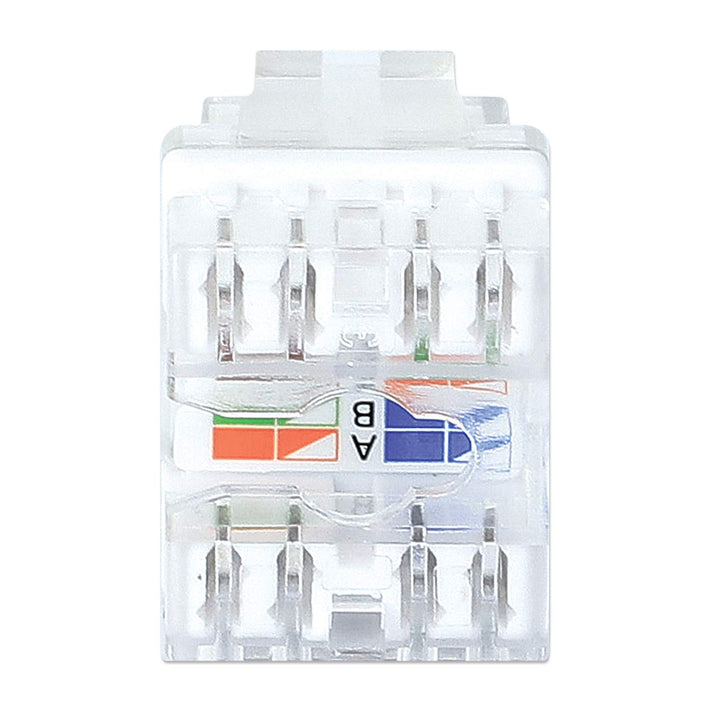

• Compatible and color-coded with T568A and T568B
• UL listed
• Jar packaging for convenient stock-keeping
• Three-year warranty

Standards and Certifications

• CE
• RoHS
• ISO/IEC 11801
• IEC 60603-7-41
• Cat6 (ANSI/TIA-568-D)
• UL
• REACH
• UKCA

General

• Supports transfer speeds up to 10 Gbps over distances up to 180 ft. (55 m)
• Max. operating frequency: 250 MHz
• Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Insertion force: 30N max.
• Retention strength: 7.7 kg (17 lbs.) between jack and plug

LED indicator status

• Red: Connection is patched/uplinked to a switch
• Green: Connection is cabled correctly
• Off: Failure in cable termination

Material

• Contacts: phosphor bronze
• Contact plating: 50 micro-inch gold
• IDC: phosphor bronze with tin plating
• Flammability:
  • Housing: ABS, tested and rated in accordance with UL 94 V-0
  • Contacts bracket: Polycarbonate, tested and rated in accordance with UL 94 V-2
  • PCB: tested and rated in accordance with FR-4 and UL 94 V-0

Electrical

• Insulation resistance: ≥500 MOhm
• Dielectric withstanding voltage: 1,000 V DC/750 V AC
• Contact resistance: ≤10 MOhm
• DC resistance: ≥0.1 Ohm
• Current rating: 1.5 A

Physical

• Dimensions per module (L x W x H): 1.17 x 0.63 x 0.88 in. (29.6 x 16 x 22.3 mm)
• Net weight per module: 0.28 oz. (8 g)
• Gross weight 25-pack: 0.6 lbs. (270 g)

Environmental

• Operating temperature: 14 - 140°F (-10 - 60°C)
• Storage temperature: -40 - 158°F (-40 - 70°C )
• Operating humidity (non-condensing): 10 - 90% RH

Note: This product requires the LED Port Detector Tool from Intellinet Network Solutions (#780179)

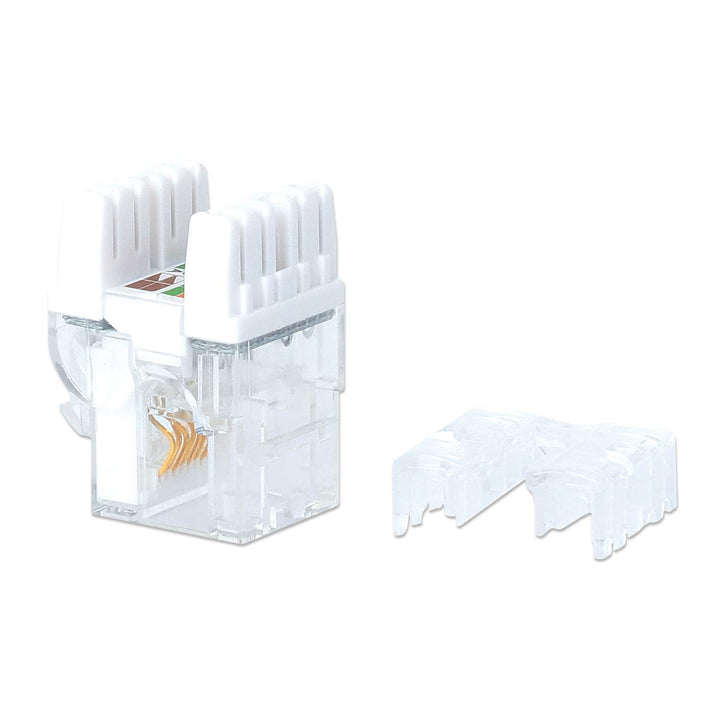

• 25 x Cat6 Punch-Down Keystone Jack with LED
• 25 x dust cover
• Instructions
