Evolution HDMI® over Single Cat5e/Cat6 Cable Wall Plate Extender with PoE, EVWP2006
SKU#: EVWP2006
UPC#:741835105477Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Transmits HDMI video- audio- control and power through single CAT5e/6 cable
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter or receiver to be powered off of a single power supply
- Fits easily into a single gang low-voltage box and allows for power to be supplied on either the transmitter or receiver for a flexible installation
- Transmission Range: 164ft/50meters at resolutions 1080p @ 60Hz and 262ft/80 meters at 1080i through single Cat5e/Cat6 cable
- Features Auto EDID and EQ Management for plug and play installation
- Supports bi-directional IR 20-60KHz (RX->TX and TX->RX)
- Supports audio formats- Dolby True HD- DTS-master- etc.
- Supports all 3D Formats
- Supports EDID call back
- Supports CEC pass through
- VESA DDC and hot swap technology
- HDCP Compliant
- Compatible with DVI 1.0
- Allows cascading to create a larger distribution system
- Specs+
- Package Contents+
- EVWP2006 (TX & RX)
- (2) IR Blasters (TX)
- (1) IR Receivers (RX)
- (1) DC 12V in line power supply
- Product Manual
- Reviews+
- Transmits HDMI video- audio- control and power through single CAT5e/6 cable
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter or receiver to be powered off of a single power supply
- Fits easily into a single gang low-voltage box and allows for power to be supplied on either the transmitter or receiver for a flexible installation
- Transmission Range: 164ft/50meters at resolutions 1080p @ 60Hz and 262ft/80 meters at 1080i through single Cat5e/Cat6 cable
- Features Auto EDID and EQ Management for plug and play installation
- Supports bi-directional IR 20-60KHz (RX->TX and TX->RX)
- Supports audio formats- Dolby True HD- DTS-master- etc.
- Supports all 3D Formats
- Supports EDID call back
- Supports CEC pass through
- VESA DDC and hot swap technology
- HDCP Compliant
- Compatible with DVI 1.0
- Allows cascading to create a larger distribution system
- EVWP2006 (TX & RX)
- (2) IR Blasters (TX)
- (1) IR Receivers (RX)
- (1) DC 12V in line power supply
- Product Manual
Evolution HDMI® over Single Cat5e/Cat6 Cable Wall Plate Extender with PoE, EVWP2006
Note: This product has been discontinued.

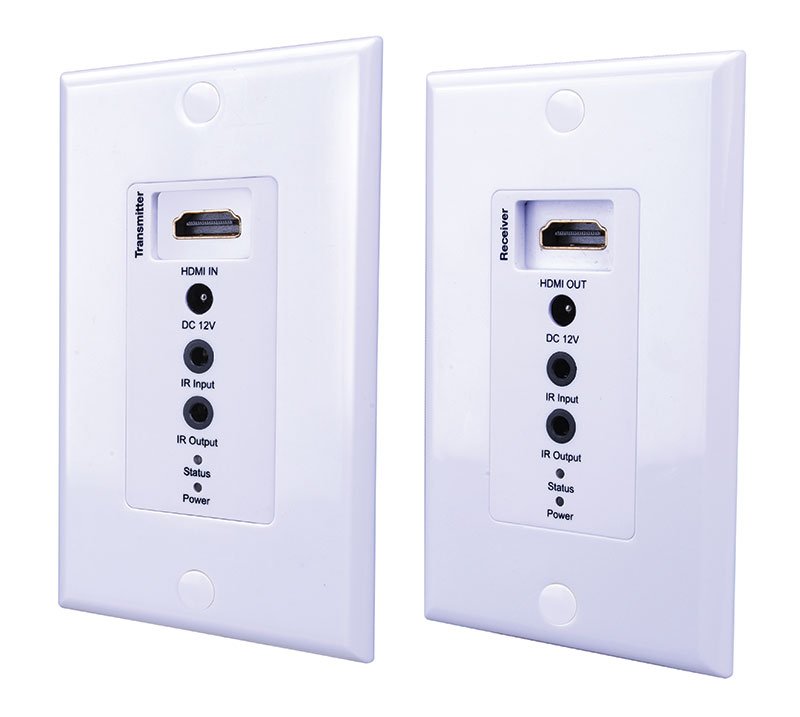

The Evolution by Vanco EVWP2006 HDMI Wall Plate Extender over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and PoE extends high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable. Power over Ethernet (PoE) Technology transmits power over Cat5e/6, allowing either the Transmitter or Receiver to be powered without the use of a power supply. No EDID or EQ adjustments are necessary as the units automatically adjust for compatibility and gain. This extender set fits easily into a single gang low-voltage box for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats, and is HDCP compliant. In addition, bi-directional IR passthrough allows for source or display control. For extending HDMI over a single Cat5e/6 with IR at a long distance, with Power over Ethernet, the EVWP2006 is a great solution.

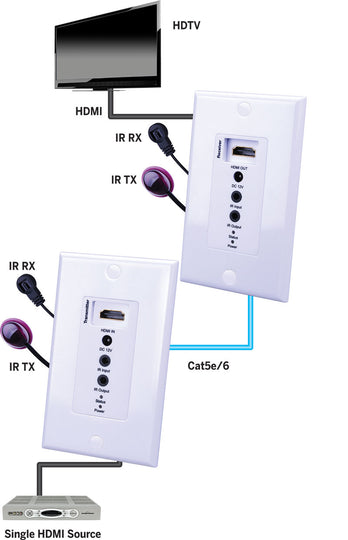

The EVWP2006 includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The EVWP2006 offers thea convenient solution for HDMI extension over a single Cat5e/6 with Power over Ethernet.
Evolution HDMI® over Single Cat5e/Cat6 Cable Wall Plate Extender with PoE, EVWP2006
Note: This product has been discontinued.
The Evolution by Vanco EVWP2006 HDMI Wall Plate Extender over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and PoE extends high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable. Power over Ethernet (PoE) Technology transmits power over Cat5e/6, allowing either the Transmitter or Receiver to be powered without the use of a power supply. No EDID or EQ adjustments are necessary as the units automatically adjust for compatibility and gain. This extender set fits easily into a single gang low-voltage box for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats, and is HDCP compliant. In addition, bi-directional IR passthrough allows for source or display control. For extending HDMI over a single Cat5e/6 with IR at a long distance, with Power over Ethernet, the EVWP2006 is a great solution.
The EVWP2006 includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The EVWP2006 offers thea convenient solution for HDMI extension over a single Cat5e/6 with Power over Ethernet.
