Enable-IT Gigabit 30W per port PoE SFP Fiber 8 Port Switch
SKU#: 8808F
UPC#:896741002393Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- (8) 10/100/1000Mbps Auto-Negotiation RJ-45 ports with PoE auto detect
- RJ45 jacks – no programming required.
- Complies with IEEE802.3af standards
- Each port supports full duplex auto-negotiation -10/20, 100/200, 1000/2000Mbps
- Maximum Bandwidth backplane 24Gbps
- Supports PoE power up to 30W for each PoE port
- 1 Port delivers 60W PoE power for High Powered PoE Devices
- Supports automatic-detect function to protect the system power is overloaded or there is a non-PoE device
- LED indicators for monitoring PoE power, Physical link, LAN activity and LAN speed
- 57V 5A power adapter included
- Specs+
- Country Specific power cord and 57V 5A power adapter included
- Gigabit full-duplex Ethernet Data & PoE (802.3af) or PoE (802.3at)
- High Power Gigabit PoE switch 8 port
- Ethernet: (8) LAN RJ-45 Standard 10/100/1000BaseTX, MDI-X, Autonegotiate ports.
- Height 1.4″ (35mm) Depth 4.7″ (121mm) Width 8.8″ (225mm)
- Operational Temperature: -49°F to 168°F (-45°to 76°C)
- Humidity: 5% to 95%, non-condensing
- Ruggedized wallmount black Aluminum casing Optimized for heat extraction and isolation without fans.
- Package Contents+
- (1) 8808F Gigabit PoE Switch
- (1) Country Specific Power Adapter
- (1) 8808F Gigabit PoE Switch Quickstart Guide
- Reviews+
- (8) 10/100/1000Mbps Auto-Negotiation RJ-45 ports with PoE auto detect
- RJ45 jacks – no programming required.
- Complies with IEEE802.3af standards
- Each port supports full duplex auto-negotiation -10/20, 100/200, 1000/2000Mbps
- Maximum Bandwidth backplane 24Gbps
- Supports PoE power up to 30W for each PoE port
- 1 Port delivers 60W PoE power for High Powered PoE Devices
- Supports automatic-detect function to protect the system power is overloaded or there is a non-PoE device
- LED indicators for monitoring PoE power, Physical link, LAN activity and LAN speed
- 57V 5A power adapter included
- Country Specific power cord and 57V 5A power adapter included
- Gigabit full-duplex Ethernet Data & PoE (802.3af) or PoE (802.3at)
- High Power Gigabit PoE switch 8 port
- Ethernet: (8) LAN RJ-45 Standard 10/100/1000BaseTX, MDI-X, Autonegotiate ports.
- Height 1.4″ (35mm) Depth 4.7″ (121mm) Width 8.8″ (225mm)
- Operational Temperature: -49°F to 168°F (-45°to 76°C)
- Humidity: 5% to 95%, non-condensing
- Ruggedized wallmount black Aluminum casing Optimized for heat extraction and isolation without fans.
- (1) 8808F Gigabit PoE Switch
- (1) Country Specific Power Adapter
- (1) 8808F Gigabit PoE Switch Quickstart Guide

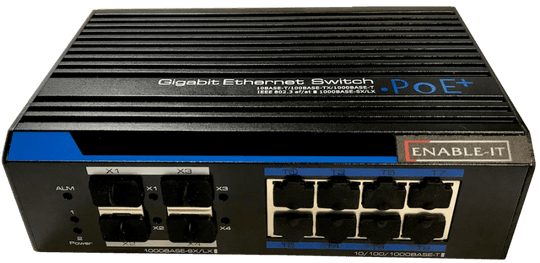

Enable-IT Gigabit Ethernet & PoE Fiber Switch
The Enable-IT 8808F SFP Gigabit Ethernet & PoE Fiber Switch is a an all-in-one robust solution. It provides (8) 10/100/1000 Base-T RJ-45 ports with built in IEEE 802.3af/at PoE support up to 328ft / 100m allowing you to connect several IP security cameras or PoE devices. 8808F has 4 Slots to support GBIC 1000 Base-X SFP (Small Form-Factor Pluggable) modules for connecting your fiber network for high speed data computing. The perfect robust Ethernet / Fiber all-in-one solution with web management for easy configuring of VLAN, QoS, RSTP, SNMP. etc.
There is no need to worry about the damage of PoE being applied to Non-PoE Devices and PoE connected devices are supplied with up to 30W per port with 1 port up to 60W for high powered PoE Delivery.
The Enable-IT 8808F supplies PoE electrical power on industry standard 2-pair (RJ-45 pins 4/5 positive and 7/8 negative) along with Ethernet data in one single cable allowing you to expand your network where there are no power lines or outlets. This enable you to deploy PoE devices such as WiFi Access Points, PoE IP Cameras, Poe Access controls or PoE IP Phones. Gigabit PoE extension can be achieved by using any Gigabit PoE extender up to 2,000ft.
Made in the USA with quality and pride – the only manufacturer to do so in this industry.
Power
Data Rate
Interface
Dimensions
Environment
Enclosure
Enable-IT Gigabit Ethernet & PoE Fiber Switch
The Enable-IT 8808F SFP Gigabit Ethernet & PoE Fiber Switch is a an all-in-one robust solution. It provides (8) 10/100/1000 Base-T RJ-45 ports with built in IEEE 802.3af/at PoE support up to 328ft / 100m allowing you to connect several IP security cameras or PoE devices. 8808F has 4 Slots to support GBIC 1000 Base-X SFP (Small Form-Factor Pluggable) modules for connecting your fiber network for high speed data computing. The perfect robust Ethernet / Fiber all-in-one solution with web management for easy configuring of VLAN, QoS, RSTP, SNMP. etc.
There is no need to worry about the damage of PoE being applied to Non-PoE Devices and PoE connected devices are supplied with up to 30W per port with 1 port up to 60W for high powered PoE Delivery.
The Enable-IT 8808F supplies PoE electrical power on industry standard 2-pair (RJ-45 pins 4/5 positive and 7/8 negative) along with Ethernet data in one single cable allowing you to expand your network where there are no power lines or outlets. This enable you to deploy PoE devices such as WiFi Access Points, PoE IP Cameras, Poe Access controls or PoE IP Phones. Gigabit PoE extension can be achieved by using any Gigabit PoE extender up to 2,000ft.
Made in the USA with quality and pride – the only manufacturer to do so in this industry.
