BZBGEAR PTZ Zoom Full HD HDMI/USB Auto Trackable Live Streaming Camera
SKU#: BG-LVUPTZ-12XHUS
UPC#:850009357335Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 12X Zoom : Perfect for medium to large sized rooms
- Auto tracking : Full automatic PTZ control follows movement
- Full HD : Both cameras output up to 1080P60 resolution and have completely independent USB 3.0, HDMI or IP Stream output signals
- Set-and-Forget : After initial setup camera works automatically
- Dual Outputs: Both cameras have completely independent output signals
- Specs+
- Package Contents+
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x RS232 control line
- 1x Remote control
- 1x User Manual
- Reviews+
- 12X Zoom : Perfect for medium to large sized rooms
- Auto tracking : Full automatic PTZ control follows movement
- Full HD : Both cameras output up to 1080P60 resolution and have completely independent USB 3.0, HDMI or IP Stream output signals
- Set-and-Forget : After initial setup camera works automatically
- Dual Outputs: Both cameras have completely independent output signals
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x RS232 control line
- 1x Remote control
- 1x User Manual
Note: This product has been discontinued and replaced by BG-ADAMO-JR.

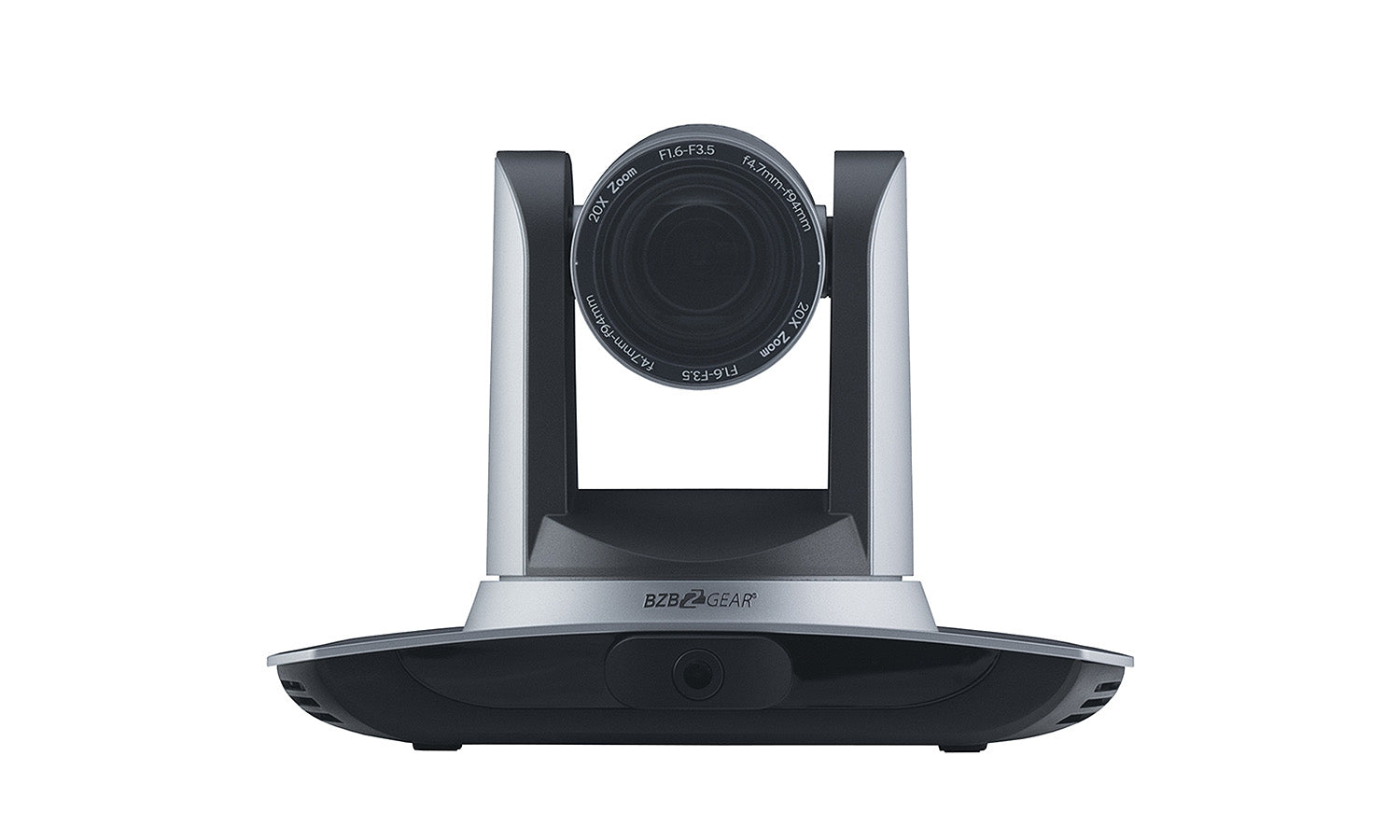

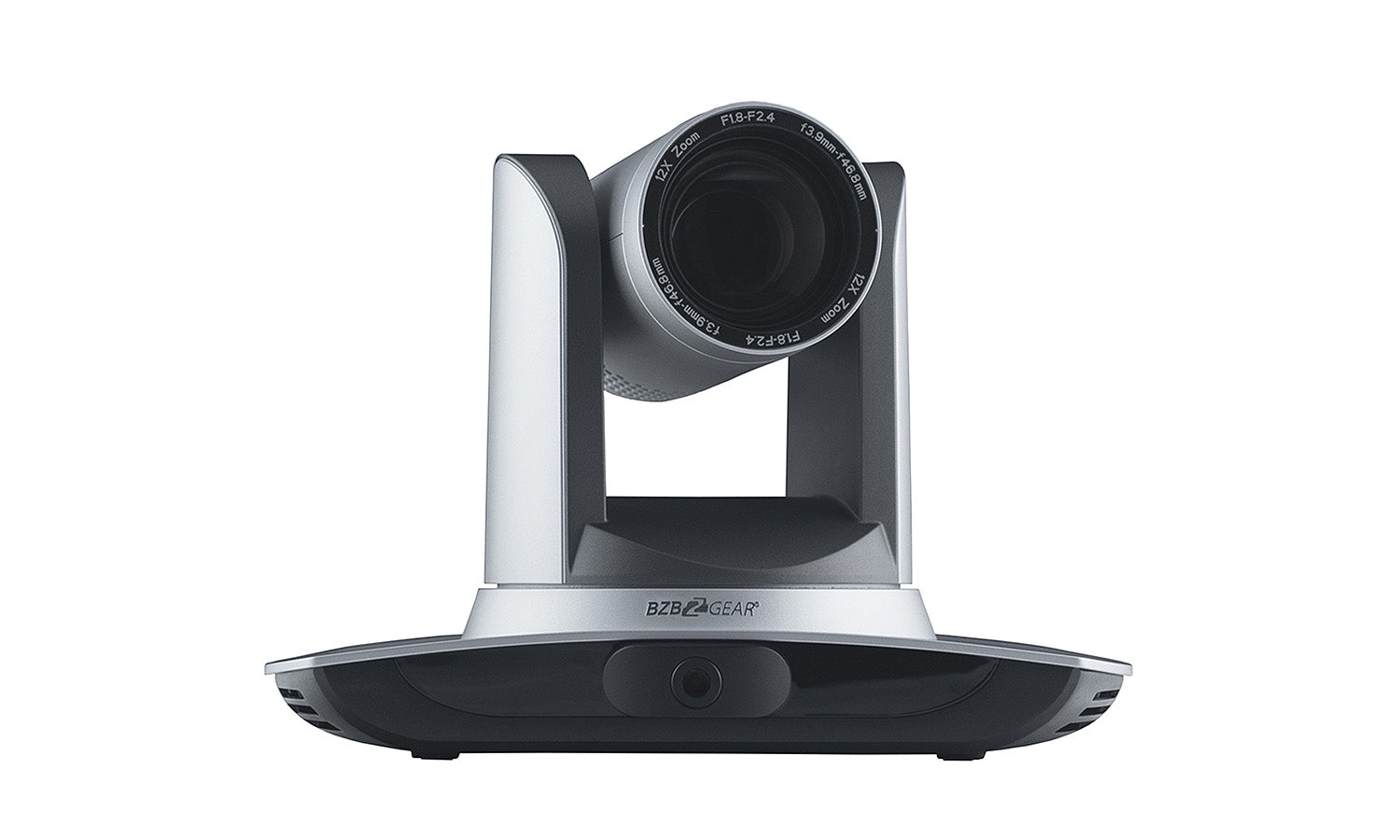

The cameraman just became obsolete! The exciting new LVUPTZ series cameras from BZBGEAR with auto-tracking are surely making enemies of video crews worldwide. This camera automatically Pans, Tilts, and Zooms to follow the presenter as they move about the stage or platform. The set and forget programming eliminates the need for an operator and makes sure the auto-tracking is always ready to go. A crystal-clear Full HD image with 12x and 20x zoom ensures that no details are lost.
The LVUPTZ is actually 2 cameras combined in a single housing. The first provides tracking info via its Full HD static image. Advanced onboard processing allows the second Full HD PTZ camera to perform auto-tracking functions with no additional hardware needed! Both outputs are available via HDMI, USB3.0 or IP Stream. Say goodbye to the camera crew and connect to your audience in ways not previously possible!
| Tracking camera, lens parameters | |
| Image sensor | 1/2.8inch high quality CMOS sensor |
| Effective pixels | 2,070,000 16:9 |
| Video signal | 1080P60/50/30/25/59.94/29.971080I60/50/59.94720P60/50/30/25 /59.94/29.97 |
| Lens optics zoom | 20X optical zoom f?4.7~94mm |
| Visual angle | 2.9° (narrow angle) ~ 55.4° (wide angle) |
| Aperture coefficient | F1.6 ~ F3.5 |
| Digital zoom | 10X |
| Minimum illumination | 0.5Lux (F1.8, AGC ON) |
| Digital noise reduction | 2D & 3D digital noise reduction |
| White balance | Manual/auto/one-key white balance /3000K/ 4000K/5000K/6500K |
| Focus | Auto/manual |
| Aperture | Auto/manual |
| Electronic shutter | Auto/manual |
| Backlight compensation | On/off |
| Wide dynamic | Off/dynamic grade adjustment |
| Video regulation | Brightness, hue, saturation, contrast ratio, sharpness, Gamma |
| Signal to noise ratio | >55dB |
| Panoramic lens | |
| Image sensor | 1/2.8inch high quality CMOS sensor |
| Effective pixels | 2,100,000 |
| Lens | Manual focus |
| Output port | Network port, HDMI, USB |
| Field angle (D/H/V) | 112°/82°/57.6° |
| Input/output port and support protocol | |
| Video port | HDMI |
| Network port | 100M internet access (10/100BASE-TX) 5GWiFi (optional), support network VISCA control protocol |
| Network protocol | RTSP, RTMP, ONVIF, GB/T28181 |
| Compression image code stream | Dual stream output |
| Video compression format | H.265, H.264 |
| Control signal port | RS-232/485 |
| Control protocol | VISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps |
| Audio input port | Dual track 3.5mm linear input |
| Audio compression format | AAC, MP3, PCM |
| Power port | HEC3800 power socket (DC12V) |
| Holder parameters | |
| Horizontal rotation | -170°~+170° |
| Vertical rotation | -30°~+90° |
| Horizontal control speed | 0.1~100°/s |
| Vertical control speed | 0.1~45°/s |
| Preset speed | Horizontal: 100°/s, vertical:45°/s |
| Preset quantity | User can set 255 presets at most (10 pcs of mobile control) |
| Other parameters | |
| Power adapter | Input AC110V-AC220V output DC12V/2.5A |
| Input voltage | DC12V±10% |
| Input current | 1.5A (maximum) |
| Power consumption | 18W (maximum) |
| Storage temperature | -10°C~+60°C |
| Storage humidity | 20%~95% |
| Operating temperature | -10°C~+50°C |
| Operating humidity | 20%~80% |
| Dimension (WxHxD) | 254mm X 144mm X 174mm |
| Weight (approx.) | 1.50kg |
| Operating environment | Indoor |
| Remote maintenance (network port) | Remote upgrade, restart and reset |
Note: This product has been discontinued and replaced by BG-ADAMO-JR.
The cameraman just became obsolete! The exciting new LVUPTZ series cameras from BZBGEAR with auto-tracking are surely making enemies of video crews worldwide. This camera automatically Pans, Tilts, and Zooms to follow the presenter as they move about the stage or platform. The set and forget programming eliminates the need for an operator and makes sure the auto-tracking is always ready to go. A crystal-clear Full HD image with 12x and 20x zoom ensures that no details are lost.
The LVUPTZ is actually 2 cameras combined in a single housing. The first provides tracking info via its Full HD static image. Advanced onboard processing allows the second Full HD PTZ camera to perform auto-tracking functions with no additional hardware needed! Both outputs are available via HDMI, USB3.0 or IP Stream. Say goodbye to the camera crew and connect to your audience in ways not previously possible!
| Tracking camera, lens parameters | |
| Image sensor | 1/2.8inch high quality CMOS sensor |
| Effective pixels | 2,070,000 16:9 |
| Video signal | 1080P60/50/30/25/59.94/29.971080I60/50/59.94720P60/50/30/25 /59.94/29.97 |
| Lens optics zoom | 20X optical zoom f?4.7~94mm |
| Visual angle | 2.9° (narrow angle) ~ 55.4° (wide angle) |
| Aperture coefficient | F1.6 ~ F3.5 |
| Digital zoom | 10X |
| Minimum illumination | 0.5Lux (F1.8, AGC ON) |
| Digital noise reduction | 2D & 3D digital noise reduction |
| White balance | Manual/auto/one-key white balance /3000K/ 4000K/5000K/6500K |
| Focus | Auto/manual |
| Aperture | Auto/manual |
| Electronic shutter | Auto/manual |
| Backlight compensation | On/off |
| Wide dynamic | Off/dynamic grade adjustment |
| Video regulation | Brightness, hue, saturation, contrast ratio, sharpness, Gamma |
| Signal to noise ratio | >55dB |
| Panoramic lens | |
| Image sensor | 1/2.8inch high quality CMOS sensor |
| Effective pixels | 2,100,000 |
| Lens | Manual focus |
| Output port | Network port, HDMI, USB |
| Field angle (D/H/V) | 112°/82°/57.6° |
| Input/output port and support protocol | |
| Video port | HDMI |
| Network port | 100M internet access (10/100BASE-TX) 5GWiFi (optional), support network VISCA control protocol |
| Network protocol | RTSP, RTMP, ONVIF, GB/T28181 |
| Compression image code stream | Dual stream output |
| Video compression format | H.265, H.264 |
| Control signal port | RS-232/485 |
| Control protocol | VISCA/Pelco-D/Pelco-P; Baud rate: 115,200/9,600/4,800/2,400bps |
| Audio input port | Dual track 3.5mm linear input |
| Audio compression format | AAC, MP3, PCM |
| Power port | HEC3800 power socket (DC12V) |
| Holder parameters | |
| Horizontal rotation | -170°~+170° |
| Vertical rotation | -30°~+90° |
| Horizontal control speed | 0.1~100°/s |
| Vertical control speed | 0.1~45°/s |
| Preset speed | Horizontal: 100°/s, vertical:45°/s |
| Preset quantity | User can set 255 presets at most (10 pcs of mobile control) |
| Other parameters | |
| Power adapter | Input AC110V-AC220V output DC12V/2.5A |
| Input voltage | DC12V±10% |
| Input current | 1.5A (maximum) |
| Power consumption | 18W (maximum) |
| Storage temperature | -10°C~+60°C |
| Storage humidity | 20%~95% |
| Operating temperature | -10°C~+50°C |
| Operating humidity | 20%~80% |
| Dimension (WxHxD) | 254mm X 144mm X 174mm |
| Weight (approx.) | 1.50kg |
| Operating environment | Indoor |
| Remote maintenance (network port) | Remote upgrade, restart and reset |
