BZBGEAR PTZ Full HD USB 2.0/RS232 Huddle Room Camera
SKU#: BG-BPTZ-3XU
UPC#:850009357298
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Full HD Image: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30fps
- Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
- Control: Cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
- Extremely Quiet PTZ: Step drive motor mechanism and precision motor drive controller ensure PTZ works smoothly with no noise
- Zoom: Available in 3x/10x Optical zoom + 10x Digital
- Specs+
- Package Contents+
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x Remote Control
- 1x USB2.0 Cable
- 1x User Manual
- Reviews+
- Full HD Image: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30fps
- Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
- Control: Cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
- Extremely Quiet PTZ: Step drive motor mechanism and precision motor drive controller ensure PTZ works smoothly with no noise
- Zoom: Available in 3x/10x Optical zoom + 10x Digital
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x Remote Control
- 1x USB2.0 Cable
- 1x User Manual

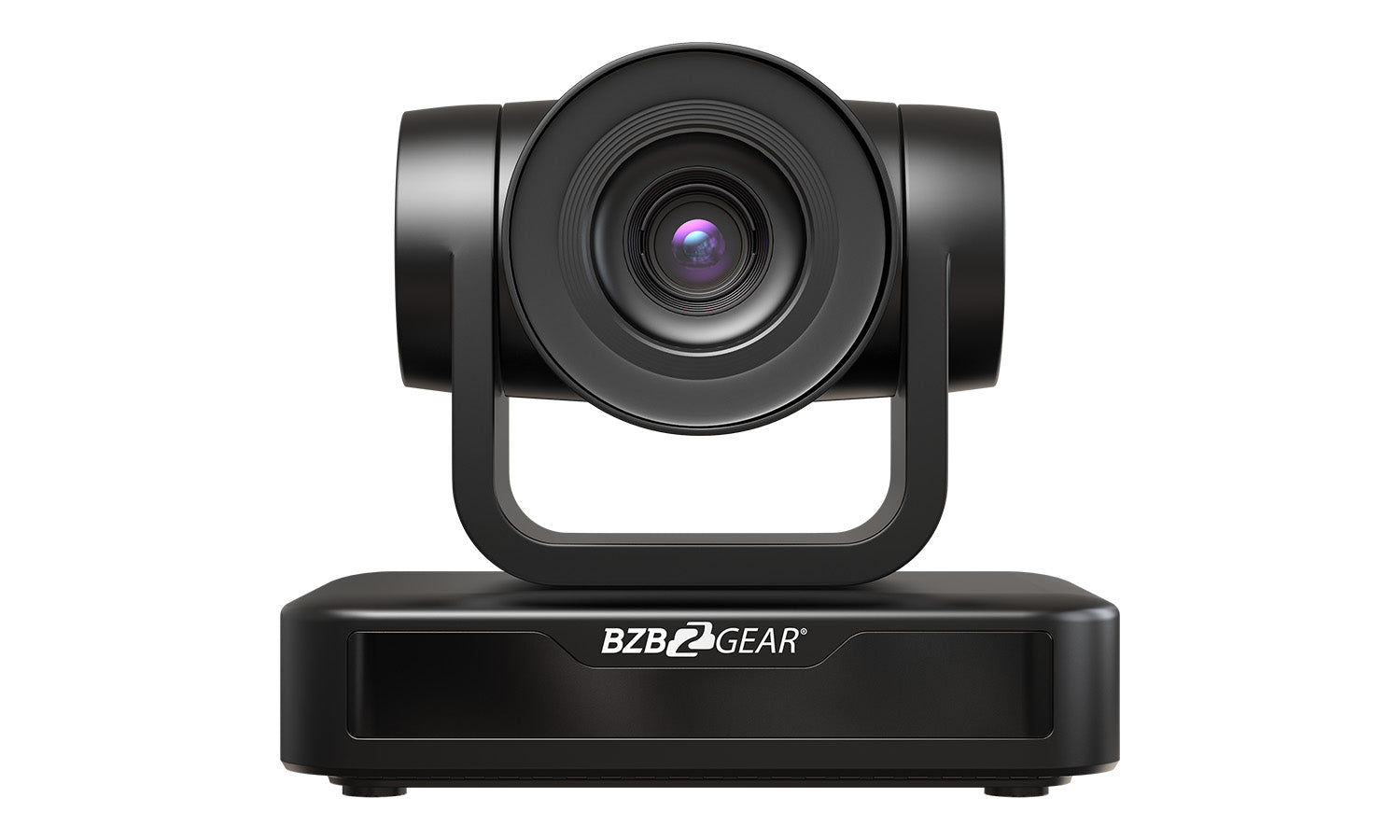

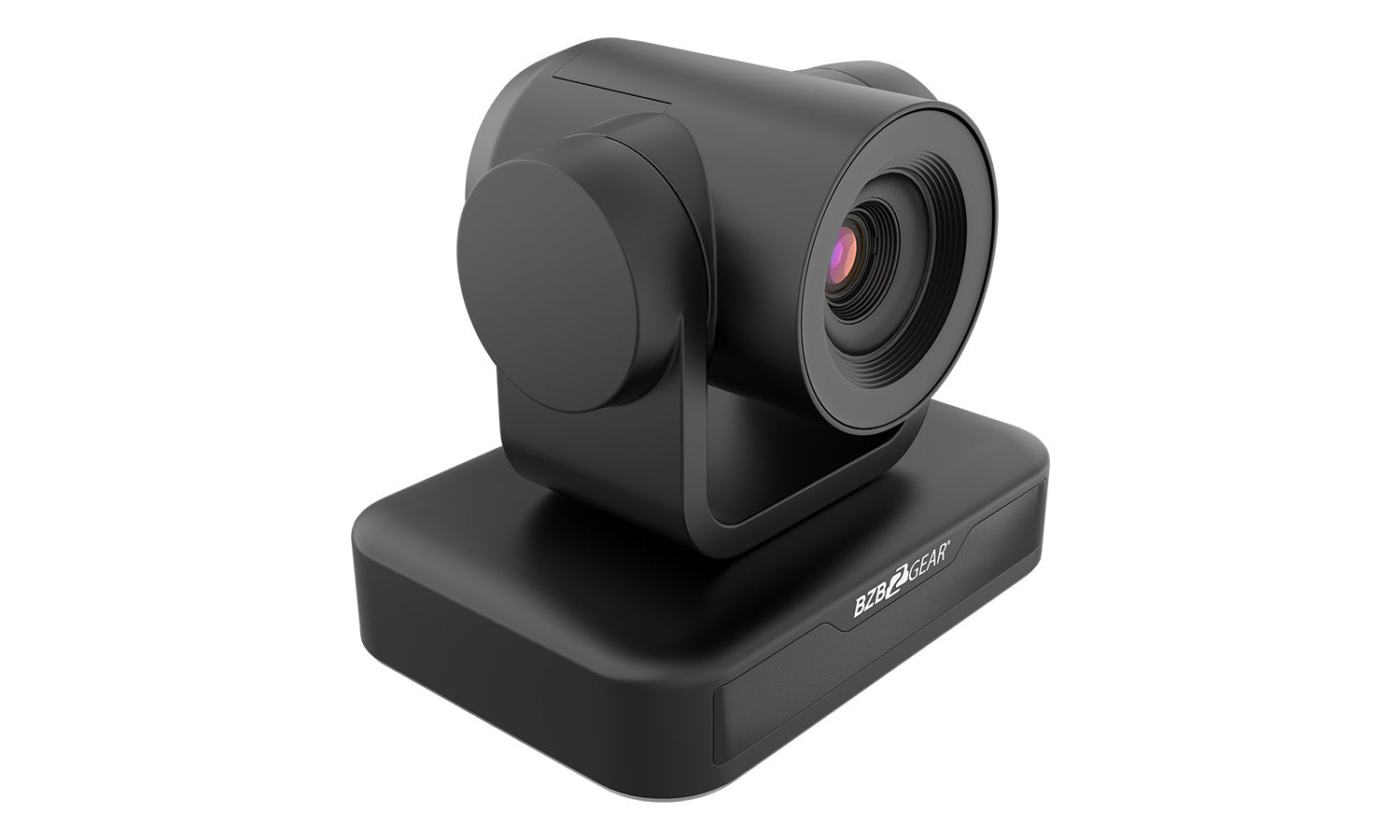

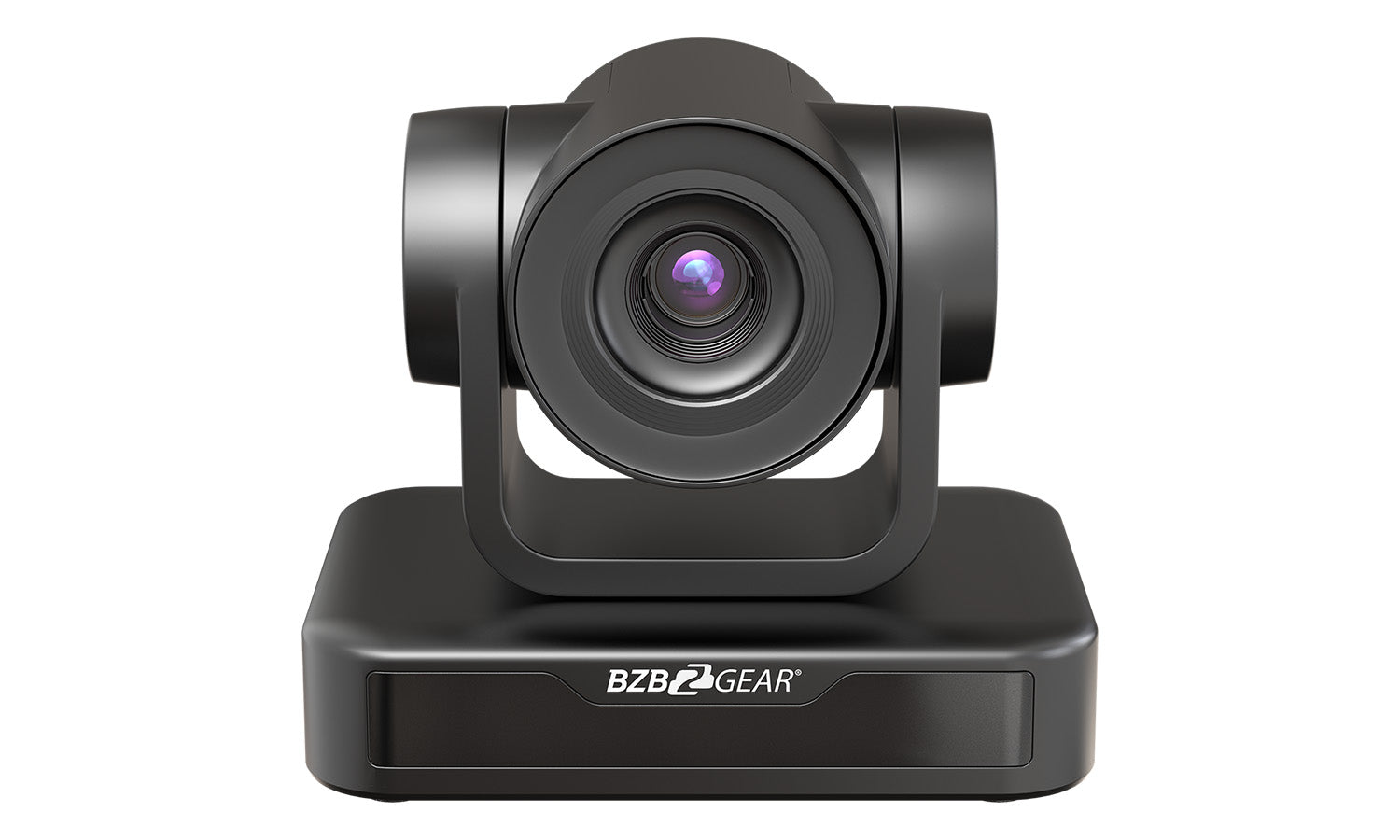

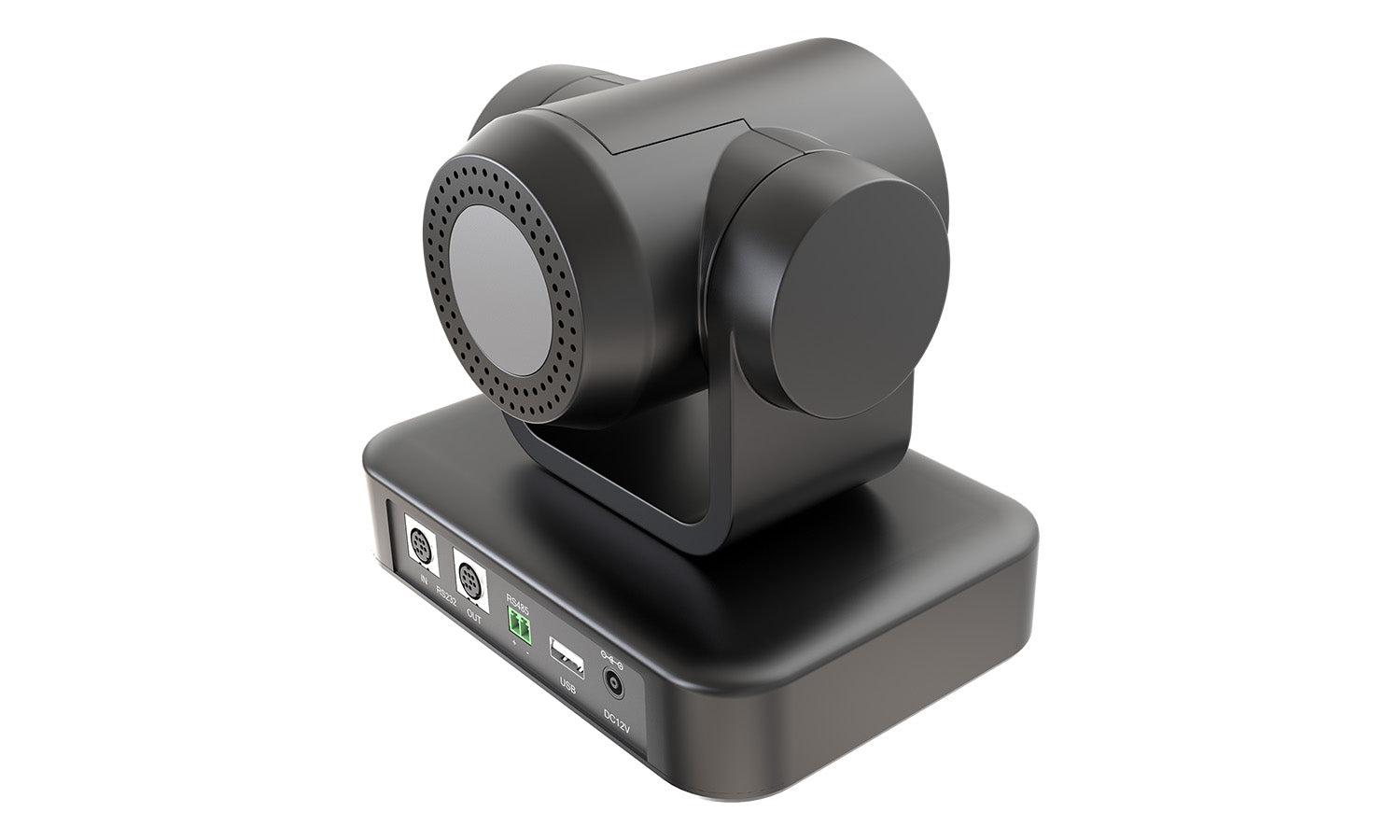

BZBGEAR BG-BPTZ camera combines a high-quality lens with an advanced ISP processing algorithm to provide high-quality video and smooth motion. BG-BPTZ supports H.264/H.265 encoding, which keeps motion video fluid and clear even under low bandwidth conditions.
BG-BPTZ is ideal for any meeting spaces and conference rooms. It offers simple, clean connectivity from the back of the camera to PCs at the meeting table. The camera is universally compatible with any PC using the standard USB video driver.
The BG-BPTZ is ideal for distance learning and collaboration, as well as recording lectures.
| Model Number | BG-BPTZ-3XU | BG-BPTZ-10XU |
| View Angle | 34.1° ~ 85° | 8.8° ~ 66° |
| F Value | f=3.35mm ~ 10.05mm | f=4.34mm ~ 41.66mm |
| AV | F1.7 ~ 3.0 | F1.85 – F2.43 |
| Optical Zoom | 3X | 10X |
| Camera Parameters | |
| Image Sensor | 1/2.9 Inch High Quality CMOS Sensor |
| Effective Pixels | 2.07MP, 16:9 |
| Video Format | 1920×1080P@30 fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps; 960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps |
| Low Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D&3DDNR |
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto/Manual/One Push |
| Electronic Shutter | Auto/Manual |
| BLC | On/Off |
| WDR | OFF/Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |

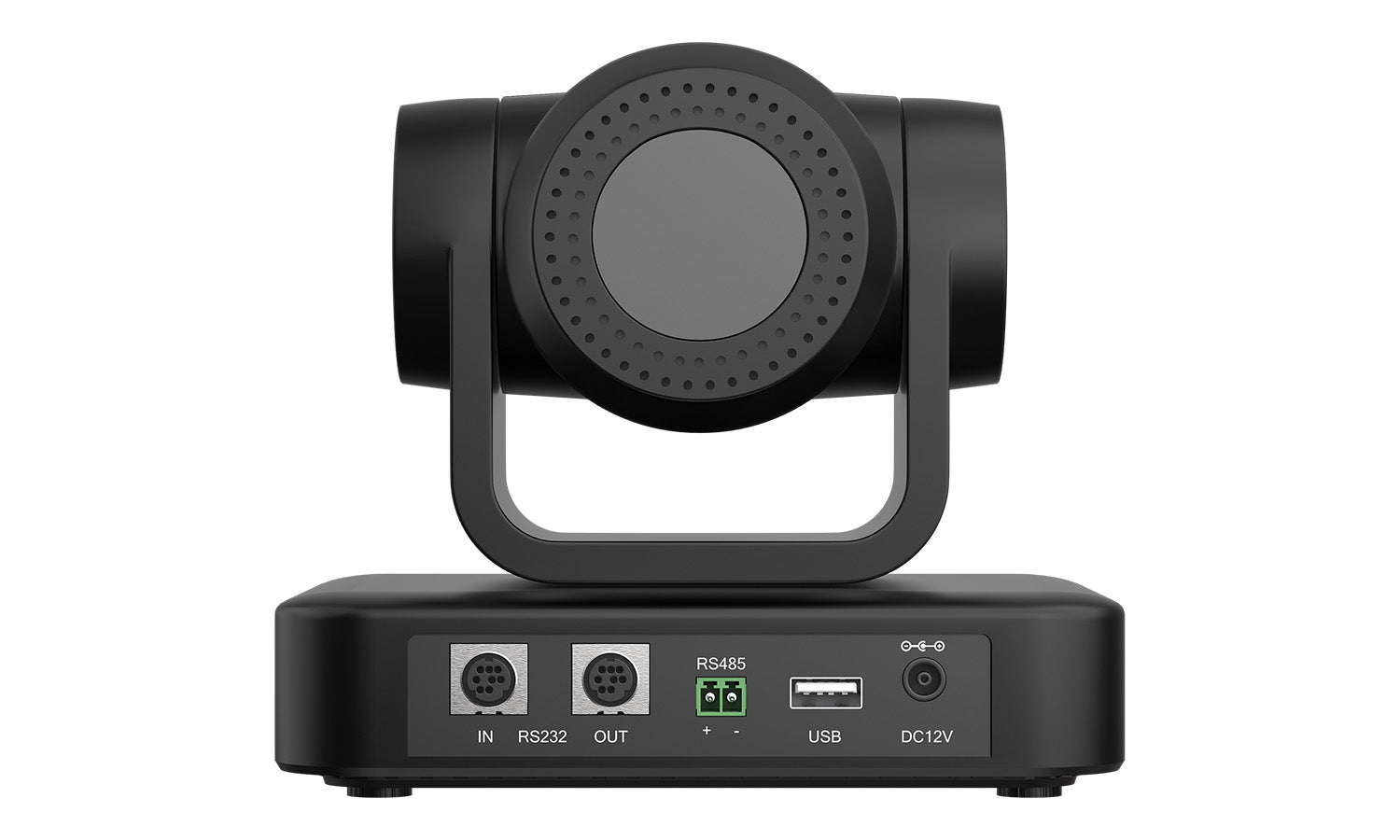

| Interface and Protocol | |
| Video Output | USB2.0. Type A |
| Video Compression | H.265, H.264, MJPG |
| Control Port | RS232 in & out, RS485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| Power Supply | HEC3800 Outlet (DC12V) |
| USB characteristics | |
| Support operating system | Windows 7, Windows8, Windows10, Mac OS, Linux |
| Video Compression | H.265, H.264, MJPG |
| USB communication protocol | UVC |
| PTZ Parameter | |
| Pan/Tile Rotation | -170° ~ +170° / -30° ~ +30° |
| Pan/Tile Controller Speed | 0.1 ~ 60°/Second, 0.1 ~ 30°/Second |
| Preset Speed | Pan: 60°/Second, Tilt: 30°/Second |
| Preset Numbers | 255 Presets (10 presets on IR Remote) |
| Other Parameter | |
| Working Voltage | 12V |
| Working current | 0.25A(max) |
| Power Consumption | 2.5W(max) |
| Storage Temperature | -10°C ~ +60°C , 20% ~ 95% |
| Working Temperature | -10°C ~ +50°C, 20% ~ 80% |
| Dimension | 156.8mm×112.6mm×139.5mm |
| Weight | 1KG |
| Usage | Indoor Only |
| Package | 12V/1.5A Power supply, Remote Controller, Manual, USB2.0 Cable |
| Accessories Optional | Mount (Extra Cost) |
BZBGEAR BG-BPTZ camera combines a high-quality lens with an advanced ISP processing algorithm to provide high-quality video and smooth motion. BG-BPTZ supports H.264/H.265 encoding, which keeps motion video fluid and clear even under low bandwidth conditions.
BG-BPTZ is ideal for any meeting spaces and conference rooms. It offers simple, clean connectivity from the back of the camera to PCs at the meeting table. The camera is universally compatible with any PC using the standard USB video driver.
The BG-BPTZ is ideal for distance learning and collaboration, as well as recording lectures.
| Model Number | BG-BPTZ-3XU | BG-BPTZ-10XU |
| View Angle | 34.1° ~ 85° | 8.8° ~ 66° |
| F Value | f=3.35mm ~ 10.05mm | f=4.34mm ~ 41.66mm |
| AV | F1.7 ~ 3.0 | F1.85 – F2.43 |
| Optical Zoom | 3X | 10X |
| Camera Parameters | |
| Image Sensor | 1/2.9 Inch High Quality CMOS Sensor |
| Effective Pixels | 2.07MP, 16:9 |
| Video Format | 1920×1080P@30 fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps; 960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps |
| Low Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D&3DDNR |
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto/Manual/One Push |
| Electronic Shutter | Auto/Manual |
| BLC | On/Off |
| WDR | OFF/Dynamic Level Adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR | >55dB |
| Interface and Protocol | |
| Video Output | USB2.0. Type A |
| Video Compression | H.265, H.264, MJPG |
| Control Port | RS232 in & out, RS485 |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| Power Supply | HEC3800 Outlet (DC12V) |
| USB characteristics | |
| Support operating system | Windows 7, Windows8, Windows10, Mac OS, Linux |
| Video Compression | H.265, H.264, MJPG |
| USB communication protocol | UVC |
| PTZ Parameter | |
| Pan/Tile Rotation | -170° ~ +170° / -30° ~ +30° |
| Pan/Tile Controller Speed | 0.1 ~ 60°/Second, 0.1 ~ 30°/Second |
| Preset Speed | Pan: 60°/Second, Tilt: 30°/Second |
| Preset Numbers | 255 Presets (10 presets on IR Remote) |
| Other Parameter | |
| Working Voltage | 12V |
| Working current | 0.25A(max) |
| Power Consumption | 2.5W(max) |
| Storage Temperature | -10°C ~ +60°C , 20% ~ 95% |
| Working Temperature | -10°C ~ +50°C, 20% ~ 80% |
| Dimension | 156.8mm×112.6mm×139.5mm |
| Weight | 1KG |
| Usage | Indoor Only |
| Package | 12V/1.5A Power supply, Remote Controller, Manual, USB2.0 Cable |
| Accessories Optional | Mount (Extra Cost) |
