BZBGEAR 8MP IP POE USB3.0 SDI Wide Angle Educational Auto Tracking Camera
SKU#: BG-MAESTRO
UPC#:850023208774
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- ePTZ Auto-Tracking: Silent, stable tracking eliminates distractions
- Wide Viewing angle: Allows for 3x digital zoom and ePTZ control with zero distortion
- 4K Sony CMOS Lens: Clear and Brilliant imagery
- Multiple Streams: 4 simultaneous streams (Close-up main/sub, Panoramic main/sub) allow multiple angles from a single camera
- PoE Support: Power, control, and video output can all be delivered with a single network cable
- Specs+
- Package Contents+
- 1x BG-MAESTRO Camera
- 1x Metal Wall/Ceiling Mount (White)
- 1x User Manual
- Reviews+
- ePTZ Auto-Tracking: Silent, stable tracking eliminates distractions
- Wide Viewing angle: Allows for 3x digital zoom and ePTZ control with zero distortion
- 4K Sony CMOS Lens: Clear and Brilliant imagery
- Multiple Streams: 4 simultaneous streams (Close-up main/sub, Panoramic main/sub) allow multiple angles from a single camera
- PoE Support: Power, control, and video output can all be delivered with a single network cable
- 1x BG-MAESTRO Camera
- 1x Metal Wall/Ceiling Mount (White)
- 1x User Manual

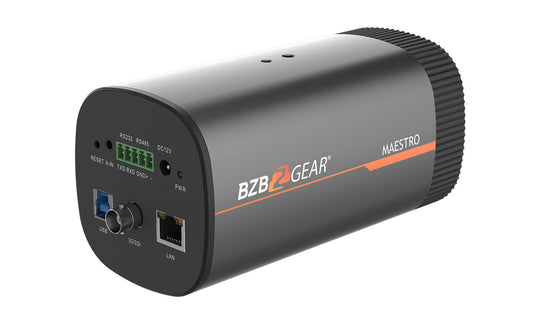

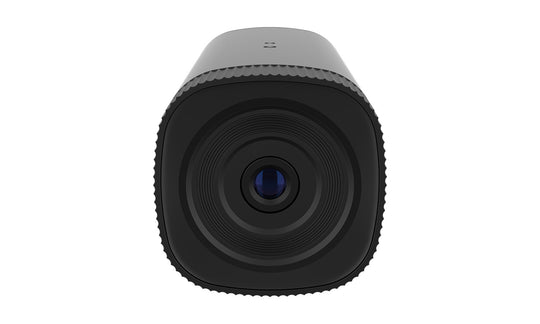

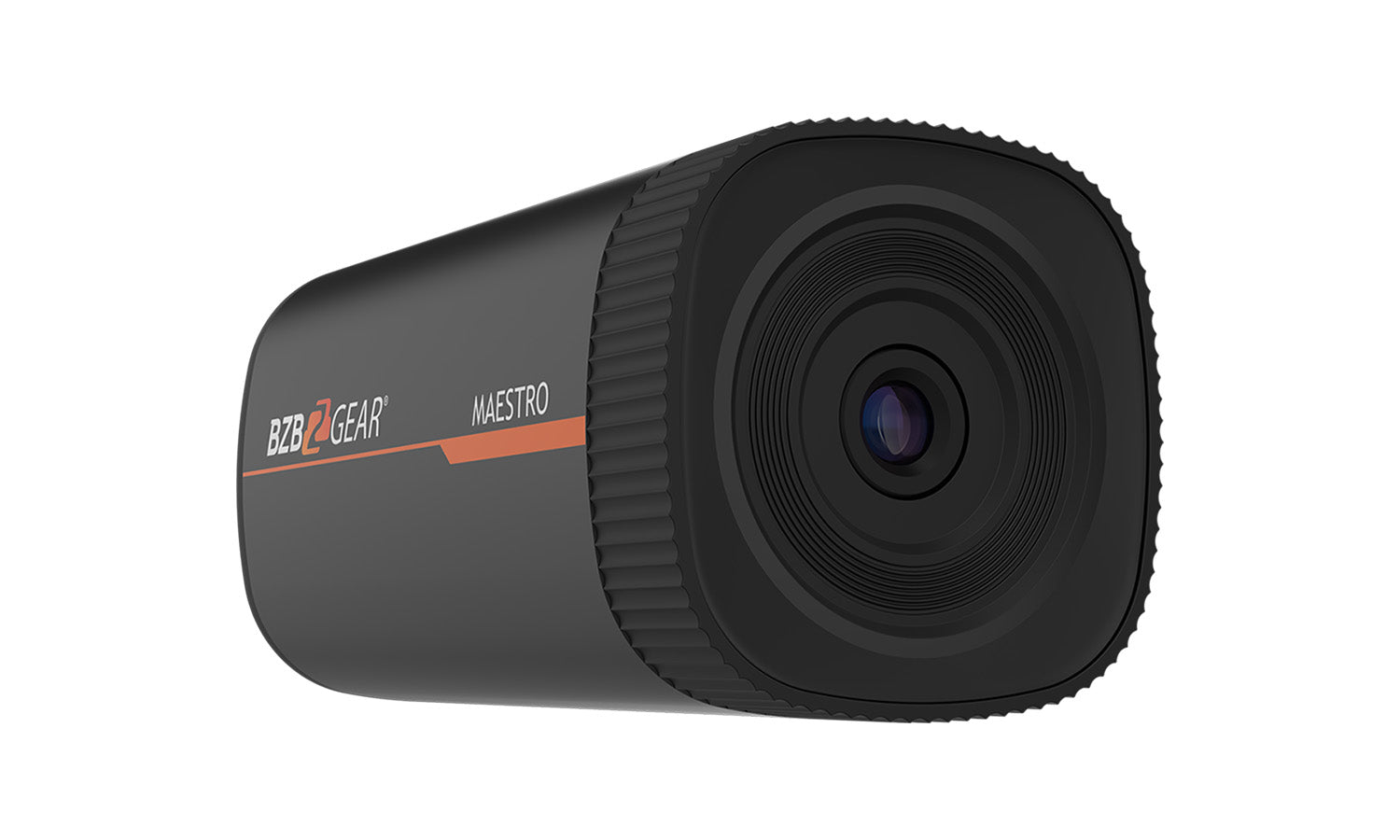

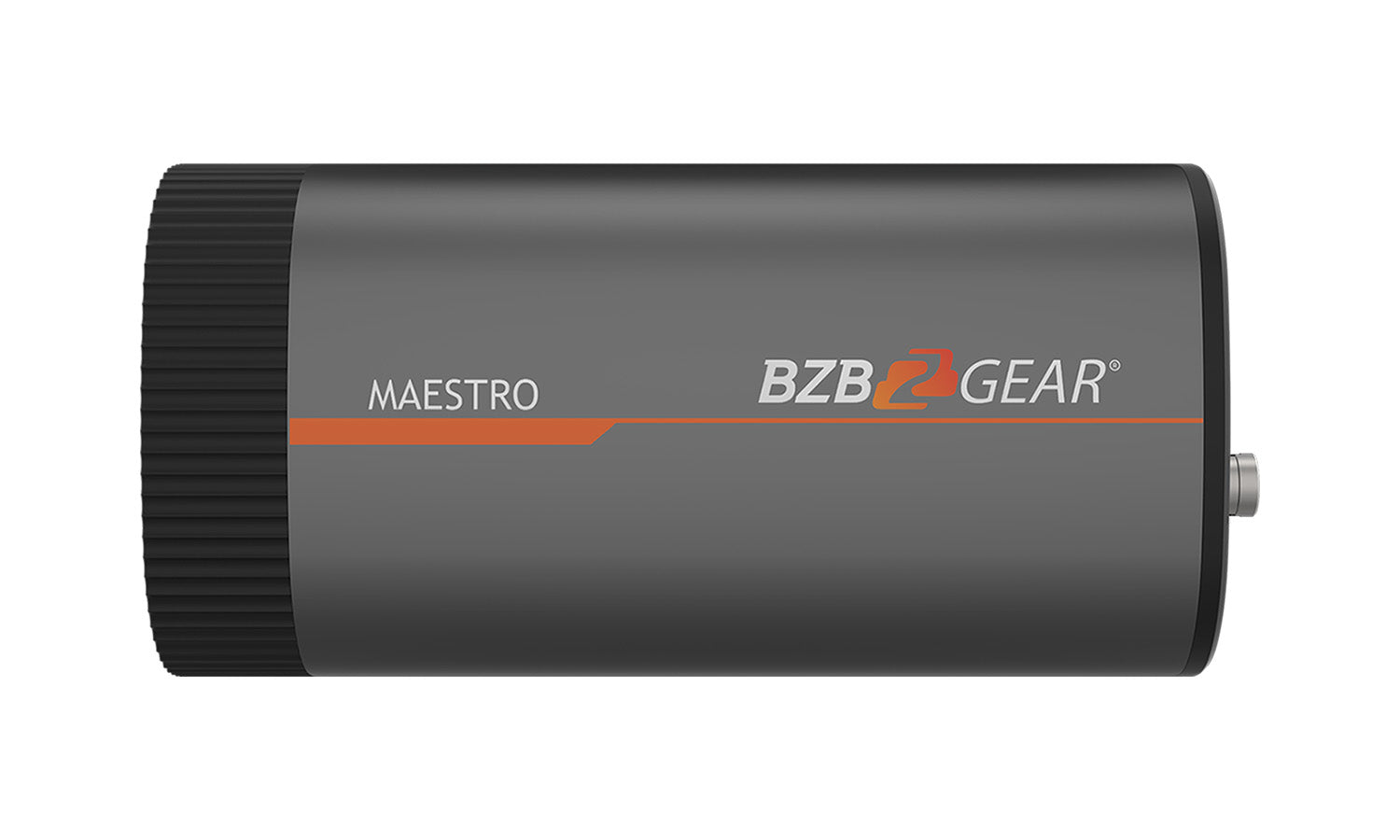

The Maestro auto-tracking camera represents yet another breakthrough by the BZBGEAR engineering team. The High-Quality 4K Sony® CMOS sensor delivers breathtakingly clear images at 1080P output. The simplified setup process makes it easy for anyone to configure and start the auto-tracking function in minutes.
Traditional auto-tracking cameras require two cameras integrated within the same chassis to function. This adds cost and complexity, placing them out of the reach of many users. The ePTZ function of the Maestro delivers auto tracking ability in a compact, reliable, and affordable format.
With its high-speed image processing and analysis algorithm, the Maestro provides fast and accurate detection for tracking movements. The lack of moving mechanical parts allows stealthy operation and a high degree of reliability.
Featuring USB, 3G-SDI, and IP Streaming outputs the Maestro integrates easily with nearly any video system. The audio input allows for the connection of a microphone or other external audio source. Four simultaneous RTSP streams allows multiple angles to be broadcast from a single camera.
The Maestro is the ideal solution for many different scenarios including remote education, hobbyists, lecture halls, houses of worship, and fitness instruction. With true set-and-forget operation, you can let the camera do the work while you focus on what you do best!
| Camera/ Lens Parameters | |||
| Image Sensor | 1/2.8 inch High Quality 4K CMOS Sensor | ||
| Effective pixels | 8.28 Megapixel, 16:9 | ||
| Video Format | SDI output: 1080P@30fps/25fps; 720P@60fps/50fps/30fps/25fps; U3 output: 1920X1080P30 fps /25 fps; 1280X720P60 fps /50 fps /30 fps /25 fps; 960X540P30 fps;800X600P30 fps; 640X360P30 fps; 640X480P30 fps; 352X288P30 fps; USB3.0 can be compatible with USB2.0 output |
||
| View Angle | 57.2° (D) /47° (H) /36° (V) | ||
| Focus | f=7.23mm | ||
| Aperture | F2.4+ 5% | ||
| Digital Zoom | 3X | ||
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | ||
| DNR | 2D & 3D DNR | ||
| White Balance | Auto / Manual/ One Push/ Specified color temperature (2400K-7100K, step length is 100) | ||
| Focus | Manual | ||
| Exposure | Fixed | ||
| BLC | ON/ OFF | ||
| DNR | >50dB | ||
| Input/Output Interface | |||

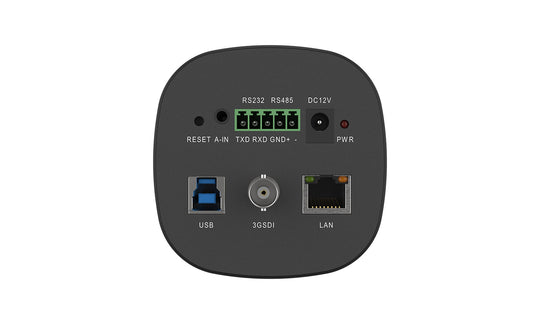

| Video Interfaces | 1xSDI interface 1xUSB interface 1xLAN interface: 10M/100M adaptive Ethernet port (support POE) |
||
| Video Compression Format | H.264, H.265, MJPEG, YUY2, NV12 | ||
| Audio Input Interface | Double track 3.5mm linear Input | ||
| Audio Compression Format | AAC, MP3, G.711A | ||
| Network protocol | RTSP, RTMP, ONVIF, GB/T28181 | ||
| Control Interface | RS232, RS485, LAN | ||
| Communication Protocol | VISCA, Pelco-D, Pelco-P, support baud rate 115200/38400/9600/4800/2400; Support VISCA Control Protocols | ||
| Power Interface | HEC3800 power socket (DC12V) | ||
| Other Parameters | |||
| Input Voltage | Power Adapter: 12V | ||
| POE Supply: 48V | |||
| Input Current | Power Adapter: 0.42A (max) | ||
| POE Supply: 0.104A (max) | |||
| Power Consumption | 5W (max) | ||
| Stored Temperature | -10°C ~ +60°C | ||
| Stored Humidity | 20% ~ 95% | ||
| Working Temperature | -10°C ~ +50°C | ||
| Working Humidity | 20% ~ 80% | ||
| Dimension (W x H x D) | 148.8mm × 76mm × 76mm | ||
| Weight | Around 0.53kg | ||
| Application | Indoor | ||
