BZBGEAR 8K60 HDMI 2.1 eARC Audio to Soundbar Converter
SKU#: BG-8K-SA
UPC#:850050134589
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+

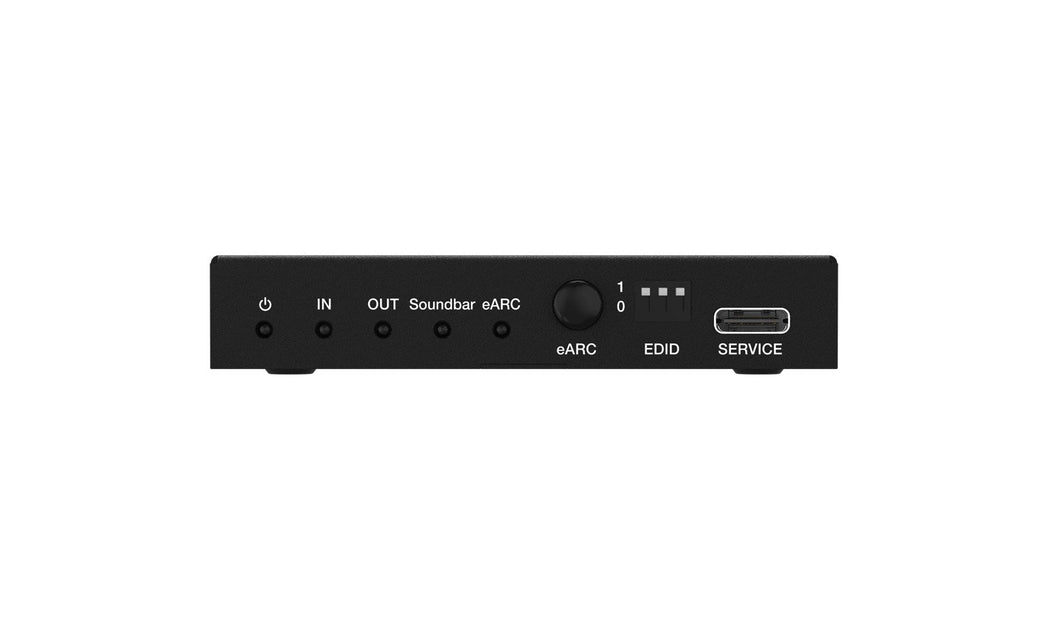

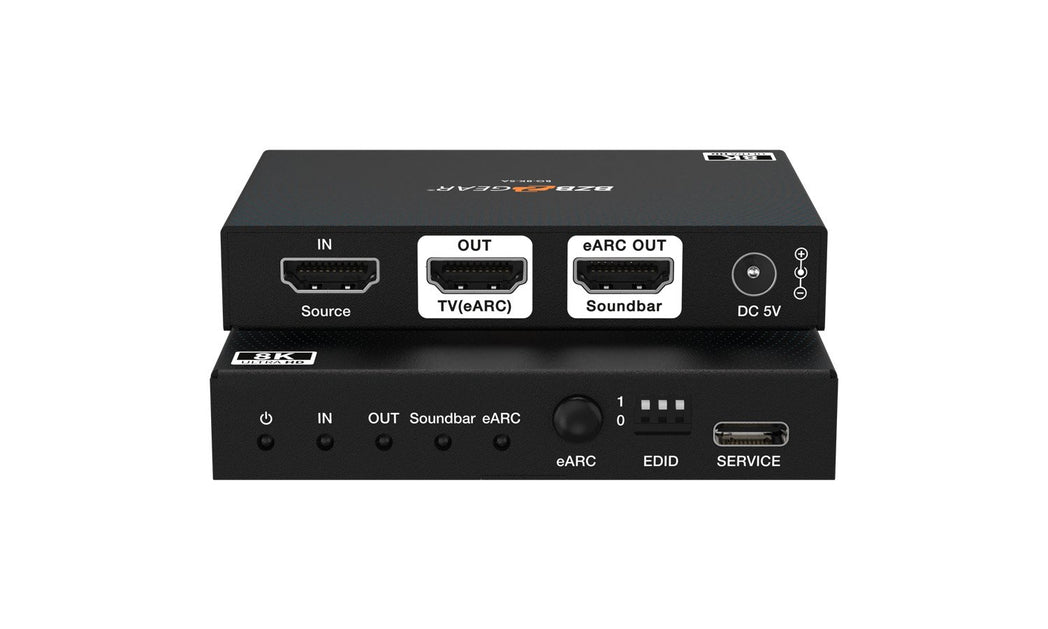

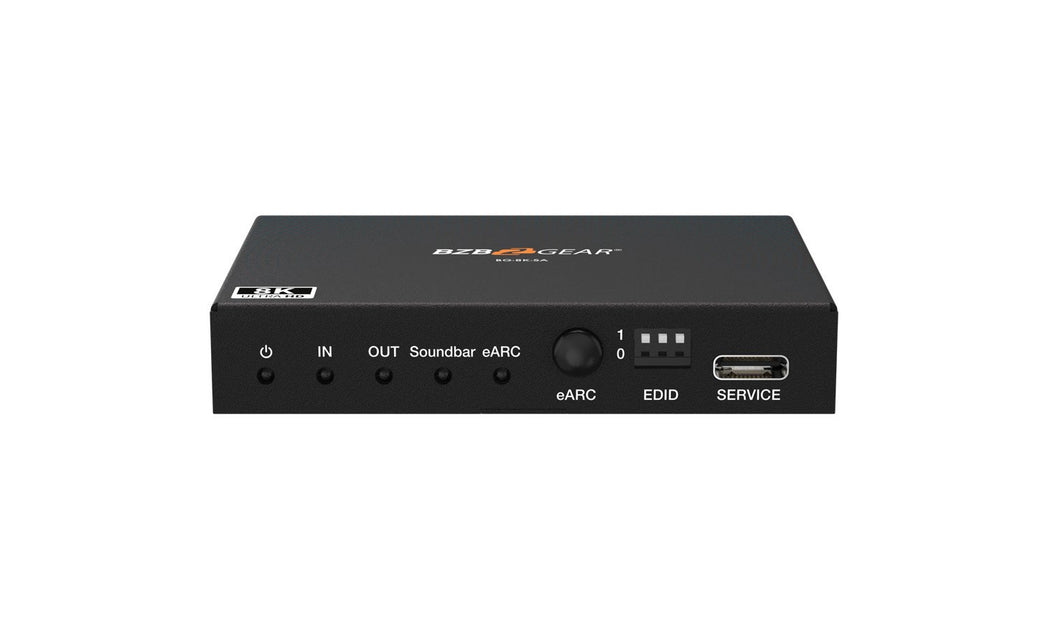

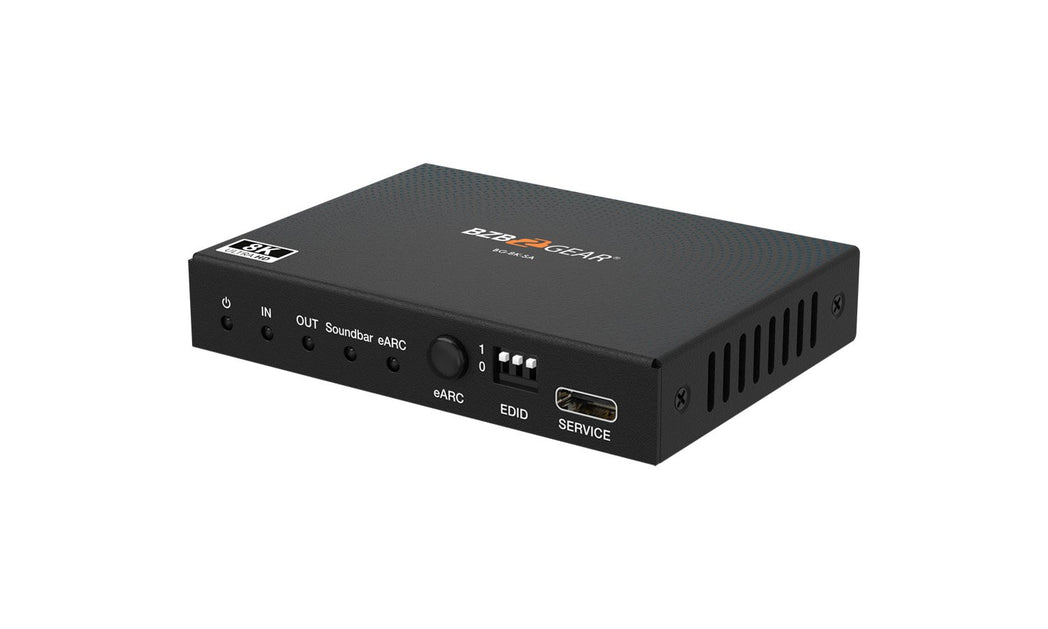

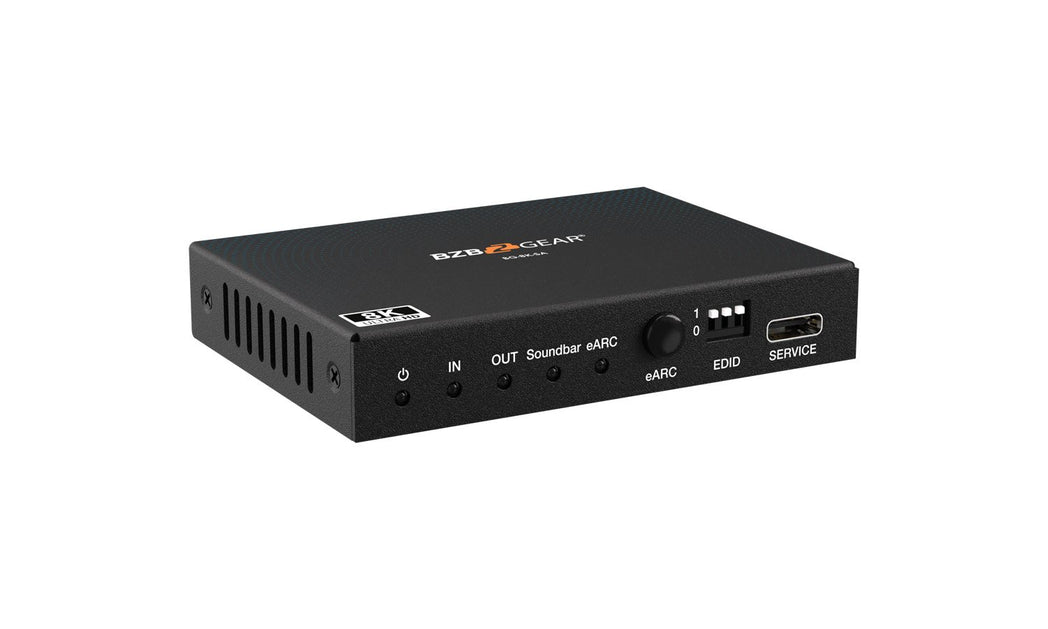

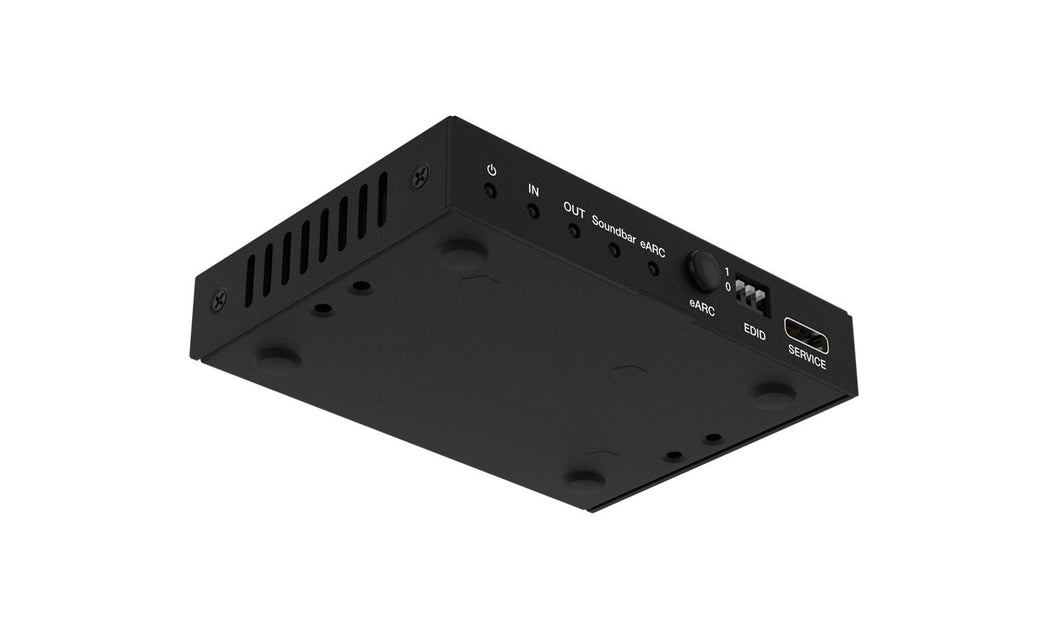

- Power LED: When the device is powered on, the red LED will be on.
- IN LED: When the input signal is detected, the green LED will be on.
- OUT LED: When the OUT port connects to a TV, the green LED will be on.
- Soundbar LED: When the eARC OUT port connects to a soundbar, the green LED will be on.
- eARC LED: On: The ARC/eARC function is turned on. CEC communication and ARC/eARC is working properly. Flashing:The ARC/eARC function is turned on. CEC communication and ARC/eARC is not working properly. Off: The ARC/eARC function is turned off.
-
eARC button: Press this button to enable or disable the eARC function.
-
EDID DIP switch: Use the DIP switch to set EDID.
-
SERVICE: Firmware update and debug port.
-

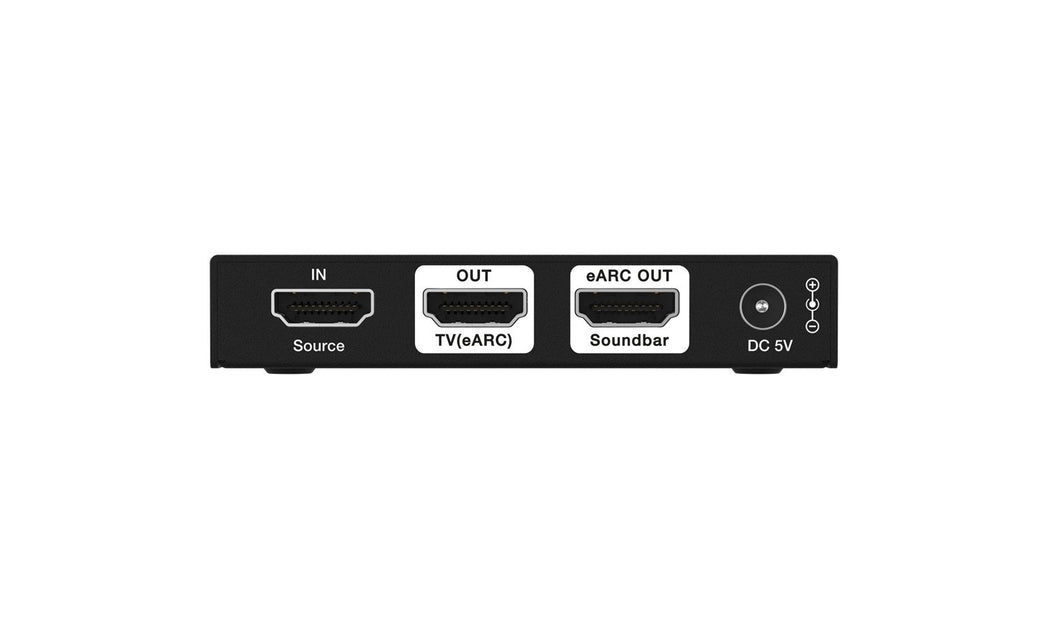

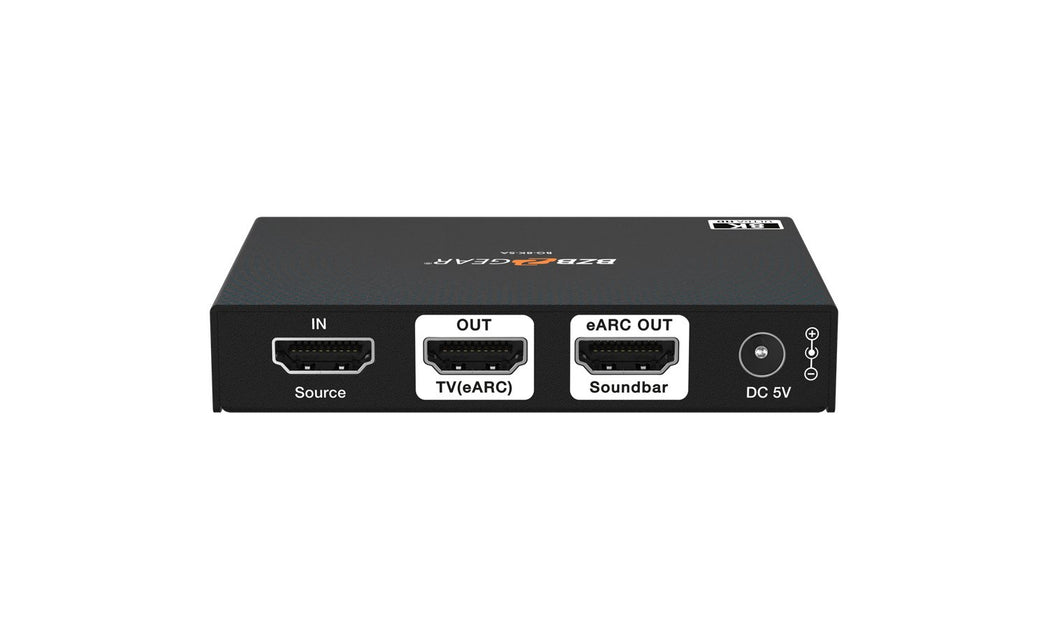

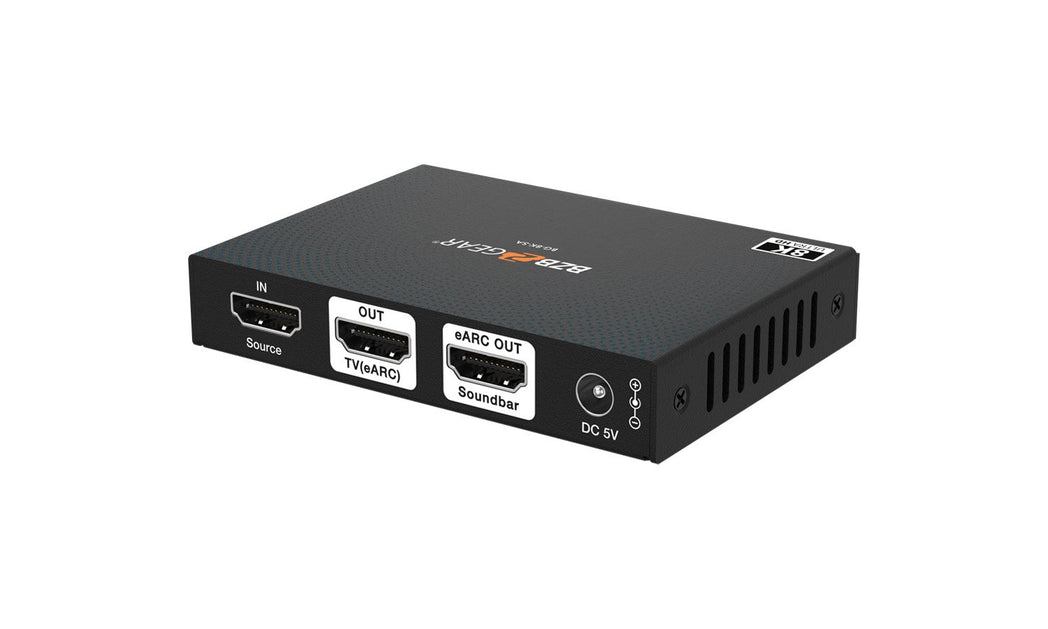

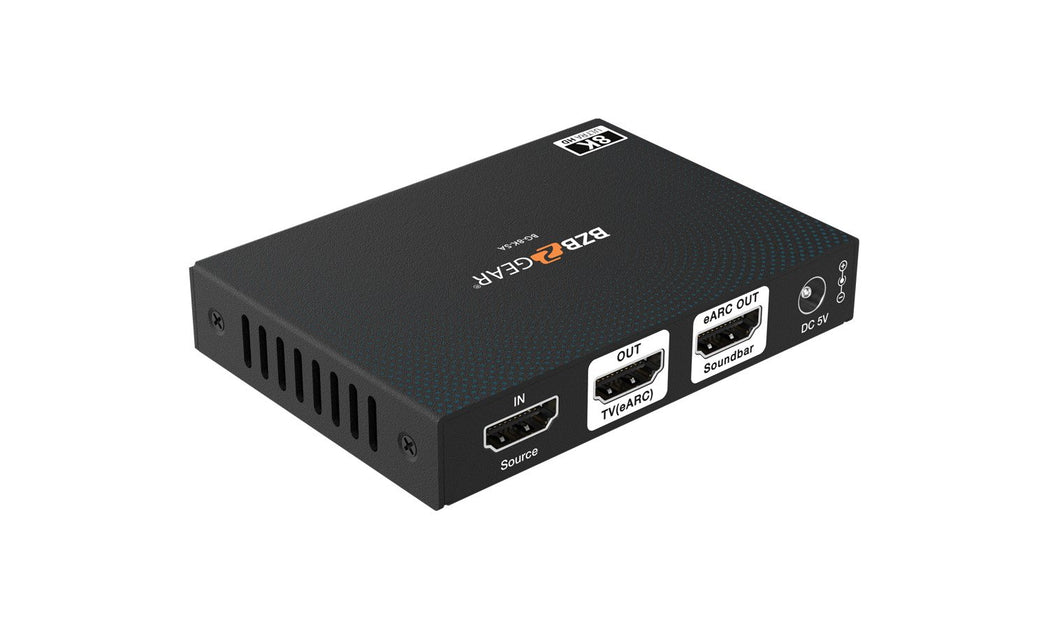

Source IN port: HDMI signal input port, connected to HDMI source device such as DVD, PS5 or 8K computer host with an HDMI cable.
-
TV(eARC) OUT port: HDMI signal output port, connected to TV (ARC/eARC) with an HDMI cable. It can be used as an ARC/eARC audio channel when the ARC function is enabled.
-
Soundbar eARC OUT: HDMI audio output port, connected to a soundbar with an HDMI cable.
-
DC 5V: DC 5V/1A power input port.
- Features+
- HDMI 2.1 and HDCP 2.3 Compliant: Guarantees support for the latest HDMI standards and secure content transmission
- Ultra-High Resolutions: Supports up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) for superior visual quality
- High-Fidelity Audio: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio pass-through for immersive sound
- Versatile Audio De-embedding: Extracts HDMI input or TV eARC audio for output to any soundbar, supporting full audio formats including Dolby Atmos/DTS
- eARC Compatibility: Delivers full audio output, including Dolby Atmos and DTS, from eARC TVs to SONOS ARC & Beam or any eARC-enabled soundbar
- CEC Control: Enables seamless CEC control from TV to source and soundbar, including volume adjustments
- High-Bandwidth Support: Delivers 48Gbps FRL and 18Gbps TMDS video bandwidth for seamless high-definition video transfer
- Advanced HDR Pass-Through: Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG for vibrant color and contrast
- Advanced EDID Management: Optimizes device communication and performance
- Comprehensive HDMI 2.1 Protocols: Fully compatible with VRR, ALLM, QMS, QFT, and SBTM for enhanced gaming and video experiences
- Specs+
- Package Contents+
- 1x 48Gbps HDMI eARC Audio to Soundbar Adapter
- 1x 5V/1A Multinational Power Supply
- 1x User Manual
- Reviews+
- Power LED: When the device is powered on, the red LED will be on.
- IN LED: When the input signal is detected, the green LED will be on.
- OUT LED: When the OUT port connects to a TV, the green LED will be on.
- Soundbar LED: When the eARC OUT port connects to a soundbar, the green LED will be on.
- eARC LED: On: The ARC/eARC function is turned on. CEC communication and ARC/eARC is working properly. Flashing:The ARC/eARC function is turned on. CEC communication and ARC/eARC is not working properly. Off: The ARC/eARC function is turned off.
-
eARC button: Press this button to enable or disable the eARC function.
-
EDID DIP switch: Use the DIP switch to set EDID.
-
SERVICE: Firmware update and debug port.
-
Source IN port: HDMI signal input port, connected to HDMI source device such as DVD, PS5 or 8K computer host with an HDMI cable.
-
TV(eARC) OUT port: HDMI signal output port, connected to TV (ARC/eARC) with an HDMI cable. It can be used as an ARC/eARC audio channel when the ARC function is enabled.
-
Soundbar eARC OUT: HDMI audio output port, connected to a soundbar with an HDMI cable.
-
DC 5V: DC 5V/1A power input port.
- HDMI 2.1 and HDCP 2.3 Compliant: Guarantees support for the latest HDMI standards and secure content transmission
- Ultra-High Resolutions: Supports up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz (4:4:4, 12-bit) for superior visual quality
- High-Fidelity Audio: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, and DTS audio pass-through for immersive sound
- Versatile Audio De-embedding: Extracts HDMI input or TV eARC audio for output to any soundbar, supporting full audio formats including Dolby Atmos/DTS
- eARC Compatibility: Delivers full audio output, including Dolby Atmos and DTS, from eARC TVs to SONOS ARC & Beam or any eARC-enabled soundbar
- CEC Control: Enables seamless CEC control from TV to source and soundbar, including volume adjustments
- High-Bandwidth Support: Delivers 48Gbps FRL and 18Gbps TMDS video bandwidth for seamless high-definition video transfer
- Advanced HDR Pass-Through: Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG for vibrant color and contrast
- Advanced EDID Management: Optimizes device communication and performance
- Comprehensive HDMI 2.1 Protocols: Fully compatible with VRR, ALLM, QMS, QFT, and SBTM for enhanced gaming and video experiences
- 1x 48Gbps HDMI eARC Audio to Soundbar Adapter
- 1x 5V/1A Multinational Power Supply
- 1x User Manual
USB 3.0 over HDBaseT Extender (PoC, RS-232, GPIO & up to 100M/328Ft over CAT6a Cable)
The BG-8K-SA HDMI eARC Audio to Soundbar Adapter is a high-performance solution designed to extract audio signals from HDMI sources or TVs with ARC/eARC functionality and seamlessly output them to a soundbar. Supporting data rates up to 48Gbps and fully compliant with HDMI 2.1 and HDCP 2.3 standards, this adapter ensures outstanding audio and video quality, making it a perfect addition to modern home theater systems.
It handles video resolutions up to 8K@60Hz 4:2:0 12-bit and 4K@120Hz 4:4:4 12-bit, delivering stunning visuals with support for high dynamic range (HDR) formats like HDR10, HDR10+, Dolby Vision, and HLG. Additionally, the adapter supports advanced HDMI 2.1 features, such as Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM), ensuring smooth and responsive video playback.
