ADDER View CATx 4000 - CATx Switch (16-24 Ports)
SKU#: AVX4016-USA
UPC#:Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+

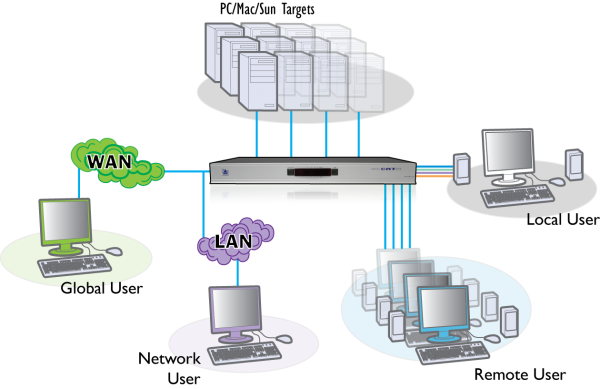

- Control of up to 24 multi-platform servers: local and remote access via LAN or WAN
- Secure connectivity: via CATx cabling
- High performance USB, video and audio
- Flexible Plug and Play installation: easy set up complemented by multi-platform support and flexible expansion
- Features+
- Exceptionally high video performance to local, remote and global users
- True multi-platform support
- Flash upgradeable CAMs available for PS/2, USB and Legacy Sun keyboard and mouse support with optional audio
- Country code reporting
- DDC and keyboard and mouse emulation
- PS/2 or USB keyboard and mouse control
- Expand using CATx cascade connections with simple user intuitive set up
- Optional CD quality audio when using correct Computer Interface Module (CAM)
- Power control functions supported via dedicated serial port
- Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication)
- Global users (IP) can chose between HTTP or RealVNC for highly secure connections and high performance.
- Available with the following connectivity options:
- Serial (AVX5000 only), USB, PS/2, VGA & 3.5mm Audio
- Serial CAM - NEW
- CATX-CONSOLE
- (AVX5000 only)
- PS/2 CAMs
- CATX-PS2 - PS/2 only
- CATX-PS2-A - PS/2 plus audio
- USB CAMs
- CATX-USB - USB only
- CATX-USB-A USB plus audio
- Sun CAM
- CATX-SUNA - Sun plus audio
- Specs+

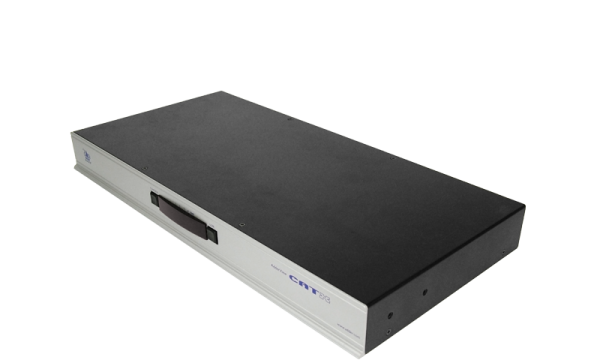

- ADDER View CATx: 1U high metal case 482mm/19” (w), 215mm/8.5” (d), 45mm/1.8” (h)
- ADDER View CATxIP: 1U high metal case 482mm/19” (w), 280mm/8.5” (d), 45mm/1.8” (h)
- (Rack mount kits included)
- Video: HDD15.
- Keyboard/Mouse: MiniDin6 / USB type A.
- Audio: 3.5mm stereo jack
- All RJ45 style
- Network port (ADDER View IP models only)
- RJ45 10/100Mb auto-sensing Ethernet port
- IEC style power lead (100 – 240V AC, 50-60Hz).
- Redundant via 2.5mm DC jack (5V DC, 6A)
- DB9 female for flash upgrade, syncing boxes and other special functions.
- DB9 male for RS232 triggered power switches.
- DB9 male (ADDER View IP only) for modem connection.
- Package Contents+
- AVX4016
- 30W power adapter
- Serial upgrade cable
- Two 19" rack mount brackets and screws
- Reviews+
- Control of up to 24 multi-platform servers: local and remote access via LAN or WAN
- Secure connectivity: via CATx cabling
- High performance USB, video and audio
- Flexible Plug and Play installation: easy set up complemented by multi-platform support and flexible expansion
- Exceptionally high video performance to local, remote and global users
- True multi-platform support
- Flash upgradeable CAMs available for PS/2, USB and Legacy Sun keyboard and mouse support with optional audio
- Country code reporting
- DDC and keyboard and mouse emulation
- PS/2 or USB keyboard and mouse control
- Expand using CATx cascade connections with simple user intuitive set up
- Optional CD quality audio when using correct Computer Interface Module (CAM)
- Power control functions supported via dedicated serial port
- Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication)
- Global users (IP) can chose between HTTP or RealVNC for highly secure connections and high performance.
- Available with the following connectivity options:
- Serial (AVX5000 only), USB, PS/2, VGA & 3.5mm Audio
- Serial CAM - NEW
- CATX-CONSOLE
- (AVX5000 only)
- PS/2 CAMs
- CATX-PS2 - PS/2 only
- CATX-PS2-A - PS/2 plus audio
- USB CAMs
- CATX-USB - USB only
- CATX-USB-A USB plus audio
- Sun CAM
- CATX-SUNA - Sun plus audio
- ADDER View CATx: 1U high metal case 482mm/19” (w), 215mm/8.5” (d), 45mm/1.8” (h)
- ADDER View CATxIP: 1U high metal case 482mm/19” (w), 280mm/8.5” (d), 45mm/1.8” (h)
- (Rack mount kits included)
- Video: HDD15.
- Keyboard/Mouse: MiniDin6 / USB type A.
- Audio: 3.5mm stereo jack
- All RJ45 style
- Network port (ADDER View IP models only)
- RJ45 10/100Mb auto-sensing Ethernet port
- IEC style power lead (100 – 240V AC, 50-60Hz).
- Redundant via 2.5mm DC jack (5V DC, 6A)
- DB9 female for flash upgrade, syncing boxes and other special functions.
- DB9 male for RS232 triggered power switches.
- DB9 male (ADDER View IP only) for modem connection.
- AVX4016
- 30W power adapter
- Serial upgrade cable
- Two 19" rack mount brackets and screws
ADDER View CATx 4000 - CATx Switch (16-24 Ports)

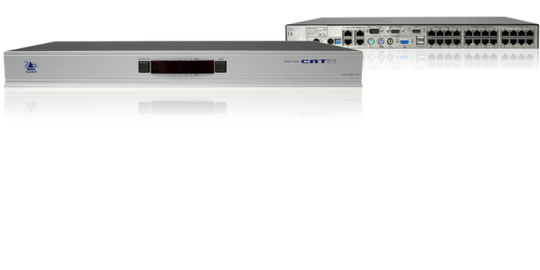

ADDERView® CATx 4000 switch is a high density, small form factor KVM product providing 4 simultaneous users local and remote access to control of up to 24 multi-platform servers via CATx cabling. A combination of USB console support with a full KVM feature set ensure high-performance switching of USB, video and audio signals ideal for server room and desktop environments. Any type of server can be connected to when combining the ADDERView CATx 4000 with the ADDER Computer Access Modules (CAM). This product is part of the CATx range.
Note: This product is only compatible with other Adder branded products
ADDER View CATx 4000 - 4x16 CATx switch. 1 local user, up to 4 extended users to 300 meters.
Physical design
Local KVM console connection
Computer and remote CATx user connections
Power connections
Other connectors
Hardware compatibility
Supports PC, Sun (USB & 8-pin styles), Mac (USB), RS/6000, Alpha and SGI computers using PS/2, USB or Sun computer interface modules.
Software compatibility
Operates with all known software and operating systems including Windows (all); DOS; Linux, Unix, BSD; all Sun OS; all Mac OS; NetWare.
Operating Temperature
0 - 40 deg C (32 to 104 deg F)
Approvals
CE, FCC
