Jonard Tools Professional Multi-Function OTDR, 1310/1550 nm
SKU#: OTDR-1500
UPC#:810053352113Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+

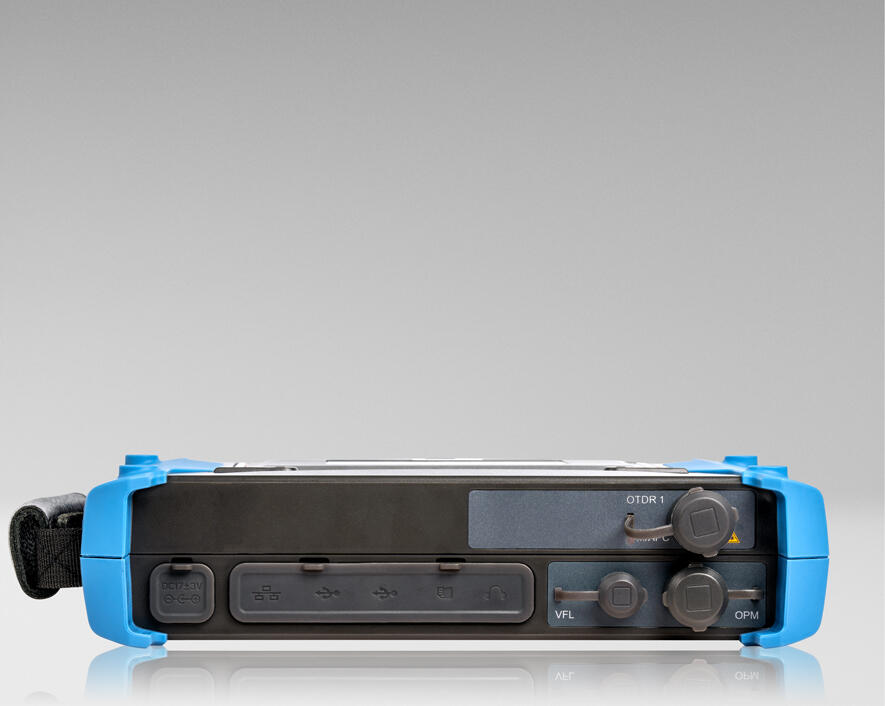

- Includes 5 different functions for testing: 1310/1550 nm OTDR module, 1310/1550 nm Light Source module, Power Meter module, Visual Fault Locator module, and Help module

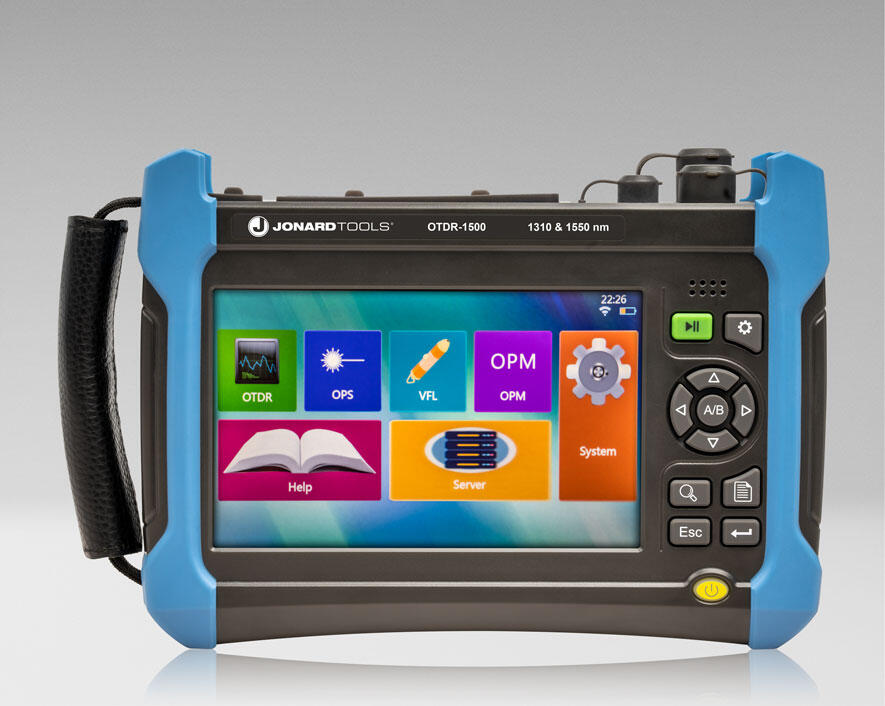

- Large, bright 7” color LCD touch screen makes it quick and easy to evaluate data
- More accurate testing with a 32/30 Dynamic Range
- Features Dual Wavelength Testing (see both 1310 & 1550 wavelengths simultaneously)
- Handy stylus to keep LCD screen fingerprint free
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 200 MB Internal storage stores up to 4,800 entries, with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium-ion battery provides power on-the-go
- On-board Wi-Fi connectivity for data transfers or live viewing of data (for Android devices)
- Can be charged or connected to a computer for data transfer via included micro-USB cable

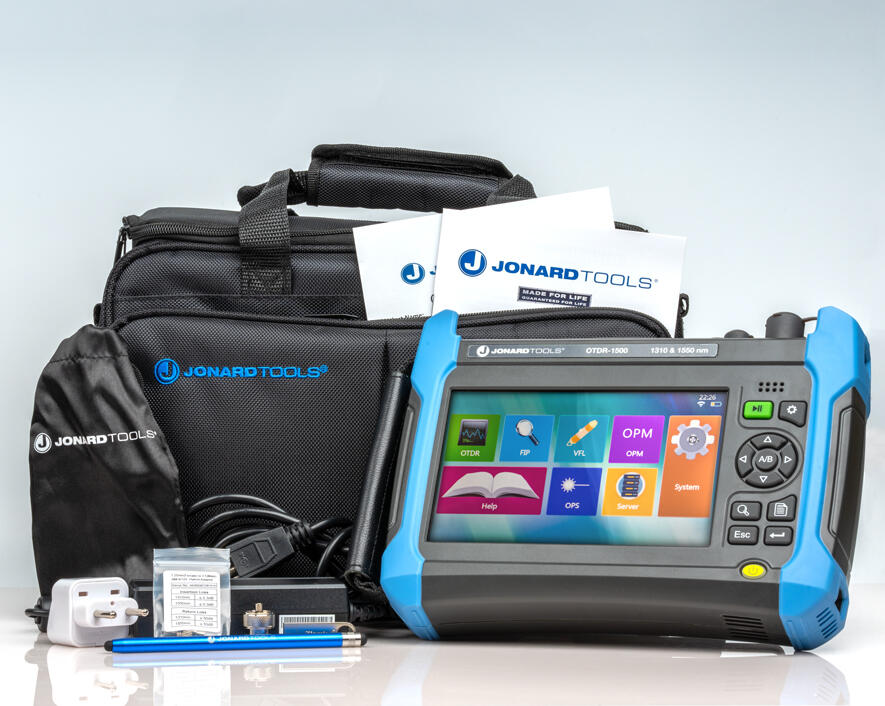

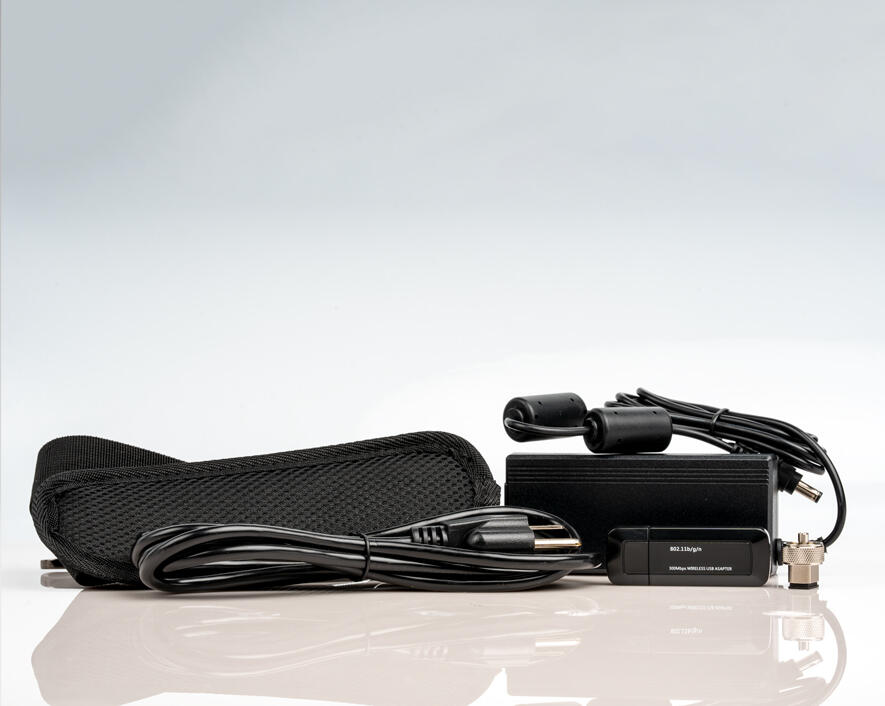

- Includes FC/APC & SC/APC OTDR adapters, LC/UPC adapter for OPM, downloadable software (also featured in the download section of this product page), power adapter, calibration certificate and instruction manual

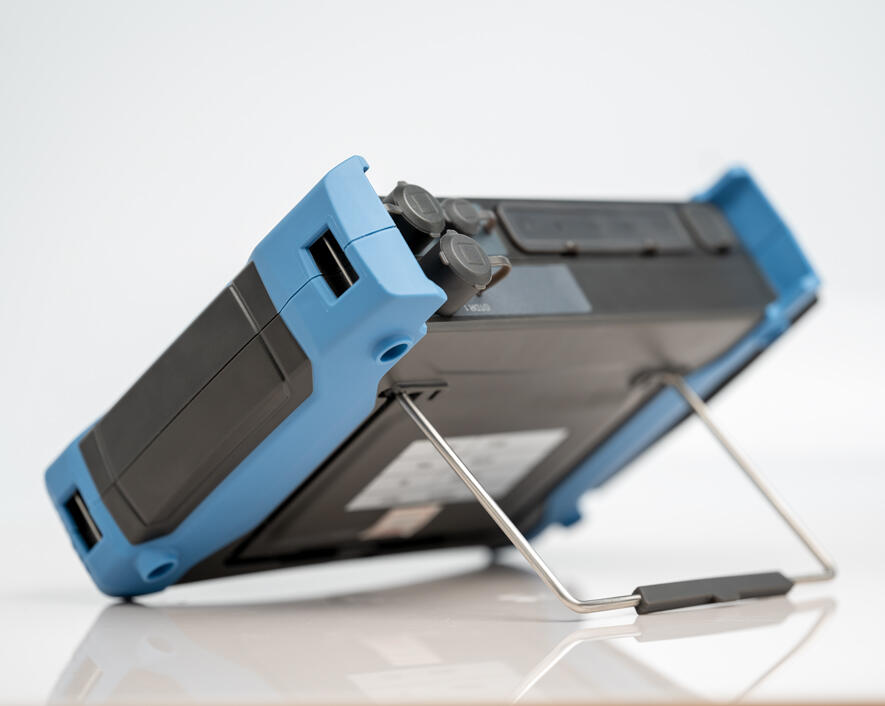

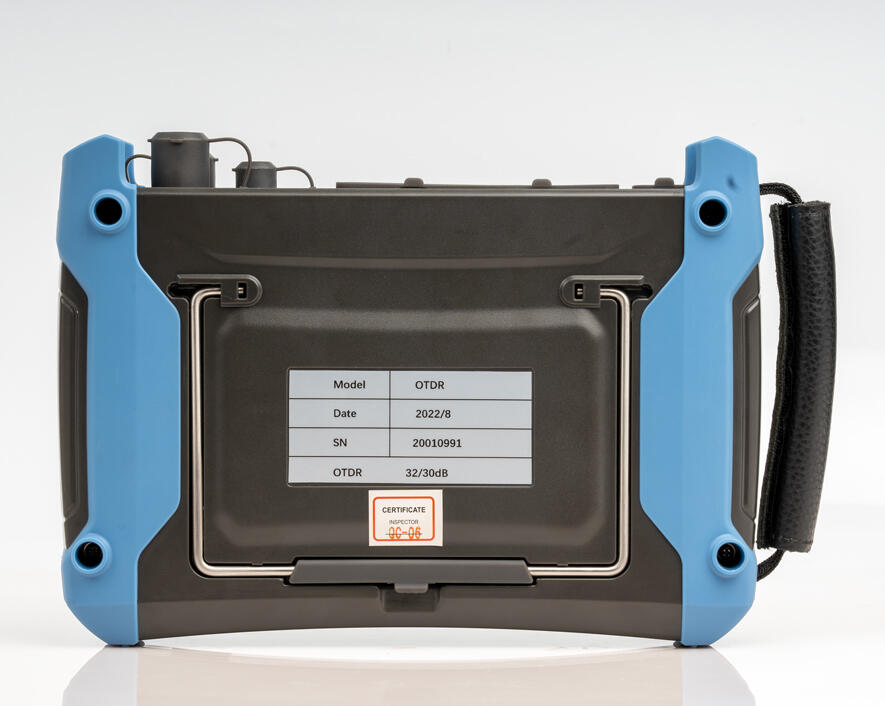

- Convenient unit kickstand

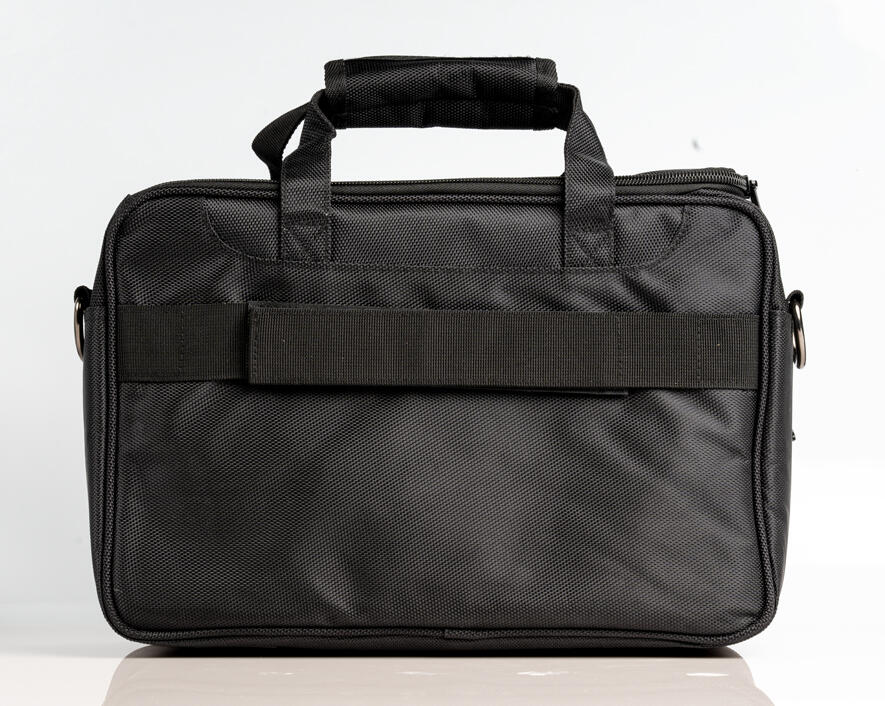

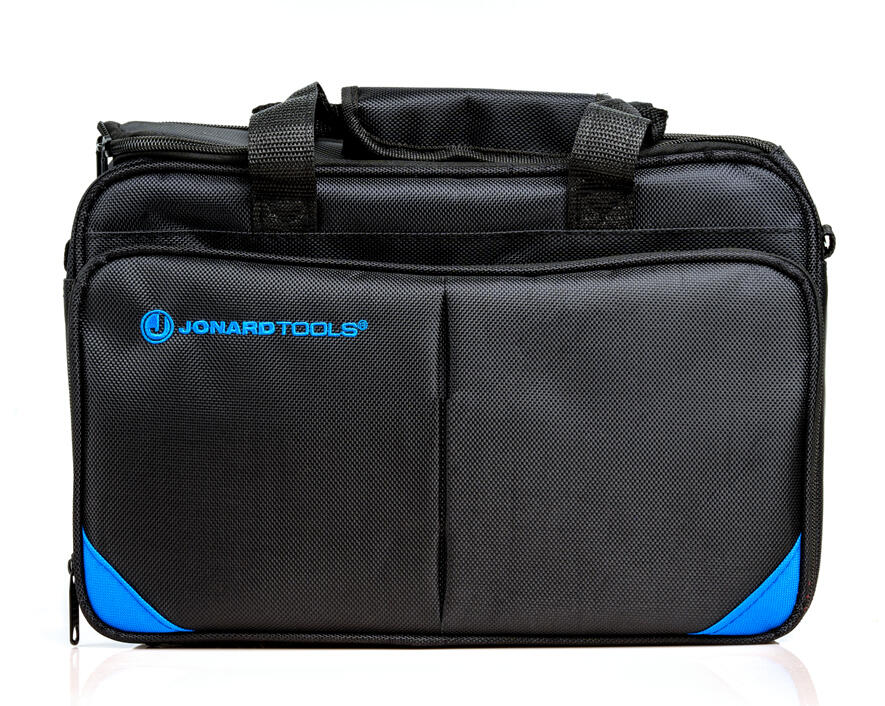

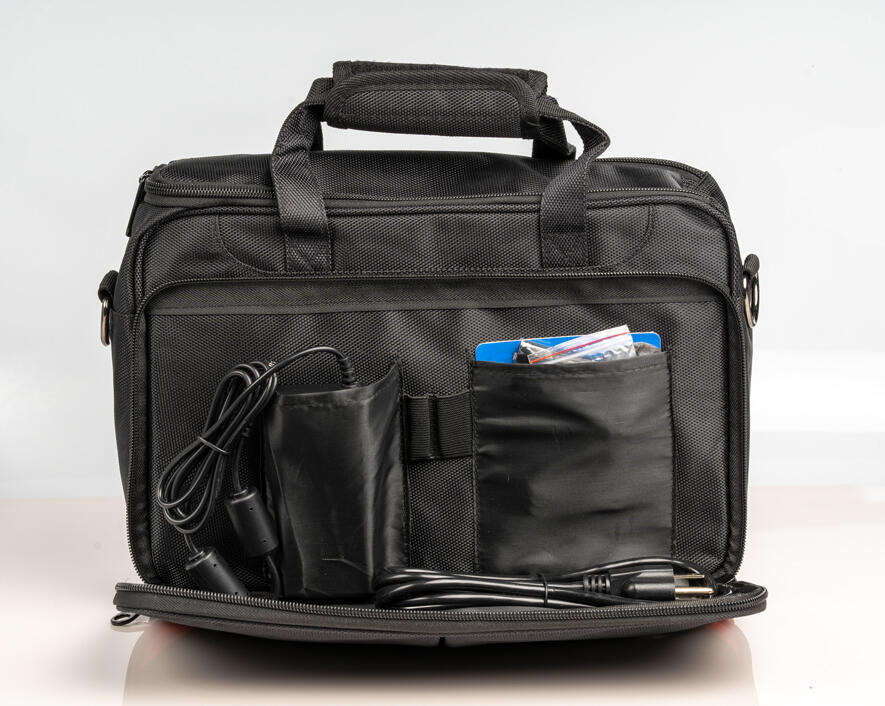

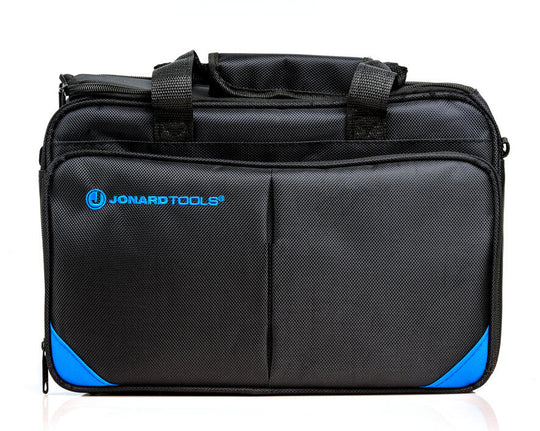

- Protective carrying case with adjustable strap
- Specs+
- Reviews+
- Includes 5 different functions for testing: 1310/1550 nm OTDR module, 1310/1550 nm Light Source module, Power Meter module, Visual Fault Locator module, and Help module
- Large, bright 7” color LCD touch screen makes it quick and easy to evaluate data
- More accurate testing with a 32/30 Dynamic Range
- Features Dual Wavelength Testing (see both 1310 & 1550 wavelengths simultaneously)
- Handy stylus to keep LCD screen fingerprint free
- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability
- 200 MB Internal storage stores up to 4,800 entries, with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium-ion battery provides power on-the-go
- On-board Wi-Fi connectivity for data transfers or live viewing of data (for Android devices)
- Can be charged or connected to a computer for data transfer via included micro-USB cable
- Includes FC/APC & SC/APC OTDR adapters, LC/UPC adapter for OPM, downloadable software (also featured in the download section of this product page), power adapter, calibration certificate and instruction manual
- Convenient unit kickstand
- Protective carrying case with adjustable strap
Professional Multi-Function OTDR, 1310/1550 nm

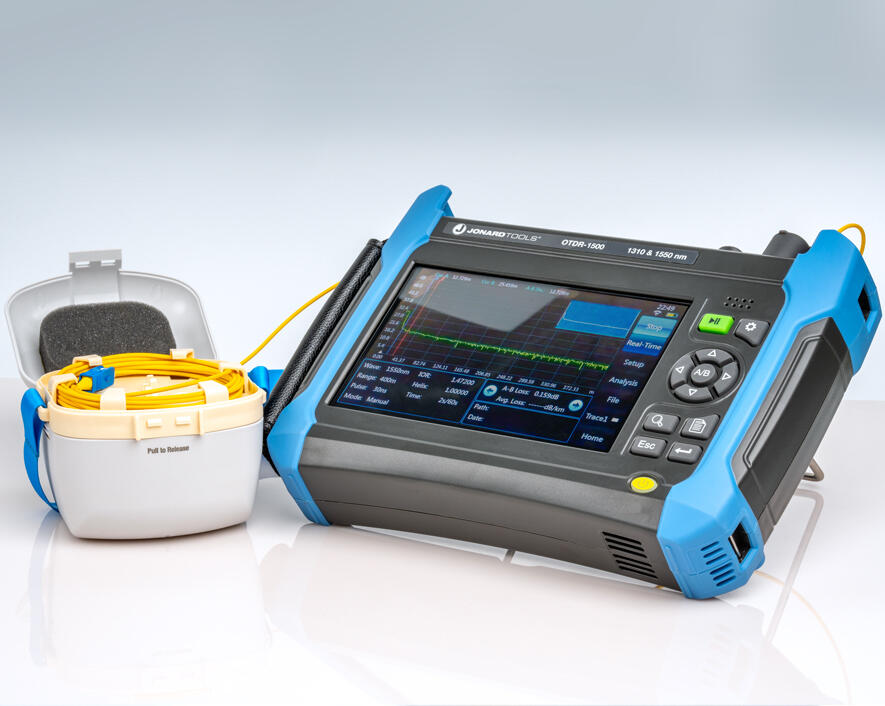

Jonard Tools’ Professional Multi-Function OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses
| Wavelengths |
1310±20nm, 1550±20nm |
|---|---|
| Fiber Type |
G.652 SingleMode Fiber |
| Dynamic Range |
32 dB/30 dB |
| Event Blind Zone |
0.5 m |
| ATT Blind Zone |
0.5 m |
| Test Range |
500m-60km |
| Pulse Width |
3ns-10us |
| Range Accuracy |
±（0.75 m + Sampling Interval + 0.0025％× Test Distance） |
| Loss Accuracy |
± 0.02 dB/km |
| # of Sampling Points |
256k |
| Sampling Resolution |
0.5m-32 m |
| Reflection Accuracy |
± 2 dB |
| Data Storage |
Internal: 200 MB; External: MicroSD Card |
| Laser Safety Level |
Class II level |
| File Format |
SOR Standard File Format |
| Included Connectors for OTDR |
FC, SC (APC) |
| Dimensions | 13 in x 4.5 in x 9.5 in (33.02 cm x 11.43 cm x 24.13 cm) |
| Weight | 6.31 lb (2866.556 g) |
| UPC # | 810053352113 |
