BZBGEAR 4K 60Hz HDMI Splitter with Down-Scaler w/Digital and Analog audio Output
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 4K Support: Supports resolutions up to 4K@60Hz 4:4:4.
- HDMI: HDMI audio extraction via optical and 3.5mm ports.
- HDCP 2.2: HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
- Downscaling: Selectable 4K to 1080P downscaling feature.
- Audio Extraction: Supports all major HDMI audio formats.
- Specs+
- Package Contents+
- 1x HDMI 2.0 Splitter
- 1x 5V/1A Power Adapter
- 1x User Manual
- Reviews+
- 4K Support: Supports resolutions up to 4K@60Hz 4:4:4.
- HDMI: HDMI audio extraction via optical and 3.5mm ports.
- HDCP 2.2: HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
- Downscaling: Selectable 4K to 1080P downscaling feature.
- Audio Extraction: Supports all major HDMI audio formats.
- 1x HDMI 2.0 Splitter
- 1x 5V/1A Power Adapter
- 1x User Manual

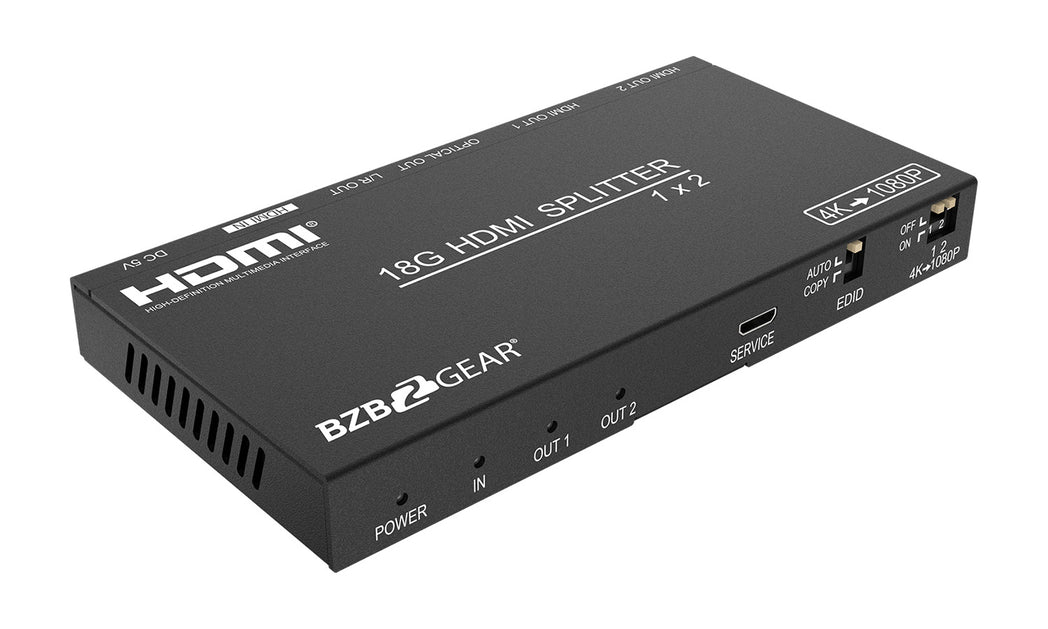

The BG-DA-1X2AS is an HDMI 2.0 splitter designed to route one 4K signal to two displays. It supports resolutions up to 4K@60Hz (4:4:4) with HDCP 2.2. This product also extracts HDMI audio to simultaneous optical and 3.5mm analog audio outputs. It features a 4K to 1080P downscaling function which is selectable per output, enabling a 4K signal to be converted for display on a 1080P monitor. Programmable EDID settings provide a stable HDMI connection.
Technical | |
HDMI Compliance | HDMI 2.0b |
HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
Video Bandwidth | 18Gbps |
Video Resolutions | 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) |
Color Depth | 4K60Hz 8-bit, 1080P 12-bit |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
L/R Audio Formats | PCM 2.0 |
Optical Audio Formats | LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
ESD Protection | Human-body Model? ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
Connections | |
Input ports | 1xHDMI Type A [19-pin female] |

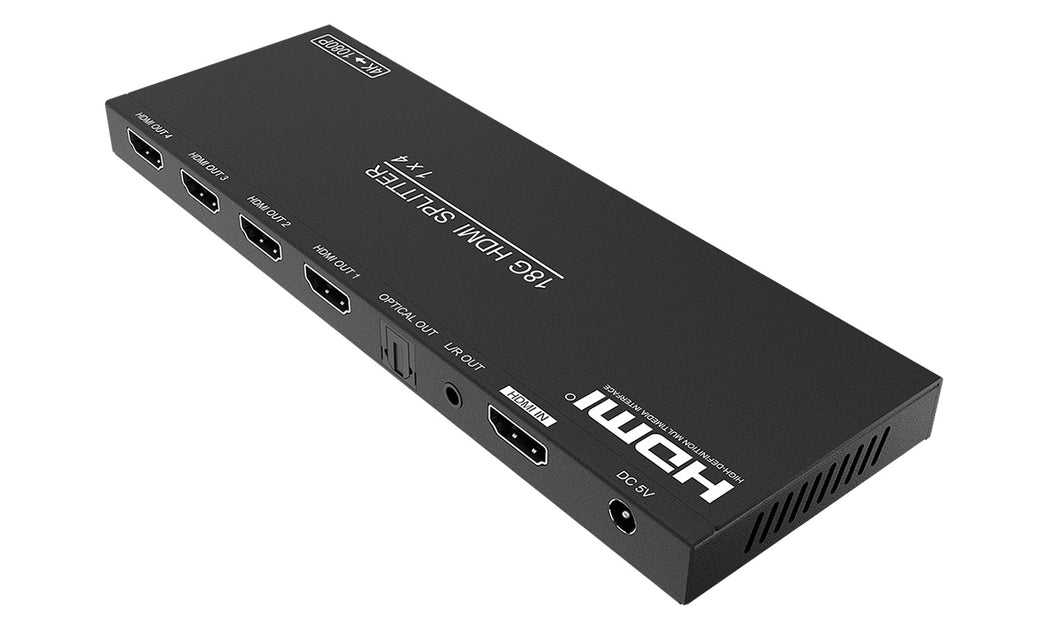

Output ports | 4xHDMI Type A [19-pin female] 1xL/R Audio out [3.5mm Stereo Mini-jack] 1xOptical out [S/PDIF] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 180mm(W)x62mm(D)x14mm(H) |
Weight | 227g |
Power Supply | Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) |
Power Consumption | 3.5W (max) |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
The BG-DA-1X2AS is an HDMI 2.0 splitter designed to route one 4K signal to two displays. It supports resolutions up to 4K@60Hz (4:4:4) with HDCP 2.2. This product also extracts HDMI audio to simultaneous optical and 3.5mm analog audio outputs. It features a 4K to 1080P downscaling function which is selectable per output, enabling a 4K signal to be converted for display on a 1080P monitor. Programmable EDID settings provide a stable HDMI connection.
Technical | |
HDMI Compliance | HDMI 2.0b |
HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
Video Bandwidth | 18Gbps |
Video Resolutions | 720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz, 4K2K@50/60Hz (4:4:4) |
Color Depth | 4K60Hz 8-bit, 1080P 12-bit |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
L/R Audio Formats | PCM 2.0 |
Optical Audio Formats | LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD,Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 |
ESD Protection | Human-body Model? ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
Connections | |
Input ports | 1xHDMI Type A [19-pin female] |
Output ports | 4xHDMI Type A [19-pin female] 1xL/R Audio out [3.5mm Stereo Mini-jack] 1xOptical out [S/PDIF] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 180mm(W)x62mm(D)x14mm(H) |
Weight | 227g |
Power Supply | Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) |
Power Consumption | 3.5W (max) |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
