Note: This product has been discontinued.

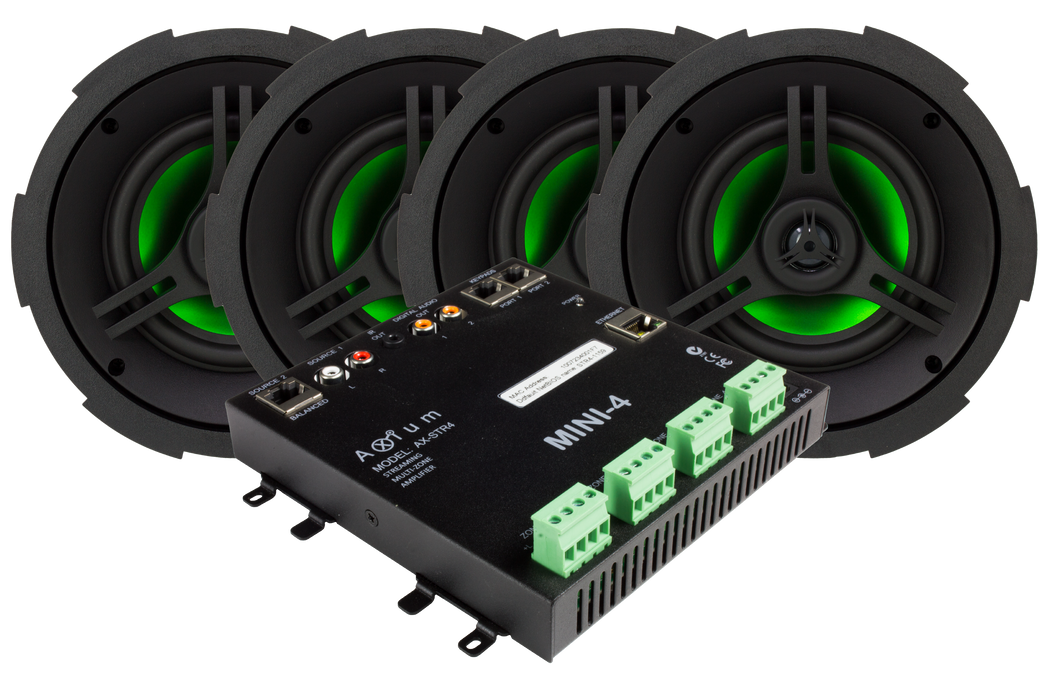

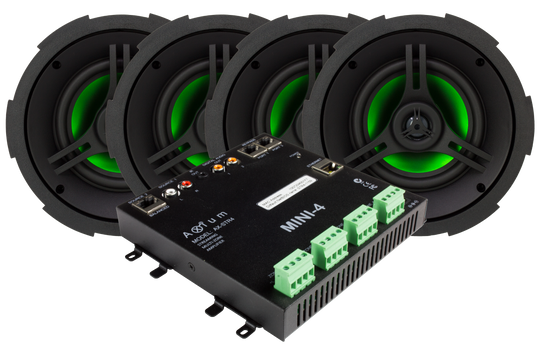

AX-MINI4 4 Zone Streaming Multi Room Audio System plus 4 pairs CS650FL 6.5" In-ceiling Signature Series Speaker w/FastLoc Grille
6.5” 2-Way, In-Ceiling, Coaxial, Infinite Baffle Loudspeaker w/FastLoc™ Grille

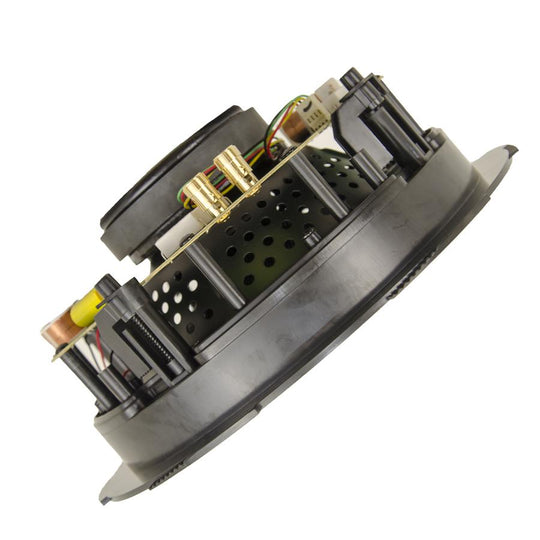

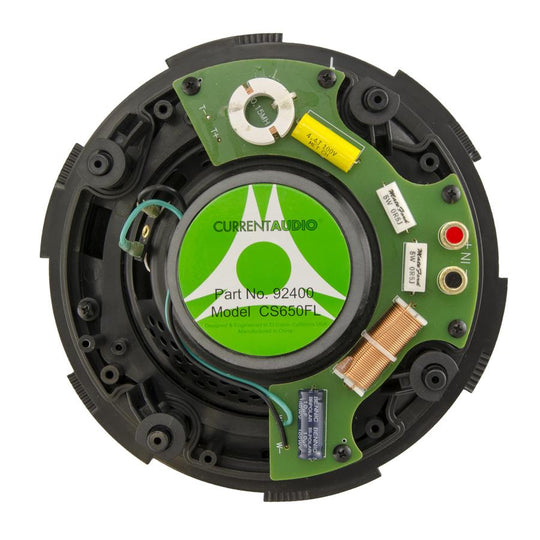

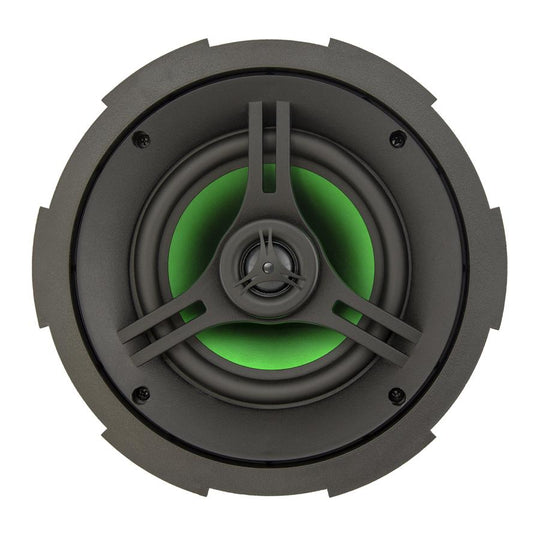

The easy to install CS650FL is a full-range ceiling loudspeaker that incorporates the MetaPlex™ woofer with a butyl rubber surround and diffraction-less silk dome Ferrofluid cooled tweeter. This patent pending pivoting tweeter allows for deeper penetration into the room and concentrated sound to the sweet spot. This revolutionary combination provides superior and more natural sound for both foreground and background applications. The Infinite Baffle design makes it the ideal choice for typical applications in open beam attic or enclosed ceilings

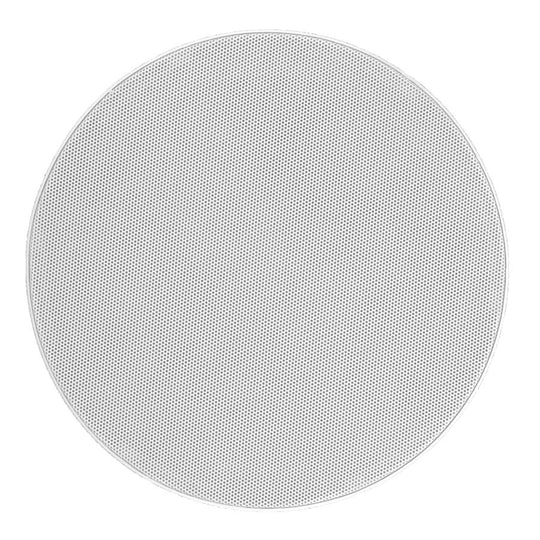

The FastLoc™ grille patent no. 8,422,722, is a feature found only at Current Audio. Our design has allowed for the smallest exposed plastic bezel in the industry, truly making it disappear into the mounting surface. The FastLoc™ grille's unique patent pending mechanism allows for a quick installation and removal of the grille while securely fastening it in place to all types of mounting surfaces. Due to the unique design the grille will conform to uneven surfaces including popcorn, heavy textured and uneven ceilings. While our competitors have chosen to utilize magnets in their
designs thus requiring the use of a steel grille that will rust our design allows us to use corrosion and rust resistant aluminum.
This revolutionary combination provides superior and more natural sound for both foreground and background applications
Driver Material: MetaPlex™
• This is an electronically bonded substrate on a copolymer cone. Basically it is a trilaminate cone, the first layer is a copolymer base material. The second layer is a material that allows the third layer (green colored surface) to bond to the copolymer.
• Copolymer cones alone are found in other speakers. The key to our material is that the green coating allows for a well damped material (the first layer) to combine with a low mass high stiffness coating (the green layer). This improves the performance by stiffening a cone material that is normally used alone in entry level speakers. Better midrange performance and less bass distortion is the result from less cone breakup.
Tweeter Material: Silk Dome Tweeter
• Current Audio silk dome tweeters use a treated silk soft dome. This material is neutral sounding and is used in many higher end bookshelf and cabinet speakers.
Multi-Room Streaming Made Simple
Endless Music
Two internal streaming sources lets you play music from thousands of internet radio stations via Pandora or TuneIn or from your mobile device, even from network attached storage, all controlled by an auto discovery app (iOS and Android) or keypads that put you in control. Two additional inputs connect your favorite devices so you can hear them everywhere. The four powered stereo outputs deliver an enviable 30 watts per room, simply add more Mini4’s to expand up to 32 rooms. This is a hidden audio system with that can fill your world with music.
Unrivaled Control
The internal webpage has all the customization needed to control and configure the system the way you like it. The FREE app (iOS and Android) auto discovers the Amplifier so there is no complex setup. Two keypad ports allow for wall mounted keypads to control your system or use the KPC-N 2.8” wall mounted color touchscreen where all zones can be controlled.
Audio Control
Adjustable Bass, Treble, Balance, Loudness and audio delay fine tunes your system to your exacting needs.
Specs+
BCS80FL
| Driver |
6.5” MetaPlex™ Composite Cone with Butyl Rubber Surround |
| Tweeter |
Diffractionless 1” (25mm) Pivoting, Silk Dome Dome Tweeter, Ferrofluid Cooled |
| Frequency Response |
42Hz - 20kHz |
| Impedance |
8 Ohms FIxed Crossover |
| Power Handling |
5 - 100 Watts |
| SPL |
90dB 1W/1m |
| Diameter X Depth |
9 3/8” (237mm) x 3 7/8” (98mm) |
| Retrofit Cutout Diameter |
8 1/4” (210mm) |
| FastLoc Grille Diameter |
9 3/4" (247mm) |
| Bracket Type |
NC6CB |

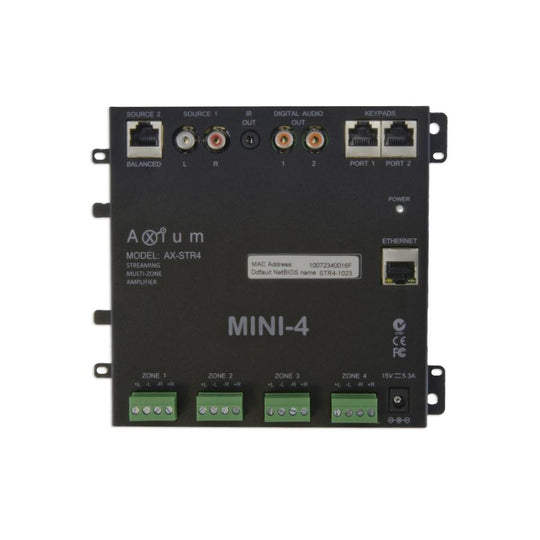

AX-MINI4
• Built in streaming audio including TuneIn and Pandora
• 4 Sources (2 streaming, 2 analog)
• 15 Watts per channel @8Ω (4Ω capable)
• Fully implemented UPNP server functionality
• Output short circuit, thermal and hard clipping protection
• Analog line in connection for local source playback
• Remote balanced line in for playing a source with included remote balan insert
• Expandable to 40 zones
• Bass, treble, balance and loudness adjustments per zone
• 2 keypad ports for local keypad control
• Internal webpage with configuration
• iOS and Android compatible via FREE app
• Guest mode
• Backward compatible, adding ethernet connectivity and control to legacy systems
• Ethernet interface
• Static and DHCP network connections
• Power Supply: 100 – 240VAC 50/60 HZ
