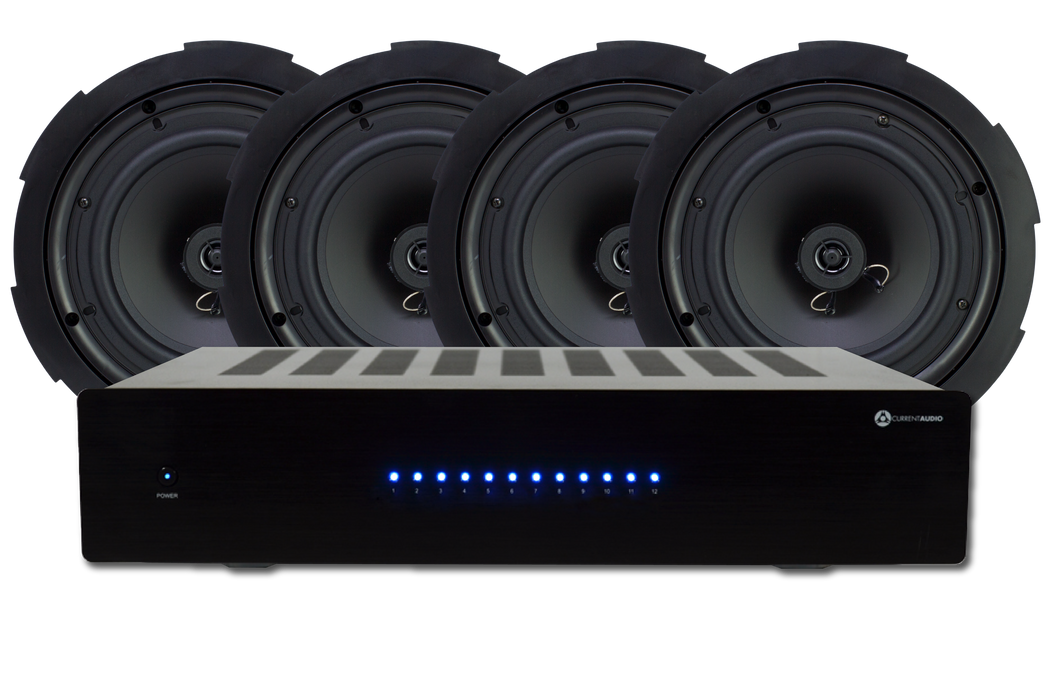

Current AudioAMP1270 6 Zone 12 Channel 70 Watts Per Channel Amplifier plus 6 pairs BCS80FL 8" In-ceiling Contractor Series Speaker Bundle

Note: This product has been discontinued.

AMP1270 6 Zone 12 Channel 70 Watts Per Channel Amplifier plus 6 pairs BCS80FL 8" In-ceiling Contractor Series Speaker w/FastLoc Grille

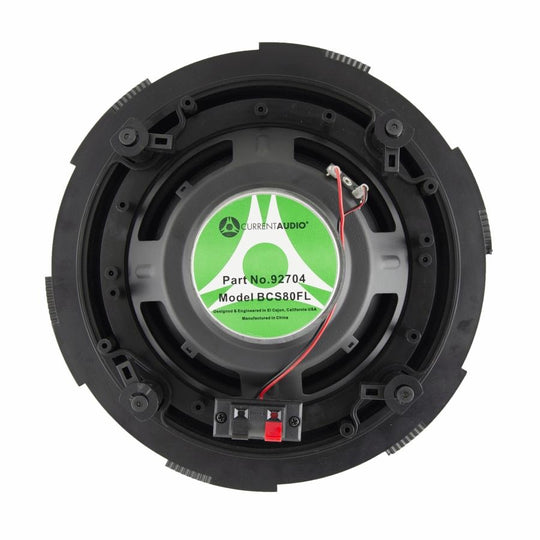

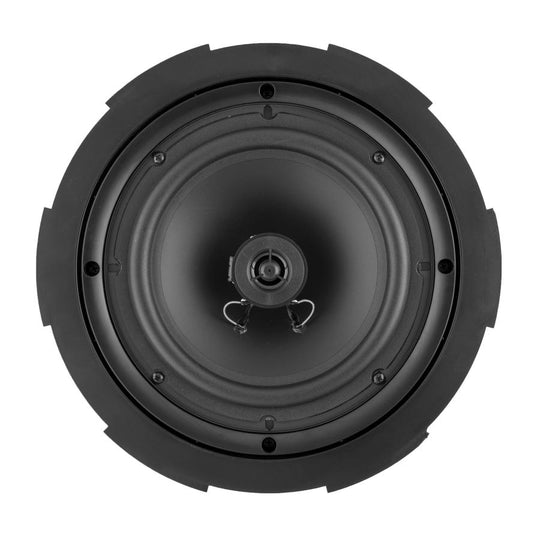

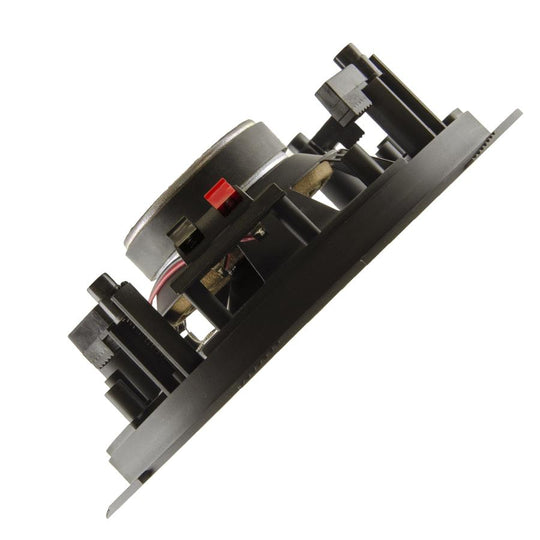

8” 2-Way, In-Ceiling, Coaxial, Infinite Baffle Loudspeaker

The BCS80FL is a competitively priced full-range Ceiling Loudspeaker that introduces the customer to the possibilities of whole house audio for every room.

It incorporates a Talc Filled Polypropylene woofer with a butyl rubber surround and fixed polycarbonate dome Ferrofluid cooled tweeter.

Even in this competitive package our speaker provides exceptional natural sound for both foreground and background applications.

The Infinite Baffle design makes it the ideal choice for typical application in open beam attic or enclosed ceilings.

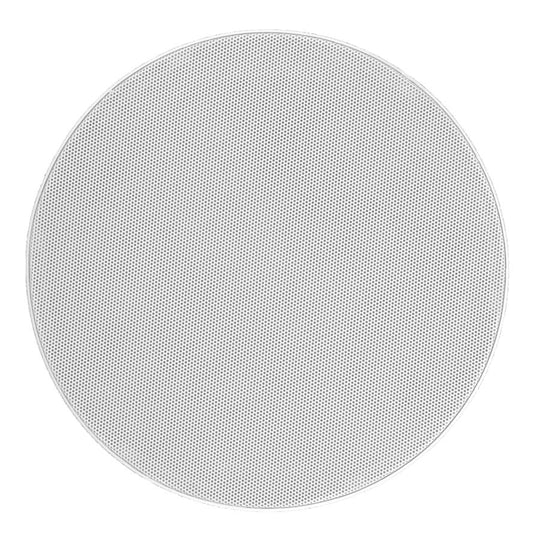

The FastLoc™ grill patent no. 8,422,722, is a feature found only at Current Audio. Our design has allowed for the smallest exposed plastic bezel in the industry, truly making it disappear into the mounting surface. The FastLoc™ grille's unique patent pending mechanism allows for a quick installation and removal of the grill while securely fastening it in place to all types of mounting surfaces. Due to the unique design the grill will conform to uneven surfaces including popcorn, heavy textured and uneven ceilings. While our competitors have chosen to utilize magnets in their

designs thus requiring the use of a steel grill that will rust our design allows us to use corrosion and rust resistant aluminum.

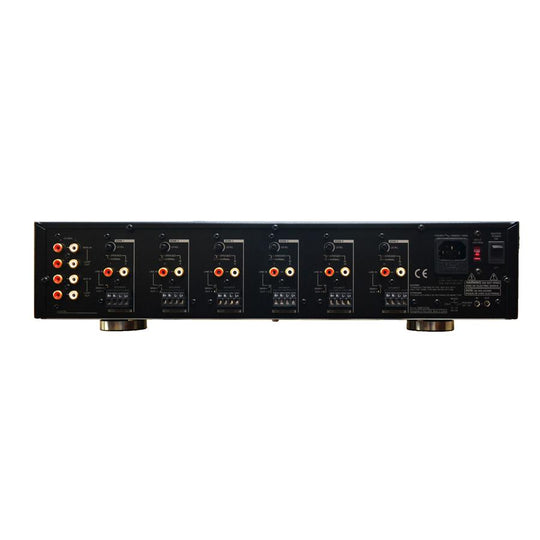

Dual Power Mode - Input power is switchable from 110VAC to 220VAC.

3 Prong Plug - Grounded input power for Safety.

Master Power Switch - Rear panel switch to cut power for service or hook-up.

Multi-Stage Protection - Each pair of channels/zones is individually protected with internal circuitry and is indicated on the front bi-color LEDs. The amp will shut down a bad zone if it senses a short or is overdriven. ONLY the channels that are affected will turn Off and indicates by the LED turning from blue to red thus pointing to the channel in distress. The remaining zones will run unaffected and continue to provide sound without shutting down all zones.

AUX, Global and/or Individual Inputs – One input signal can be universally distributed to all zones or the user can individually dedicate one or more zones to have a unique separate input. The other zones will still play the global input.

Gain Adjustments – There is a global gain control that sets the maximum level to all zones. In addition, each zone has its own separate gain control to allow the user to customize each zone to match the acoustics of that room. This also sets the maximum loudness of each room.

Installer Friendly Connections – Each speaker channel has pull off plugs to allow the user to make wire connections up to #14 gauge with positive screw down terminals. The IEC power cord can be disconnected at the amp for easy service. All inputs are made by easy connect gold plated RCA plugs.

Bridging – If more power is required for perhaps an outside area, two channels may be combined (Bridged) to provide 140 watts at 8 ohms. This is accomplished simply by a selector switch at each zone. CAUTION: Turn power off when making change and always maintain an 8 ohm load when in the Bridge mode.

Rack Mount – packed with each amp is an accessory pack that include brackets allowing the amp to be rack mountable. This is accomplished by attaching the rack ears with the 4 included screws.

Power Mode – Power is toggled ON/OFF by the front power switch and is indicated buy the corresponding LED. It can also be triggered ON/OFF by a 12 VDC signal on the rear 3.5mm Trigger in jack. Front Power button must be in standby mode to operate trigger. LED must be red. The tip of the plug is (+).
