TP-Link EAP225-WALL Omada Wireless Wall-Plate Access Point
SKU#: EAP225-WALL
UPC#:845973099794Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Cloud Service under Easy Control
- Convenient Management with remote access
- Multi-Site Management for large scale network
- Features+
- AC1200 wireless with 100Mbps Ethernet backhaul
- Designed for office cubical and hotel room wired and wireless connections
- Easy-mount construction allows installation into 1-gang electric wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Cloud management and Omada App supported for ultra convenience and easy management
- Power over Ethernet (802.3af/802.3at) support makes deployment effortless and flexible
- Enterprise-class Wi-Fi security helps to decrease network security threats
- Supports management VLAN for an enhanced network management
- Specs+
- Package Contents+
- AC1200 MU-MIMO Wall-Plate Access Point
- EAP225-Wall
- Installation Guide
- Mounting Screw
- Reviews+
- Cloud Service under Easy Control
- Convenient Management with remote access
- Multi-Site Management for large scale network
- AC1200 wireless with 100Mbps Ethernet backhaul
- Designed for office cubical and hotel room wired and wireless connections
- Easy-mount construction allows installation into 1-gang electric wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Cloud management and Omada App supported for ultra convenience and easy management
- Power over Ethernet (802.3af/802.3at) support makes deployment effortless and flexible
- Enterprise-class Wi-Fi security helps to decrease network security threats
- Supports management VLAN for an enhanced network management
- AC1200 MU-MIMO Wall-Plate Access Point
- EAP225-Wall
- Installation Guide
- Mounting Screw
Note: This product has been discontinued.
Complete In Room Wi-Fi Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Effortless Deployment and Scalability
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

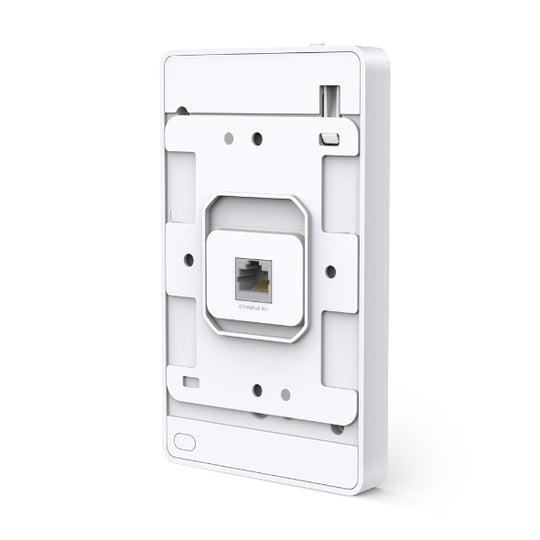

Installation Made Easy
Upgrade Ethernet wall jacks to high-performance Wi-Fi access points. The EAPs can be fitted to existing EU or US wall junction boxes, making installation quick and non-disruptive.
*Fit for flowing tow kinds of wall junction
Standard US wall junction
Standard EU wall junction
Three Ethernet Jacks, One PoE Outlet
More than just a wireless access point, EAP225-Wall acts as a switch and provides three standard Ethernet jacks together with a Power over Ethernet outlet, capable of powering wired devices such as IP phones, IP cameras, intercoms and more.

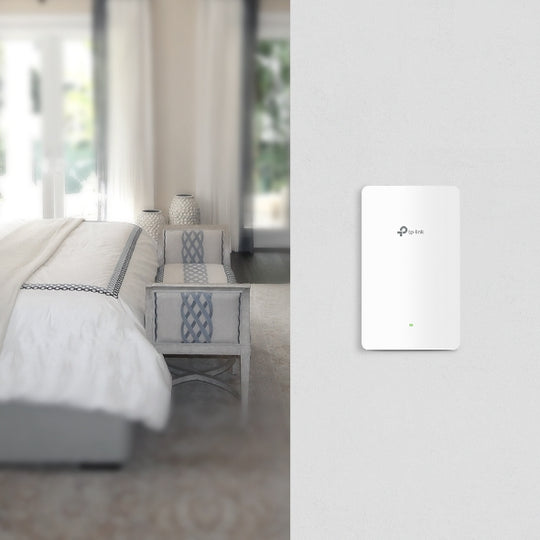

Blends Into Your Wall
The EAP225-Wall wireless access point blends into any business setting with a refined, minimalist appearance.
Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Wall delivers combined dual-band speeds of up to 1200Mbps. Armed with the latest 802.11ac Wave 2 MU-MIMO technology, it can exchange data with multiple clients at the same time to allow more devices to connect without any slowdown to the network.
Cloud Management – Anywhere, Anytime
Omada offers cloud access to its centralized management platform. Take your network with you, wherever you go.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD) 2 × 10/100Mbps Ethernet Port 1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af or 802.3at PoE |
| Power Consumption | 9 watts or 25.5 watts including PoE Out |
| Dimensions | 5.6 × 3.4 × 0.8 in. (143 × 86 × 19.7mm) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Wireless Functions | 16 SSIDs?Up to 8 SSIDs on each band? Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | 21dBm max. (2.4 GHz) 21 dBm max. (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Note: This product has been discontinued.
Complete In Room Wi-Fi Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Effortless Deployment and Scalability
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.
Installation Made Easy
Upgrade Ethernet wall jacks to high-performance Wi-Fi access points. The EAPs can be fitted to existing EU or US wall junction boxes, making installation quick and non-disruptive.
*Fit for flowing tow kinds of wall junction
Standard US wall junction
Standard EU wall junction
Three Ethernet Jacks, One PoE Outlet
More than just a wireless access point, EAP225-Wall acts as a switch and provides three standard Ethernet jacks together with a Power over Ethernet outlet, capable of powering wired devices such as IP phones, IP cameras, intercoms and more.
Blends Into Your Wall
The EAP225-Wall wireless access point blends into any business setting with a refined, minimalist appearance.
Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Wall delivers combined dual-band speeds of up to 1200Mbps. Armed with the latest 802.11ac Wave 2 MU-MIMO technology, it can exchange data with multiple clients at the same time to allow more devices to connect without any slowdown to the network.
Cloud Management – Anywhere, Anytime
Omada offers cloud access to its centralized management platform. Take your network with you, wherever you go.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD) 2 × 10/100Mbps Ethernet Port 1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af or 802.3at PoE |
| Power Consumption | 9 watts or 25.5 watts including PoE Out |
| Dimensions | 5.6 × 3.4 × 0.8 in. (143 × 86 × 19.7mm) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Wireless Functions | 16 SSIDs?Up to 8 SSIDs on each band? Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | 21dBm max. (2.4 GHz) 21 dBm max. (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
