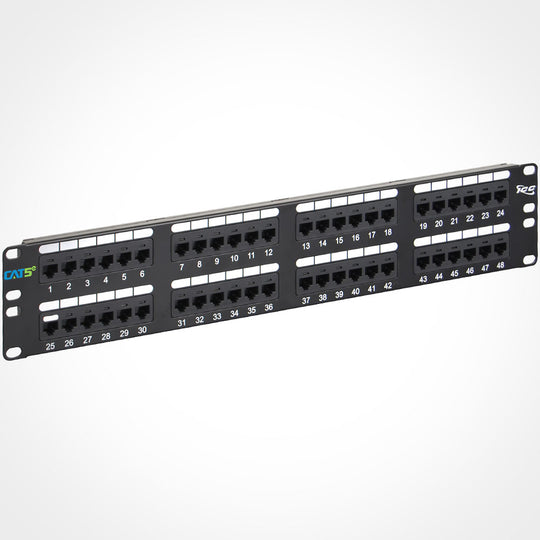

ICC Cat5E Patch Panel - UL
SKU#: ICMPP0245E
UPC#:633758006866
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Provides Excellent Performance for Data Networks Requiring Maximum Speed and Bandwidth
- Exceeds ANSI/TIA/EIA-568-C.2 Category 5E Requirements
- Provides 110 IDC Termination, Reducing Installation Time
- Includes Both TIA568-A and TIA568-B Color Wiring Diagrams
- Backwards Compatible with All Lower Rated Category Components
- 3 Year Manufacturer Warranty
- Specs+
- Patch Panel Construction: 16AWG Cold Rolled Steel
- Jack Housing: High Impact, Flame Retardant Plastic, UL 94V-0
- Spring Wire: Phosphor Bronze
- 110 Connector: Phosphor Bronze Alloy with 100 Micro-Inch Alloy
- Gold Rating: 50 Micro Inches Gold, Over 100 Micro Inches Nickel
- Durable Black Powder Coat Finish
- Mating Force: 100 Grams Min Per Contact
- Temperature Range: -40°C~70°C
- Plug Retention in Jack: 50N (11 lbs sq)
- IDC Wire Gauge: 22-24 AWG
- Electrical Current Rating: 1.5 Amp DC
- Contact Resistance: 2.5 Milohms Max
- Fits Standard 19" Racks and Cabinets
- 1 Rack Mount Space (RMS)
- UL Listed
- SPEC SHEET
- Package Contents+
- (1) 24 Port Cat5E Patch Panel
- (5) 6" Cable Ties
- (4) #12-24 x 5/8" Pan Head, Pilot Point Machine Screw
- (1) Installation Instructions
- Reviews+
- Provides Excellent Performance for Data Networks Requiring Maximum Speed and Bandwidth
- Exceeds ANSI/TIA/EIA-568-C.2 Category 5E Requirements
- Provides 110 IDC Termination, Reducing Installation Time
- Includes Both TIA568-A and TIA568-B Color Wiring Diagrams
- Backwards Compatible with All Lower Rated Category Components
- 3 Year Manufacturer Warranty
- Patch Panel Construction: 16AWG Cold Rolled Steel
- Jack Housing: High Impact, Flame Retardant Plastic, UL 94V-0
- Spring Wire: Phosphor Bronze
- 110 Connector: Phosphor Bronze Alloy with 100 Micro-Inch Alloy
- Gold Rating: 50 Micro Inches Gold, Over 100 Micro Inches Nickel
- Durable Black Powder Coat Finish
- Mating Force: 100 Grams Min Per Contact
- Temperature Range: -40°C~70°C
- Plug Retention in Jack: 50N (11 lbs sq)
- IDC Wire Gauge: 22-24 AWG
- Electrical Current Rating: 1.5 Amp DC
- Contact Resistance: 2.5 Milohms Max
- Fits Standard 19" Racks and Cabinets
- 1 Rack Mount Space (RMS)
- UL Listed
- SPEC SHEET
- (1) 24 Port Cat5E Patch Panel
- (5) 6" Cable Ties
- (4) #12-24 x 5/8" Pan Head, Pilot Point Machine Screw
- (1) Installation Instructions
ICC Cat5E Patch Panel - UL
The ICC ICMPP0245E 24 Port Cat5E Patch Panel offers an economical solution to achieving superior performance in data networks. It comes preconfigured for T568A and T568B wiring and exceeds ANSI/TIA-568 Category 5E standards.
