Enable-IT 1-Port Outdoor Gigabit PoE Extender Kit - PoE over 4-pair wiring
SKU#: 865XW PRO
UPC#:896741002140Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Extended Gigabit Ethernet throughput over 2-pair or 4-pair new or existing Telephone wiring up to Category rated wiring.max distance 3,000ft / 915m encrypted and secure.
- Can be daisy chained to extend infinitely in linear or tree topology.
- Rapid LAN style installation RJ45 jacks – no programming required.
- Supports up to 9 Enable-IT 865XW PRO CPE units on the same 2-pair or 4-pair wire for the entire length of the run – ideal for multidrop off of a single Enable-IT 865XW PRO Extender kit.
- Ruggedized Professional Business Grade mountable casing for harsh environments.
- LAN Device independence – Transparent to 802.3 Protocols, Applications and MAC / IP addresses.
- Longest warranty protection included exceeding any knockoff competitors.
- Single Gigabit LAN RJ-45 port on each end. 4-port model available as the 865XS PRO.
- Specs+
- 56VDC – 2.5A 60W DC Gigabit PoE Injector with Country Specific (120-260V AC) Power cord.
- 1,000Mbps full-duplex Ethernet Data
- 1,000Mbps Interconnect throughput – Maximum*
- Ethernet LAN Protocol Independent
- Ethernet LAN MTU 1500
- IP VLAN passthough
- Ethernet: (1) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports
- Interlink: RJ-45 (1-Pair)
- Height 1″ (25mm) Depth 3.25″ (82.5mm) Width 4.37″ (111mm)
- Height 1.62″ (41mm) Depth 2.75″ (120mm) Width 7″ (177mm)
- Operational Temperature: -49°F to 168°F (-45°to 76°C)
- Humidity: 5% to 95%, non-condensing
- Ruggedized IP68 Rated wall mount thick plastic casing. Optimized for heat extraction and isolation without fans.

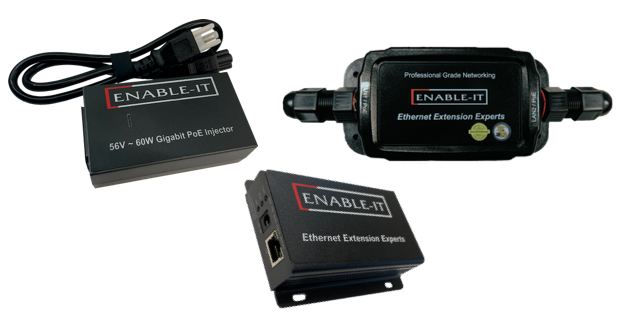

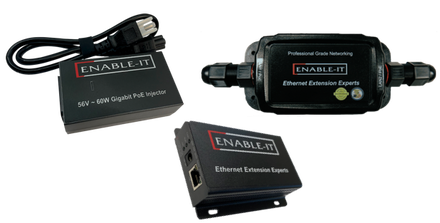

- Package Contents+
- (1) EnableIT 865X PRO Gigabit Ethernet Extender CO unit
- (1) EnableIT 865XW PRO Outdoor Gigabit PoE Extender CPE unit
- (2) 10′ Black RJ-45 Ethernet Patch Cords
- (1) Country Specific (120-260V AC) Power Cord
- (1) 56V-2.5A 60W DC Country Specific (120-260V AC) Power Injector.
- (1) W Case Cable Seal Cap
- (3) W Case Cable Seal Connectors
- (1) Enable-IT 865XW PRO Quickstart Guide
- Reviews+
- Extended Gigabit Ethernet throughput over 2-pair or 4-pair new or existing Telephone wiring up to Category rated wiring.max distance 3,000ft / 915m encrypted and secure.
- Can be daisy chained to extend infinitely in linear or tree topology.
- Rapid LAN style installation RJ45 jacks – no programming required.
- Supports up to 9 Enable-IT 865XW PRO CPE units on the same 2-pair or 4-pair wire for the entire length of the run – ideal for multidrop off of a single Enable-IT 865XW PRO Extender kit.
- Ruggedized Professional Business Grade mountable casing for harsh environments.
- LAN Device independence – Transparent to 802.3 Protocols, Applications and MAC / IP addresses.
- Longest warranty protection included exceeding any knockoff competitors.
- Single Gigabit LAN RJ-45 port on each end. 4-port model available as the 865XS PRO.
- 56VDC – 2.5A 60W DC Gigabit PoE Injector with Country Specific (120-260V AC) Power cord.
- 1,000Mbps full-duplex Ethernet Data
- 1,000Mbps Interconnect throughput – Maximum*
- Ethernet LAN Protocol Independent
- Ethernet LAN MTU 1500
- IP VLAN passthough
- Ethernet: (1) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports
- Interlink: RJ-45 (1-Pair)
- Height 1″ (25mm) Depth 3.25″ (82.5mm) Width 4.37″ (111mm)
- Height 1.62″ (41mm) Depth 2.75″ (120mm) Width 7″ (177mm)
- Operational Temperature: -49°F to 168°F (-45°to 76°C)
- Humidity: 5% to 95%, non-condensing
- Ruggedized IP68 Rated wall mount thick plastic casing. Optimized for heat extraction and isolation without fans.
- (1) EnableIT 865X PRO Gigabit Ethernet Extender CO unit
- (1) EnableIT 865XW PRO Outdoor Gigabit PoE Extender CPE unit
- (2) 10′ Black RJ-45 Ethernet Patch Cords
- (1) Country Specific (120-260V AC) Power Cord
- (1) 56V-2.5A 60W DC Country Specific (120-260V AC) Power Injector.
- (1) W Case Cable Seal Cap
- (3) W Case Cable Seal Connectors
- (1) Enable-IT 865XW PRO Quickstart Guide
Enable-IT 1-Port Outdoor Gigabit PoE Extender Kit
The Enable-IT 865XW PRO Outdoor Gigabit PoE Extender is a Gigabit wire speed throughput PoE Extender.
World’s Fastest and Secure, copper Ethernet Extender period, Guaranteed!Designed & Made in the USA with quality and pride. The American-made Enable-IT 865XW PRO Outdoor Gigabit PoE Extender over copper uses industry LAN standard RJ-45 (8-pin) connectors to make installing in most any environment very easy.We have engineered most of the technical complexity into automatic line adjustments so the plug and go simplicity on your existing or new wiring is a snap. Ethernet Extension Experts designs and manufactures the Enable-IT 865XW PRO kit, along with its entire product line, in the USA that makes us more responsive to customer needs.
We take great pride in using the highest quality materials and actual craftsmanship when building our products. We even can customize these at time of order to fit your specific needs as we manufacture in our very own Aerospace Certified Quality AS9100D US West coast facilities.This Enable-IT 865XW PRO Outdoor Gigabit PoE Extender over copper is trusted Business Reliable Professional Grade Gigabit Ethernet Extender without the high cost of fiber or un-secure wireless. Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment.
Beware of Cheap Chinese “so called Business Use” (not even suitable US Home use) gear that is banned in the US due to proven hidden spyware.
The Enable-IT 865XW PRO Outdoor Gigabit PoE Extender kit uses 4-pair copper wiring (CAT 2 Telephone wire all the way up to CAT 7 rated). The 865XW PRO Outdoor Gigabit PoE Extender can support up to 9 CPE units on the same 4-pair of wire.
Leverage any 4-pair of existing or new wiring that is contiguous all the way up to 3,000ft or 915m encrypted and secure, effectively saving you thousands in labor, administration, and security. Think fiber is cheap? Have you ever priced or paid for fiber troubleshooting? Think again.
Single port Gigabit LAN built into each end coupled with industrial strength components to survive harsh temperature extremes delivers superior performance, value and capabilities no other competitor can touch.
Power
Data Rate
Interface
865X PRO CO Dimensions
865XW PRO CPE Dimensions
Environment
Enclosure
Enable-IT 1-Port Outdoor Gigabit PoE Extender Kit
The Enable-IT 865XW PRO Outdoor Gigabit PoE Extender is a Gigabit wire speed throughput PoE Extender.
World’s Fastest and Secure, copper Ethernet Extender period, Guaranteed!Designed & Made in the USA with quality and pride. The American-made Enable-IT 865XW PRO Outdoor Gigabit PoE Extender over copper uses industry LAN standard RJ-45 (8-pin) connectors to make installing in most any environment very easy.We have engineered most of the technical complexity into automatic line adjustments so the plug and go simplicity on your existing or new wiring is a snap. Ethernet Extension Experts designs and manufactures the Enable-IT 865XW PRO kit, along with its entire product line, in the USA that makes us more responsive to customer needs.
We take great pride in using the highest quality materials and actual craftsmanship when building our products. We even can customize these at time of order to fit your specific needs as we manufacture in our very own Aerospace Certified Quality AS9100D US West coast facilities.This Enable-IT 865XW PRO Outdoor Gigabit PoE Extender over copper is trusted Business Reliable Professional Grade Gigabit Ethernet Extender without the high cost of fiber or un-secure wireless. Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment.
Beware of Cheap Chinese “so called Business Use” (not even suitable US Home use) gear that is banned in the US due to proven hidden spyware.
The Enable-IT 865XW PRO Outdoor Gigabit PoE Extender kit uses 4-pair copper wiring (CAT 2 Telephone wire all the way up to CAT 7 rated). The 865XW PRO Outdoor Gigabit PoE Extender can support up to 9 CPE units on the same 4-pair of wire.
Leverage any 4-pair of existing or new wiring that is contiguous all the way up to 3,000ft or 915m encrypted and secure, effectively saving you thousands in labor, administration, and security. Think fiber is cheap? Have you ever priced or paid for fiber troubleshooting? Think again.
Single port Gigabit LAN built into each end coupled with industrial strength components to survive harsh temperature extremes delivers superior performance, value and capabilities no other competitor can touch.
