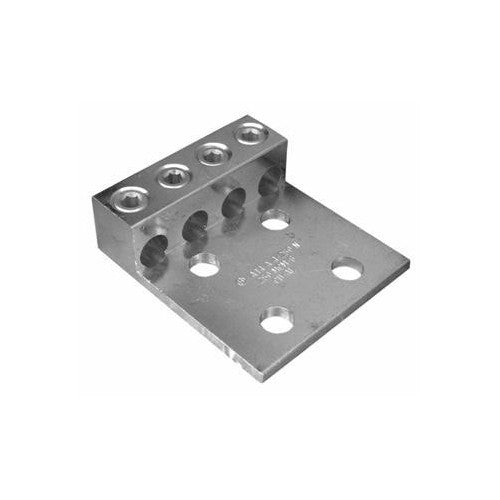

Morris 90878 Aluminum Mechanical Connectors Four Conductors - Four Hole Mount 800MCM-300MCM
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- 4 Mounting Holes in Pad allow for 4 Bolts when Mounting these 4 Conductor Mechanical Lugs
- 4 Conductor Aluminum Mechanical Connector is manufactured from high strength 6061-T6 Aluminum Alloy to insure both maximum strength and conductivity
- AL9CU Dual Rated for both Copper and Aluminum Conductors
- Electro-Tin Plated to provide low contact resistance and protection against corrosion
- Assembly can be made with only a screwdriver or allen wrench and they are re-usable
- NEMA Standard Mounting Hole Drilling 1-3/4” Centers
- Aluminum Connector is rated 600V 194°F (90°C)
- UL486B/CSA Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
- Specs+
- Reviews+
- 4 Mounting Holes in Pad allow for 4 Bolts when Mounting these 4 Conductor Mechanical Lugs
- 4 Conductor Aluminum Mechanical Connector is manufactured from high strength 6061-T6 Aluminum Alloy to insure both maximum strength and conductivity
- AL9CU Dual Rated for both Copper and Aluminum Conductors
- Electro-Tin Plated to provide low contact resistance and protection against corrosion
- Assembly can be made with only a screwdriver or allen wrench and they are re-usable
- NEMA Standard Mounting Hole Drilling 1-3/4” Centers
- Aluminum Connector is rated 600V 194°F (90°C)
- UL486B/CSA Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
Aluminum Mechanical Lugs Four Conductors - Four Hole Mount 800MCM-300MCM - 4 Hole Aluminum Mechanical Connectors provide for Flexibility in Installation.
Aluminum Mechanical Lugs 4 Conductors - 4 Hole Mount 800MCM-300MCM features include:
Aluminum Mechanical Lugs Four Conductors - Four Hole Mount 800MCM-300MCM - 4 Hole Aluminum Mechanical Connectors provide for Flexibility in Installation.
Aluminum Mechanical Lugs 4 Conductors - 4 Hole Mount 800MCM-300MCM features include:
