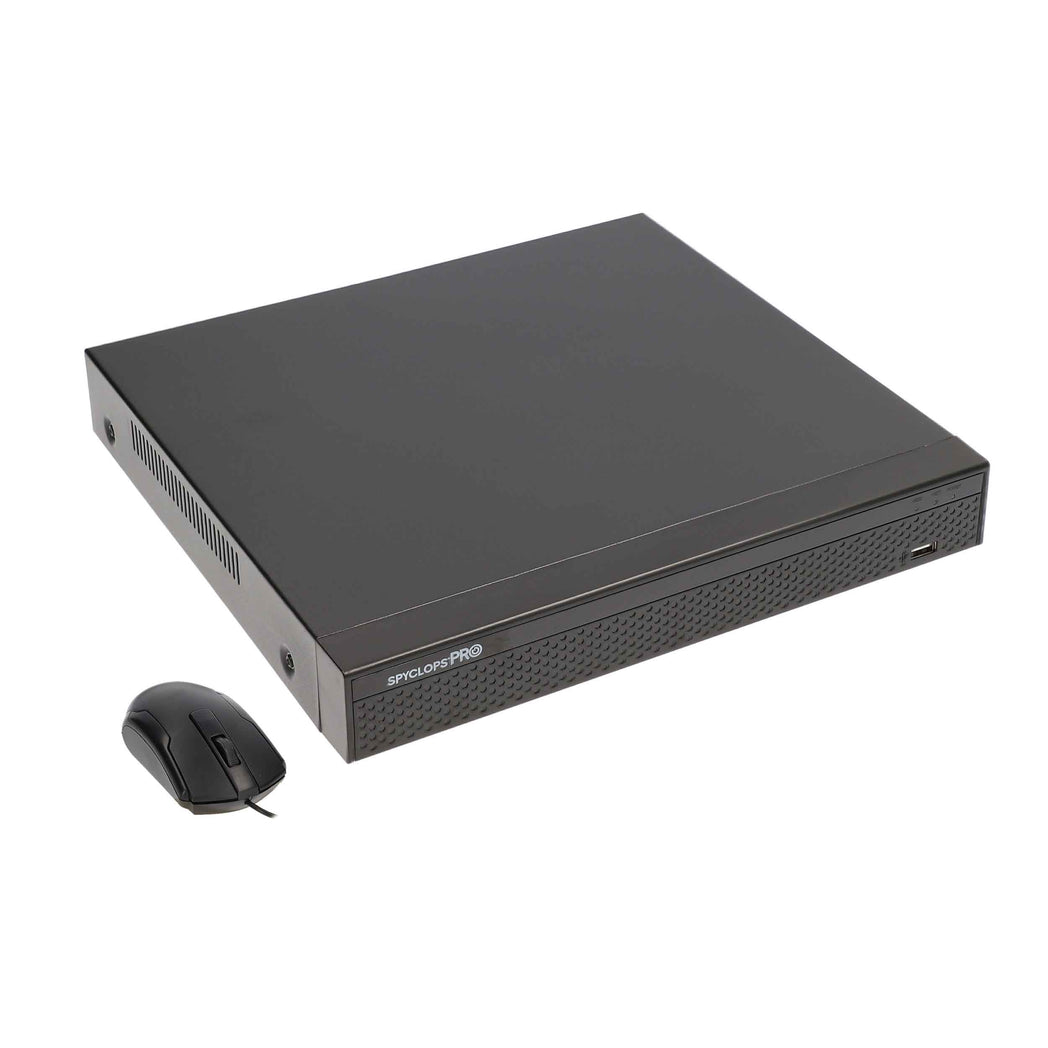

Metra Spyclops 16 Channel Hybrid 4K XVR
SKU#: SPYP-XVR16
UPC#:86429403158Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+

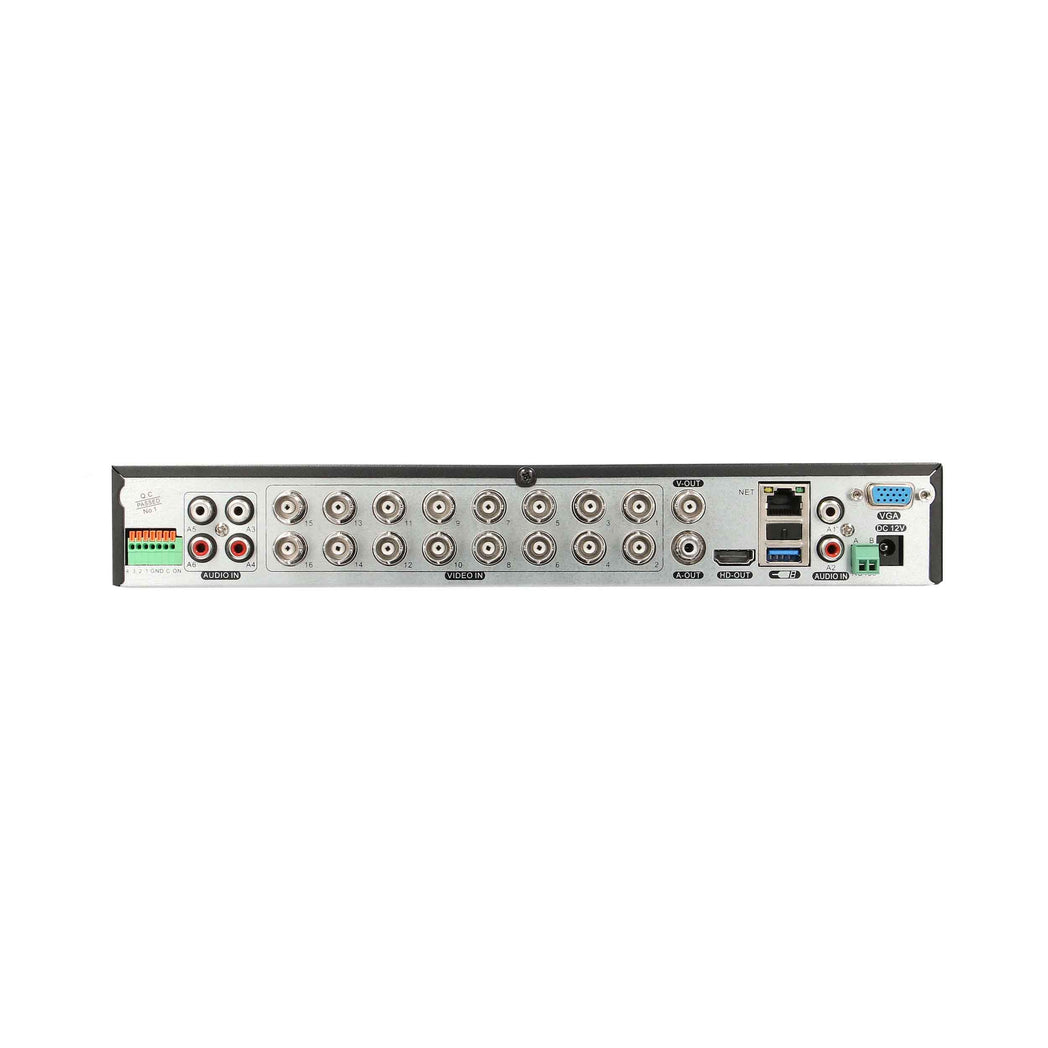

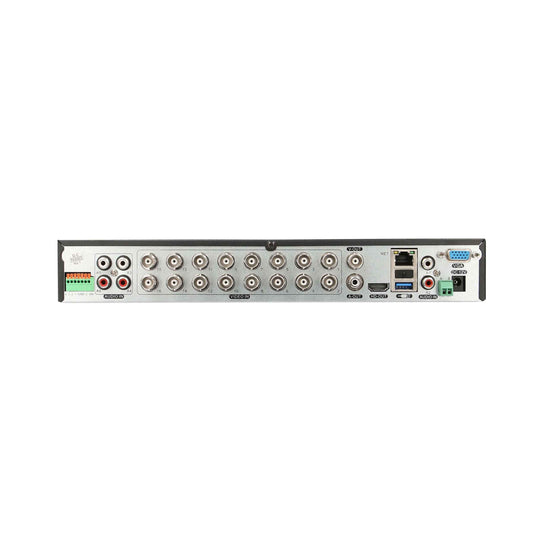

- (16) BNC port connections for direct camera connection and can add IP cameras connected to the same LAN for a total of up to 32 channels of recording
- (2) USB 2.0 ports for mouse and backup
- Inputs: 16x BNC (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+8 x network (Max 8MP)
- Analog+Network: 14x Analog (5MP)+11x network(Max 8MP), 12x Analog (5MP)+13x network (Max 8MP), 10x Analog (5MP)+15x network (Max 8MP), 8x Analog (5MP)+17x network (Max 8MP), 6x Analog (5MP)+19x network (Max 8MP), 4x Analog (5MP)+21x network (Max 8MP), 2x Analog (5MP)+23x network (Max 8MP)
- IPC Only: 32x network (Max 8MP)
- Onvif Version Support: 2.8
Playback Functions: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screen, Frame Play, Frame Rewind, Digital Zoom, Full Screen
Record Modes: Manual\Timer\Motion Detection\AI Alarm\Alarm Input
(1) VGA and (1) HDMI outputs
Free remote view app for Android and IOS
(2) SATA Port—supports up to 16TB total
Alarm 4 channels in and 1 channel out that can trigger recording, email, Buzzer or Push notifications
Supports H.264, H.264+, H.265 and H.265+ for maximum video storage - Specs+
- Analog:
- MP_LITE (1920×2160 16CH at 8fps)
- MP (2592×1944 16CH at 6fps)
- 5MP_LITE (1296×1944 16CH at 10fps)
- 4MP (2560×1440 16CH at 8fps)
- 4MP_LITE (1280×1440 16CH at 15fps)
- 3MP (2048×1536 16CH at 9fps)
- 3MP_Lite (1024×1536 16CH at 18fps)
- 1080P (1920x1080 16CH at 15fps)
- 720P (1280×720 16CH at 30fps)
- 960H (960×480 16CH at 30fps)
- 5MP_Lite (1296×1944 16CH at 10fps)
- 4MP_Lite (1280×1440 16CH at 15fps)
- 3MP_Lite (1024×1536 16CH at 18fps)
- 1080N(960x1080 16CH at 25fps)
- 720P (1280×720 16CH at 25fps)
- 960H (960×480 4CH at 30fps)
- Only IPC H.265:
- 4k 17CH at 30fps
- 5MP 26CH at 30fps
- 4MP 32CH at 30fps
- 3MP 32CH at 30fps
- 1080P 32CH at 30fps
- 960P 32CH at 30fps
- 720P 32CH at 30fps
- D1 32CH at 30fps
- All Analog:
- 16CH 8MP_LITE at 8fps
- 16CH 5M at 6fps
- 16CH 5MP_LITE at 10fps
- 16CH 4M at 8fps
- 16CH 4MP_LITE at 15fps
- 16CH 3M at 9fps
- 16CH 1080p at 15fps
- 16CH 1080N at 25fps
- Mix Mode:
- 1CH 4K at 30fps
- 2CH 5M at 30fps
- 2CH 4M at 30fps
- 3CH 3M at 30fps
- 4CH 1080P at 30fps
- 4CH 960P at 30fps
- 4CH 720P at 30fps
- All IPC:
- 2CH 4K at 30fps
- 4CH 5M at 30fps
- 4CH 4M at 30fps
- 5CH 3M at 30fps
- 9CH 1080P at 30fps
- 9CH 960P at 30fps
- 9CH 720P at 30fps
- Package Contents+

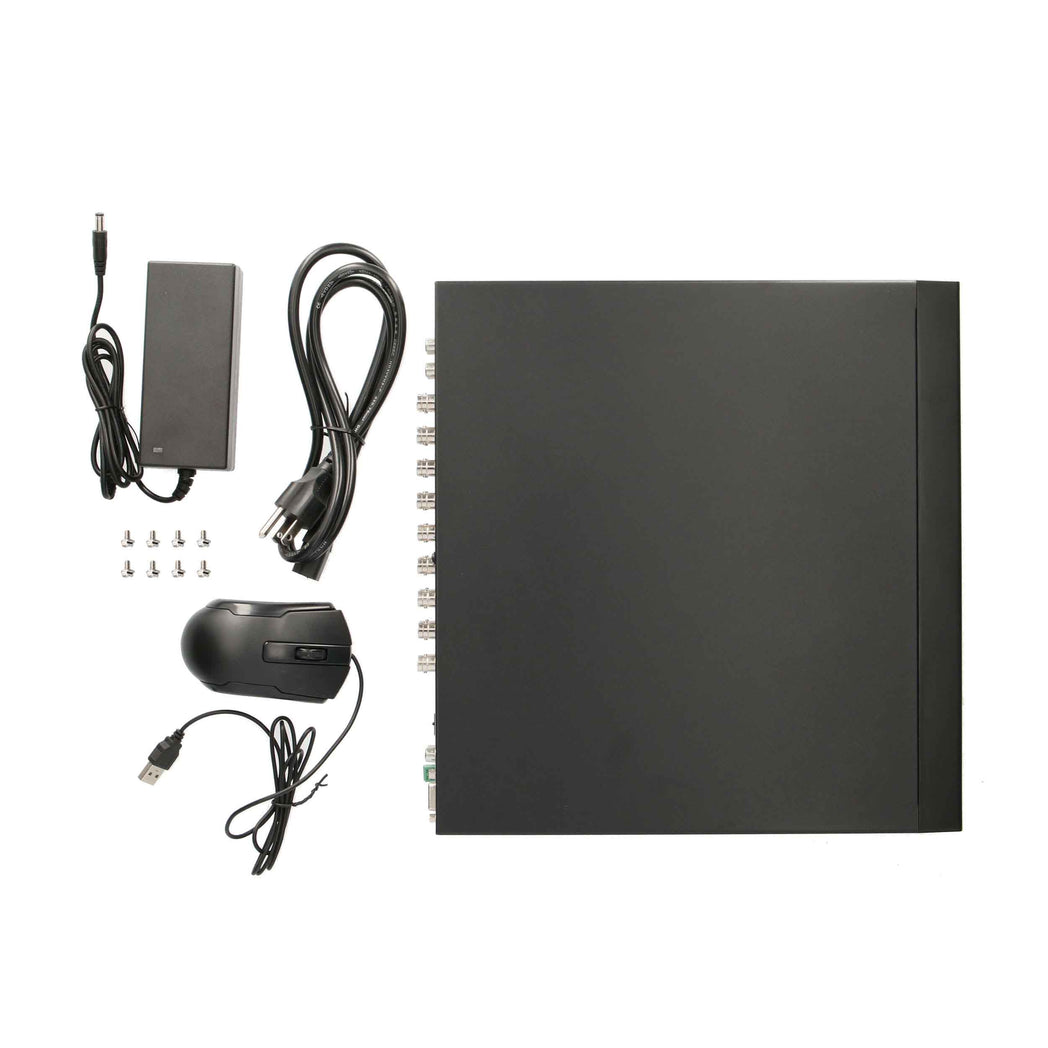

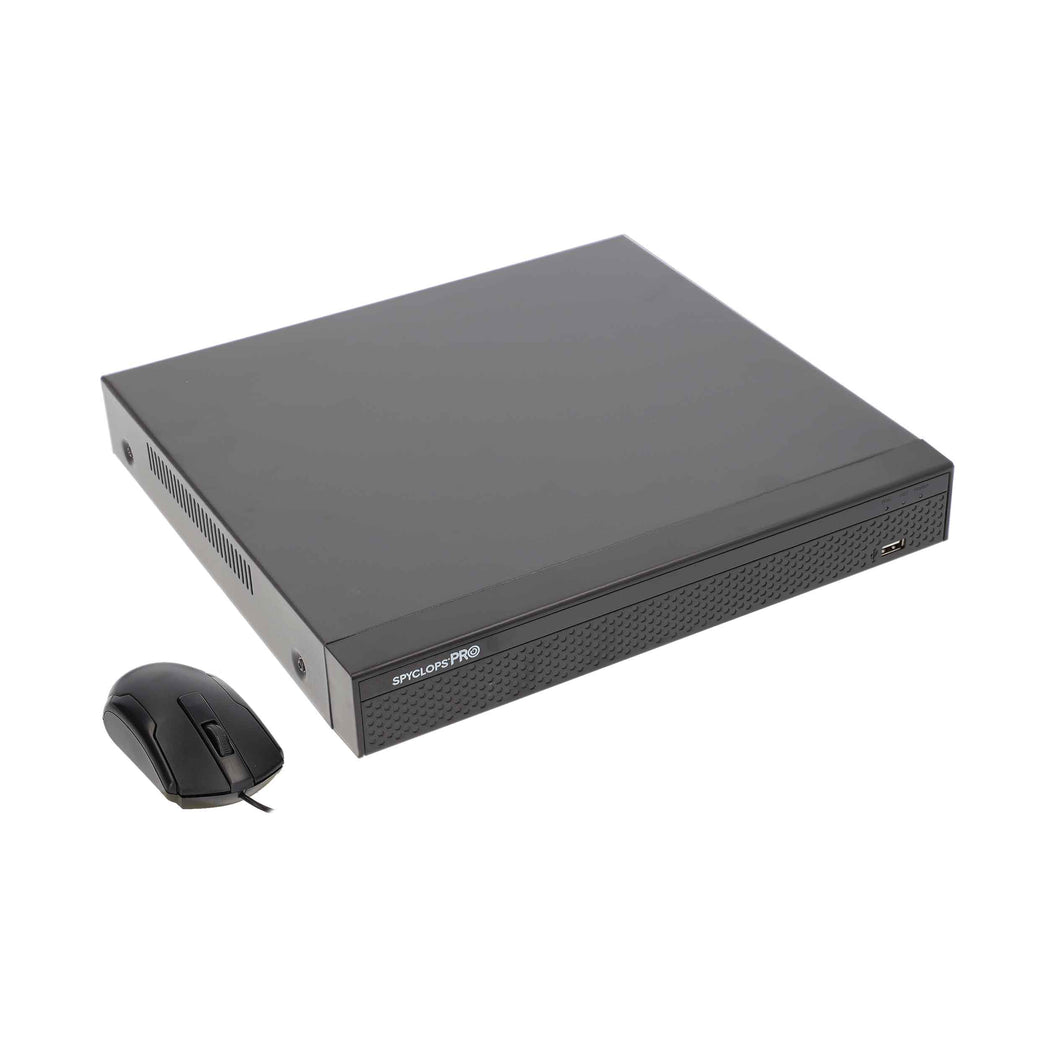

- Includes 12V power supply, USB mouse and Quick Start guide
- Reviews+
- (16) BNC port connections for direct camera connection and can add IP cameras connected to the same LAN for a total of up to 32 channels of recording
- (2) USB 2.0 ports for mouse and backup
- Inputs: 16x BNC (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+8 x network (Max 8MP)
- Analog+Network: 14x Analog (5MP)+11x network(Max 8MP), 12x Analog (5MP)+13x network (Max 8MP), 10x Analog (5MP)+15x network (Max 8MP), 8x Analog (5MP)+17x network (Max 8MP), 6x Analog (5MP)+19x network (Max 8MP), 4x Analog (5MP)+21x network (Max 8MP), 2x Analog (5MP)+23x network (Max 8MP)
- IPC Only: 32x network (Max 8MP)
- Onvif Version Support: 2.8
Playback Functions: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screen, Frame Play, Frame Rewind, Digital Zoom, Full Screen
Record Modes: Manual\Timer\Motion Detection\AI Alarm\Alarm Input
(1) VGA and (1) HDMI outputs
Free remote view app for Android and IOS
(2) SATA Port—supports up to 16TB total
Alarm 4 channels in and 1 channel out that can trigger recording, email, Buzzer or Push notifications
Supports H.264, H.264+, H.265 and H.265+ for maximum video storage - Analog:
- MP_LITE (1920×2160 16CH at 8fps)
- MP (2592×1944 16CH at 6fps)
- 5MP_LITE (1296×1944 16CH at 10fps)
- 4MP (2560×1440 16CH at 8fps)
- 4MP_LITE (1280×1440 16CH at 15fps)
- 3MP (2048×1536 16CH at 9fps)
- 3MP_Lite (1024×1536 16CH at 18fps)
- 1080P (1920x1080 16CH at 15fps)
- 720P (1280×720 16CH at 30fps)
- 960H (960×480 16CH at 30fps)
- 5MP_Lite (1296×1944 16CH at 10fps)
- 4MP_Lite (1280×1440 16CH at 15fps)
- 3MP_Lite (1024×1536 16CH at 18fps)
- 1080N(960x1080 16CH at 25fps)
- 720P (1280×720 16CH at 25fps)
- 960H (960×480 4CH at 30fps)
- Only IPC H.265:
- 4k 17CH at 30fps
- 5MP 26CH at 30fps
- 4MP 32CH at 30fps
- 3MP 32CH at 30fps
- 1080P 32CH at 30fps
- 960P 32CH at 30fps
- 720P 32CH at 30fps
- D1 32CH at 30fps
- All Analog:
- 16CH 8MP_LITE at 8fps
- 16CH 5M at 6fps
- 16CH 5MP_LITE at 10fps
- 16CH 4M at 8fps
- 16CH 4MP_LITE at 15fps
- 16CH 3M at 9fps
- 16CH 1080p at 15fps
- 16CH 1080N at 25fps
- Mix Mode:
- 1CH 4K at 30fps
- 2CH 5M at 30fps
- 2CH 4M at 30fps
- 3CH 3M at 30fps
- 4CH 1080P at 30fps
- 4CH 960P at 30fps
- 4CH 720P at 30fps
- All IPC:
- 2CH 4K at 30fps
- 4CH 5M at 30fps
- 4CH 4M at 30fps
- 5CH 3M at 30fps
- 9CH 1080P at 30fps
- 9CH 960P at 30fps
- 9CH 720P at 30fps
- Includes 12V power supply, USB mouse and Quick Start guide
Metra Spyclops 16 Channel Hybrid 4K XVR
Record video surveillance in up to 8MP 4K for each channel with the Spyclops PRO 16-channel XVR.
This 4K capable Video Recorder supports H.265 and H.265+ for maximum video storage efficiency. HDD drive bays support up to 2x 8TB HDD for a total of up to 16TB. The NVR has VGA and HDMI outputs and uses 16-channel BNC connections.
The Spyclops PRO free remote viewing app is available for Android and iOS devices, in addition to accessing video surveillance securely through a web.
Compatible with Spyclops cameras.
Recording Resolution
Playback Resolution
Metra Spyclops 16 Channel Hybrid 4K XVR
Record video surveillance in up to 8MP 4K for each channel with the Spyclops PRO 16-channel XVR.
This 4K capable Video Recorder supports H.265 and H.265+ for maximum video storage efficiency. HDD drive bays support up to 2x 8TB HDD for a total of up to 16TB. The NVR has VGA and HDMI outputs and uses 16-channel BNC connections.
The Spyclops PRO free remote viewing app is available for Android and iOS devices, in addition to accessing video surveillance securely through a web.
Compatible with Spyclops cameras.
Recording Resolution
Playback Resolution
