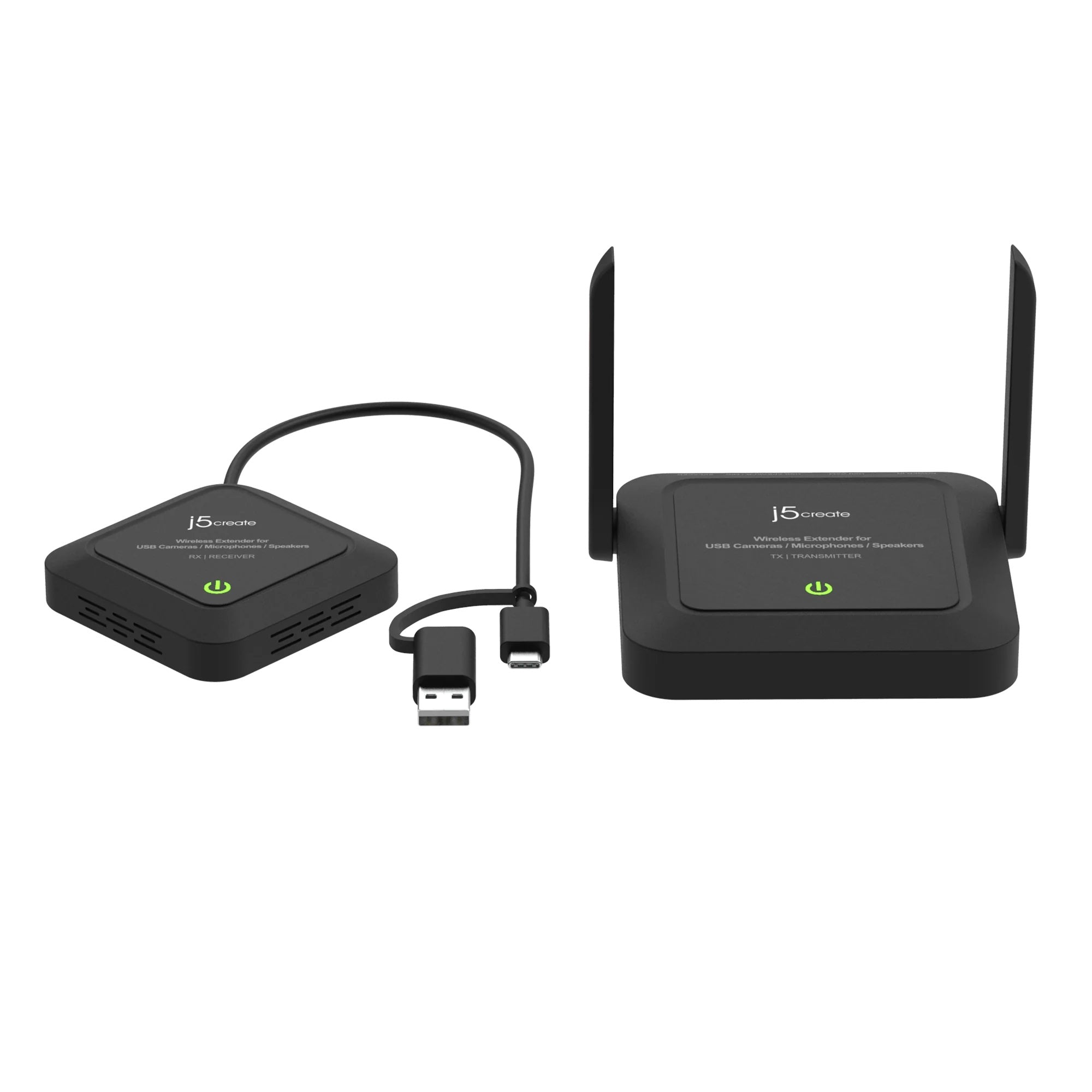

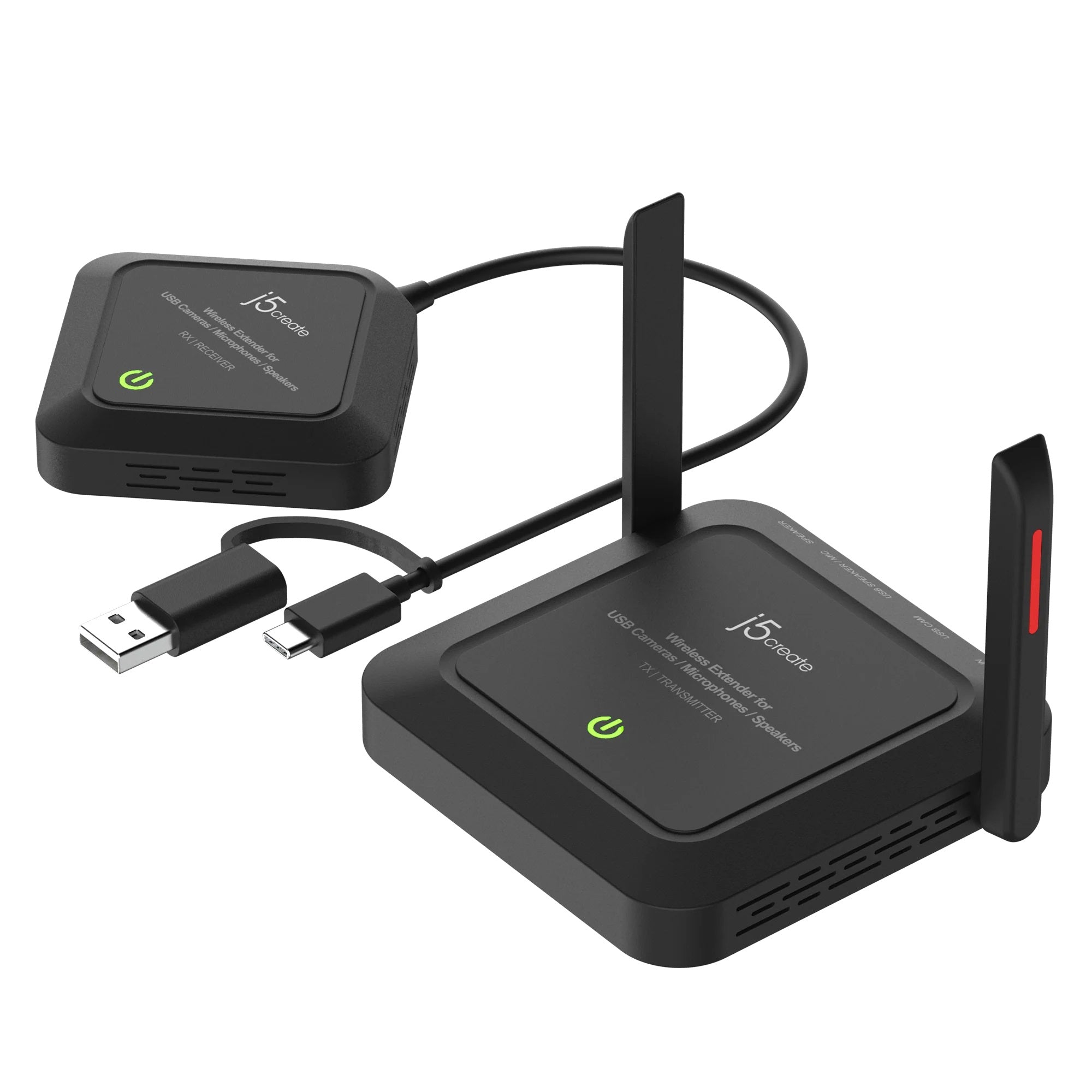

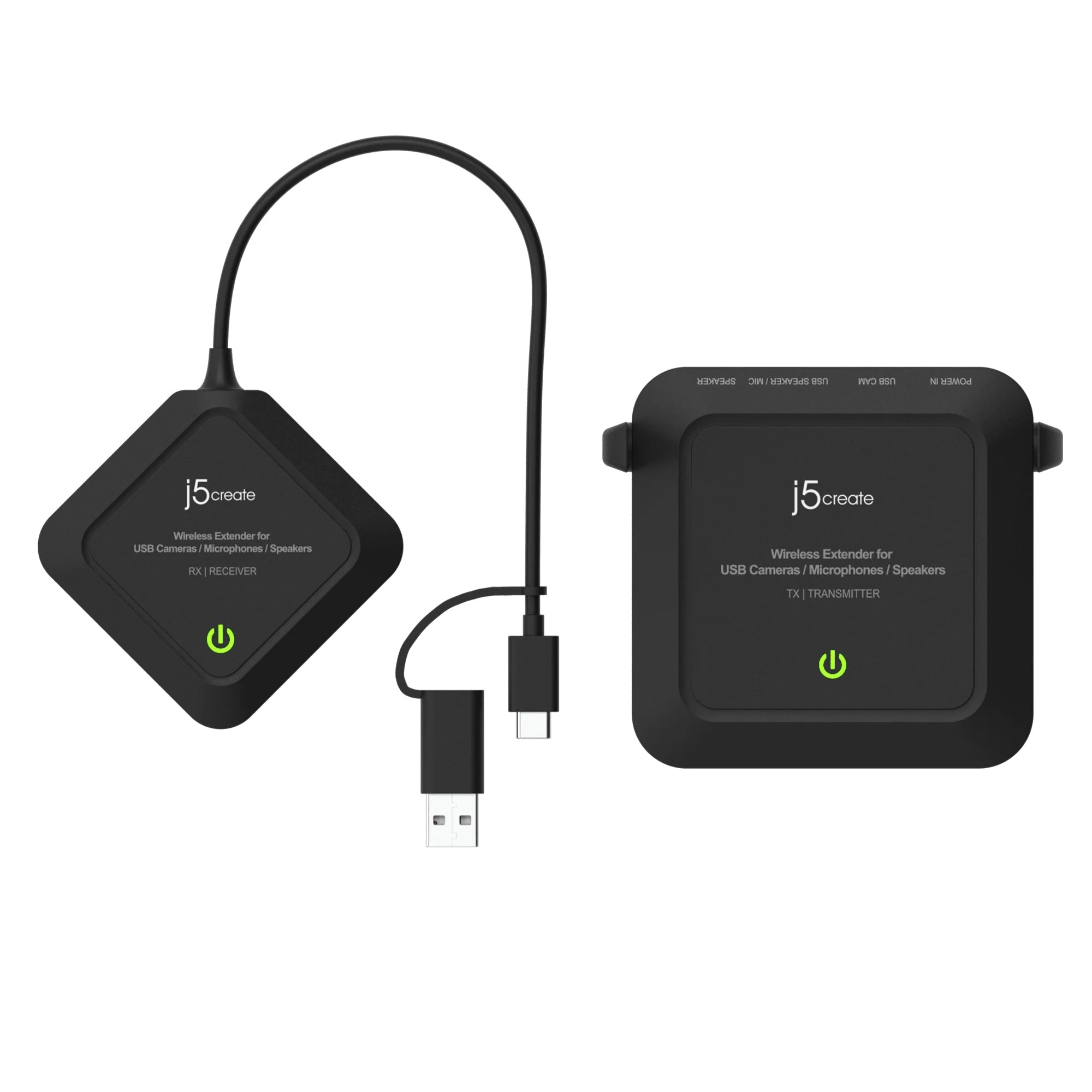

j5create Wireless Extender for USB™ Cameras / Microphones / Speakers

Wireless Extender for USB™ Cameras / Microphones / Speakers

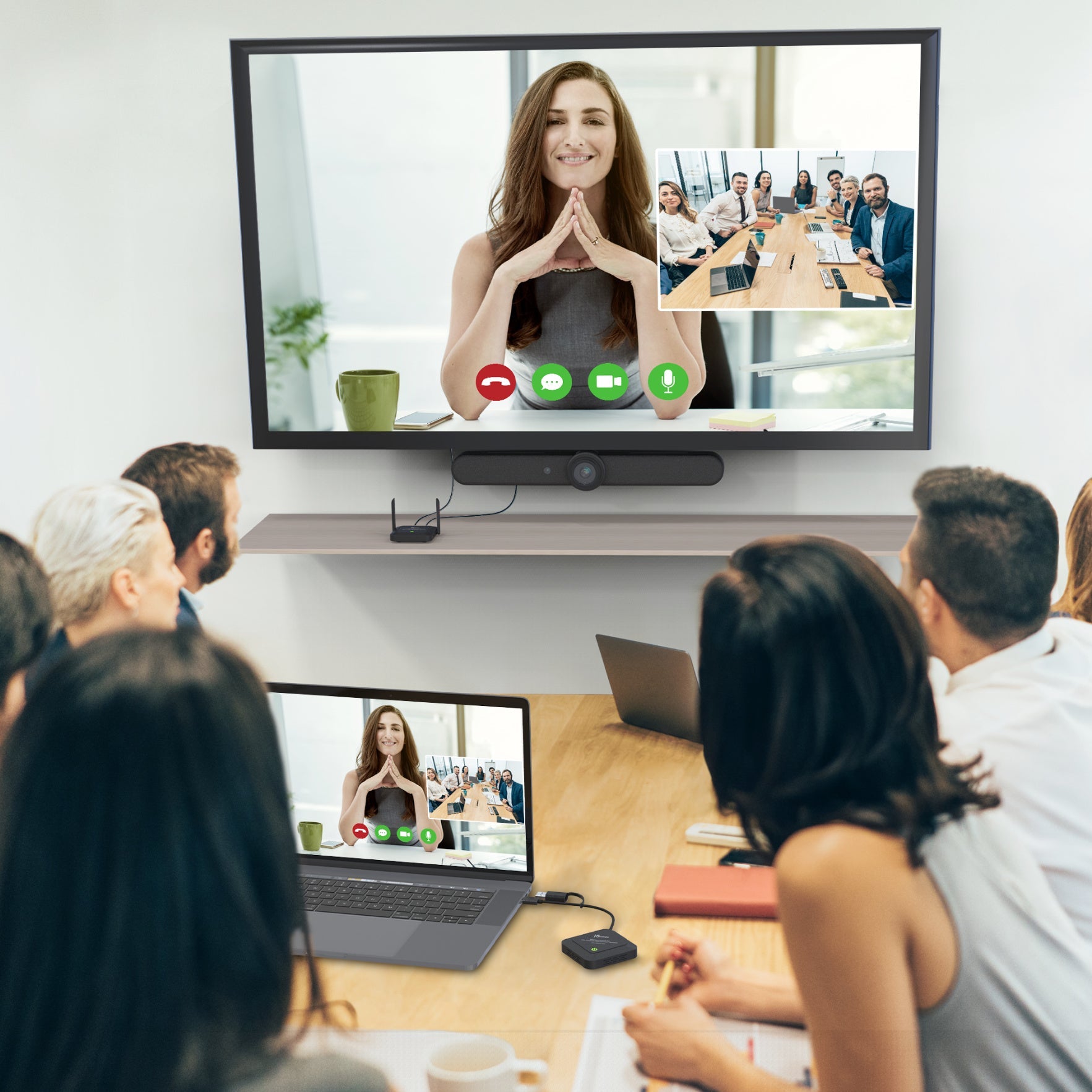

The j5create Wireless Extender for USB™ Cameras / Microphones / Speakers turn your wired USB™ camera into a wireless one. With a wireless transmission range of up to 82 ft. (25m) users can extend the range of their wired USB™ camera without having to deal with tangled cables regardless of the room layout. In addition to transmitting both video and audio wirelessly this compact and lightweight camera extender works with Windows®, macOS®, and Chrome OS™ devices, making it a great addition to any meeting room, streaming setup, and other similar environments.

System Requirements:

• Available USB-C® or USB™ Type-A port
• Windows® 11 / 10
• macOS® 10.10 or later
• Chrome OS™

Special Notes:

• Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
• Priority of Audio-Output on the ports of TX would be “3.5mm Speaker→ USB™ Speaker/microphone → USB™ camera with speaker/microphone”
• TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically

• Low-latency audio and video transmission via USB™
• Converts a wired USB™ camera into a wireless one
• Provides support for USB™ camera with microphones/speaker
• Wireless transmission distance can reach up to 82 ft. (25 m)
• 5 GHz frequency ensures a stable connection
• Supports resolution up to 1080p@30 in MJPEG format, and 1080p@60 and 4K@30 in H.264 format
• Compatible with Windows®, macOS®, Chrome OS™

Hardware

• Audio ON/OFF Switch

  • RX│Receiver:
    • Located on the RX device’s bottom side, the“Audio ON/OFF switch” quickly enables or disables audio
    • Switch to ON: enables audio
    • Switch to OFF: disables
• Host Connector:
  • RX│Receiver:

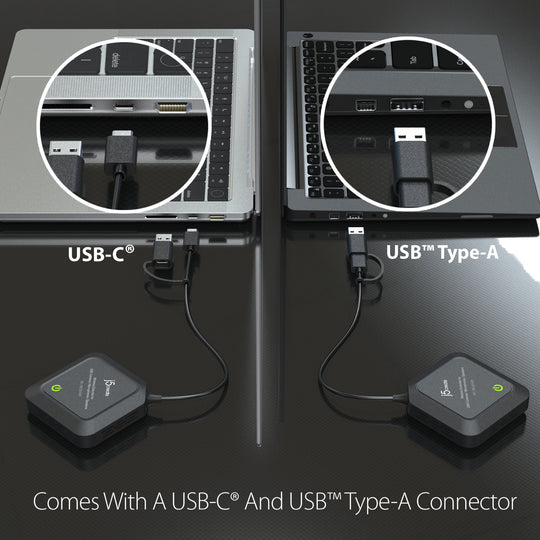

    • USB-C® or USB® Type-A port

Infared: N/A

• Led Indicators

  • TX│Transmitter / RX│Receiver:
    • Red: Power on
    • Orange: Waiting to connect
    • *TX and RX are connected, but the USB™ camera or USB™ Speaker/Microphone are not connect to TX USB™ port
    • Orange flashing light: TX / RX pairing
    • Green: TX / RX connected, and TX USB™ camera is enabled.
• Pair Button

  • Pair Button - If TX are RX devices are close together but, the TX and RX device’s LEDs are red and or if they disconnect, please try turning on “pairing mode”. To turn on paring mode find the Pair button located on the bottom side of TX and RX device, push and hold the TX and RX device’s pairing button 5 seconds, the power LED will change orange and will blink for 1 minute. If TX and RX device are paired, the LED will turn green and will stop blinking.

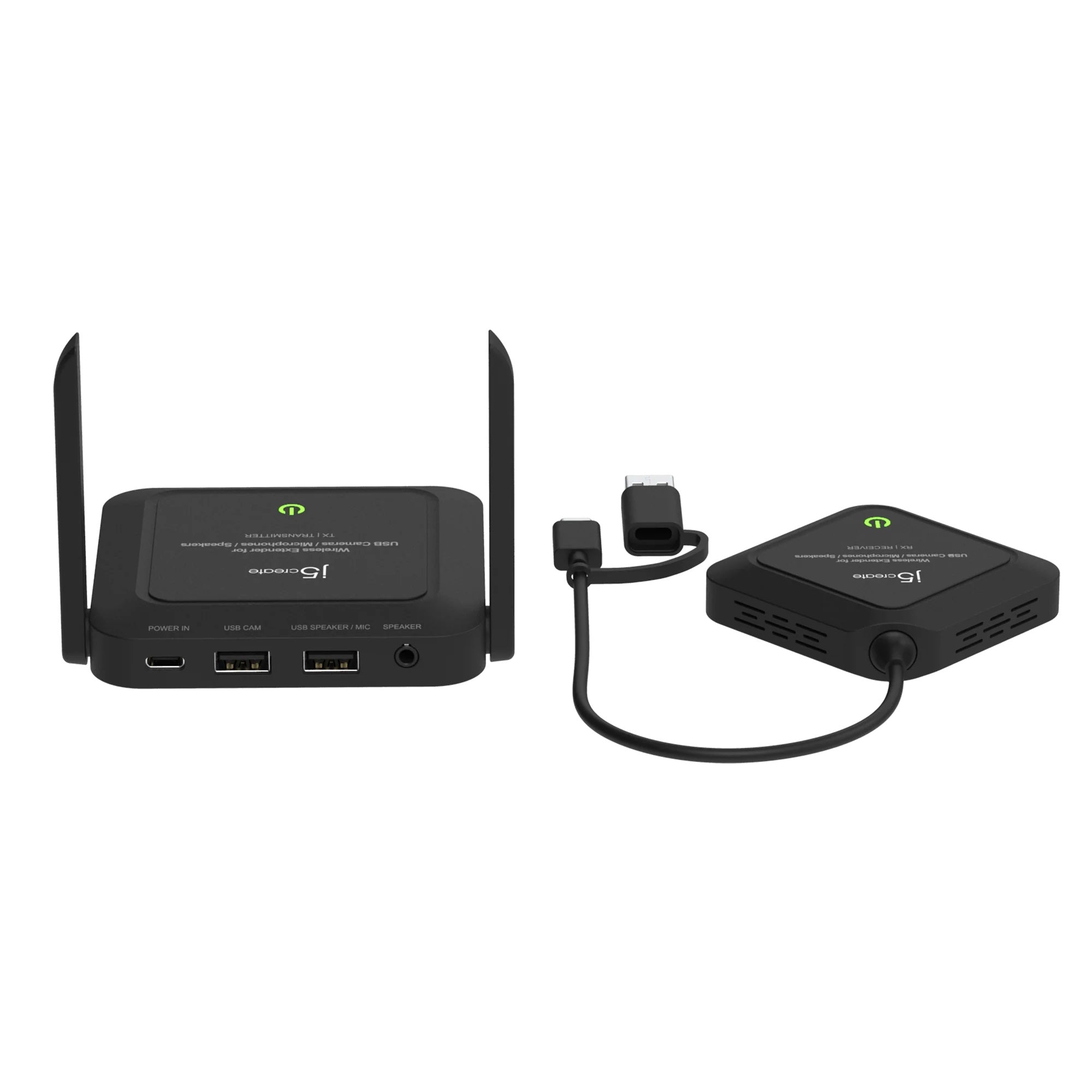

• Ports

  • TX│Transmitter:

    • 1 - USB-C® Power In
    • 1 - USB™ Type-A Female (Camera)
    • 1 - USB™ Type-A female (Speaker/Microphone)
    • 1 - 3.5 mm Speaker Out
• Power Source: TX Transmitter: 1 - DC 5V/3A Power Adapter RX│Receiver: 1 - Bus Power through USB-C®

Performance

• Audio Channel: 2.1 CH stereo
• Esd Protection: N/A
• Infared Return Frequency: N/A
• Ovp Protection: N/A
• Rf Output Power: +15 dBm ±1 dBm
• Security - Encryption: L 128/256-bit AES based encryption WPA2 authentication protocol
• Supported Resolution - Output:

  • H.264:

    • 2160p / 1080p / 720p / 480p / 240p @ 30 FPS
    • 1080p @ 60 FPS
  • MJPEG:

    • 1080p / 720p / 480p / 240p @ 30 FPS
  • YUV:

    • 1080p / 720p / 480p / 240p

Physical Specifications

• Cable Length: Receiver (RX): 6.5 in. (16.5 cm)
• Color: Black
• Enclosure Type: Plastic
• Operating Humidity: < 85% non-condensing
• Operating Temperature: +32 to +104°F (0 to +40°C)
• Product Depth: Transmitter (TX): 3.74 in. (95 mm) Receiver (RX): 2.63 in. (67 mm)
• Product Height: Transmitter (TX): 0.9 in. (23 mm) Receiver (RX): 0.83 in. (21 mm)
• Product Weight: Transmitter (TX): 3.95 oz (112 g) Receiver (RX): 1.95 oz (55.5 g)
• Product Width: Transmitter (TX): 3.74 in. (95 mm) Receiver (RX): 2.63 in. (67 mm)
• Storage Humidity: < 85% non-condensing
• Storage Temperature: -4 to +122°F (-20 to +50°C)

Wireless Protocols

• Antenna Type: Transmitter (TX): External antenna x 2 Receiver (RX): Built-in antenna
• Channel Width: 80 MHz
• Frequency: 5 GHz Band I, Band IV, CE Only Band I
• Range: Up to 82 ft. (25 m)StandardIEEE 802.11ac

• 1 - JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers set (1 x Transmitter & 1 x
  Receiver)
• 1 - DC 5V/3A Power Adapter
• 1 - Hook and loop fastener
• 1 - Quick Installation Guide (QIG)
