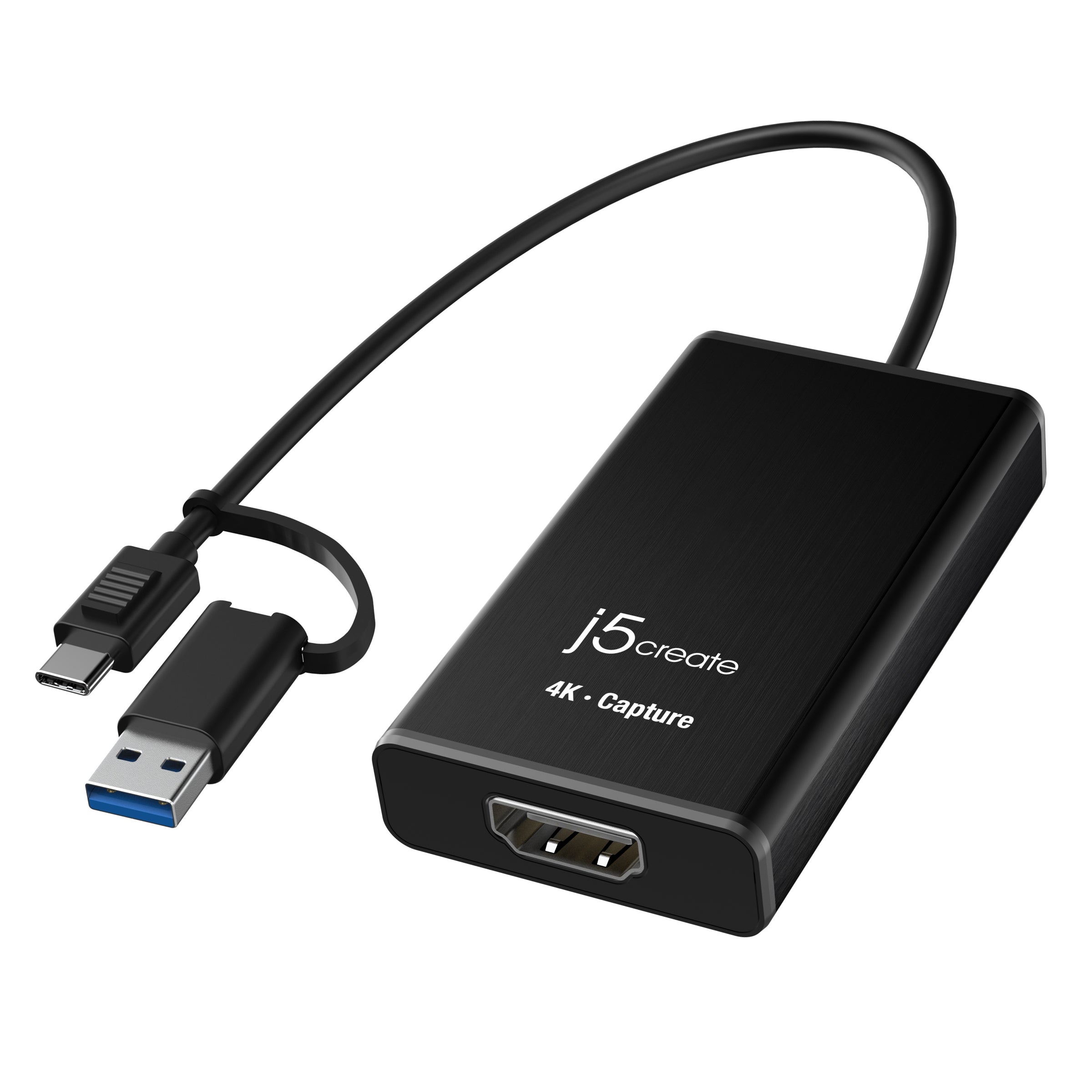

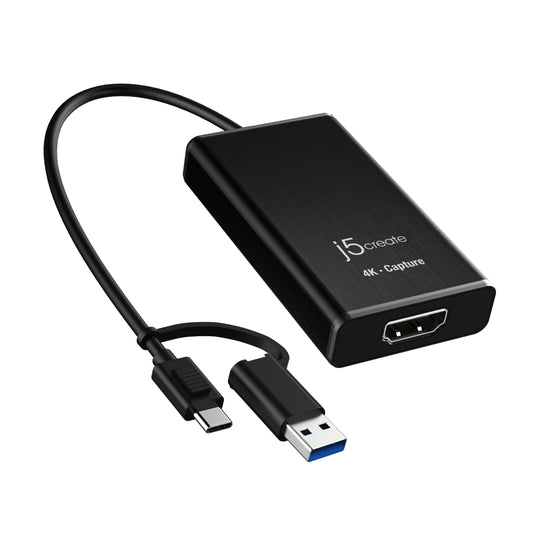

j5create 4K HDMI™ Capture Adapter
SKU#: JVA11
UPC#:847626006029
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
- Windows® 7 or later
- macOS® 10.12 or later
- Android™ 8.1 or later
- Chrome OS™ with UVC support
- CPU: Intel® Core™ i7 6700HQ & above
- GPU: NVIDA® GTX 960M & above
- RAM: 8 GB or higher
- Windows®: OBS™, XSplit® Broadcaster
- Mac®: OBS™, QuickTime®
- Android™: CameraFi™
- Features+
- HDMI™ input for capturing
- 4K video and audio high-performance record through USB-C® 3.2 Gen 1
- UVC standard - No driver installation required
- Ultra-low latency stream through USB-C® 3.2 Gen 1 connection
- Field production made easy with its compact size
- Specs+
- Audio Input: 1 - HDMI™ Female
- Audio Output: N/A
- Audio Switcher: N/A
- Host Connector: 1 - USB-C® 3.2 Gen 1 Female (Type-A to USB-C®)
- Ports:
- 1 - USB-C® 3.2 Gen 1 (Host)
- 1 - HDMI™ Input
- Power Source: N/A
- Video Input: 1 - HDMI™ Female
- Video Output: N/A
- Video Switcher: N/A
- Warranty: 2 Year Limited
- Audio Channel: 2.1 via HDMI™
- Audio Frequency: 48 kHz
- Compressions:
- USB™ 3.0: RGB / YUV4:2:2 / YUV4:2:0
- USB™ 2.0: YUV4:2:0
- Hdmi Input Resolutions: 3840 x 2160 @ 30
- Hdr Supported: No
- Headset: N/A
- Maximum Capture Capability:
- USB™ 3.0: 3840 x 2160 @ 30
- USB™ 2.0: 1280 x 720 @30
- Maximum Capture Refresh Rate: 4K30 fps, 2K60 fps, 1080p120 fps
- Max Display Refresh Rate: N/A
- Microphone: N/A
- Input Current: 1.5A
- Input Voltage: 5V
- Output Current: N/A
- Output Voltage: N/A
- Power Consumption: ≤ 530mA
- Power Delivery: N/A
- Cable Length: 7.87 in. (20 cm)
- Color: Black
- Enclosure Type: Aluminum
- Operating Humidity: <80% non-condensing
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Product Depth: 0.56 in. (14.14 mm)
- Product Height: 2.83 in. (72 mm)
- Product Weight: 1.94 oz (55g)
- Product Width: 1.61 in. (41 mm)
- Storage Humidity: <85% non-condensing
- Storage Temperature: 14 to 149°F (-10 – 65?)
- Package Contents+
- 1 - JVA11 4K HDMI™ Capture Adapter
- 1 - Quick Installation Guide (QIG)
- Reviews+
- Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended)
- Windows® 7 or later
- macOS® 10.12 or later
- Android™ 8.1 or later
- Chrome OS™ with UVC support
- CPU: Intel® Core™ i7 6700HQ & above
- GPU: NVIDA® GTX 960M & above
- RAM: 8 GB or higher
- Windows®: OBS™, XSplit® Broadcaster
- Mac®: OBS™, QuickTime®
- Android™: CameraFi™
- HDMI™ input for capturing
- 4K video and audio high-performance record through USB-C® 3.2 Gen 1
- UVC standard - No driver installation required
- Ultra-low latency stream through USB-C® 3.2 Gen 1 connection
- Field production made easy with its compact size
- Audio Input: 1 - HDMI™ Female
- Audio Output: N/A
- Audio Switcher: N/A
- Host Connector: 1 - USB-C® 3.2 Gen 1 Female (Type-A to USB-C®)
- Ports:
- 1 - USB-C® 3.2 Gen 1 (Host)
- 1 - HDMI™ Input
- Power Source: N/A
- Video Input: 1 - HDMI™ Female
- Video Output: N/A
- Video Switcher: N/A
- Warranty: 2 Year Limited
- Audio Channel: 2.1 via HDMI™
- Audio Frequency: 48 kHz
- Compressions:
- USB™ 3.0: RGB / YUV4:2:2 / YUV4:2:0
- USB™ 2.0: YUV4:2:0
- Hdmi Input Resolutions: 3840 x 2160 @ 30
- Hdr Supported: No
- Headset: N/A
- Maximum Capture Capability:
- USB™ 3.0: 3840 x 2160 @ 30
- USB™ 2.0: 1280 x 720 @30
- Maximum Capture Refresh Rate: 4K30 fps, 2K60 fps, 1080p120 fps
- Max Display Refresh Rate: N/A
- Microphone: N/A
- Input Current: 1.5A
- Input Voltage: 5V
- Output Current: N/A
- Output Voltage: N/A
- Power Consumption: ≤ 530mA
- Power Delivery: N/A
- Cable Length: 7.87 in. (20 cm)
- Color: Black
- Enclosure Type: Aluminum
- Operating Humidity: <80% non-condensing
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Product Depth: 0.56 in. (14.14 mm)
- Product Height: 2.83 in. (72 mm)
- Product Weight: 1.94 oz (55g)
- Product Width: 1.61 in. (41 mm)
- Storage Humidity: <85% non-condensing
- Storage Temperature: 14 to 149°F (-10 – 65?)
- 1 - JVA11 4K HDMI™ Capture Adapter
- 1 - Quick Installation Guide (QIG)
4K HDMI™ Capture Adapter
Record or stream high resolution video content with a compact 4K capture device. The USB-C® cable includes a USB™ Type-A adapter for increased device compatibility and works with a variety of video capture software. USB™ 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.
System Requirements:
Computer
Hardware
Performance
Power
Physical Specifications
4K HDMI™ Capture Adapter
Record or stream high resolution video content with a compact 4K capture device. The USB-C® cable includes a USB™ Type-A adapter for increased device compatibility and works with a variety of video capture software. USB™ 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.
