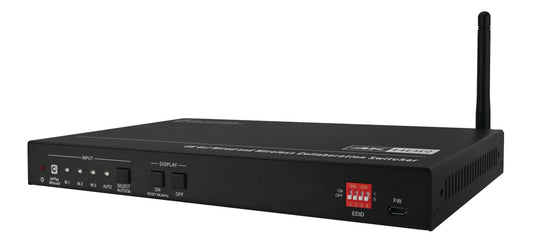

Evolution 4K 4×1 Multi-Format Wireless Collaboration Switcher w/ Wired & Wireless Connectivity
SKU#: EVSW4K41
UPC#:741835118453
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 4×1 collaboration switcher with wired and wireless connectivity
- Perfect solution for conference room and presentation applications
- Supports Miracast/Airplay for wireless connection
- Supports HDMI 2.0b, 4K@60Hz, 4:4:4, HDR and HDCP 2.2 with HDR
- HDR10 and Dolby Vision compatible
- Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast
- Soft Codex capabilities for integration with 3rd party video conferencing software
- Provides up to 60w charging, USB data (USB 3.0/2.0) and 4K video transmission on USB-C port
- Audio de-embedding built in to break out audio to an amplifier or audio distribution system
- Two type-B USB ports for host connection; two type-A USB ports for USB devices such as webcams, mouse, keyboard, etc
- Auto-switching mode
- Smart EDID management
- Front panel buttons trigger both CEC and RS232 commands for display control
- Dimensions: 9.37” x 1” x 5.3” (238mm x 24.5mm x 135mm)
- Specs+
- Package Contents+
- EVSW4K41 Collaboration Switcher
- (1) 5-pin Phoenix Connector
- (1) External Antenna
- (1) RS-232 Cable (3-pin to DB9)
- (2) Mounting Ears and (4) Mounting Screws
- 24V DC 5A Power Adapter
- Product Manual
- Reviews+
- 4×1 collaboration switcher with wired and wireless connectivity
- Perfect solution for conference room and presentation applications
- Supports Miracast/Airplay for wireless connection
- Supports HDMI 2.0b, 4K@60Hz, 4:4:4, HDR and HDCP 2.2 with HDR
- HDR10 and Dolby Vision compatible
- Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast
- Soft Codex capabilities for integration with 3rd party video conferencing software
- Provides up to 60w charging, USB data (USB 3.0/2.0) and 4K video transmission on USB-C port
- Audio de-embedding built in to break out audio to an amplifier or audio distribution system
- Two type-B USB ports for host connection; two type-A USB ports for USB devices such as webcams, mouse, keyboard, etc
- Auto-switching mode
- Smart EDID management
- Front panel buttons trigger both CEC and RS232 commands for display control
- Dimensions: 9.37” x 1” x 5.3” (238mm x 24.5mm x 135mm)
- EVSW4K41 Collaboration Switcher
- (1) 5-pin Phoenix Connector
- (1) External Antenna
- (1) RS-232 Cable (3-pin to DB9)
- (2) Mounting Ears and (4) Mounting Screws
- 24V DC 5A Power Adapter
- Product Manual
Evolution 4K Multi-Format Wireless Collaboration Switcher

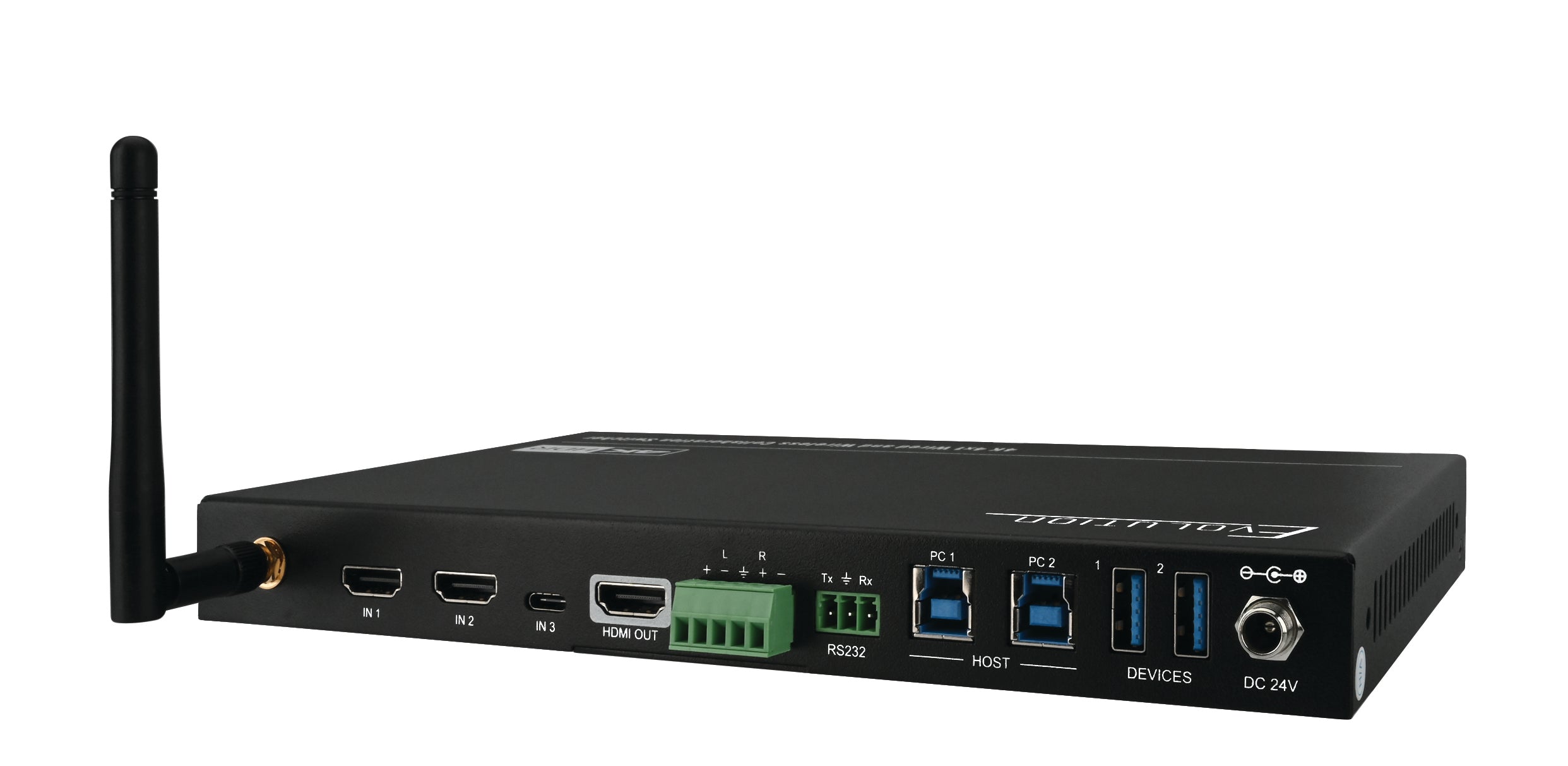

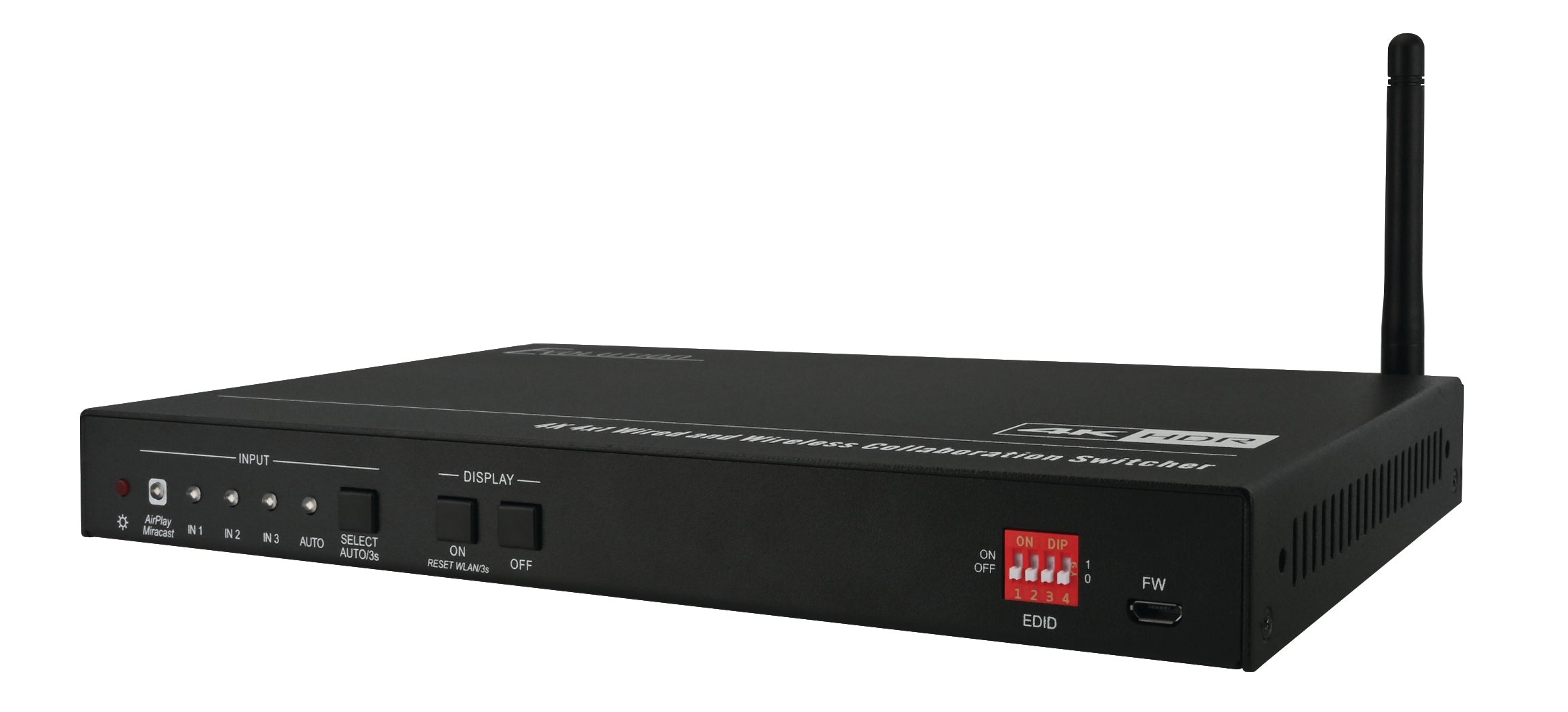

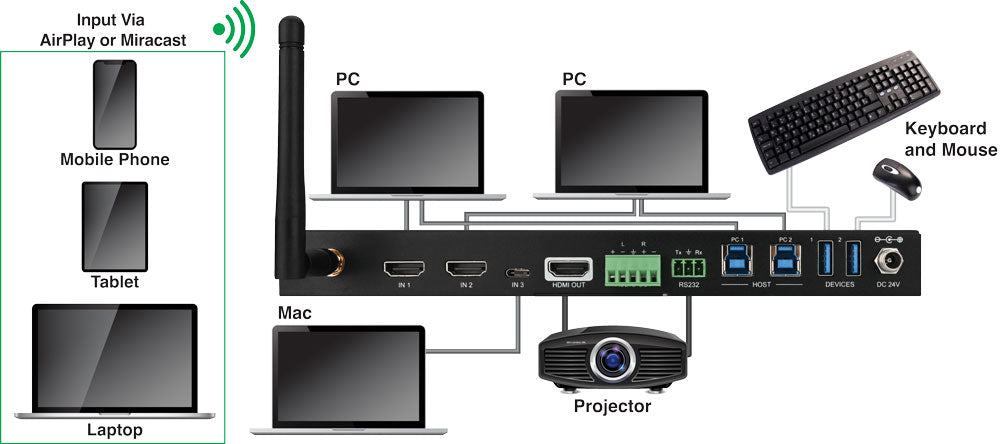

The EVSW4K41 Evolution by Vanco 4K 4x1 wired and wireless collaboration switcher features a wireless Miracast/Airplay input, two HDMI inputs, and one USB-C input to a single HDMI output. Switch from multiple presenters to one display wired or wirelessly. With both Miracast and Airplay support, cast wirelessly from computers, tablets, and mobile devices to the display with ease. Supports HDMI 2.0b, 4K@60Hz, 4:4:4, HDR and HDCP 2.3. HDMI audio de-embedding built in to break out audio to an amplifier or audio distribution system. USB 3.0 device extension by providing two type-B USB ports for host connection, and two type-A USB ports for USB devices such as camera, microphone, keyboard etc., as well as soft codec capabilities to easily integrate with video conferencing software. Control with 3rd party systems via RS232 commands, in addition to manual and “auto” switching modes. For any presentation and collaboration needs that requires multiple presenters to switch to and from wired and wirelessly, with options for audio and USB, the EVSW4K41 is the perfect solution.
Evolution 4K Multi-Format Wireless Collaboration Switcher
The EVSW4K41 Evolution by Vanco 4K 4x1 wired and wireless collaboration switcher features a wireless Miracast/Airplay input, two HDMI inputs, and one USB-C input to a single HDMI output. Switch from multiple presenters to one display wired or wirelessly. With both Miracast and Airplay support, cast wirelessly from computers, tablets, and mobile devices to the display with ease. Supports HDMI 2.0b, 4K@60Hz, 4:4:4, HDR and HDCP 2.3. HDMI audio de-embedding built in to break out audio to an amplifier or audio distribution system. USB 3.0 device extension by providing two type-B USB ports for host connection, and two type-A USB ports for USB devices such as camera, microphone, keyboard etc., as well as soft codec capabilities to easily integrate with video conferencing software. Control with 3rd party systems via RS232 commands, in addition to manual and “auto” switching modes. For any presentation and collaboration needs that requires multiple presenters to switch to and from wired and wirelessly, with options for audio and USB, the EVSW4K41 is the perfect solution.
