Current Audio Signature Series FIT801FL 8" In-ceiling Loudspeaker
SKU#: FIT801FL
UPC#:895524002322Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 8" Premier Series In-ceiling speaker
- FIT Focused Image Technology with fully aimable woofer that pivots 25 degrees per side and rotates 360 degrees
- 8" woofer injection molded carbon fiber cone w/butyl rubber surround
- Diffractionless pivoting tweeter 1" aluminum dome Ferrofluid cooled
- PPL positive positioning lock that allows the entire woofer assembly to be locked in place after positioning
- 3 position crossover adjustments for bass and treble levels
- Rustproof aluminum FastLoc grille
- Frequency response 38Hz - 20kHz
- Impedance 8 ohms
- Power handling 5 - 150 watts
- SPL 91.5 dB 1w/1m
- Specs+
- Reviews+
- 8" Premier Series In-ceiling speaker
- FIT Focused Image Technology with fully aimable woofer that pivots 25 degrees per side and rotates 360 degrees
- 8" woofer injection molded carbon fiber cone w/butyl rubber surround
- Diffractionless pivoting tweeter 1" aluminum dome Ferrofluid cooled
- PPL positive positioning lock that allows the entire woofer assembly to be locked in place after positioning
- 3 position crossover adjustments for bass and treble levels
- Rustproof aluminum FastLoc grille
- Frequency response 38Hz - 20kHz
- Impedance 8 ohms
- Power handling 5 - 150 watts
- SPL 91.5 dB 1w/1m
Note: This product has been discontinued.
Premier Series 8" 2-Way, FIT In-Ceiling, Infinite Baffle Loudspeaker w/FastLoc™ Grille
Product Information

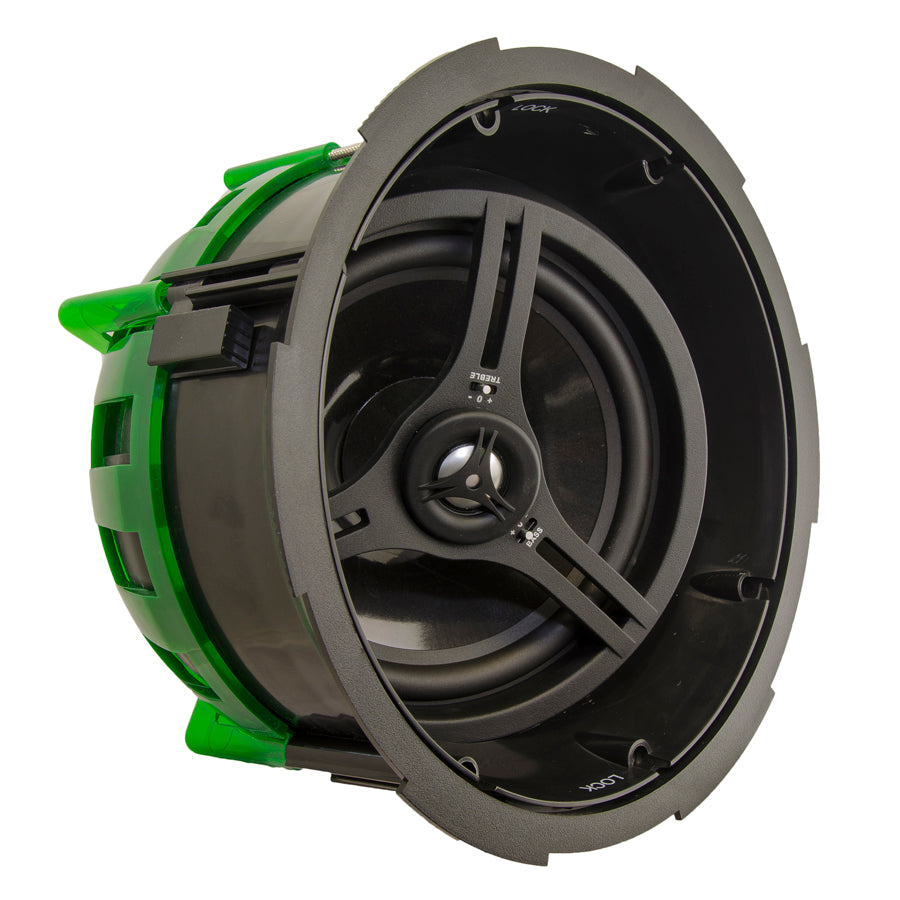

The easy to install FIT801FL is a full-range ceiling loudspeaker with Focused Image Technology™. It incorporates an Injection Molded Carbon Fiber woofer with a butyl rubber surround and the diffraction-less aluminum dome pivoting Ferrofluid cooled tweeter. This Patent Pending pivoting tweeter allows for deeper penetration into the room and a concentrated sound to the sweet spot. This revolutionary combination provides superior and more natural sound for both foreground and background applications.

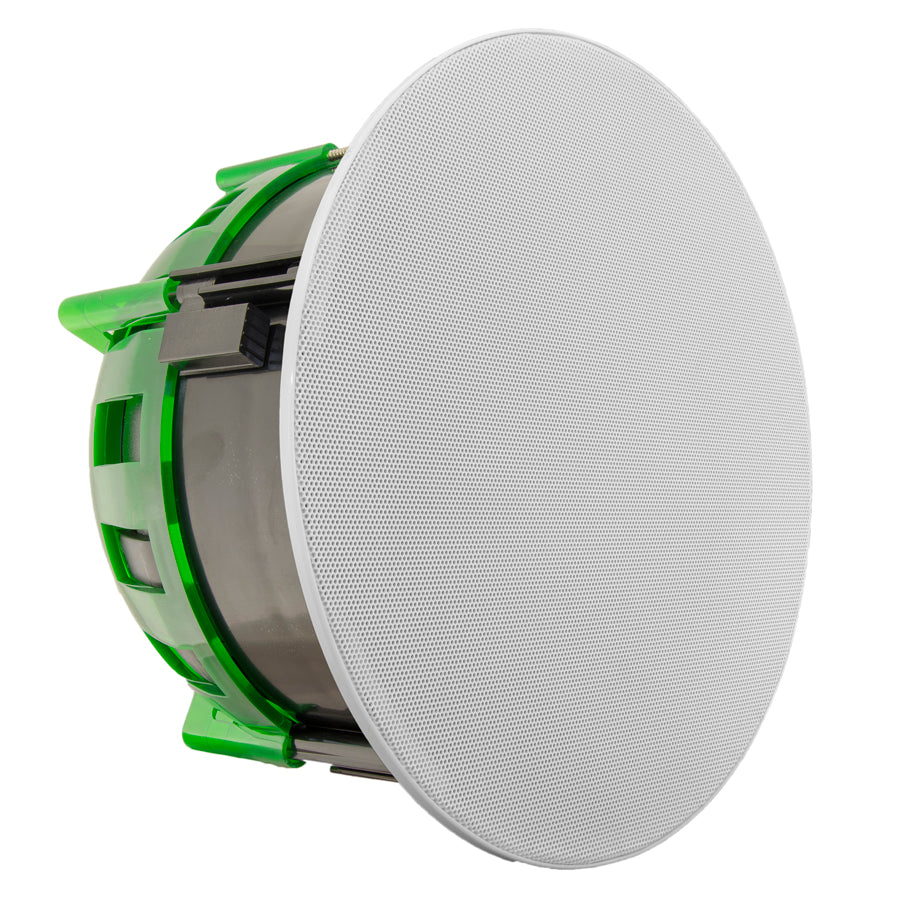

The FastLoc grill patent no. 8,422,722, is a feature found only at Current Audio. Our design has allowed for the smallest exposed plastic bezel in the industry, truly making it disappear into the mounting surface. The FastLoc grill's unique patent pending mechanism allows for a quick installation and removal of the grill while securely fastening it in place to all types of mounting surfaces. Due to the unique design the grill will conform to uneven surfaces including popcorn, heavy textured and uneven ceilings. While our competitors have chosen to utilize magnets in their designs thus requiring the use of a steel grill that will rust our design allows us to use corrosion and rust resistant aluminum.

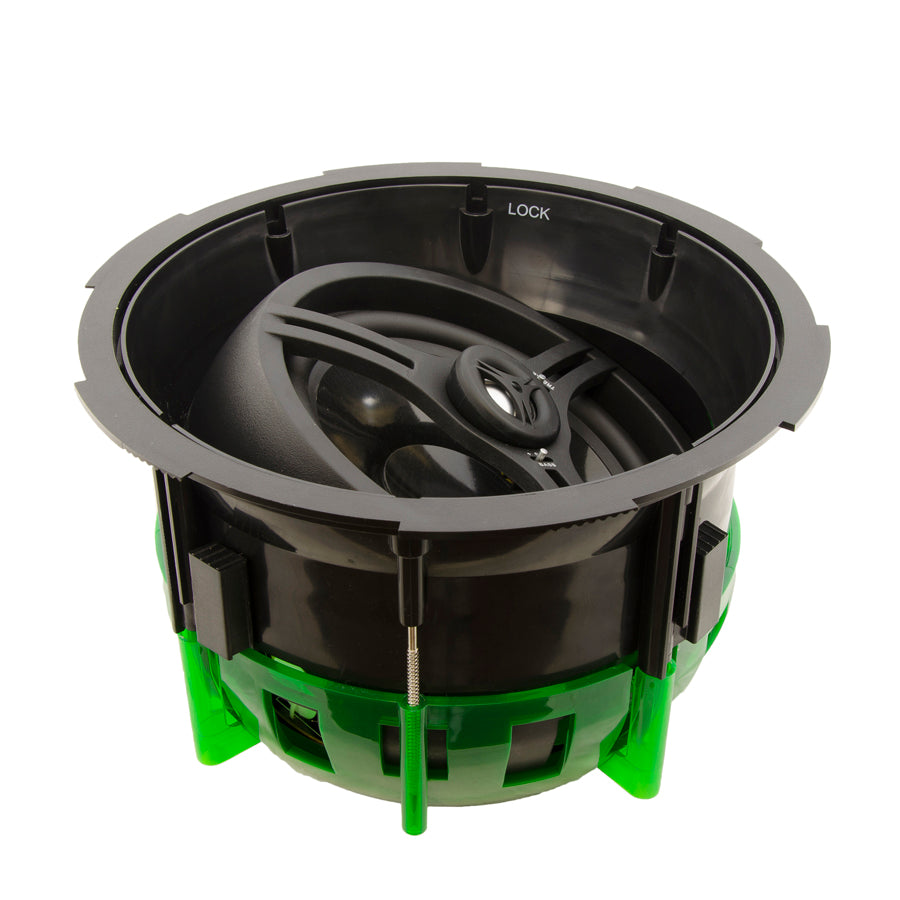

The FIT series speakers additionally incorporate the unique Patent Pending Three Dimensional Positioning (3-DP) woofer. This design allows the user to separately adjust the angle, tilt and rotation of the woofer so you can direct the sound where you want it, not where you install it.
The Positive Position Lock system (PPL) uses two screws on either side of the woofer that pull the back plane tight and locks the position in place.
The Infinite Baffle design makes it the ideal choice for typical applications in open beam attic or enclosed ceilings.
For efficiency and consistency the FIT801FL is timbre matched to the CS801FL and WS801FL series of speakers
The speaker color is white, and is a close match to Frazee White Shadow 181. It can be painted to match any decor. The speaker enclosure is a durable UV-resistant material that allows for both indoor and outdoor installations. The perforated powder-coated aluminum alloy grill is long lasting, corrosion resistant and rust-free.

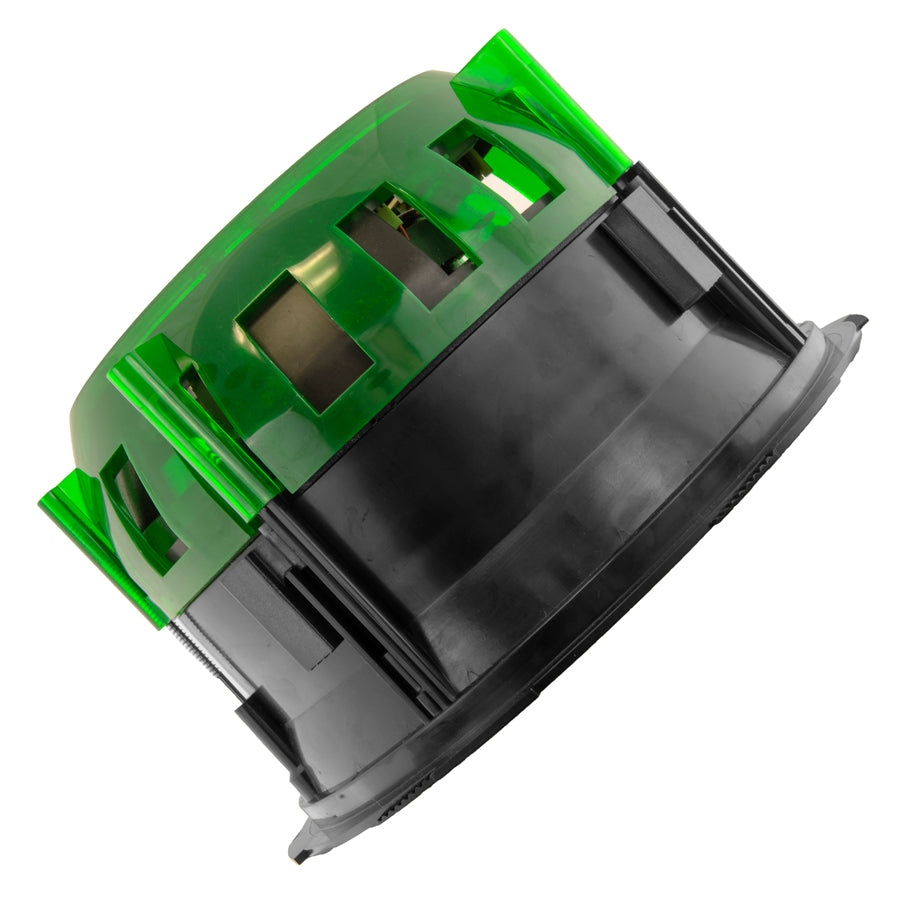

Four built-in expanding transverse dogleg clamps permit installation with or with out pre-wire construction brackets in drywall or material with thickness of 5/16" to 1 5/16".

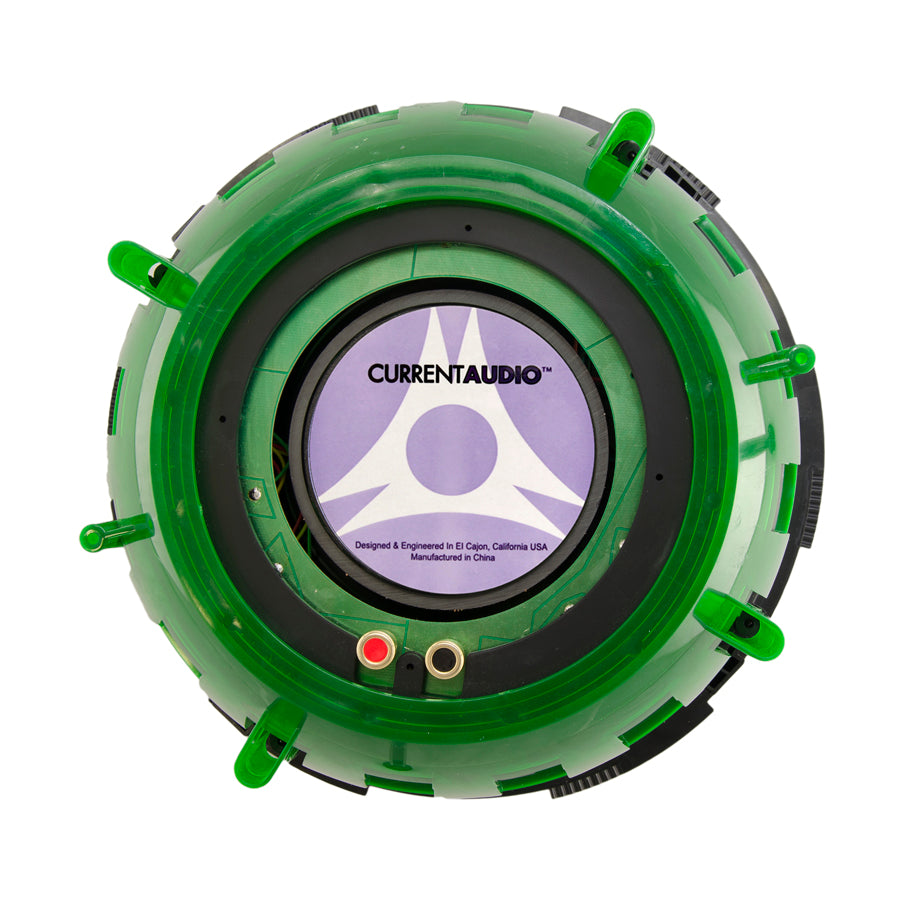

Electrical connection, up to 12 gauge wire, is made by gold plated constant tension spring-loaded terminals.
With our limited 5 year warranty you are assured years of superior trouble free operation.
| Driver | 8” Injection Molded Carbon Fiber Cone with Butyl Rubber Surround |
| Driver Pivoting Angle | 50° |
| Tweeter | Diffractionless 1” (25mm) Pivoting, Ceramic Coated Aluminum Dome Tweeter, Ferrofluid Cooled |
| Tweeter Pivoting Angle | 36° |
| Crossover | 3 position EQ switches for Driver and Tweeter adjustments, gold press terminals |
| Frequency Response | 40Hz - 20kHz |
| Impedance | 8, 6 or 4 ohms dependent on driver setting |
| Power Handling | 5 - 125 Watts |
| SPL | 90 dB 1W/1m |
| Diameter X Depth | 11 1/2” (292 mm) x 7 3/16” (182mm) |
| Retrofit Cutout Diameter | 10 7/16” (265mm) |
| FastLoc Grille Diameter | 11 13/16" (300mm) |
| Bracket Type | NC8FITCBi |
Note: This product has been discontinued.
Premier Series 8" 2-Way, FIT In-Ceiling, Infinite Baffle Loudspeaker w/FastLoc™ Grille
Product Information
The easy to install FIT801FL is a full-range ceiling loudspeaker with Focused Image Technology™. It incorporates an Injection Molded Carbon Fiber woofer with a butyl rubber surround and the diffraction-less aluminum dome pivoting Ferrofluid cooled tweeter. This Patent Pending pivoting tweeter allows for deeper penetration into the room and a concentrated sound to the sweet spot. This revolutionary combination provides superior and more natural sound for both foreground and background applications.
The FastLoc grill patent no. 8,422,722, is a feature found only at Current Audio. Our design has allowed for the smallest exposed plastic bezel in the industry, truly making it disappear into the mounting surface. The FastLoc grill's unique patent pending mechanism allows for a quick installation and removal of the grill while securely fastening it in place to all types of mounting surfaces. Due to the unique design the grill will conform to uneven surfaces including popcorn, heavy textured and uneven ceilings. While our competitors have chosen to utilize magnets in their designs thus requiring the use of a steel grill that will rust our design allows us to use corrosion and rust resistant aluminum.
The FIT series speakers additionally incorporate the unique Patent Pending Three Dimensional Positioning (3-DP) woofer. This design allows the user to separately adjust the angle, tilt and rotation of the woofer so you can direct the sound where you want it, not where you install it.
The Positive Position Lock system (PPL) uses two screws on either side of the woofer that pull the back plane tight and locks the position in place.
The Infinite Baffle design makes it the ideal choice for typical applications in open beam attic or enclosed ceilings.
For efficiency and consistency the FIT801FL is timbre matched to the CS801FL and WS801FL series of speakers
The speaker color is white, and is a close match to Frazee White Shadow 181. It can be painted to match any decor. The speaker enclosure is a durable UV-resistant material that allows for both indoor and outdoor installations. The perforated powder-coated aluminum alloy grill is long lasting, corrosion resistant and rust-free.
Four built-in expanding transverse dogleg clamps permit installation with or with out pre-wire construction brackets in drywall or material with thickness of 5/16" to 1 5/16".
Electrical connection, up to 12 gauge wire, is made by gold plated constant tension spring-loaded terminals.
With our limited 5 year warranty you are assured years of superior trouble free operation.
| Driver | 8” Injection Molded Carbon Fiber Cone with Butyl Rubber Surround |
| Driver Pivoting Angle | 50° |
| Tweeter | Diffractionless 1” (25mm) Pivoting, Ceramic Coated Aluminum Dome Tweeter, Ferrofluid Cooled |
| Tweeter Pivoting Angle | 36° |
| Crossover | 3 position EQ switches for Driver and Tweeter adjustments, gold press terminals |
| Frequency Response | 40Hz - 20kHz |
| Impedance | 8, 6 or 4 ohms dependent on driver setting |
| Power Handling | 5 - 125 Watts |
| SPL | 90 dB 1W/1m |
| Diameter X Depth | 11 1/2” (292 mm) x 7 3/16” (182mm) |
| Retrofit Cutout Diameter | 10 7/16” (265mm) |
| FastLoc Grille Diameter | 11 13/16" (300mm) |
| Bracket Type | NC8FITCBi |
