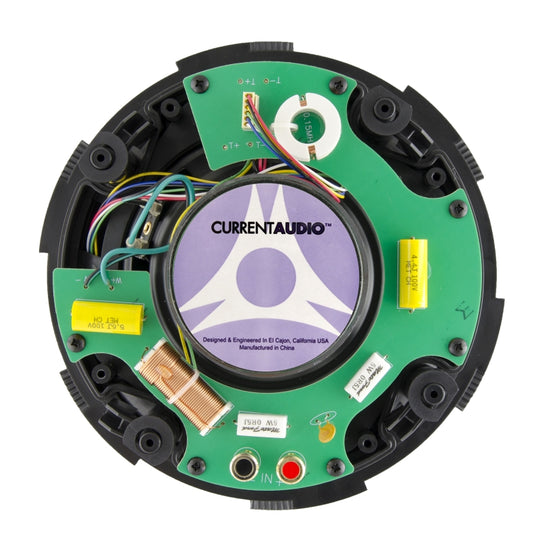

Current Audio Signature Series CS650DBFL 6.5" Low Profile, In-ceiling Loudspeaker
SKU#: CS650DBFL
UPC#:895524002919Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 6.5" Signature Series In-ceiling speaker
- Dipole / bipole surround speaker
- 6.5" Woofer Metaplex composite cone w/butyl rubber surround
- Dual fixed tweeters 1" silk dome Ferrofluid cooled
- Crossover adjustment for dipole / bipole setting
- Rustproof aluminum FastLoc grille
- Frequency response 42Hz - 20kHz
- Impedance 8 ohms
- Power handling 5 - 100 watts
- SPL 90 dB 1w/1m
- Specs+
- Reviews+
- 6.5" Signature Series In-ceiling speaker
- Dipole / bipole surround speaker
- 6.5" Woofer Metaplex composite cone w/butyl rubber surround
- Dual fixed tweeters 1" silk dome Ferrofluid cooled
- Crossover adjustment for dipole / bipole setting
- Rustproof aluminum FastLoc grille
- Frequency response 42Hz - 20kHz
- Impedance 8 ohms
- Power handling 5 - 100 watts
- SPL 90 dB 1w/1m
Note: This product has been discontinued.
Signature Series 6.5" Low Profile, Dipole/Bipole, In-Ceiling, Infinite Baffle, Loudspeaker w/FastLoc™ Grille Pair
Product Information
The easy to install CS series Dipole/Bipole FastLoc™ speakers are a full range ceiling loudspeaker that incorporates high tech woofer materials with a butyl rubber surround and two fixed angle state-of-the-art Ferrofluid cooled dome tweeters.
This revolutionary combination provides superior and more natural wider big sound close to what you would experience in a movie theater that has multiple surround speakers. The dual purpose speaker is the perfect choice for both Side Surround and Surround Back applications in one package.

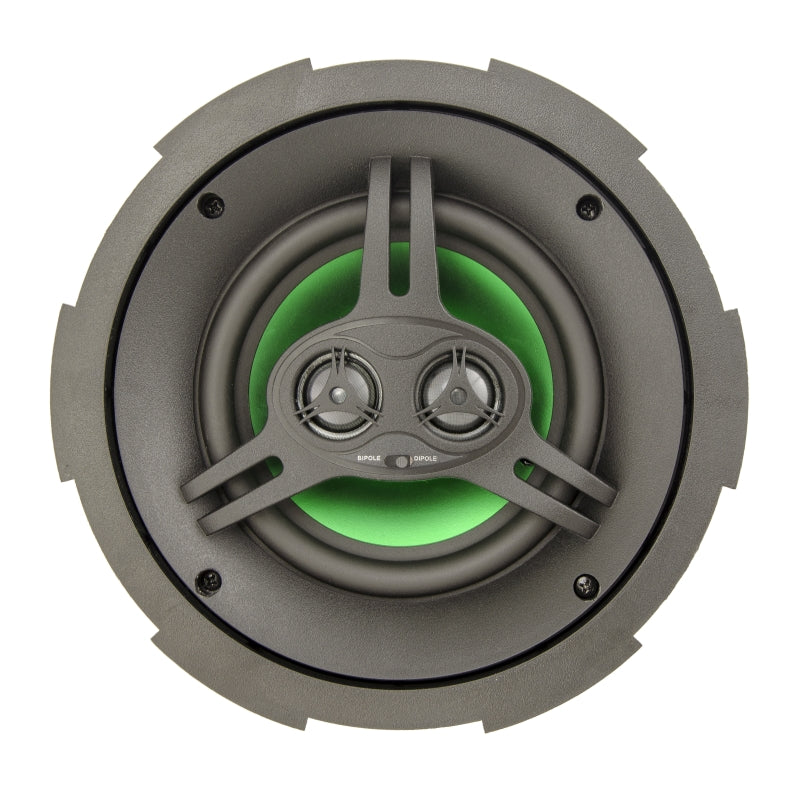

A simple switch on the Tweeter Bridge allows you to choose either Dipole for Side Surround or Bipole for the Surround Back function. In the Dipole function the tweeters are purposely out of phase to create a Null around the listening area that detunes the localization for ambience. When set to Bipole the tweeters are in phase to enhance localization for Dolby Digital EX, DTS-ES and THX EX. The Infinite Baffle design makes it the ideal choice for typical applications in open beam attic or enclosed ceilings.
For efficiency and consistency the CS65DBFL series are timbre matched to the CS, FIT, FIT FastLoc and WS series of speakers.
It also features the revolutionary FastLocâ„¢ zero edge quick connect grille. Architects and designers have resisted the size of the traditional bezel. The FastLocâ„¢ feature, found only at Current Audio, exhibits the smallest exposed bezel that virtually disappears into the ceiling. But the major feature is the Patent Pending design that allows for rapid install that conforms to uneven surfaces. This prevents the grille from falling off even in earthquakes and does not collect ferric dust on magnets.
The FastLoc™ speaker grille color is white, and is a close match to Frazee White Shadow 181. It can be painted to match any decor. The speaker enclosure is a durable UV-resistant material that allows for both indoor and outdoor installations. The speaker is weather-resistant.
Unlike other grilles that use magnets to hold them on they must be made of steel that will rust. The perforated powder-coated aluminum alloy grille is long-lasting, corrosion resistant and rust-free.

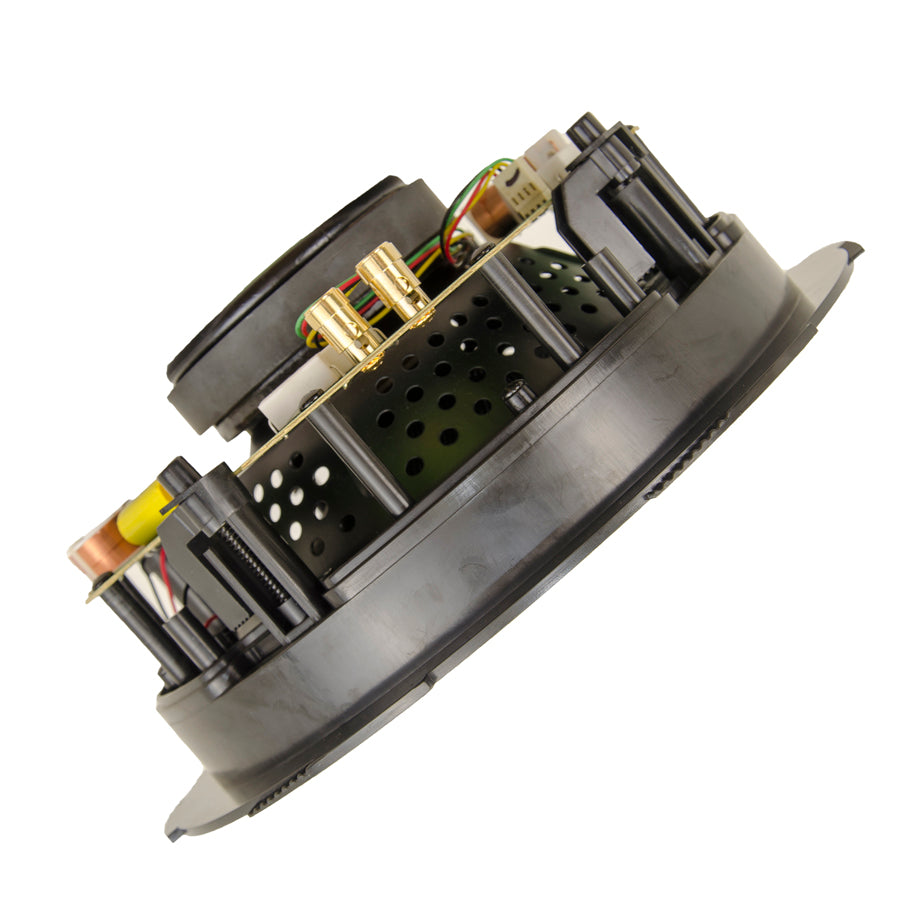

Four built-in expanding transverse dog leg clamps permit installation with or without pre-wire construction brackets in drywall or material with thickness of 7/32" to 1 3/16".
Electrical connection, up to 12 gauge wire, is made by two gold plated constant tension spring-loaded terminals.
With our limited 5 Year warranty you are assured years of superior trouble free operation.
| Driver | 6.5” MetaPlex™ Composite Cone with Butyl Rubber Surround |
| Tweeter | Two 1” (25mm) Pivoting, Silk Dome Dome Tweeter, Ferrofluid Cooled |
| Frequency Response | 42Hz - 20kHz |
| Impedance | 8 Ohms adjustable tweeters, selectable dipole or bipole |
| Power Handling | 5 - 100 Watts |
| SPL | 90dB 1W/1m |
| Diameter X Depth | 9 3/8” (237mm) x 3 7/8” (98mm) |
| Retrofit Cutout Diameter | 8 1/4” (210mm) |
| FastLoc Grille Diameter | 9 3/4" (247mm) |
| Bracket Type | NC6CB |
Note: This product has been discontinued.
Signature Series 6.5" Low Profile, Dipole/Bipole, In-Ceiling, Infinite Baffle, Loudspeaker w/FastLoc™ Grille Pair
Product Information
The easy to install CS series Dipole/Bipole FastLoc™ speakers are a full range ceiling loudspeaker that incorporates high tech woofer materials with a butyl rubber surround and two fixed angle state-of-the-art Ferrofluid cooled dome tweeters.
This revolutionary combination provides superior and more natural wider big sound close to what you would experience in a movie theater that has multiple surround speakers. The dual purpose speaker is the perfect choice for both Side Surround and Surround Back applications in one package.
A simple switch on the Tweeter Bridge allows you to choose either Dipole for Side Surround or Bipole for the Surround Back function. In the Dipole function the tweeters are purposely out of phase to create a Null around the listening area that detunes the localization for ambience. When set to Bipole the tweeters are in phase to enhance localization for Dolby Digital EX, DTS-ES and THX EX. The Infinite Baffle design makes it the ideal choice for typical applications in open beam attic or enclosed ceilings.
For efficiency and consistency the CS65DBFL series are timbre matched to the CS, FIT, FIT FastLoc and WS series of speakers.
It also features the revolutionary FastLocâ„¢ zero edge quick connect grille. Architects and designers have resisted the size of the traditional bezel. The FastLocâ„¢ feature, found only at Current Audio, exhibits the smallest exposed bezel that virtually disappears into the ceiling. But the major feature is the Patent Pending design that allows for rapid install that conforms to uneven surfaces. This prevents the grille from falling off even in earthquakes and does not collect ferric dust on magnets.
The FastLoc™ speaker grille color is white, and is a close match to Frazee White Shadow 181. It can be painted to match any decor. The speaker enclosure is a durable UV-resistant material that allows for both indoor and outdoor installations. The speaker is weather-resistant.
Unlike other grilles that use magnets to hold them on they must be made of steel that will rust. The perforated powder-coated aluminum alloy grille is long-lasting, corrosion resistant and rust-free.
Four built-in expanding transverse dog leg clamps permit installation with or without pre-wire construction brackets in drywall or material with thickness of 7/32" to 1 3/16".
Electrical connection, up to 12 gauge wire, is made by two gold plated constant tension spring-loaded terminals.
With our limited 5 Year warranty you are assured years of superior trouble free operation.
| Driver | 6.5” MetaPlex™ Composite Cone with Butyl Rubber Surround |
| Tweeter | Two 1” (25mm) Pivoting, Silk Dome Dome Tweeter, Ferrofluid Cooled |
| Frequency Response | 42Hz - 20kHz |
| Impedance | 8 Ohms adjustable tweeters, selectable dipole or bipole |
| Power Handling | 5 - 100 Watts |
| SPL | 90dB 1W/1m |
| Diameter X Depth | 9 3/8” (237mm) x 3 7/8” (98mm) |
| Retrofit Cutout Diameter | 8 1/4” (210mm) |
| FastLoc Grille Diameter | 9 3/4" (247mm) |
| Bracket Type | NC6CB |
