BZBGEAR 4-Channel/Input HDMI Live Streaming Video/Audio Production Switcher and Mixer with Intergrated Capture Card
SKU#: BG-HDVS42U
UPC#:850023208798
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally customer configuration import and export
- Specs+
- Package Contents+
- 1x BG-HDVS42U
- 1x Power supply (12V 2A)
- 1x USB cable (type A-C)
- 1x Tally connector (DB-15)
- Reviews+
- Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators
- LAN port for PC software remote control
- FTB/ MUTE/ STILL/ GPIO for tally customer configuration import and export
- 1x BG-HDVS42U
- 1x Power supply (12V 2A)
- 1x USB cable (type A-C)
- 1x Tally connector (DB-15)

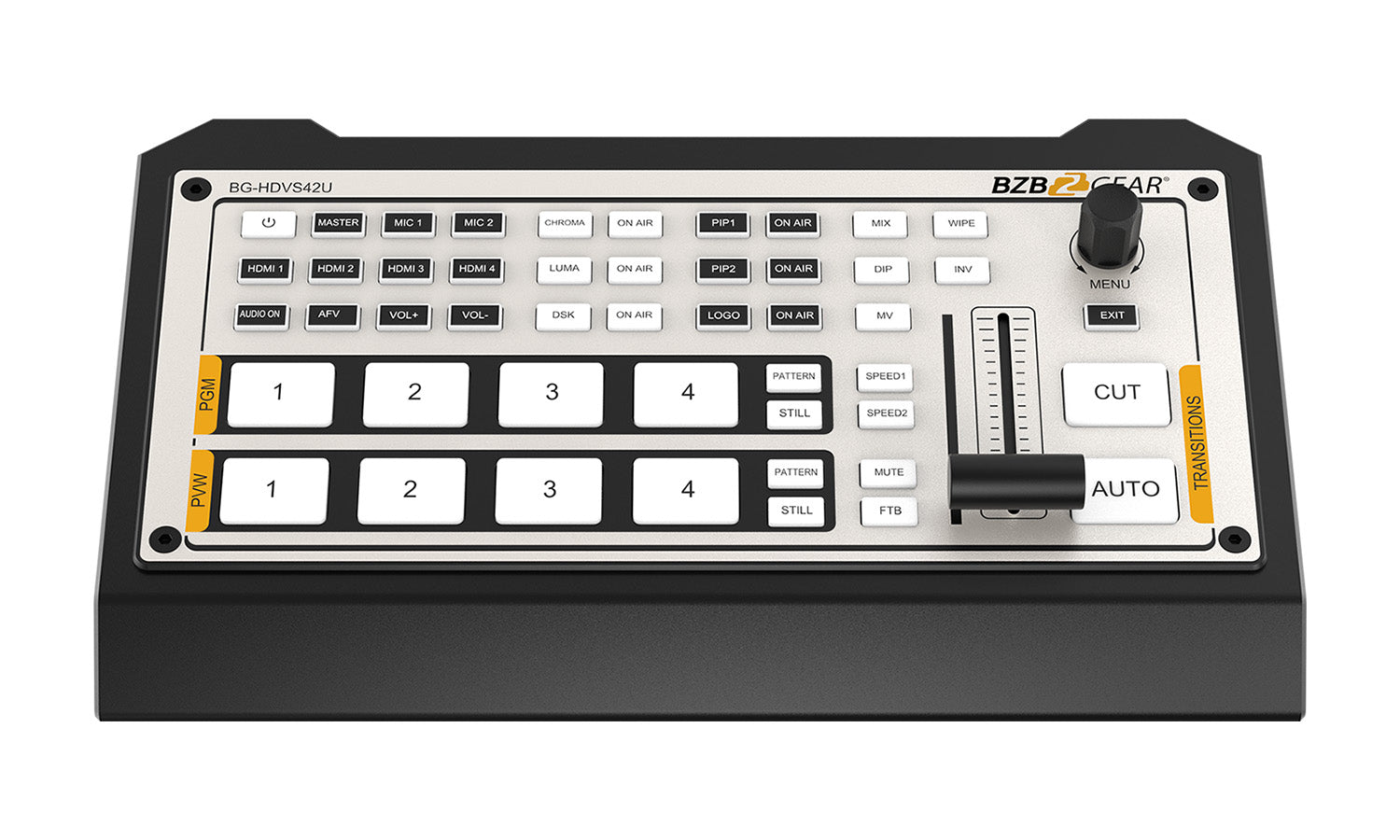

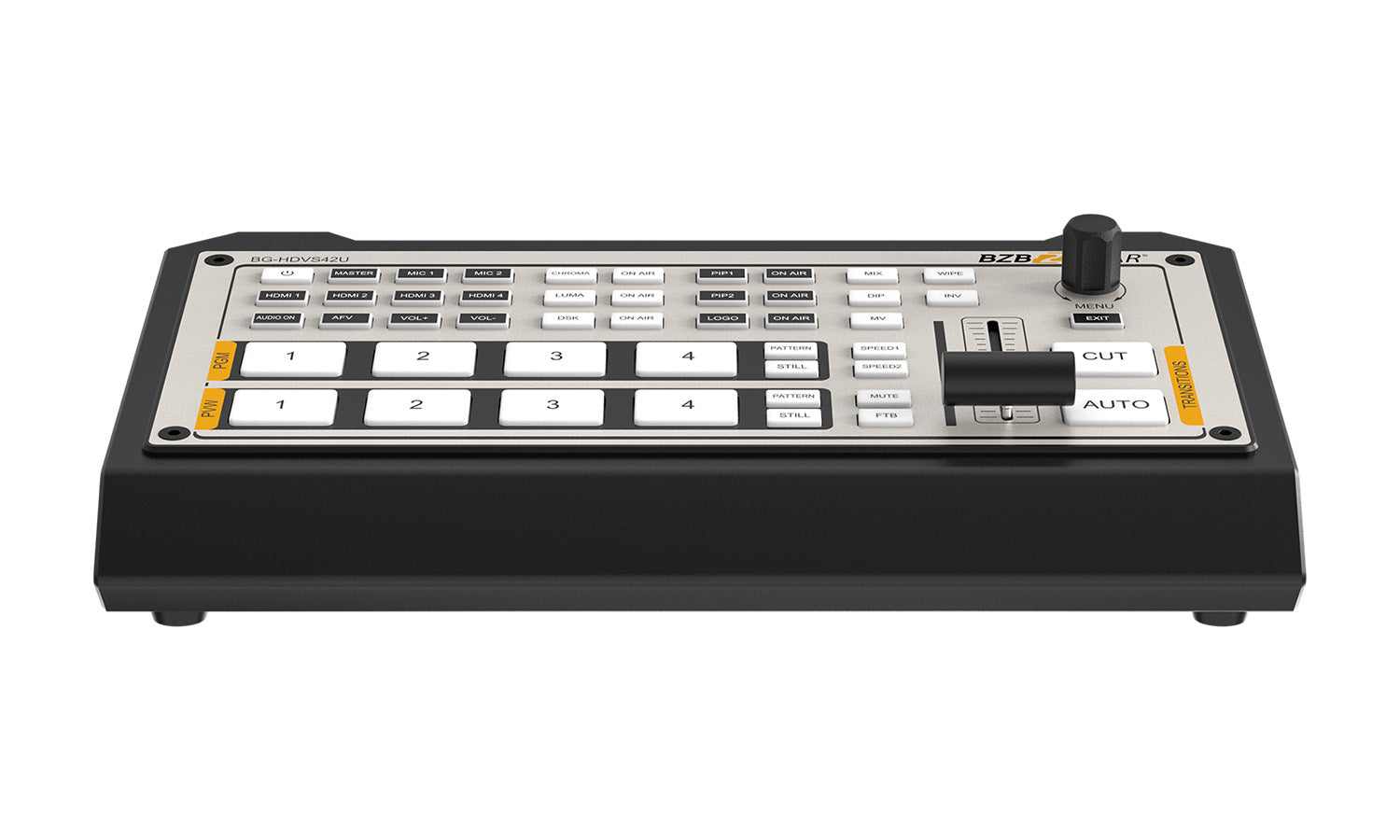

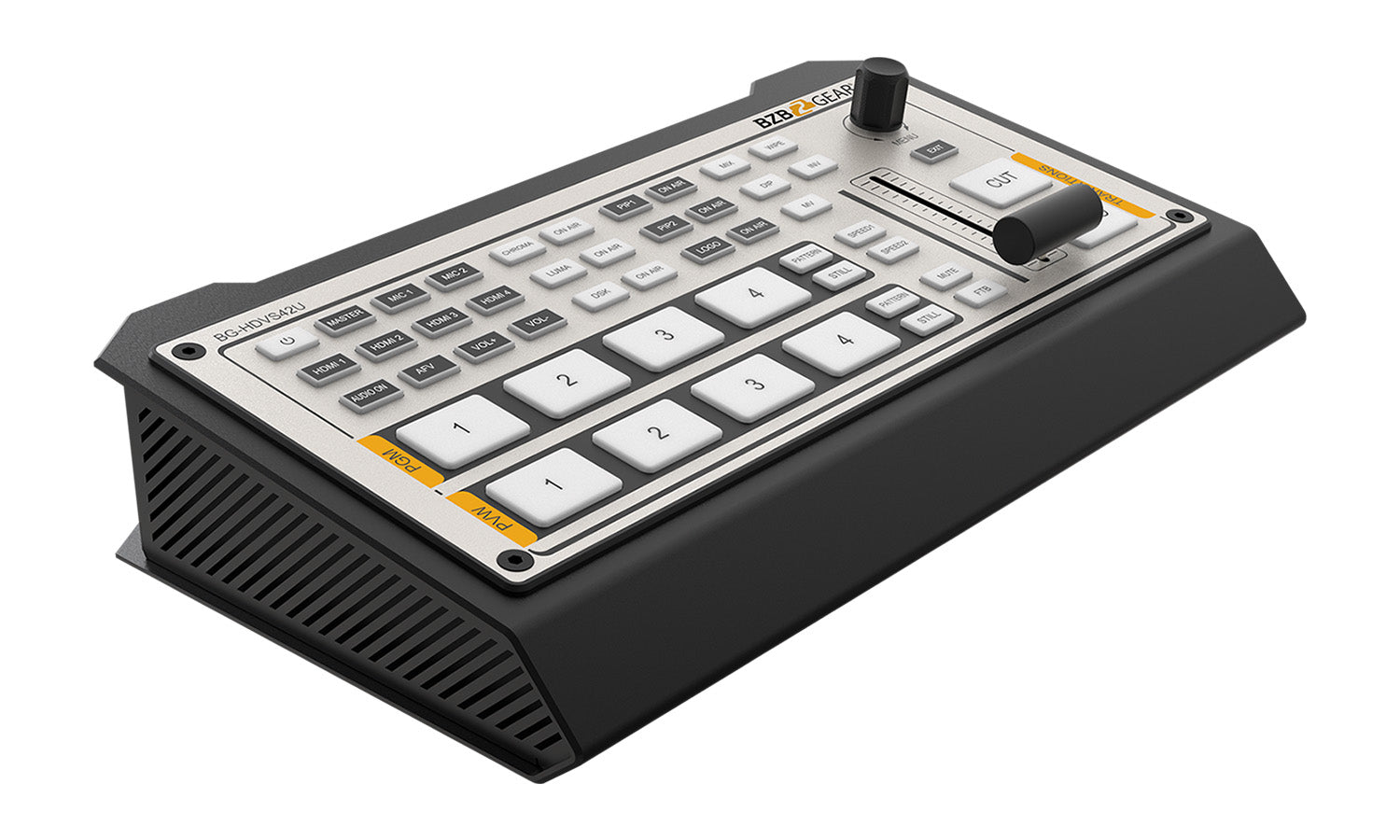

BZBGEAR 4-Channel/Input HDMI Switcher And Mixer
Compact and versatile, the BG-HDVS42U HDMI production switcher provides users with a powerful set of features designed to deliver professional-quality results. With full audio mixing capabilities, multiple transition options, graphic overlays, PC software utility, and USB-C program output, the BG-HDVS42U provides high-performance and tremendous value.
Connectivity and Features

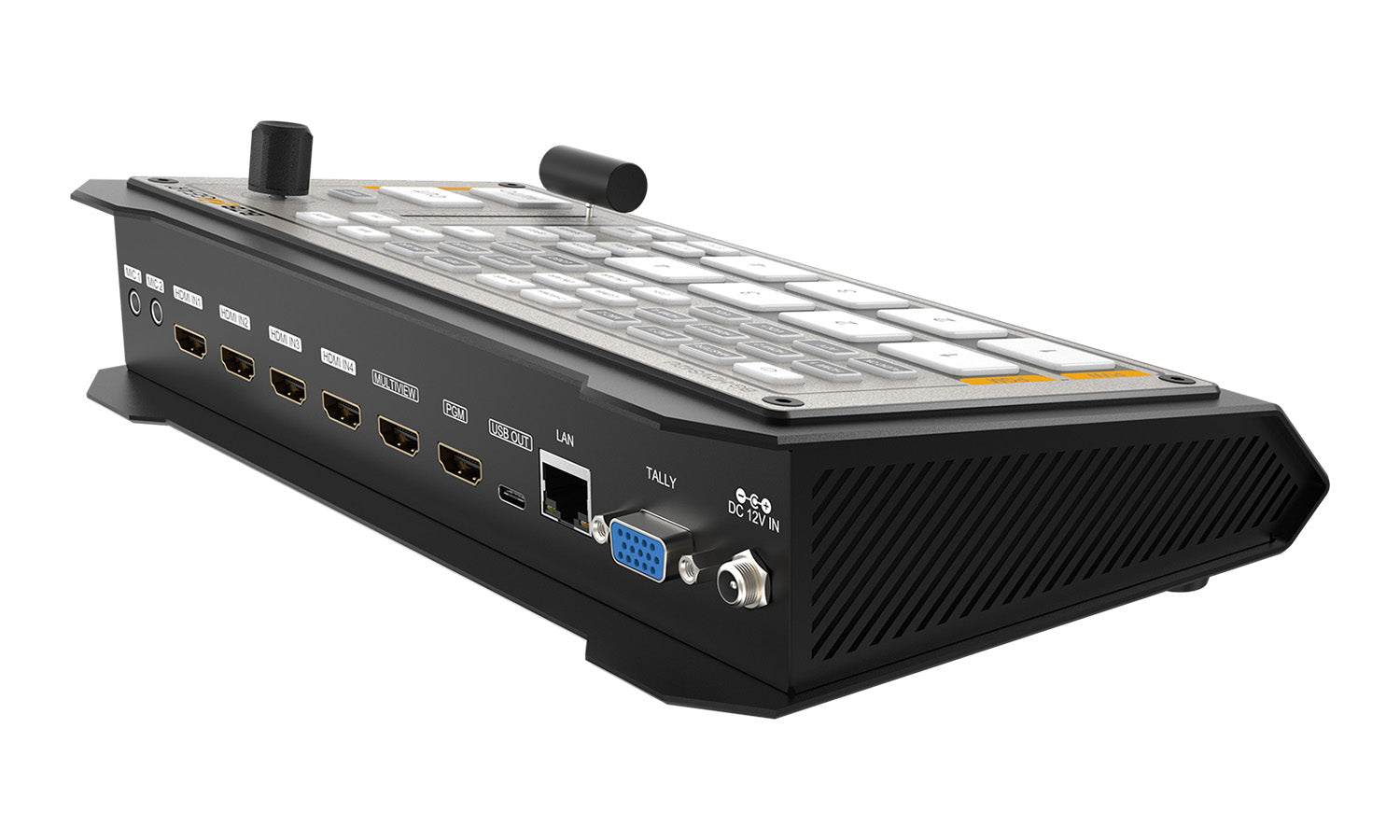

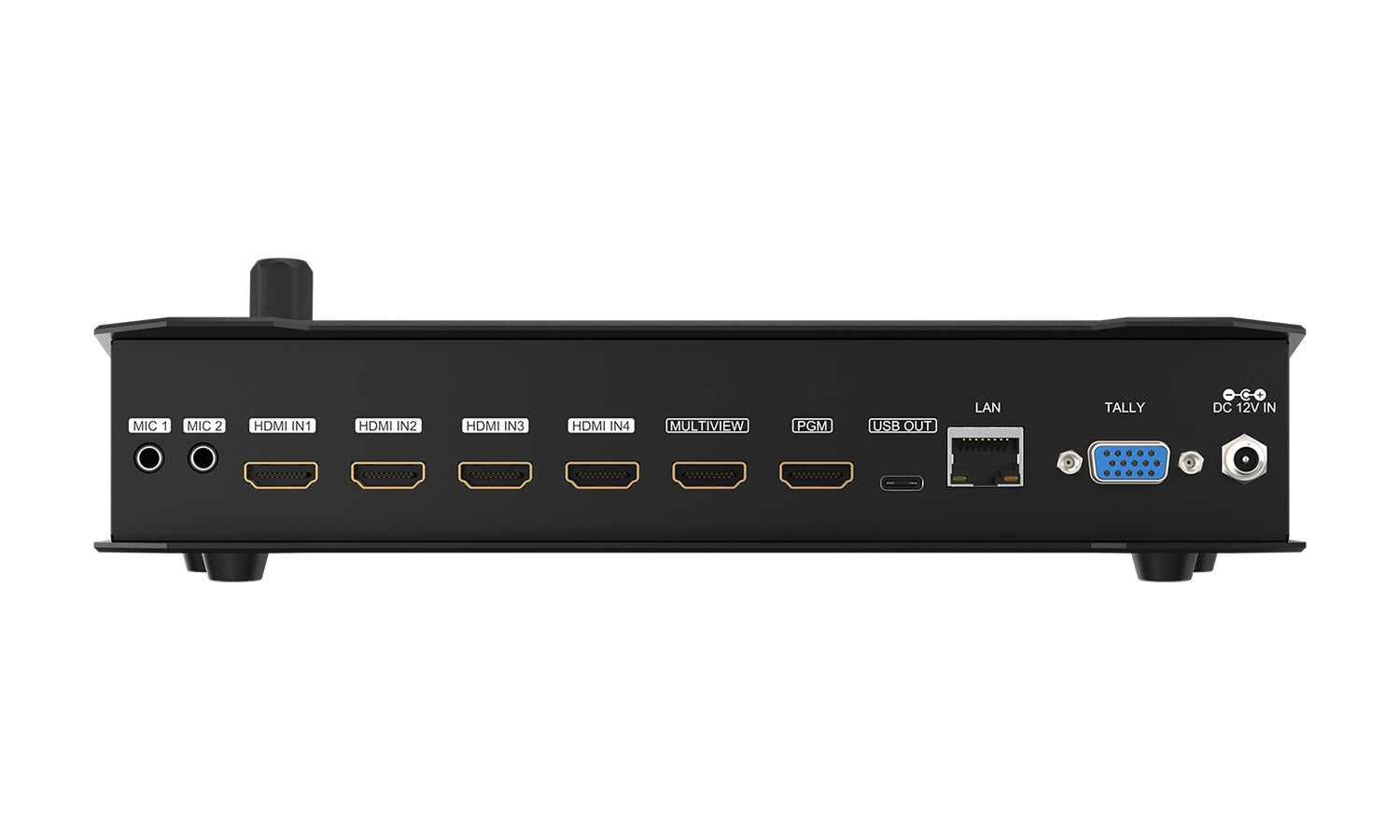

The BG-HDVS42U’s four HDMI inputs support resolutions up to 1080p@60Hz. Video outputs include one HDMI program output, one HDMI multiview output, and one USB type-C output. Audio can be de-embedded from all four HDMI sources and mixed with the two 3.5mm analog inputs. Each audio channel can be delayed to ensure proper sync with the video signal. The mixed audio is embedded to the HDMI and USB-C program outputs. The DB-15 Tally connection provides support for compatible systems.
Control
The BG-HDVS42U includes a full-featured PC control utility, offering enhanced access to all functions including switching, mixing, luma and chroma key, PIP, and POP. DSK and Logo overlays can also be controlled.
A variety of transition effects include such as wipe, mix, and dip. The integrated media library comes with 49 default patterns, 16 imported images, 16 captured images, and two-color generators. Graphics can be imported and overlayed using this library, enabling operators to utilize their own custom logos and overlays for video output.
Interface
 |
1. 2x MIC/Line level IN: 3.5mm stereo mini line in microphone.
|
HDMI
4 inputs, 1 PGM out, 1 multiview out
Integrated Capture
USB-C output for recording or streaming via PC
Media Library
Import graphics for custom logos and overlays
Audio Inputs
2 x 3.5mm inputs for microphones or external audio feeds
Audio Mixer
Mix HDMI embedded audio, analog inputs, supports audio delay function
T-bar/Auto/Cut
T-bar/Auto/Cut transitions; various effects: WIPE (9x2 patterns)/MIX/DIP
BZBGEAR 4-Channel/Input HDMI Switcher And Mixer
Compact and versatile, the BG-HDVS42U HDMI production switcher provides users with a powerful set of features designed to deliver professional-quality results. With full audio mixing capabilities, multiple transition options, graphic overlays, PC software utility, and USB-C program output, the BG-HDVS42U provides high-performance and tremendous value.
Connectivity and Features
The BG-HDVS42U’s four HDMI inputs support resolutions up to 1080p@60Hz. Video outputs include one HDMI program output, one HDMI multiview output, and one USB type-C output. Audio can be de-embedded from all four HDMI sources and mixed with the two 3.5mm analog inputs. Each audio channel can be delayed to ensure proper sync with the video signal. The mixed audio is embedded to the HDMI and USB-C program outputs. The DB-15 Tally connection provides support for compatible systems.
Control
The BG-HDVS42U includes a full-featured PC control utility, offering enhanced access to all functions including switching, mixing, luma and chroma key, PIP, and POP. DSK and Logo overlays can also be controlled.
A variety of transition effects include such as wipe, mix, and dip. The integrated media library comes with 49 default patterns, 16 imported images, 16 captured images, and two-color generators. Graphics can be imported and overlayed using this library, enabling operators to utilize their own custom logos and overlays for video output.
Interface
|
1. 2x MIC/Line level IN: 3.5mm stereo mini line in microphone.
|
HDMI
4 inputs, 1 PGM out, 1 multiview out
Integrated Capture
USB-C output for recording or streaming via PC
Media Library
Import graphics for custom logos and overlays
Audio Inputs
2 x 3.5mm inputs for microphones or external audio feeds
Audio Mixer
Mix HDMI embedded audio, analog inputs, supports audio delay function
T-bar/Auto/Cut
T-bar/Auto/Cut transitions; various effects: WIPE (9x2 patterns)/MIX/DIP
