Bantam Tempest SA3600A Power Conditioning and PLE blocking component (120-240V, 15A)
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Download the one-pager (.PDF)

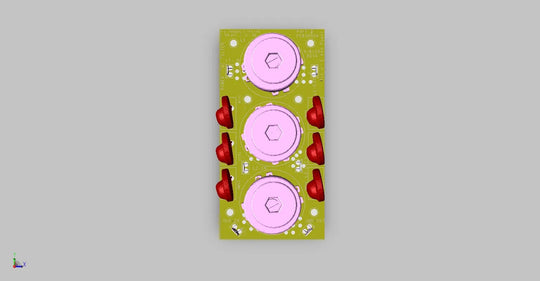

- Download the 3D model (.STL in a .ZIP)
- View the connection schematic (.PDF)
- Temperature tested at full power to remain under 90 degrees Celsius, so it may not require forced cooling in most applications.
- The same level and strength of protection as found in the Vanguard PP18004.
- Ideal for integration with Uninterruptible Power Supplies (UPS), electric welders, PLC and robotics applications and alarm and monitoring equipment installs.
- Features+
- Supports input power from 120-240 Volts, 15 amps at 50/60 Hertz
- UL recognized to IEC 62368-1

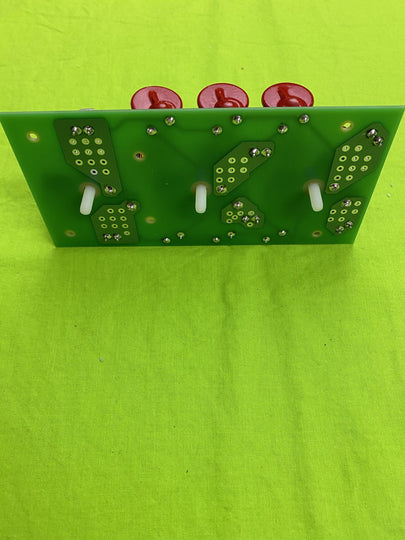

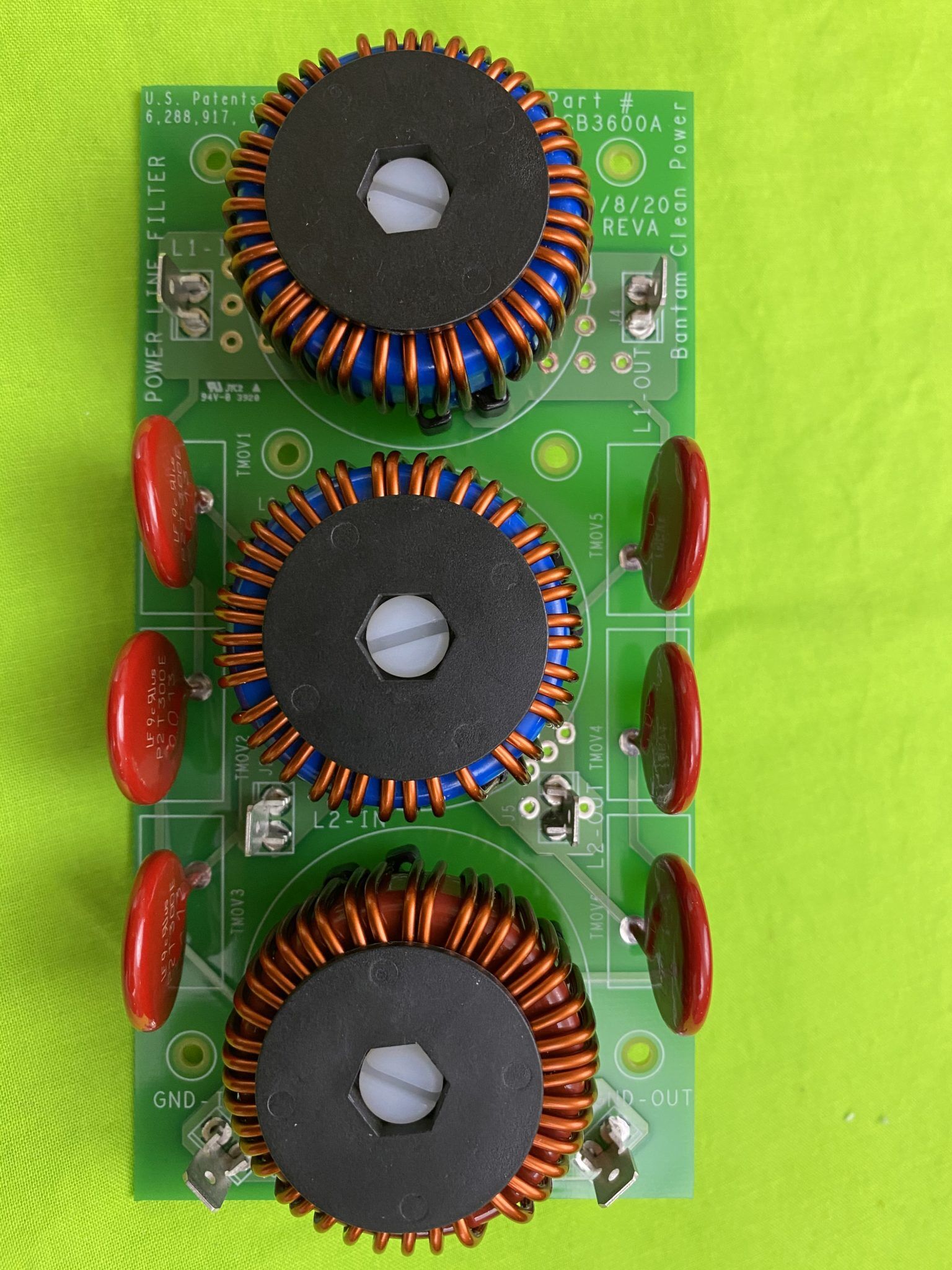

- Comes as a Printed Circuit Board Assembly with quick-connect 0.25" lugs for input and output connections
- Includes our patented surge suppression and ground filtering protection
- Temperature tested at full power to remain under 90 degrees Celsius, so it may not require forced cooling in most applications.
- The same level and strength of protection as found in the Vanguard PP18004.
- Ideal for integration with Uninterruptible Power Supplies (UPS), electric welders, PLC and robotics applications and alarm and monitoring equipment installs.
- Specs+
- Input and Output connectors: 0.25” QC spades
- Circuit Protection: User provided
- Input: 100—240 VAC Single Phase, 50/60 Hz
- Output: Same as input
- Maximum Current: 15 Amps
- Maximum Wattage: 3600 (3.6kW)
- Regulatory Compliance: UL IEC 62368-1 Component
- Power Factor: 0.99
- H x W x D (mm): 38x52 x153
- Weight (grams): 300
- Reviews+
- Download the one-pager (.PDF)
- Download the 3D model (.STL in a .ZIP)
- View the connection schematic (.PDF)
- Temperature tested at full power to remain under 90 degrees Celsius, so it may not require forced cooling in most applications.
- The same level and strength of protection as found in the Vanguard PP18004.
- Ideal for integration with Uninterruptible Power Supplies (UPS), electric welders, PLC and robotics applications and alarm and monitoring equipment installs.
- Supports input power from 120-240 Volts, 15 amps at 50/60 Hertz
- UL recognized to IEC 62368-1
- Comes as a Printed Circuit Board Assembly with quick-connect 0.25" lugs for input and output connections
- Includes our patented surge suppression and ground filtering protection
- Temperature tested at full power to remain under 90 degrees Celsius, so it may not require forced cooling in most applications.
- The same level and strength of protection as found in the Vanguard PP18004.
- Ideal for integration with Uninterruptible Power Supplies (UPS), electric welders, PLC and robotics applications and alarm and monitoring equipment installs.
- Input and Output connectors: 0.25” QC spades
- Circuit Protection: User provided
- Input: 100—240 VAC Single Phase, 50/60 Hz
- Output: Same as input
- Maximum Current: 15 Amps
- Maximum Wattage: 3600 (3.6kW)
- Regulatory Compliance: UL IEC 62368-1 Component
- Power Factor: 0.99
- H x W x D (mm): 38x52 x153
- Weight (grams): 300
Tempest Power Conditioning and PLE blocking component (120-240V, 15A)
An all-wire power conditioner component capable of blocking normal and common mode transients and surge energy as part of a complete electrical enclosure or UPS. The Tempest SA3600 is a wave-shaping and ground filtering device effective in suppressing harmful electrical signal emissions. Protected by U.S. Patent 8,223,468.
For the first time, Bantam Technology is offering our patented and industry-leading surge suppressor/power conditioner/PLE blocking solution, the Tempest SA3600A, as a component.
Key Benefits:
Electrical Ratings:
Physical Dimensions:
Performance:
Surge Energy Suppression
- More than 99% of all surge energy is blocked from operating loads during an event. UL 1449 Adjunct testing con- firms full surge protection and no degradation of device or protected equipment after 1280 sequential 6KV/500 8/20us ring-wave injections in a 24-hour period.
Reflected Signal Suppression
- The common mode has a broad resonance at 1 MHz providing approximately 18 dB of insertion loss, with no attenuating effects observed below 10 kHz. The differential mode has a broad resonance at 1 MHz with continued RF attenuation averaging approximately 25 dB to 30 MHz.
MIL-STD-4561: CS114 Test Results (conducted by NTS Labs, 2018)
- Significant suppression characteristics in the 1 MHz to 20 MHz frequency spectrum, which is commonly known to contain the majority of problematic EMI noise sources in nearly every industry platform.
Harmonics Filtration
- Current harmonic suppression varies based on the load impedance (current draw). In all cases, no suppression of the 60 Hz fundamental current was observed (as expected). Current harmonic suppression is greatest above 1 kHz to 6 kHz.
Tempest Power Conditioning and PLE blocking component (120-240V, 15A)
An all-wire power conditioner component capable of blocking normal and common mode transients and surge energy as part of a complete electrical enclosure or UPS. The Tempest SA3600 is a wave-shaping and ground filtering device effective in suppressing harmful electrical signal emissions. Protected by U.S. Patent 8,223,468.
For the first time, Bantam Technology is offering our patented and industry-leading surge suppressor/power conditioner/PLE blocking solution, the Tempest SA3600A, as a component.
Key Benefits:
Electrical Ratings:
Physical Dimensions:
Performance:
Surge Energy Suppression
- More than 99% of all surge energy is blocked from operating loads during an event. UL 1449 Adjunct testing con- firms full surge protection and no degradation of device or protected equipment after 1280 sequential 6KV/500 8/20us ring-wave injections in a 24-hour period.
Reflected Signal Suppression
- The common mode has a broad resonance at 1 MHz providing approximately 18 dB of insertion loss, with no attenuating effects observed below 10 kHz. The differential mode has a broad resonance at 1 MHz with continued RF attenuation averaging approximately 25 dB to 30 MHz.
MIL-STD-4561: CS114 Test Results (conducted by NTS Labs, 2018)
- Significant suppression characteristics in the 1 MHz to 20 MHz frequency spectrum, which is commonly known to contain the majority of problematic EMI noise sources in nearly every industry platform.
Harmonics Filtration
- Current harmonic suppression varies based on the load impedance (current draw). In all cases, no suppression of the 60 Hz fundamental current was observed (as expected). Current harmonic suppression is greatest above 1 kHz to 6 kHz.
