j5create JCD543 USB-C™ Triple Display Docking Station
SKU#: JCD543
UPC#:847626003363
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Available USB-C™ DisplayPort™ Alt mode
- Available USB-C™ port (USB™ 3.0 is recommended)
- Available USB™ power delivery over USB-C™ to support upstream charging
- 4K capable graphics card
- Microsoft® Windows® 10/ 8.1/ 7 (32-bit or 64-bit)
- macOS® 10.8 or later
- One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i5 Quad Core RAM: 4 GB memory or higher
- Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i7 Quad Core
- Higher processor recommended for multi-displays and optimal performance.
- Features+
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x1?Power delivery adapter in port x1
- USB™ Type-A downstream port Gen 1 5G x3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- Dual output through USB™ graphic HDMI™ with a resolution of 4K @ 30Hz and VGA with the resolution of 1920 x 1080 (download driver here)
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
- Specs+
- Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™ or Microsoft® wakeup frame
- Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
- Package Contents+
- USB-C™ Triple Monitor Docking Station
- Quick Installation Guide
- Reviews+
- Available USB-C™ DisplayPort™ Alt mode
- Available USB-C™ port (USB™ 3.0 is recommended)
- Available USB™ power delivery over USB-C™ to support upstream charging
- 4K capable graphics card
- Microsoft® Windows® 10/ 8.1/ 7 (32-bit or 64-bit)
- macOS® 10.8 or later
- One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i5 Quad Core RAM: 4 GB memory or higher
- Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
- CPU: Intel® Core™ i7 Quad Core
- Higher processor recommended for multi-displays and optimal performance.
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x1?Power delivery adapter in port x1
- USB™ Type-A downstream port Gen 1 5G x3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- Dual output through USB™ graphic HDMI™ with a resolution of 4K @ 30Hz and VGA with the resolution of 1920 x 1080 (download driver here)
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
- Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™ or Microsoft® wakeup frame
- Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
- USB-C™ Triple Monitor Docking Station
- Quick Installation Guide

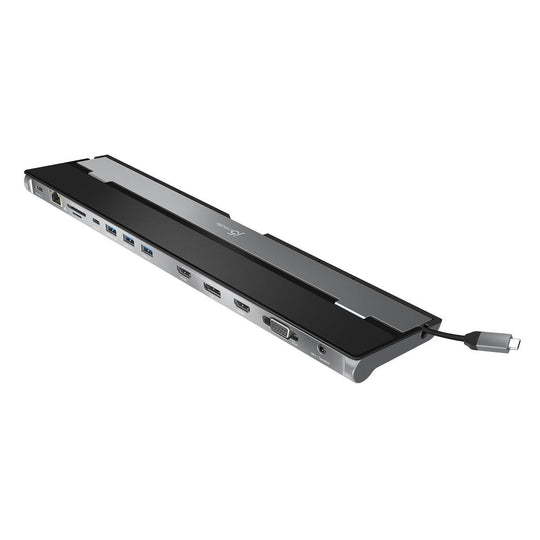

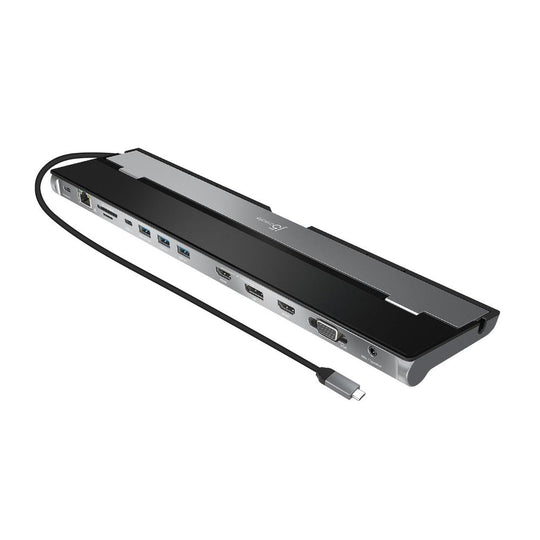

j5create JCD543 USB-C™ Triple Display Docking Station

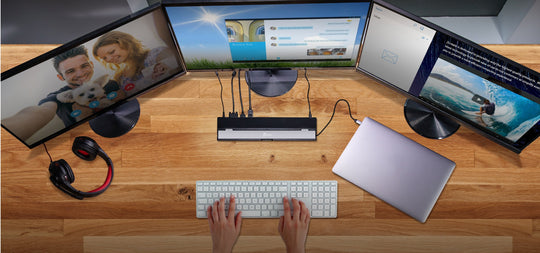

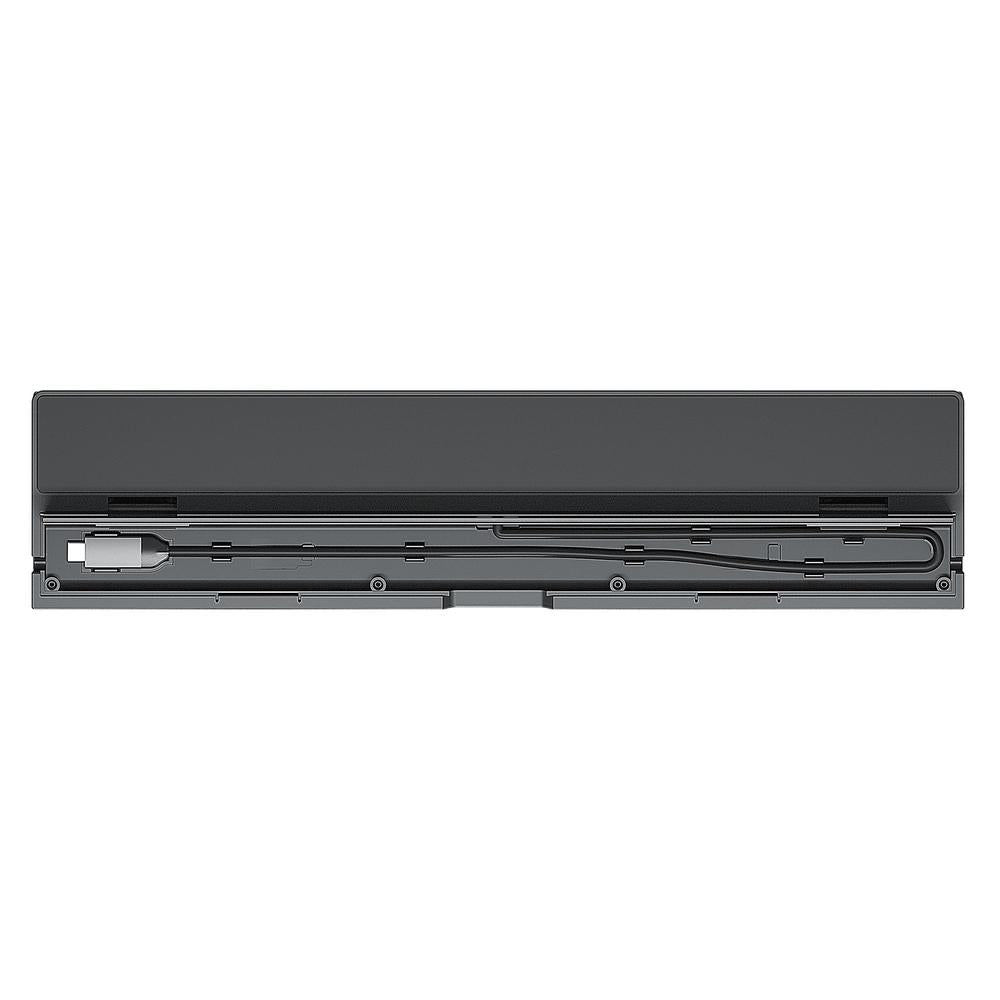

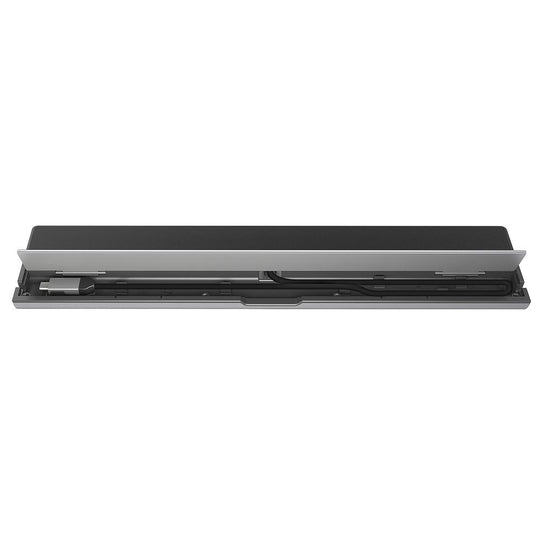

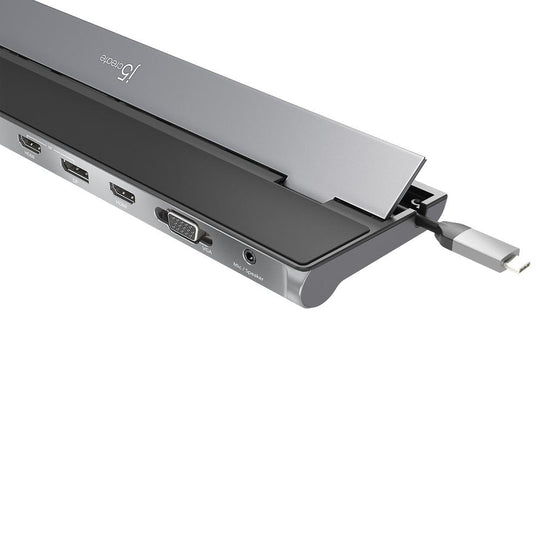

The j5create USB-C™ Triple Monitor Docking Station provides extra connectivity from your computer and extends to up to three monitors through HDMI™ , VGA and DisplayPort™ / HDMI™ . This docking station includes a NB stand that assists with heat dissipation and with its flexible USB-C™ cord, keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection. These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smart phone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smart phone while using the adapter.
USB-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. USB-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.
System Requirements
Extended Monitor System Requirements

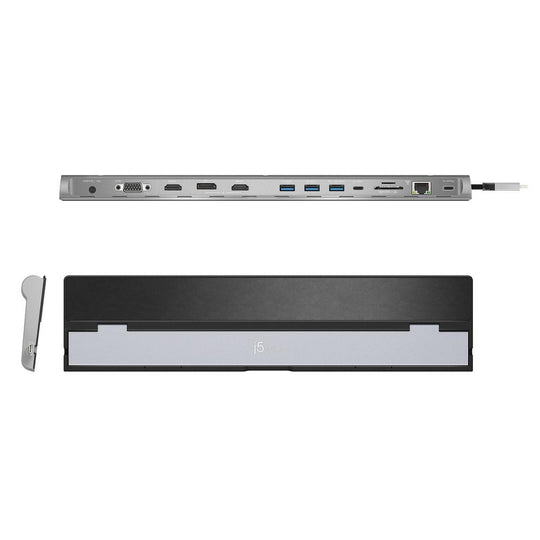

| Interface | |
|
Host Interface |
USB-C™ male connector with cable |
|

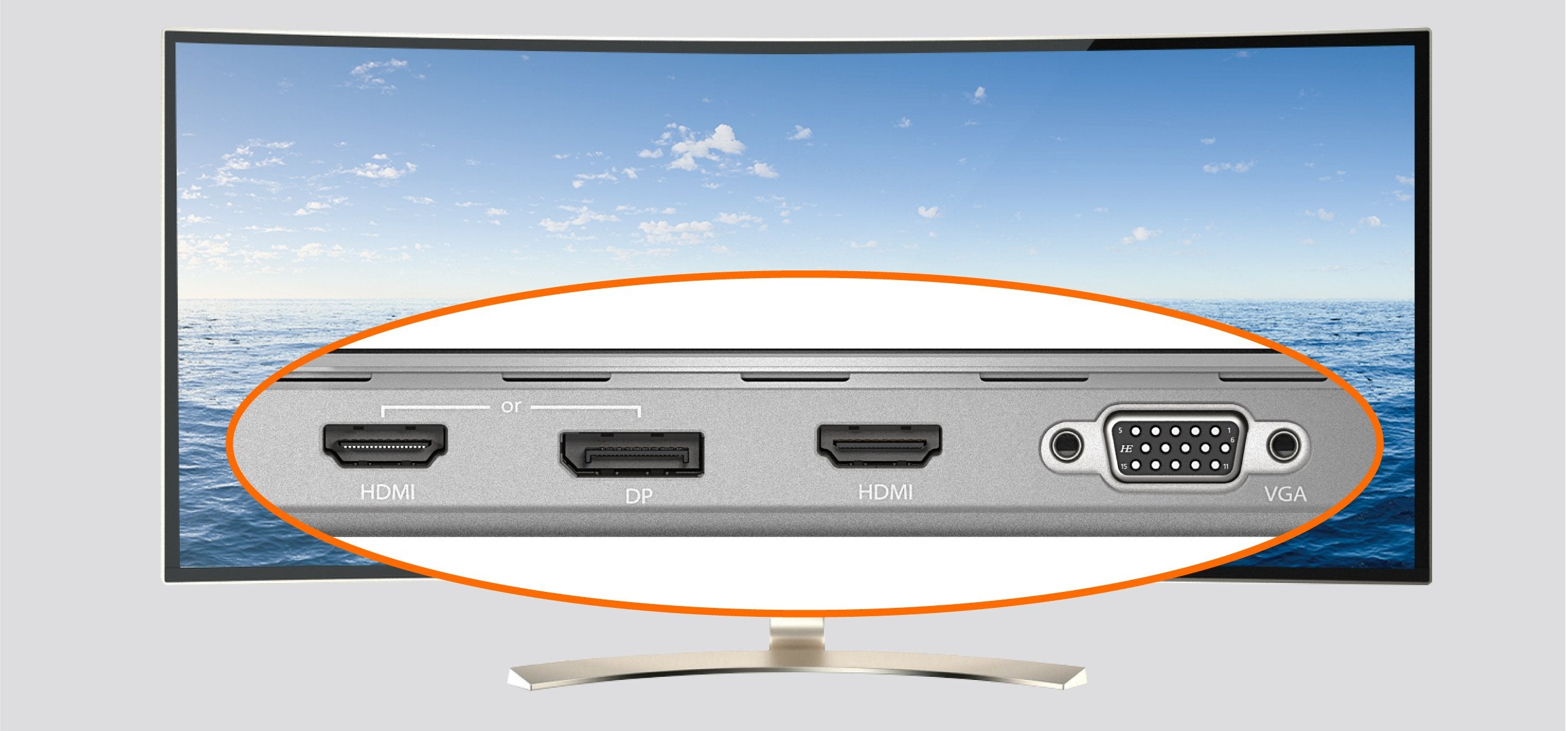

Video Interface |
HDMI™ female connector x 2 DisplayPort™ female connector x 1 VGA female connector x 1 |
|
USB-C™ Port |
USB-C™ downstream port female connector x 1 USB-C™ power in port female connector x1 |
|
Ethernet Port |
RJ45 female connector (Gigabit Ethernet) x 1 |
|
USB™ Port |
USB™ Type-A 3.1 5G female connector x 3 |
|
Card Slots |
SD™ 3.0 x 1 Slot microSD™ 3.0 x 1 Slot |
|
Combo Audio Jack |
Microphone and speaker |
| Power | |
|
Power Mode |
Bus-powered or self-powered |
| Functions | |
|
DisplayPort™ Alt Mode |
Display resolution: 4K @ 30 Hz |
|
HDMI™ |
Display resolution: 4K @ 30 Hz |
|
VGA |
Display resolution: 1920 x 1080 @ 60 Hz |
|
USB-C™ |
Power delivery 3.0 x 1 USB-C™ 3.1 port x 1 |
|
USB™ |
USB™ Type-A 3.1 port x 3 (USB™ 3.1 Gen 1/5 Gbps) BC 1.2 port x 1 |
|
Ethernet |
Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes: |
| Physical Specifications | |
|
Dimensions |
Main body: 3.24 (W) x 0.92 (H) x 13.78 (D) in. 82.5 (W) x 23.4 (H) x 350 (D) mm USB-C™ cable length: 1.5 ft/450 mm |
|
Weight |
Main body: Approximately: 0.66 lbs./300g |
| Environmental | |
|
Storage Temperature |
-10 – 65°C |
|
Storage Humidity |
< 85% non-condensing |
|
Operation Temperature |
0 – 40°C |
|
Operation Humidity |
< 85% non-condensing |
