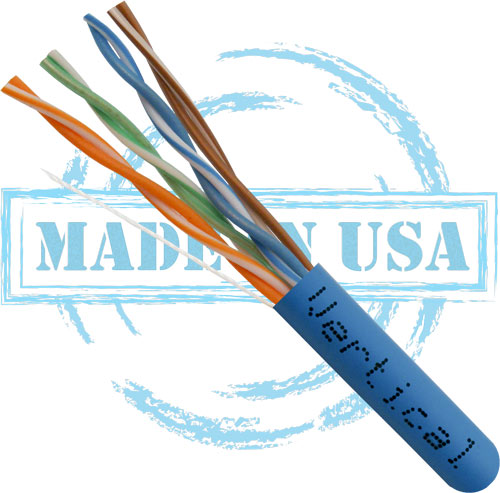

Vertical Cable 1000ft Solid Plenum Cat6 (Slim Type) Cable - 23AWG 550MHz CMP Made in the USA
SKU#: CAT6-1KPLN-USA-BLK
UPC#:845643013013
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- High Grade CAT6 Plenum Cable
- Splineless Construction
- Made in the USA
- FireFold Signature Lifetime Warranty
- Specs+
- Conductor: 23AWG Solid Bare Copper
- Insulation: FEP
- Conductor: 23AWG Solid Bare Copper
- Number of Conductors or Pairs: 4 Pair
- Jacket Material: Low Smoke Flame Retardent Polyvinyl Chloride
- Nominal Overall Cable Diameter: 0.200 inch
- Approximate Cable Weight: 30 lb/1,000 ft
- Temperature Rating: Installation: 0°C to 50°C, Operation: -2°C to 60°C
- Velocity of Propagation: 72%
- Mutual Capacitance: 14 pF/ft Nominal
- Capacitance Unbalance: 330 pF/ft Maximum
- Maximum Conductor D.C.R.: 28.6 /1,000 ft
- Maximum D.C.R. Unbalance: 5%
- Maximum Delay Skew: 45.0ns/100m
- Characteristic Impedance: From 0.772 MHz — 100 MHz: 100 ± 15%, From 101 MHz — 250 MHz: 100 ± 22%
- Color of Pairs: Pair 1: Blue,White-Blue; Pair 2: Orange,White-Orange; Pair 3: Green,White-Green; Pair 4: Brown,White-Brown
- Surface Print: VERTICAL ETL VERIFIED CAT6 TO TIA-568C.2 3147706 CMP 23AWG UTP-C(ETL)US FT6 MADE IN USA V1574 ROHS + Footage Marking
- Certifications: RoHS Compliant, TAA Compliant, CMP-Rated
- SPEC SHEET
- Reviews+
- High Grade CAT6 Plenum Cable
- Splineless Construction
- Made in the USA
- FireFold Signature Lifetime Warranty
- Conductor: 23AWG Solid Bare Copper
- Insulation: FEP
- Conductor: 23AWG Solid Bare Copper
- Number of Conductors or Pairs: 4 Pair
- Jacket Material: Low Smoke Flame Retardent Polyvinyl Chloride
- Nominal Overall Cable Diameter: 0.200 inch
- Approximate Cable Weight: 30 lb/1,000 ft
- Temperature Rating: Installation: 0°C to 50°C, Operation: -2°C to 60°C
- Velocity of Propagation: 72%
- Mutual Capacitance: 14 pF/ft Nominal
- Capacitance Unbalance: 330 pF/ft Maximum
- Maximum Conductor D.C.R.: 28.6 /1,000 ft
- Maximum D.C.R. Unbalance: 5%
- Maximum Delay Skew: 45.0ns/100m
- Characteristic Impedance: From 0.772 MHz — 100 MHz: 100 ± 15%, From 101 MHz — 250 MHz: 100 ± 22%
- Color of Pairs: Pair 1: Blue,White-Blue; Pair 2: Orange,White-Orange; Pair 3: Green,White-Green; Pair 4: Brown,White-Brown
- Surface Print: VERTICAL ETL VERIFIED CAT6 TO TIA-568C.2 3147706 CMP 23AWG UTP-C(ETL)US FT6 MADE IN USA V1574 ROHS + Footage Marking
- Certifications: RoHS Compliant, TAA Compliant, CMP-Rated
- SPEC SHEET
1000ft Solid Cat6 Plenum-Rated Bulk Cable - Made in the USA
Perfect for any networking application where Plenum Rated network cable is a requirement. FireFold's Cat6 Plenum-Rated Bulk Cable is a must-have for any extensive networking installation.
Plenum (CMP) Rated PVC Jacket
Plenum-rated Cat6 cable contains a flame retardant PVC jacket and is designed for cable runs being laid in spaces defined as "Air Plenums", this includes raised flooring systems, air handling ducts, etc. Plenum jackets produce less smoke than traditional PVC jackets.
Solid Cable Design
Designed for more straight-forward, simple installations, this particular style of Solid cable is perfect for most installations where cable runs do not require several bends and twists in the line.
23 AWG
For this particular cable, the gauge is 23 AWG, which is a diameter of about 0.0226 Inches, or 0.573mm. 23AWG is the Industry Standard for any typical network cable installation. American Wire Gauge (AWG) is the standardized gauging system for measuring wire sizes.

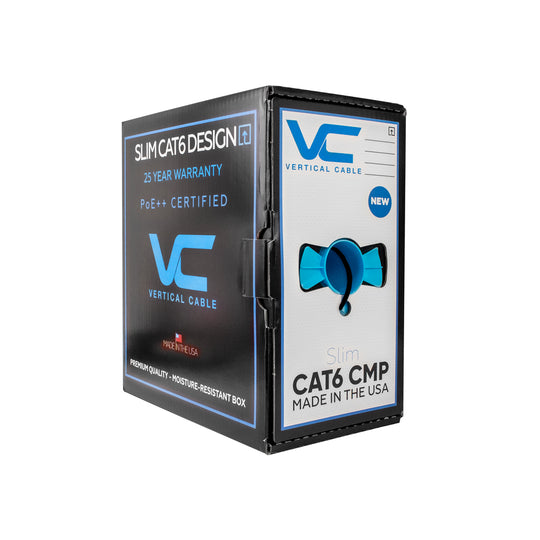

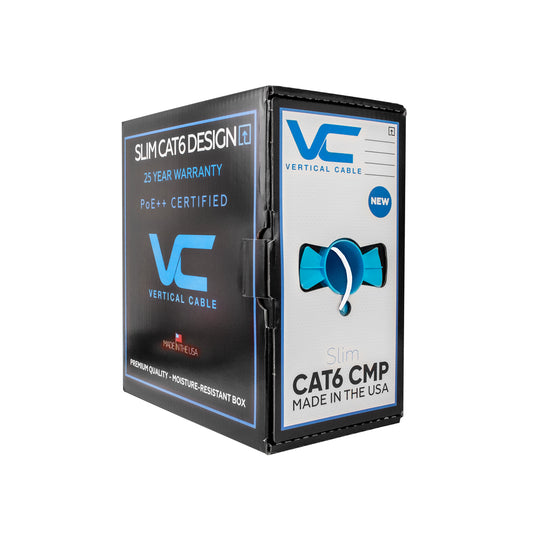

Pull-Through Design
Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason why our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk cable free of kinks and knots while being pulled from the box.
1000ft Solid Cat6 Plenum-Rated Bulk Cable - Made in the USA
Perfect for any networking application where Plenum Rated network cable is a requirement. FireFold's Cat6 Plenum-Rated Bulk Cable is a must-have for any extensive networking installation.
Plenum (CMP) Rated PVC Jacket
Plenum-rated Cat6 cable contains a flame retardant PVC jacket and is designed for cable runs being laid in spaces defined as "Air Plenums", this includes raised flooring systems, air handling ducts, etc. Plenum jackets produce less smoke than traditional PVC jackets.
Solid Cable Design
Designed for more straight-forward, simple installations, this particular style of Solid cable is perfect for most installations where cable runs do not require several bends and twists in the line.
23 AWG
For this particular cable, the gauge is 23 AWG, which is a diameter of about 0.0226 Inches, or 0.573mm. 23AWG is the Industry Standard for any typical network cable installation. American Wire Gauge (AWG) is the standardized gauging system for measuring wire sizes.
Pull-Through Design
Since bulk cable is generally used in intervals, the box that it comes in is almost as important as the cable itself. This is the reason why our boxes are reinforced to provide excellent protection and are made with a simple pull-through design to keep your bulk cable free of kinks and knots while being pulled from the box.
