ICC Cat5E High Density Keystone Jack 25 Pack
SKU#: IC107F5CBK
UPC#:633758036030
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Excellent Performance for Data Networks Requiring Maximum Speed and Bandwidth
- PCB Technology Provides Maximum Performance and Superior Signal Quality
- Specs+
- Current Rating: 1.5 Amps
- Insulation Resistance: 500 mOhms Min
- Contact Resistance: 20 mOhms Max
- DC Resistance: 0.1 ohms Max
- Transmission Performance Exceeds Category 5E Connecting Hardware Requirements Specified in TIA/EIA-568-C.2 When Used With Compatible Horizontal Cable
- Plug Insertion Life: 750 Cycles Min
- Plug & Jack Contact Force: 100 Grams Min Using FCC Approved Plug
- Plug Retention Force: 30 lbs Min
- Temperature: -40°C to 150°F (-40° to 68°C)
- Housing: ABS, UL 94V-0
- Jack Wiring: 50 Micro Inches of Gold Over 100 Micro Inches of Nickel

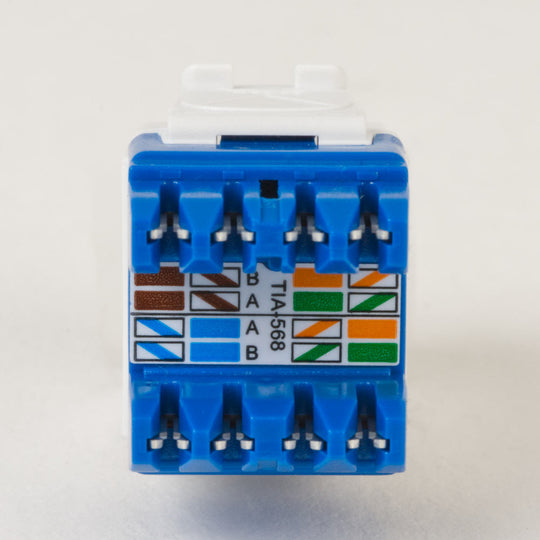

- Connector: Insulation Displacement Connector (IDC) Accepts 23-24 AWG Solid Wire
- Termination Cap Material: PC, UL 94V-0
- Termination Cap Color: Transparent Blue
- SPEC SHEET
- SPEC SHEET
- Package Contents+
- (25) 8P8C Category 5E Modules
- (25) Wire Caps
- Reviews+
- Excellent Performance for Data Networks Requiring Maximum Speed and Bandwidth
- PCB Technology Provides Maximum Performance and Superior Signal Quality
- Current Rating: 1.5 Amps
- Insulation Resistance: 500 mOhms Min
- Contact Resistance: 20 mOhms Max
- DC Resistance: 0.1 ohms Max
- Transmission Performance Exceeds Category 5E Connecting Hardware Requirements Specified in TIA/EIA-568-C.2 When Used With Compatible Horizontal Cable
- Plug Insertion Life: 750 Cycles Min
- Plug & Jack Contact Force: 100 Grams Min Using FCC Approved Plug
- Plug Retention Force: 30 lbs Min
- Temperature: -40°C to 150°F (-40° to 68°C)
- Housing: ABS, UL 94V-0
- Jack Wiring: 50 Micro Inches of Gold Over 100 Micro Inches of Nickel
- Connector: Insulation Displacement Connector (IDC) Accepts 23-24 AWG Solid Wire
- Termination Cap Material: PC, UL 94V-0
- Termination Cap Color: Transparent Blue
- SPEC SHEET
- SPEC SHEET
- (25) 8P8C Category 5E Modules
- (25) Wire Caps

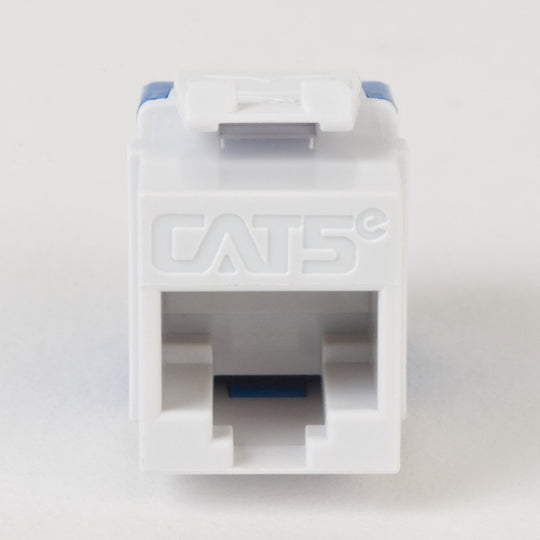

ICC Cat5E High-Density Keystone Jack Blue - FireFold
The ICC IC107F5C Cat5E High-Density Keystone Jack 25 Pack includes 25 8P8C modular keystone jacks. It has a reduced rear footprint for greater connectivity density and more port configurations in smaller areas.
ICC Cat5E High-Density Keystone Jack Blue - FireFold
The ICC IC107F5C Cat5E High-Density Keystone Jack 25 Pack includes 25 8P8C modular keystone jacks. It has a reduced rear footprint for greater connectivity density and more port configurations in smaller areas.
