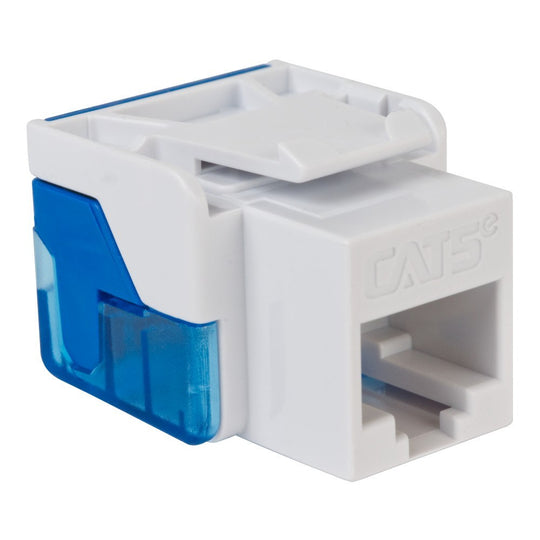

ICC Cat5E EZ Modular Keystone Jack
SKU#: IC1078E5WH
UPC#:633758004107
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Superior Performance and Reliability
- Up to 10dB Headroom, Providing Maximum Bandwidth
- Extremely Easy to Terminate, Simple Installation

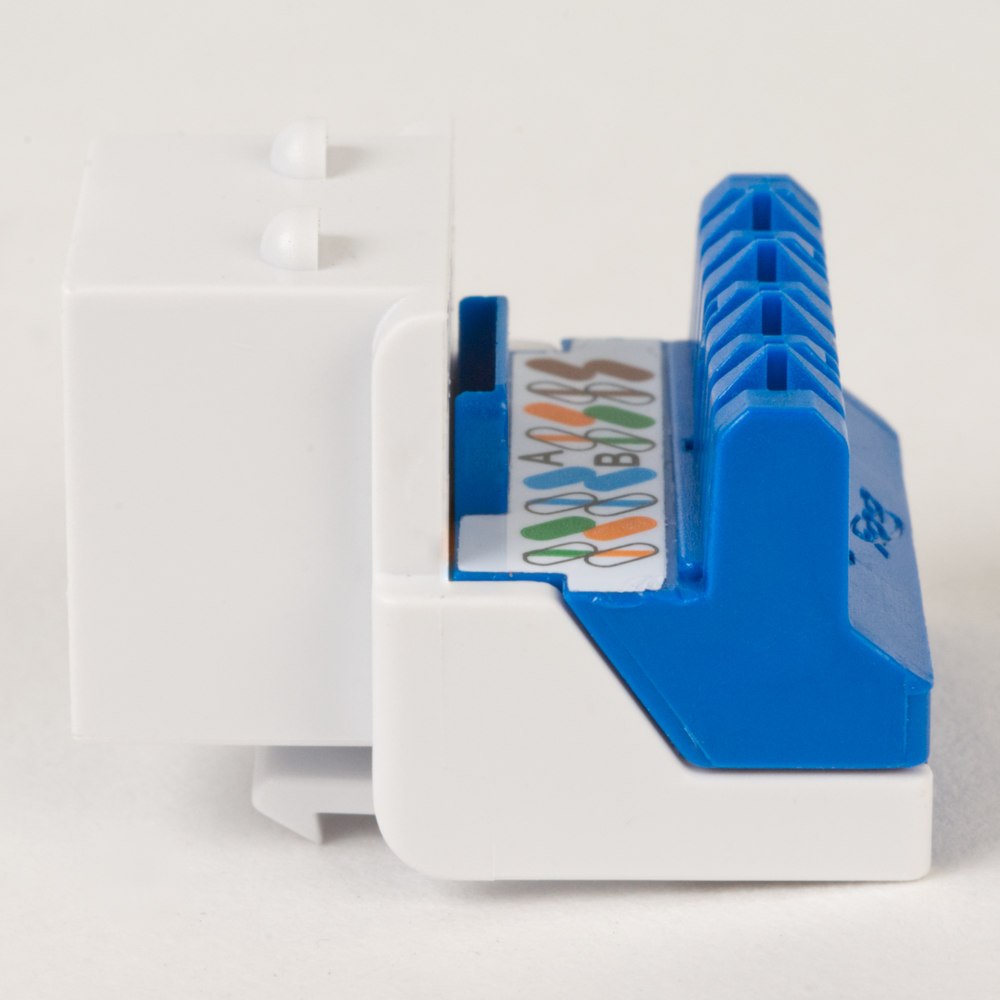

- Includes Integrated TIA568-A/B Color Wiring Diagram
- Backwards Compatible with All Lower Rated Category Components
- Specs+
- Current Rating: 1.5 Amps
- Insulation Resistance: 500 mOhms Min
- Contact Resistance: 20 mOhms Max
- DC Resistance: 0.1 ohms Max
- Exceeds Category 5E Connecting Hardware Requirements
- Plug Insertion Life: 750 Cycles Min
- Plug and Jack Contact Force: 100 Grams Min Using FCC Approved Plug
- Plug Retention Force: 30 lbs Min
- Temperature: -40°F to 150°F (-40°C to 68°C)
- Housing: ABS, UL 94V-0
- Jack Wiring: 50 Micro Inches Gold over 100 Micro Inches Nickel
- Connector: Insulation Displacement Connector (IDC)
- Accepts 22-24 AWG Solid Wire

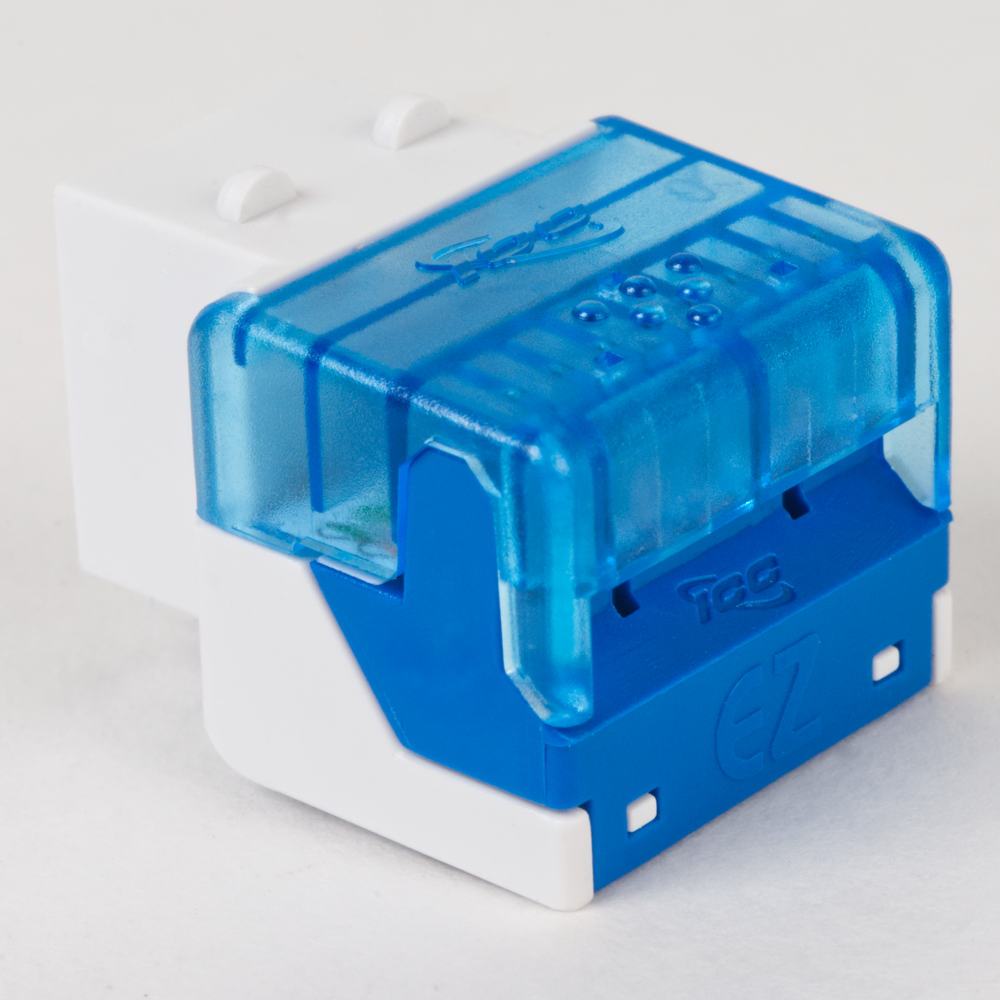

- Termination Cap Material: PC, UL 94V-0
- UL Listed
- INSTALLATION MANUAL
- SPEC SHEET
- Reviews+
- Superior Performance and Reliability
- Up to 10dB Headroom, Providing Maximum Bandwidth
- Extremely Easy to Terminate, Simple Installation
- Includes Integrated TIA568-A/B Color Wiring Diagram
- Backwards Compatible with All Lower Rated Category Components
- Current Rating: 1.5 Amps
- Insulation Resistance: 500 mOhms Min
- Contact Resistance: 20 mOhms Max
- DC Resistance: 0.1 ohms Max
- Exceeds Category 5E Connecting Hardware Requirements
- Plug Insertion Life: 750 Cycles Min
- Plug and Jack Contact Force: 100 Grams Min Using FCC Approved Plug
- Plug Retention Force: 30 lbs Min
- Temperature: -40°F to 150°F (-40°C to 68°C)
- Housing: ABS, UL 94V-0
- Jack Wiring: 50 Micro Inches Gold over 100 Micro Inches Nickel
- Connector: Insulation Displacement Connector (IDC)
- Accepts 22-24 AWG Solid Wire
- Termination Cap Material: PC, UL 94V-0
- UL Listed
- INSTALLATION MANUAL
- SPEC SHEET
ICC Cat5E EZ Modular Keystone Jack - Most Reliable
The ICC IC1078E5 Cat5E EZ Modular Keystone Jack is an 8-position, 8-conductor (8P8C) modular connector. It provides outstanding performance and reliability and supports up to Gigabit Ethernet applications. These keystone jacks are easy to terminate, simplifying installation and reducing work time.
