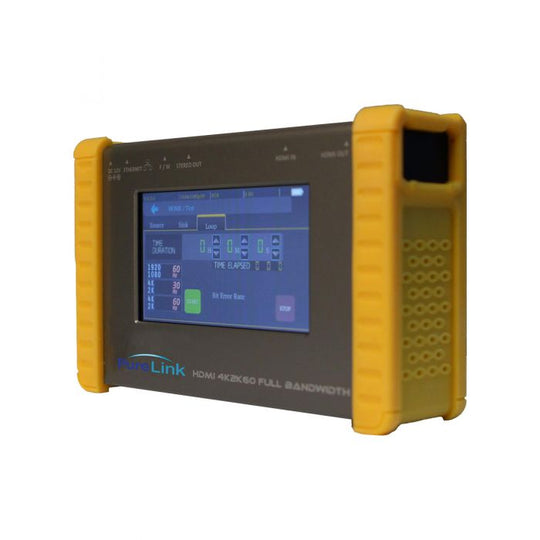

PureLink HDG Pro 4K/HDCP 2.2 Signal Generator & Analyzer w/Touch Panel
SKU#: HDG Pro
UPC#:
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 4K@60Hz 4:4:4 8 bit, 4K@60Hz 4:2:0 16 bit HDR pattern generator & signal analyzer
- Support 18 Gbps bandwidth
- 4.3” touchscreen panel
- Digital audio test function
- Supports HDMI loop through function
- HDCP test function to verify HDCP source and transmit HDCP encrypted video
- Supports user-defined patterns (up to 2Gb)
- Scrambling function or videos over 340MHz
- Video pass-through mode (analyze the signal and monitor the video at the same time)
- Supports third-party device control via Ethernet/LAN
- Rechargeable battery design (up to 4 hours)
- Firmware update through USB flash drive
- Specs+
- Compliance: HDMI 2.0, HDCP 2.2/1.4
- Supported Bandwidth: 18 Gbps
- Supported Resolutions: Up to 4K@50/60Hz (4:4:4)
- Color Space: DVI, RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit, 16-bit
- Digital Audio Test: Built-in PCM audio tone menu (test audio on display devices or A/V receivers) / set bits per sample, sample rate, level and audio channel
- Connector Types:
- Input:
[1] HDMI Type A [19-pin female]
[1] Ethernet [RJ45]
[1] Firmware [USB type A female] - Output:
[1] HDMI Type A [19-pin female]
[1] Stereo Out [3.5mm mini-jack]
- Input:
- Power Supply: 12V 5A
- Operational Temperature: 86°F (30°C) or below
- Relative Humidity: 60% or below RH (non-condensing)
- Dimensions (WxDxH):
- Weight:
- Reviews+
- 4K@60Hz 4:4:4 8 bit, 4K@60Hz 4:2:0 16 bit HDR pattern generator & signal analyzer
- Support 18 Gbps bandwidth
- 4.3” touchscreen panel
- Digital audio test function
- Supports HDMI loop through function
- HDCP test function to verify HDCP source and transmit HDCP encrypted video
- Supports user-defined patterns (up to 2Gb)
- Scrambling function or videos over 340MHz
- Video pass-through mode (analyze the signal and monitor the video at the same time)
- Supports third-party device control via Ethernet/LAN
- Rechargeable battery design (up to 4 hours)
- Firmware update through USB flash drive
- Compliance: HDMI 2.0, HDCP 2.2/1.4
- Supported Bandwidth: 18 Gbps
- Supported Resolutions: Up to 4K@50/60Hz (4:4:4)
- Color Space: DVI, RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit, 16-bit
- Digital Audio Test: Built-in PCM audio tone menu (test audio on display devices or A/V receivers) / set bits per sample, sample rate, level and audio channel
- Connector Types:
- Input:
[1] HDMI Type A [19-pin female]
[1] Ethernet [RJ45]
[1] Firmware [USB type A female] - Output:
[1] HDMI Type A [19-pin female]
[1] Stereo Out [3.5mm mini-jack]
- Input:
- Power Supply: 12V 5A
- Operational Temperature: 86°F (30°C) or below
- Relative Humidity: 60% or below RH (non-condensing)
- Dimensions (WxDxH):
- Weight:
DESCRIPTION
The HDTools™ HDG Pro is an HDMI 2.0 Signal Generator supporting video resolutions up to 4K@60Hz 4:4:4, 18 Gbps bandwidth, and HDCP 2.2. This versatile tool allows integrators and installers to test and verify A/V signal paths with Test Pattern Generator, Signal Analyzer, HDCP Test, EDID Test, and Loop Test functions. The HDG Pro also features a 4.3” touchscreen for controlling the device and viewing the signal from the HDMI input, as well as a 4-hour rechargeable battery providing greater portability and ease of use.
FEATURES
SPECS
Technical Specifications:
Mechanical Specifications:
DESCRIPTION
The HDTools™ HDG Pro is an HDMI 2.0 Signal Generator supporting video resolutions up to 4K@60Hz 4:4:4, 18 Gbps bandwidth, and HDCP 2.2. This versatile tool allows integrators and installers to test and verify A/V signal paths with Test Pattern Generator, Signal Analyzer, HDCP Test, EDID Test, and Loop Test functions. The HDG Pro also features a 4.3” touchscreen for controlling the device and viewing the signal from the HDMI input, as well as a 4-hour rechargeable battery providing greater portability and ease of use.
