PulseAudio Microphone Mixing Extender
SKU#: PA-EXMIX
UPC#:741835117036
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Extends balanced XLR and 3.5 mm stereo audio over a single Cat5e/6 up to 300m/984 ft
- Features Power over Cable (PoC), allowing the extender set to be powered with a single power supply, powered on the receiver end
- Mixing built in with an easy to use dial to mix between the XLR and stereo AUX inputs
- Mic input (XLR) and AUX input with balanced level control
- Supports two types of microphones, Dynamic and Condenser
- 12V Phantom power option
- Ability to cascade with connections for additional PA-TXMIX transmitters (sold separately) to add additional sources
- Dimensions: TX: 5” x 2.9” x 1.6” (126mm x 73mm x 41mm); RX: 3.4” x 2.9” x 1.6” (86mm x 73mm x 41mm)
- Specs+
- Package Contents+
- PA-EXMIX Extender set
- 12V Power Supply
- Mounting screws
- Product Manual
- Reviews+
- Extends balanced XLR and 3.5 mm stereo audio over a single Cat5e/6 up to 300m/984 ft
- Features Power over Cable (PoC), allowing the extender set to be powered with a single power supply, powered on the receiver end
- Mixing built in with an easy to use dial to mix between the XLR and stereo AUX inputs
- Mic input (XLR) and AUX input with balanced level control
- Supports two types of microphones, Dynamic and Condenser
- 12V Phantom power option
- Ability to cascade with connections for additional PA-TXMIX transmitters (sold separately) to add additional sources
- Dimensions: TX: 5” x 2.9” x 1.6” (126mm x 73mm x 41mm); RX: 3.4” x 2.9” x 1.6” (86mm x 73mm x 41mm)
- PA-EXMIX Extender set
- 12V Power Supply
- Mounting screws
- Product Manual
PulseAudio Microphone Mixing Extender

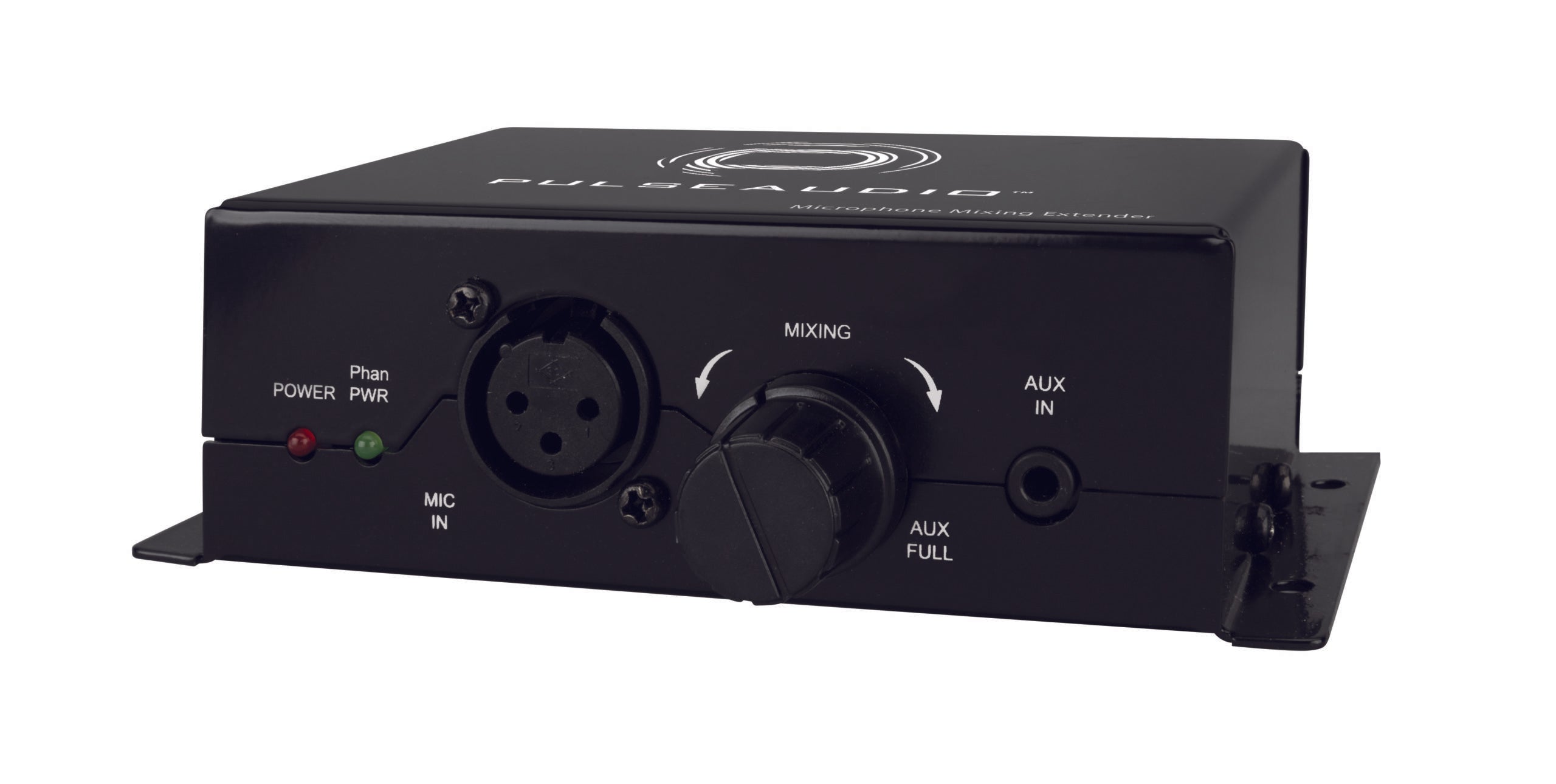

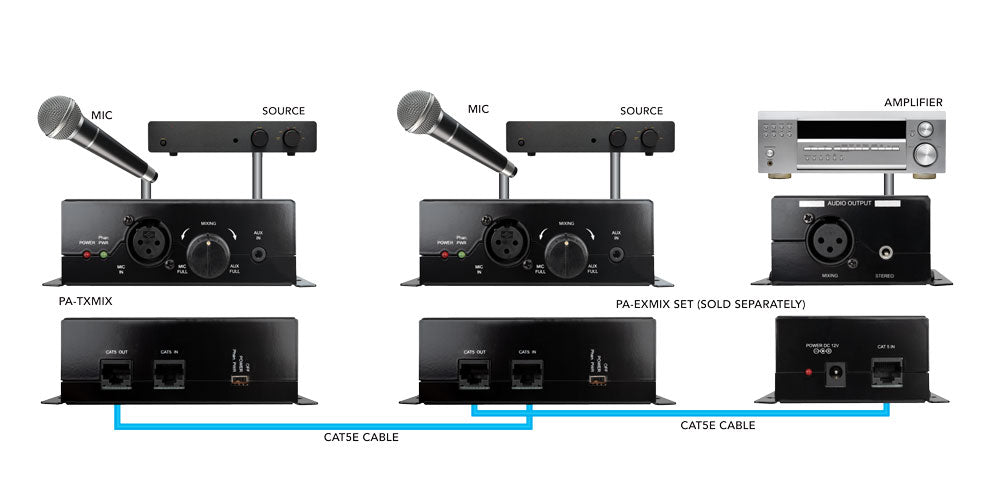

The PulseAudio PA-EXMIX Microphone Mixing Extender over single Cat5e/6 extends analog audio signals up to 300m/984ft . Mixing is done with an easy to use dial on the transmitting unit that is able to mix audio between the XLR and stereo AUX inputs. The PA-EXMIX also utilizes PoC (power over cable) technology so that the transmitter can be powered from the receiver with a single power supply allowing for flexibility. Have more than 2 sources needing to be mixed? No problem as an additional PA-TXMIX (sold separately) can be used and cascaded over a single Cat5e/6 for even larger solutions!

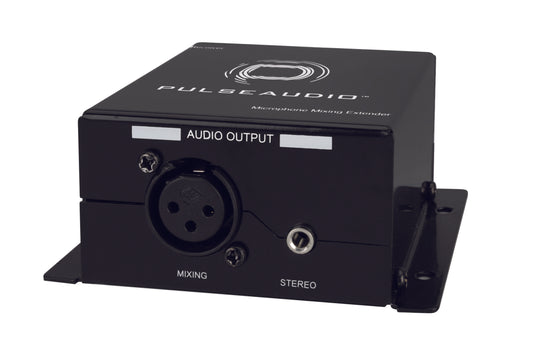

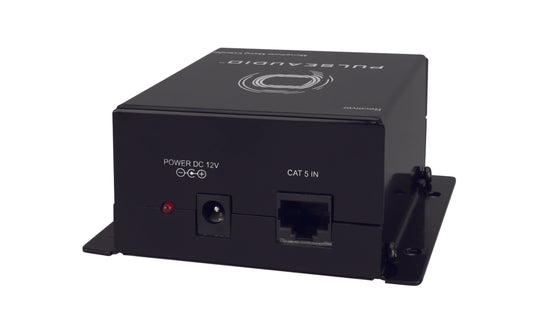

The PA-EXMIX includes two units: transmitting unit (PA-TXMIX) and receiving unit (PA-RXMIX). The transmitting unit is used to capture the audio input(s) and carries the signals over a single Cat5e/6 cable. The receiving unit is responsible for converting the audio signals over the Cat5e/6 cable to a balanced XLR and 3.5mm stereo audio outputs.
PulseAudio Microphone Mixing Extender
The PulseAudio PA-EXMIX Microphone Mixing Extender over single Cat5e/6 extends analog audio signals up to 300m/984ft . Mixing is done with an easy to use dial on the transmitting unit that is able to mix audio between the XLR and stereo AUX inputs. The PA-EXMIX also utilizes PoC (power over cable) technology so that the transmitter can be powered from the receiver with a single power supply allowing for flexibility. Have more than 2 sources needing to be mixed? No problem as an additional PA-TXMIX (sold separately) can be used and cascaded over a single Cat5e/6 for even larger solutions!
The PA-EXMIX includes two units: transmitting unit (PA-TXMIX) and receiving unit (PA-RXMIX). The transmitting unit is used to capture the audio input(s) and carries the signals over a single Cat5e/6 cable. The receiving unit is responsible for converting the audio signals over the Cat5e/6 cable to a balanced XLR and 3.5mm stereo audio outputs.
