Manhattan 4K@60Hz Bi-Directional 2-Port HDMI Switch, 207850
SKU#: 207850
UPC#:766623207850
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Splits an Ultra-High-Definition (UHD) digital audio/video signal to one of two UHD HDMI displays or allows switching between two sources at one display
- 4K@60Hz resolution, full 3D video and Deep Color
- Top-mount push-button to switch between sources or displays
- Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
- Supports 36-bit Deep Color (12-bits per channel) and sYCC Color Space
- Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
- HDCP compliant
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers; also works to capture gameplay on screen
- Plug and play
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
- Specs+
- Package Contents+
- 4K Bi-Directional 2-Port HDMI Switch
- Quick Instruction Guide
- Reviews+
- Splits an Ultra-High-Definition (UHD) digital audio/video signal to one of two UHD HDMI displays or allows switching between two sources at one display
- 4K@60Hz resolution, full 3D video and Deep Color
- Top-mount push-button to switch between sources or displays
- Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
- Supports 36-bit Deep Color (12-bits per channel) and sYCC Color Space
- Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
- HDCP compliant
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers; also works to capture gameplay on screen
- Plug and play
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
- 4K Bi-Directional 2-Port HDMI Switch
- Quick Instruction Guide

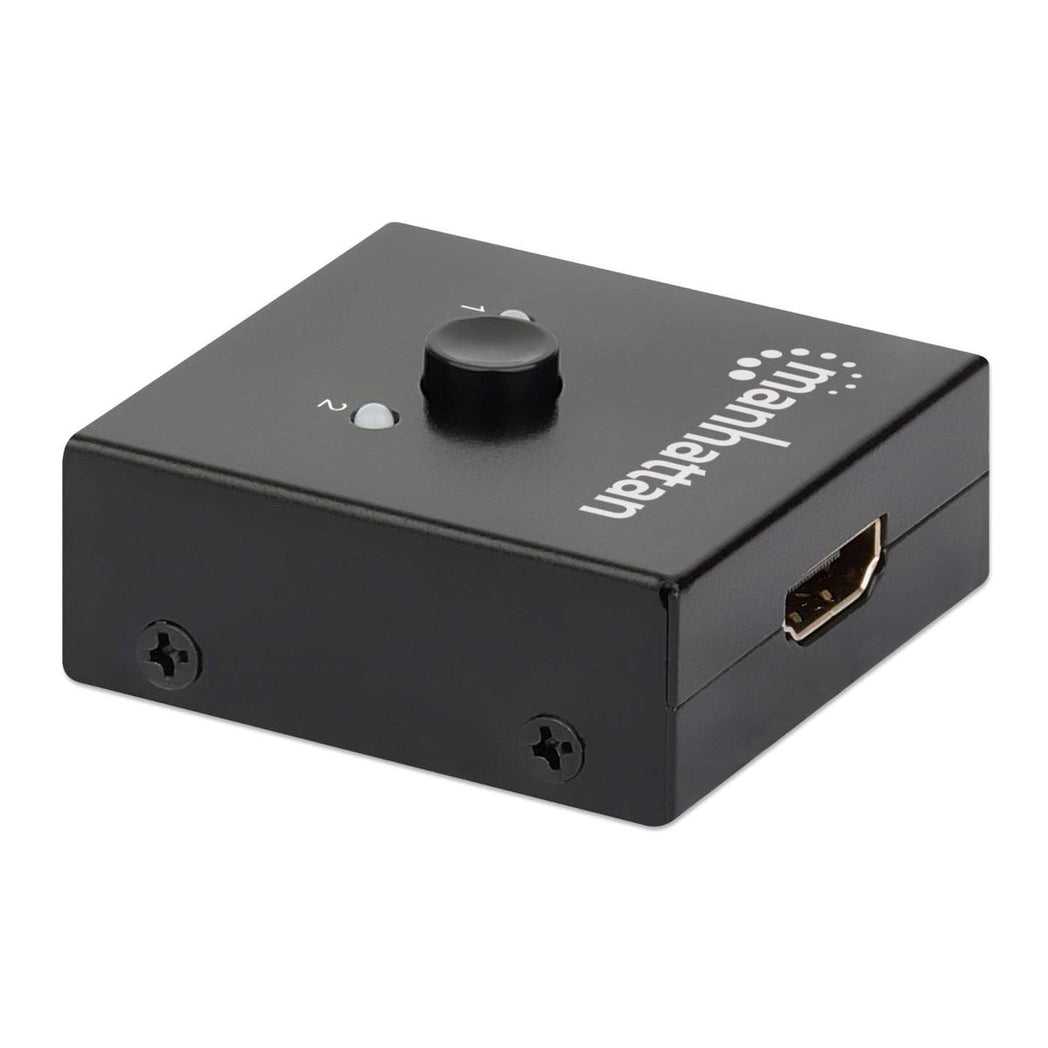

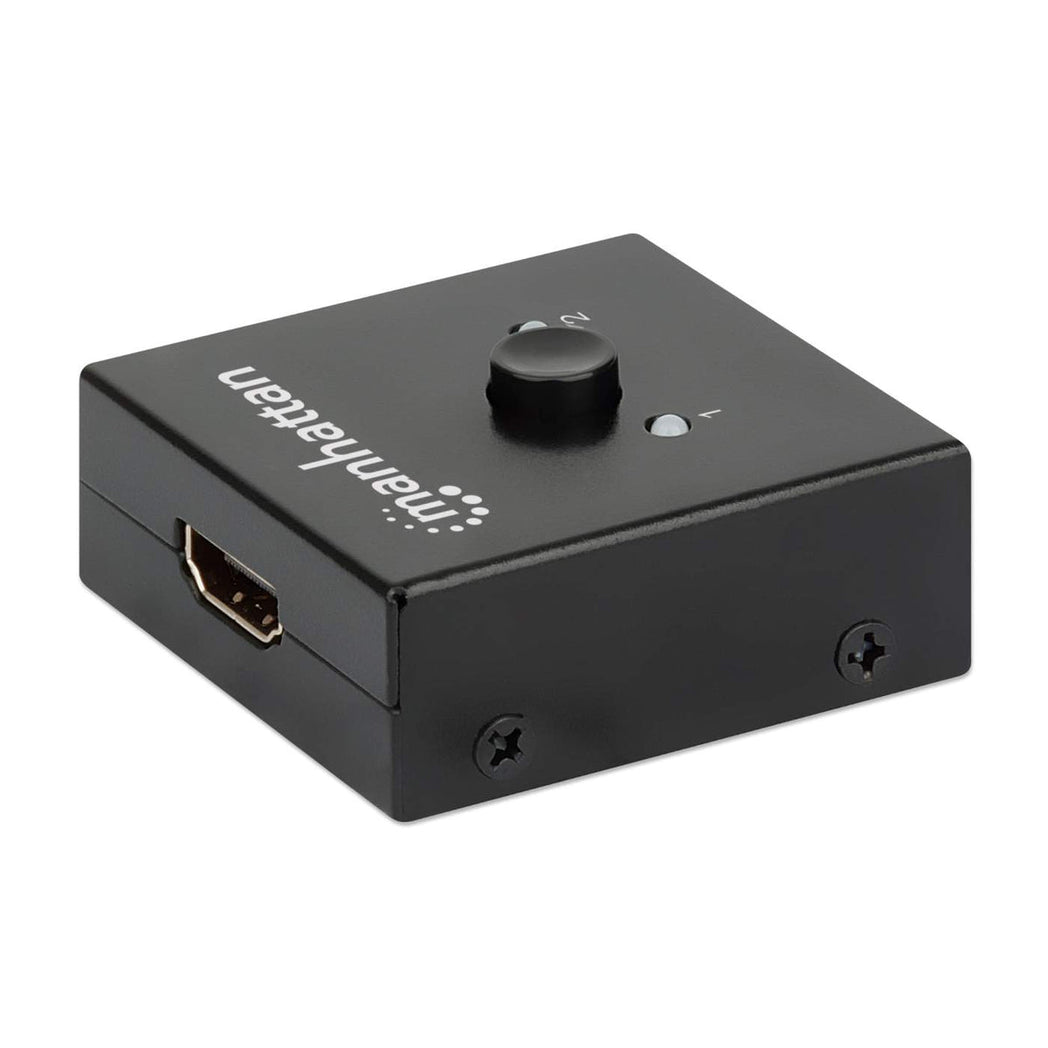

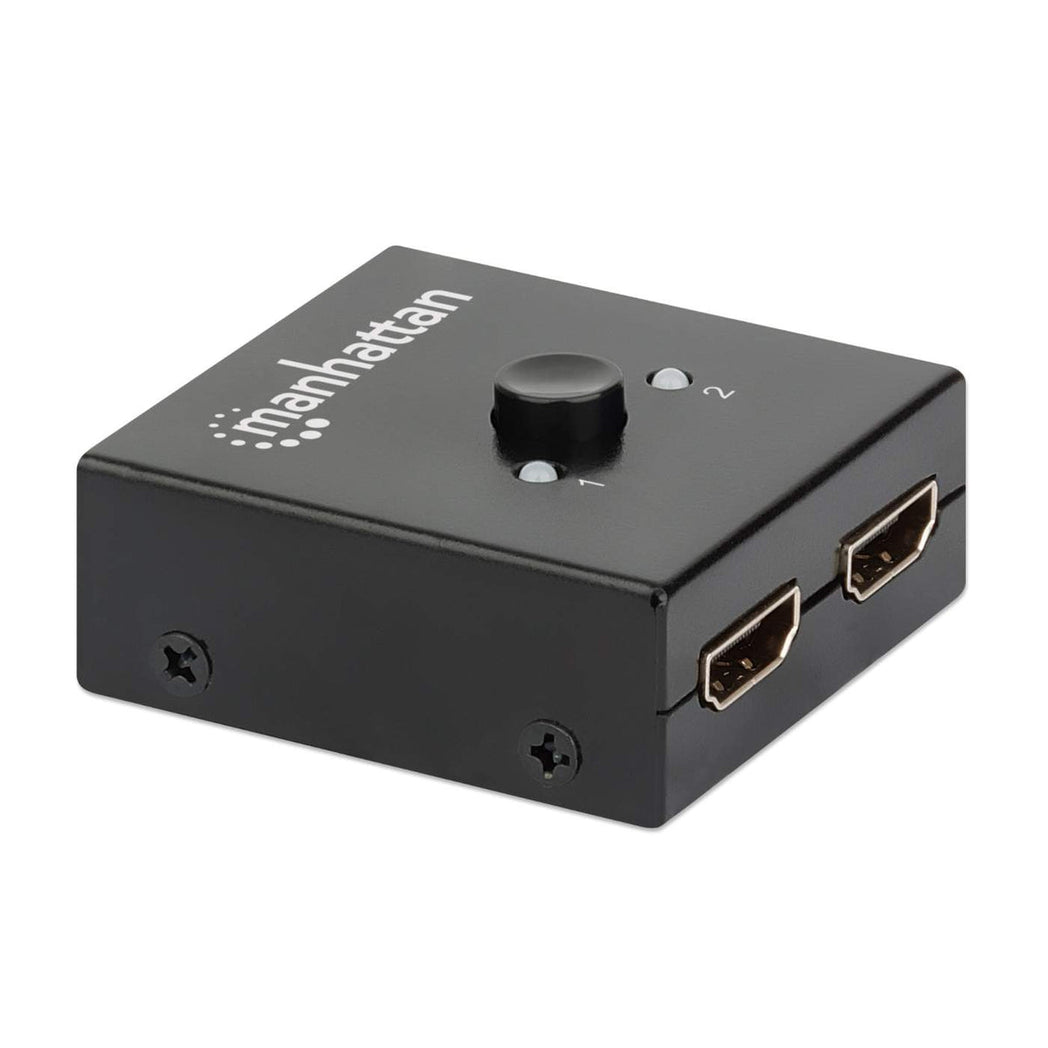

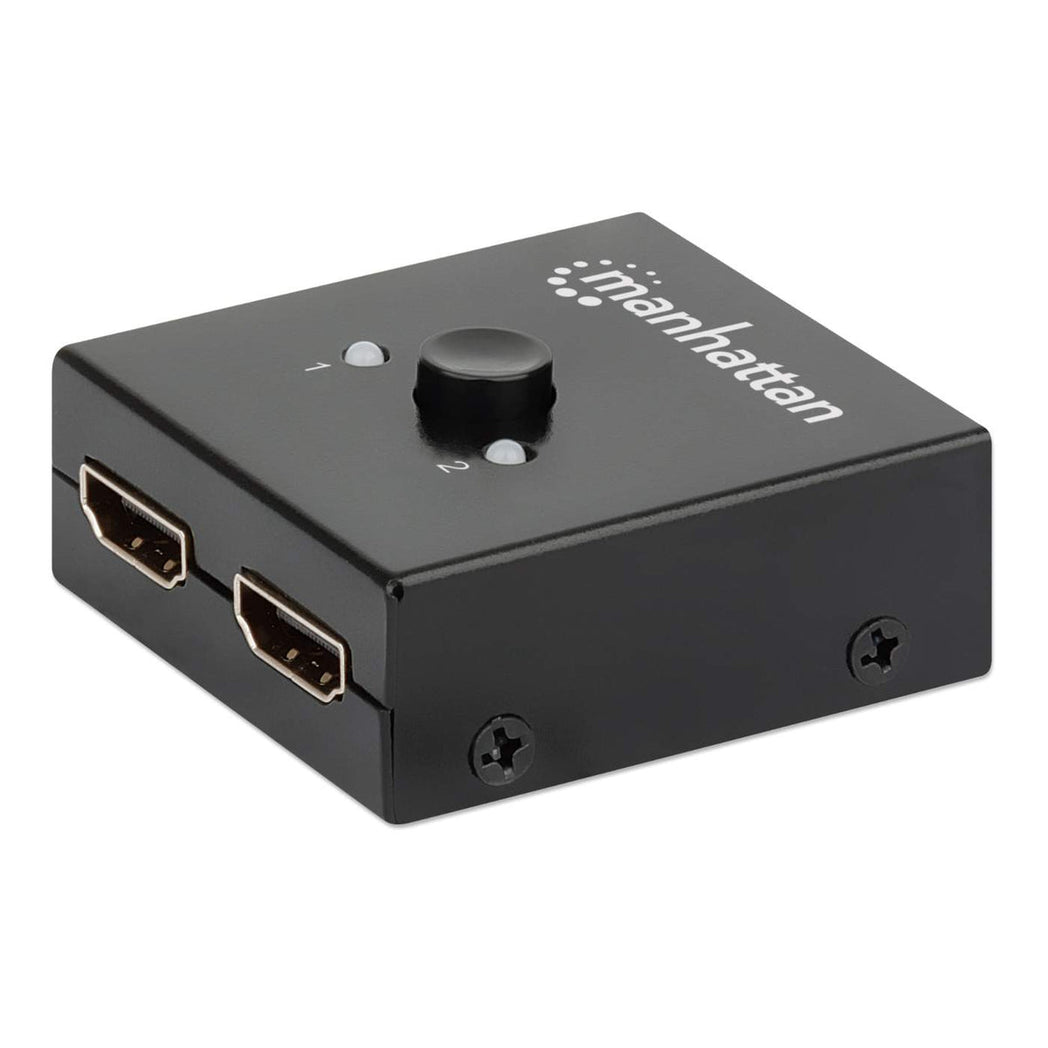

Manhattan 4K@60Hz Bi-Directional 2-Port HDMI Switch
Manual Selection, Passive (No Power Required), Black
Easily share a single Ultra-High-Definition (UHD) signal over two displays or switch between two sources on one display
The Manhattan 4K Bi-Directional 2-Port HDMI Switch with built-in booster makes it possible to share a 4K HDMI signal from a single UHD source on one of two UHD displays or to connect two UHD sources and switch between them on one UHD display.
Best Possible Image Quality and Easy Installation
Full compliance with HDMI and HDCP ensures the Manhattan 4K Bi-Directional 2-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep Color as well as LPCM, DTS and Dolby TrueHD audio. Simply connect the HDMI cables (not included) to the device and create your desired setup. Power is drawn from the HDMI sources to support the signal(s). No software/hardware configuration or complicated settings are required to complete this cost-effective 4K solution.
Standards and Certifications
- HDCP 2.0
- CTS 1.4b
- CE
- FCC
- RoHS
General
- Source-to-splitter and splitter-to-display range: up to 5 m (16 ft.)
- Toggle button positions: up (connects port 1), down (connects port 2)
- Power consumption: 5 volts
Connections

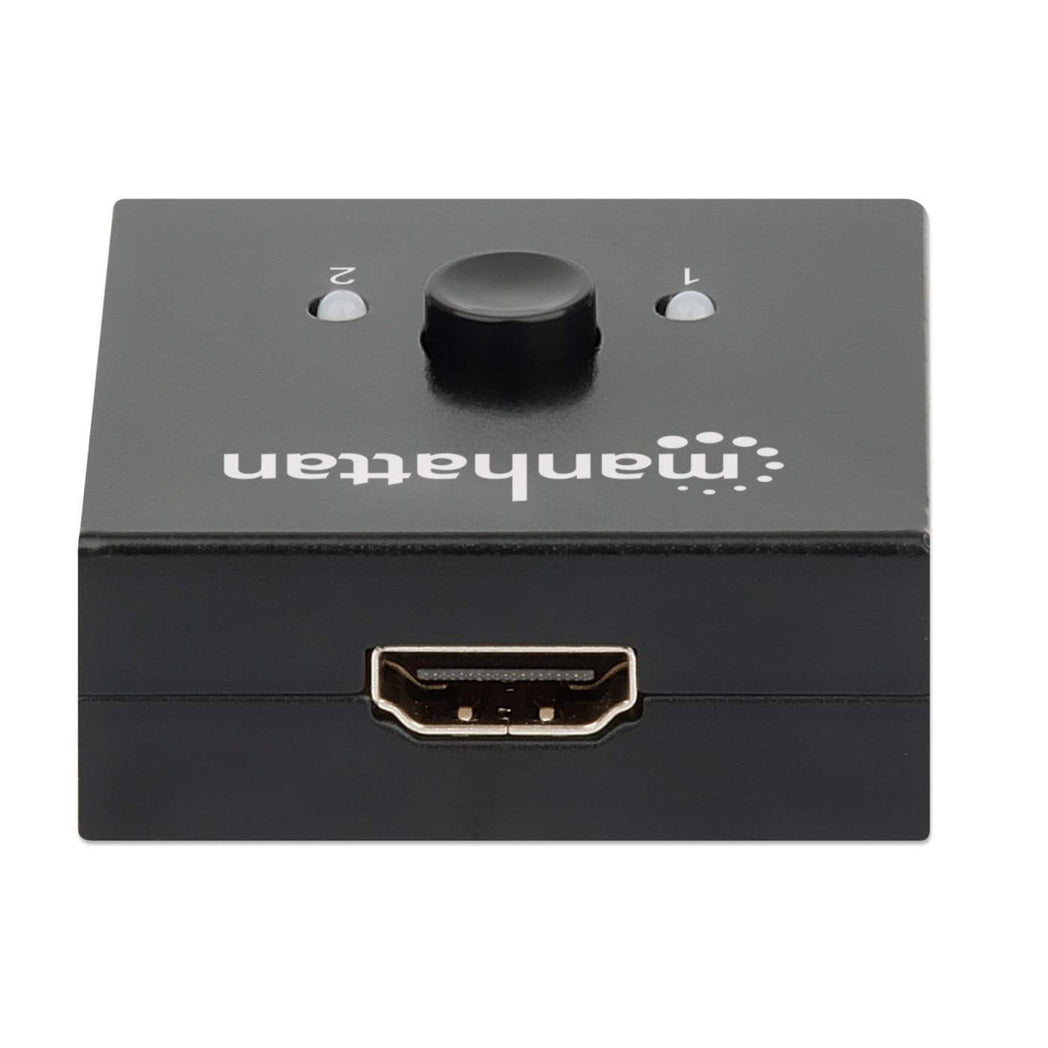

- One HDMI female (input/output)

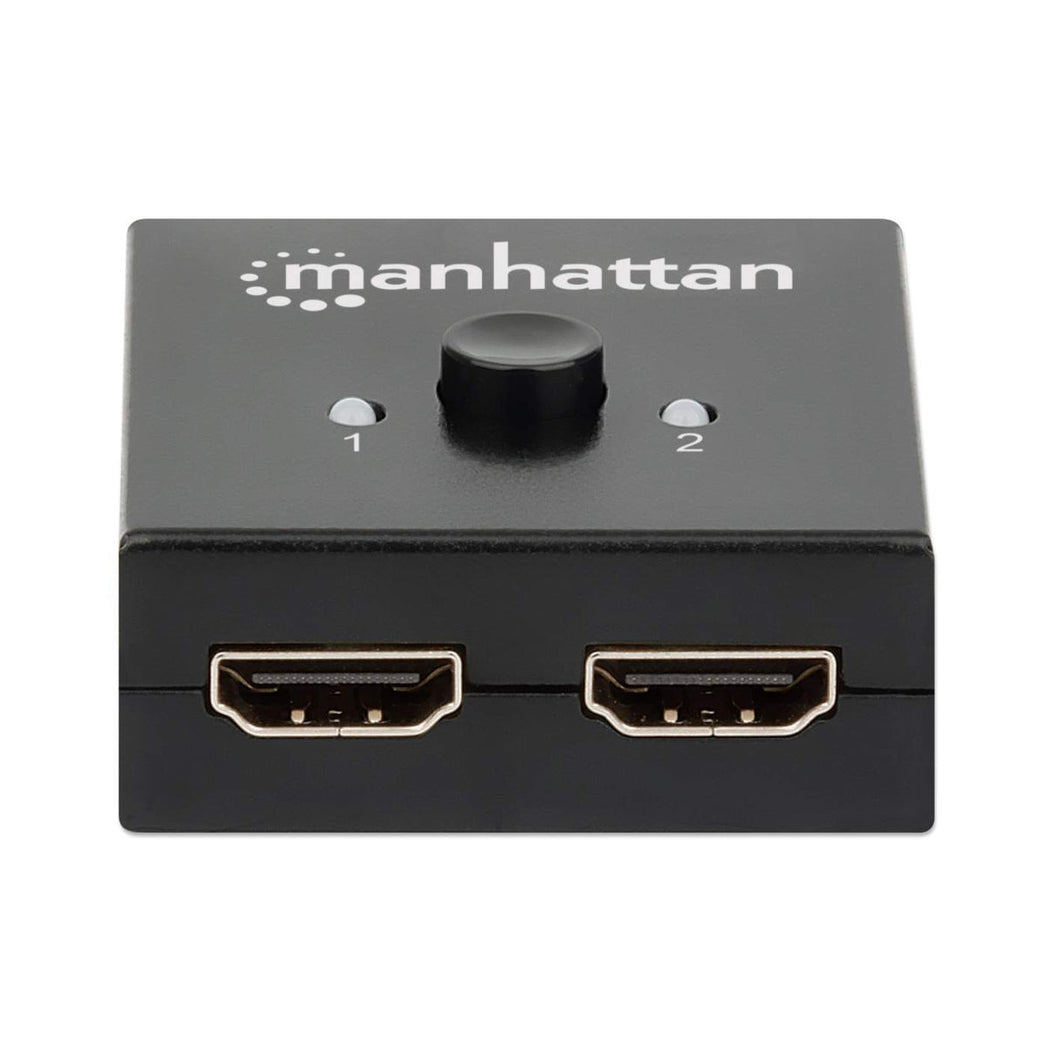

- Two HDMI female (output/input)
Signal Input/Output
- Input video signal: 0.5 – 1.0 V p-p
- Input DDC signal: 5 V p-p (TTL)
- Maximum single-link range: 3840 x 2160 at 30 Hz and 4096x2160 at 24 Hz resolution
- Output video: HDMI 2.0
Supported Video Resolutions
- DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
Physical
- LED indicators: power and port connection
- Toggle button

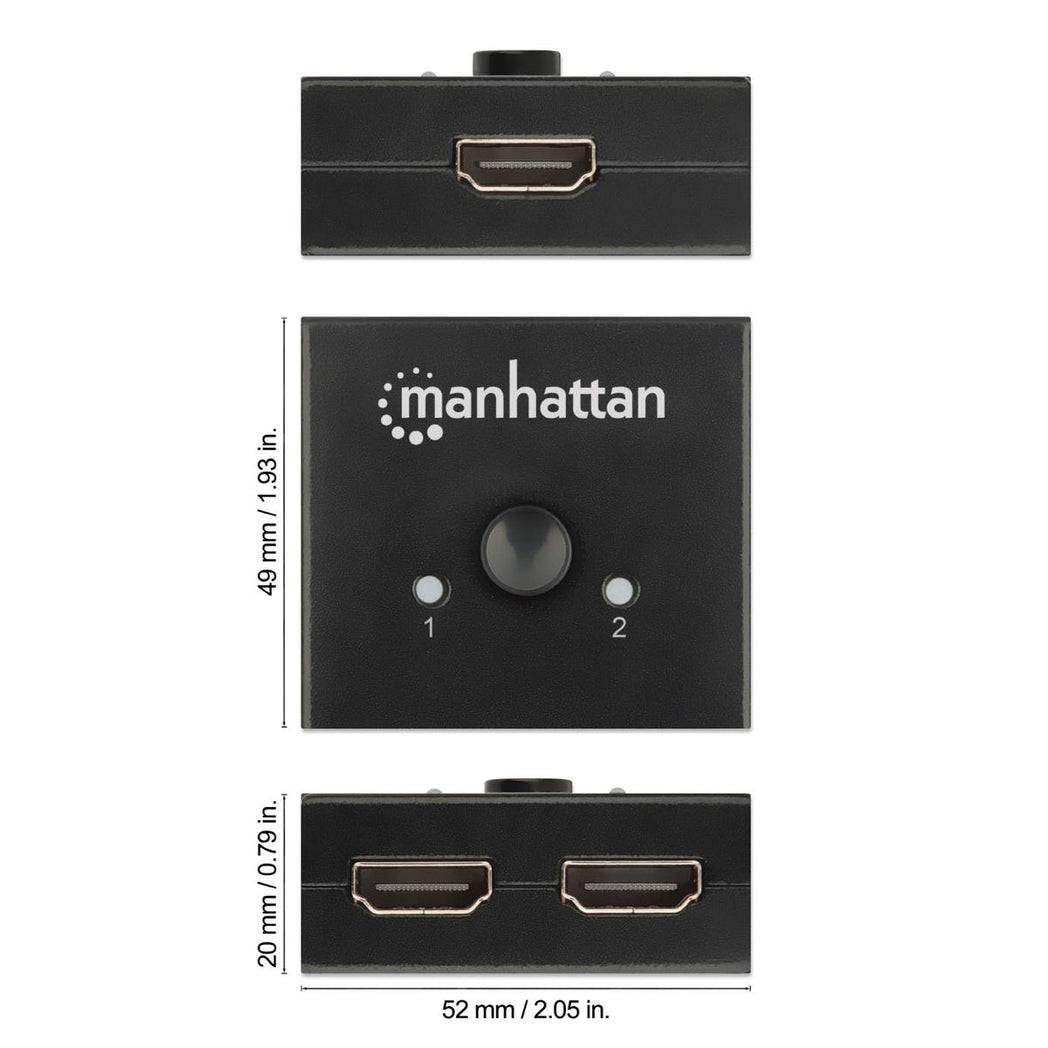

- Dimensions: 49 x 52 x 20 mm (1.9 x 2.1 x 0.8 in.)
- Weight: 0.1 kg (0.7 lb.)
- Housing: metal
Operating Environment
- Operation Temperature: 0 – 40°C (32 – 104°F)
- Storage Temperature: -20 – 60°C (-4 – 140°F)
- Humidity (noncondensing): 0 – 96%
This product is part of a group; the complete list of variations follows:
- #207850 - 4K@60Hz Bi-Directional 2-Port HDMI Switch
- #207997 - 8K@60Hz Bi-Directional 2-Port HDMI Switch
