Intellinet Industrial Gigabit PoE++ Splitter, 508940

SKU#: 508940

UPC#: 766623508940

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: 508940

UPC#:766623508940
$70.99

SKU#: 508940

UPC#:766623508940

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+

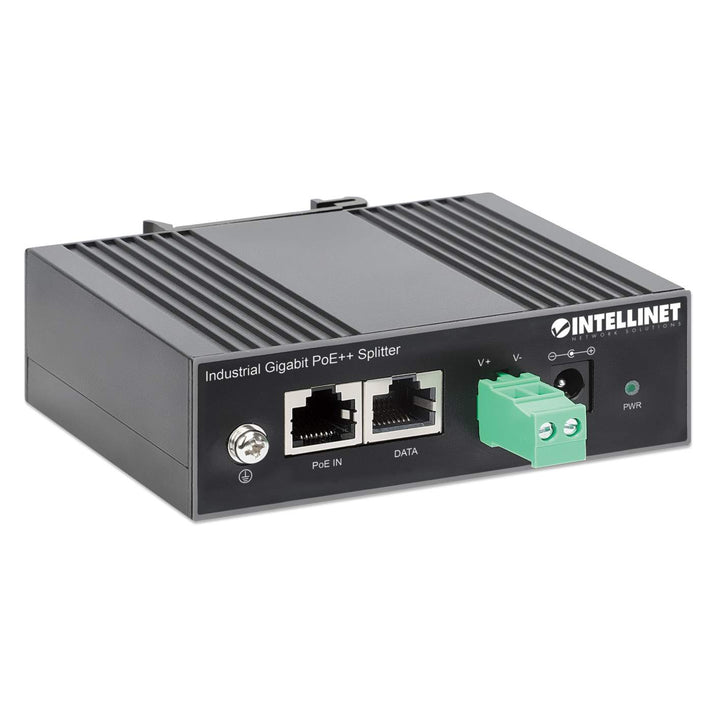

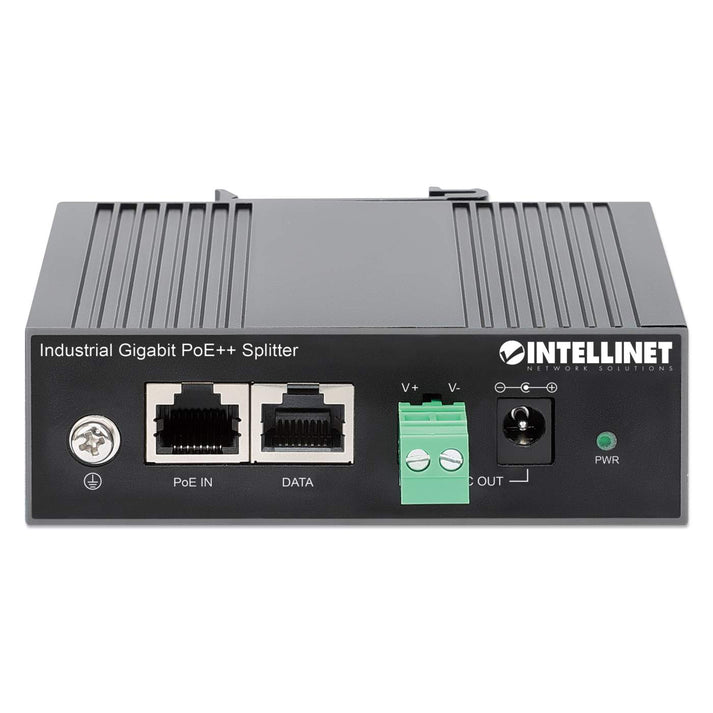

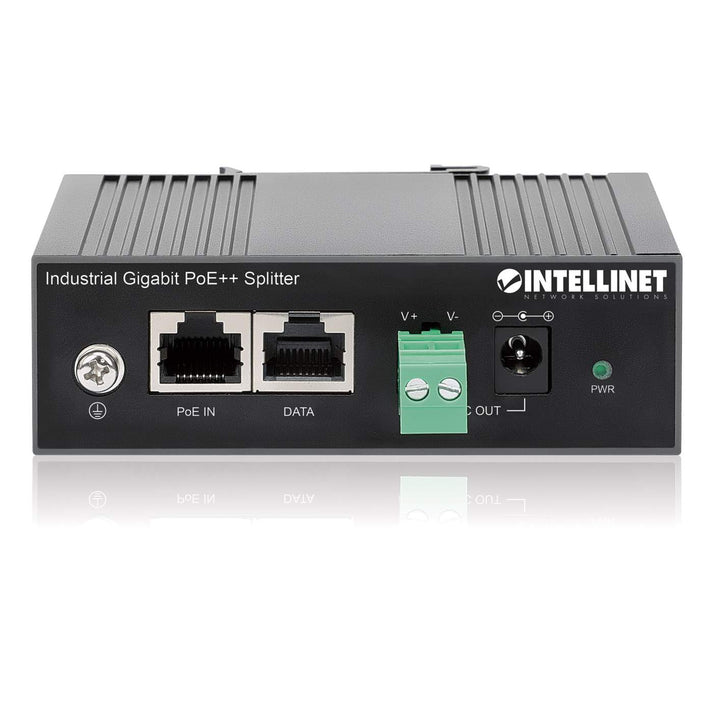

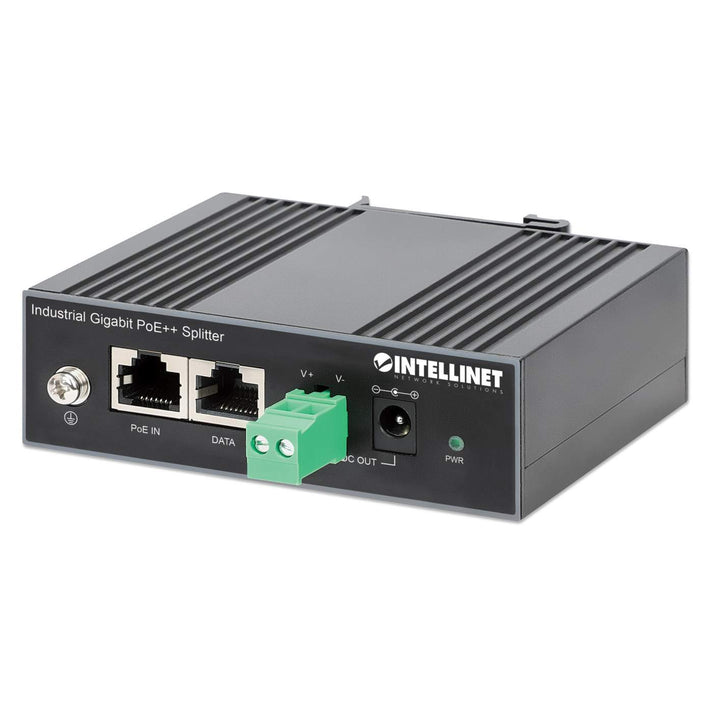

  • Intellinet Industrial Gigabit PoE++ Splitter

    IEEE 802.3bt (4PPoE) Compliant, up to 60 W Input, 12 V / 4.25 A DC Output, IP30-rated Metal Housing, DIN-rail Mount

    Turn a higher-power PoE link into separate DC/terminal-block power and Gigabit data connections

    Need power but don’t have an outlet? Take it from your PoE network with the Intellinet Industrial Gigabit PoE++ Splitter. With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 51 W to a non-PoE device in tough or industrial environments via your choice of output — a 2-pin terminal block or a DC jack — and still provide a gigabit network connection. It’s a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it’s cheaper in both time and money than hiring an electrician.

  • Features+
    • Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
    • Two DC outputs with power up to 12 V / 4.25 A / 51 W via 2-pin terminal block or DC jack
    • One RJ45 input port up to 60 W from an IEEE 802.3bt/at/af-compliant PoE injector or PoE switch (PSE)
    • One RJ45 output port with 10/100/1000 data rates
    • IP30-rated metal housing to withstand harsh industrial conditions
    • Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF)

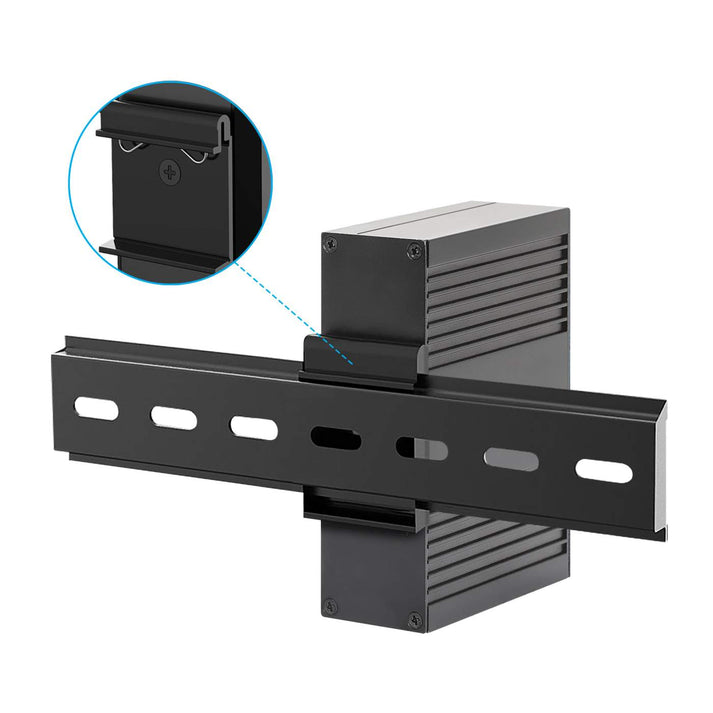

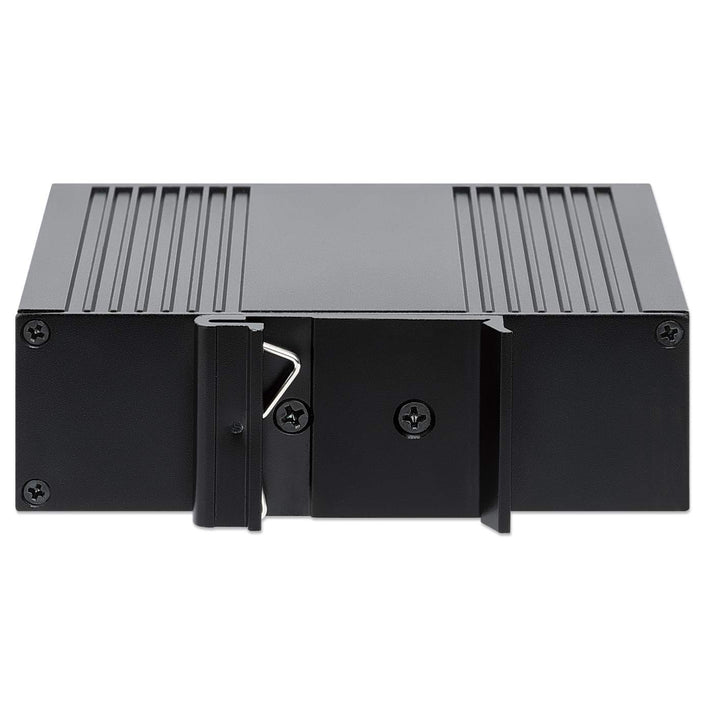

    • Option for DIN-rail installation
    • Distance support: up to 100 m (328 ft.)
    • Short-circuit, overload and high-voltage protection
    • Grounding point to protect equipment from external electrical surges
    • ESD protection up to 8 kV (air) and 6 kV (contact)
    • Port surge protection up to 2 kV
    • Fully NDAA-compliant
    • Three-year warranty
  • Specs+
  • - SPEC SHEET

    Standards and Certifications
    - HDMI 2.1
    - HDCP 2.3
    - CE
    - FCC
    - RoHS
    - REACH
    - UKCA

    General
    - Supported resolutions: 480p/576i/720p/1080i/1080p@240Hz/1440p@144Hz/4K@120Hz/8K@60Hz
    - Max. video bandwidth: 48 Gbps / 1200 MHz
    - Power consumption: 5.0 W (max.)
    - Transmission: one-directional

    Connections/buttons
    - Three HDMI females 19-pin (two inputs, one output)
    - One 5.0 V DC / 1.0 A power female, Micro-USB
    - One Select button

    LEDs
    - Power
    - Input 1
    - Input 2
    - Auto Mode
    - IR Mode

    Physical
    - Dimensions (L x W x H): 90 x 44 x 14 mm (3.54 x 1.73 x 0.55 in.)
    - Net weight: 87 g (3.07 oz.)
    - Gross weight: 185 g (6.53 oz.)
    - Housing: metal

    Operating Environment
    - Operation temperature: 0 - 70°C (32 - 158°F)
    - Storage temperature: -20 - 80°C (-4 - 176°F)
    - Humidity (non-condensing): 5 - 90%

  • Package Contents+
    • Industrial Gigabit PoE++ Splitter
    • DIN-rail mount bracket
    • Instructions
  • Reviews+
  • Intellinet Industrial Gigabit PoE++ Splitter

    IEEE 802.3bt (4PPoE) Compliant, up to 60 W Input, 12 V / 4.25 A DC Output, IP30-rated Metal Housing, DIN-rail Mount

    Turn a higher-power PoE link into separate DC/terminal-block power and Gigabit data connections

    Need power but don’t have an outlet? Take it from your PoE network with the Intellinet Industrial Gigabit PoE++ Splitter. With a simple Ethernet cable connected to your PoE++ Switch or injector, this Splitter can give up to 51 W to a non-PoE device in tough or industrial environments via your choice of output — a 2-pin terminal block or a DC jack — and still provide a gigabit network connection. It’s a great choice for non-PoE cameras, laptops, and other devices that require a power adapter, and it’s cheaper in both time and money than hiring an electrician.

    • Splits an IEEE 802.3bt PoE++ connection into power and Gigabit Ethernet for non-PoE devices
    • Two DC outputs with power up to 12 V / 4.25 A / 51 W via 2-pin terminal block or DC jack
    • One RJ45 input port up to 60 W from an IEEE 802.3bt/at/af-compliant PoE injector or PoE switch (PSE)
    • One RJ45 output port with 10/100/1000 data rates
    • IP30-rated metal housing to withstand harsh industrial conditions
    • Suitable for extreme operating temperatures of -40 to 75ºC (-40 to 167ºF)
    • Option for DIN-rail installation
    • Distance support: up to 100 m (328 ft.)
    • Short-circuit, overload and high-voltage protection
    • Grounding point to protect equipment from external electrical surges
    • ESD protection up to 8 kV (air) and 6 kV (contact)
    • Port surge protection up to 2 kV
    • Fully NDAA-compliant
    • Three-year warranty
