PureLink DVI to 4LC Fiber Transmitter Unit
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Extend 1080p Signal up to 1640ft over Fiber Optic Cable
- Uses 4 Strand LC Multimode Fiber Optic Cable
- Automatic EDID Management - Separate DDC Not Needed
- Transmitter Only - Receiver Sold Separately
- Specs+
- Type of Fiber: 4 Strand 50/125 µm or 62.5/125 µm Multimode
- Connector: 4 Female LC Connectors
- Operating Distance: Up to 1650ft
- Nominal Peak Wavelength: 850 nm (Multimode)
- Transmission Power: -5 dBM, Typical (Multimode)
- Maximum Receiver Sensitivity: -11 dBm, Typical (Multimode)
- Optical Loss Budget: 8 dB, Max (Multimode)
- Maximum Channel Data Rate: 1.65 Gbps per Color
- Pixel Clock: MHz
- Supported Resolutions: Up to 1920 x 1200/1080p @ 60Hz single link (up to 5,000ft), Up to 1280 x 1024/1080i @ 60Hz single link (up to 1,650ft)
- Formats: RGB & YCbCr Digital
- Standard: DVI 1.0
- Video Signal Type: Single Link DVI
- Video Connector: Female DVI-D
- Power Supply: 12V 1A, 5W Max
- Power Consumption: 1W
- Cooling: Convection
- Dimensions: 1.6 x 0.4 x 2.8"
- Package Contents+
- (1) OLC Rx Transmitter Unit
- (1) DC Power Adapter
- (1) User Manual
- Reviews+
- Extend 1080p Signal up to 1640ft over Fiber Optic Cable
- Uses 4 Strand LC Multimode Fiber Optic Cable
- Automatic EDID Management - Separate DDC Not Needed
- Transmitter Only - Receiver Sold Separately
- Type of Fiber: 4 Strand 50/125 µm or 62.5/125 µm Multimode
- Connector: 4 Female LC Connectors
- Operating Distance: Up to 1650ft
- Nominal Peak Wavelength: 850 nm (Multimode)
- Transmission Power: -5 dBM, Typical (Multimode)
- Maximum Receiver Sensitivity: -11 dBm, Typical (Multimode)
- Optical Loss Budget: 8 dB, Max (Multimode)
- Maximum Channel Data Rate: 1.65 Gbps per Color
- Pixel Clock: MHz
- Supported Resolutions: Up to 1920 x 1200/1080p @ 60Hz single link (up to 5,000ft), Up to 1280 x 1024/1080i @ 60Hz single link (up to 1,650ft)
- Formats: RGB & YCbCr Digital
- Standard: DVI 1.0
- Video Signal Type: Single Link DVI
- Video Connector: Female DVI-D
- Power Supply: 12V 1A, 5W Max
- Power Consumption: 1W
- Cooling: Convection
- Dimensions: 1.6 x 0.4 x 2.8"
- (1) OLC Rx Transmitter Unit
- (1) DC Power Adapter
- (1) User Manual

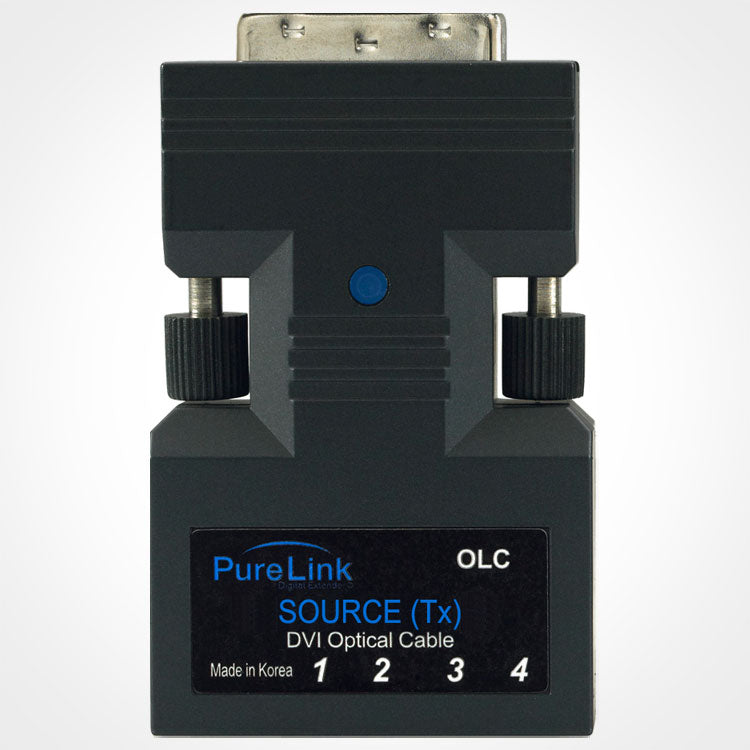

DVI to 4LC Fiber Transmitter Unit
Note: This product has been discontinued and replaced by OLC II Tx.
The PureLink OLC Tx DVI to 4LC Fiber Transmitter Unit extends a high definition 1080p signal up to 1640 feet over four-strand fiber optic cable. Convenient automatic EDID management eliminates the need for a separate DDC connection.
DVI to 4LC Fiber Transmitter Unit
Note: This product has been discontinued and replaced by OLC II Tx.
The PureLink OLC Tx DVI to 4LC Fiber Transmitter Unit extends a high definition 1080p signal up to 1640 feet over four-strand fiber optic cable. Convenient automatic EDID management eliminates the need for a separate DDC connection.
